Version 1:1794 motherboard does not include USB

Dual chip PCM1794+AK4113 luxury decoder DAC (supporting fiber coaxial USB input)

Product details:

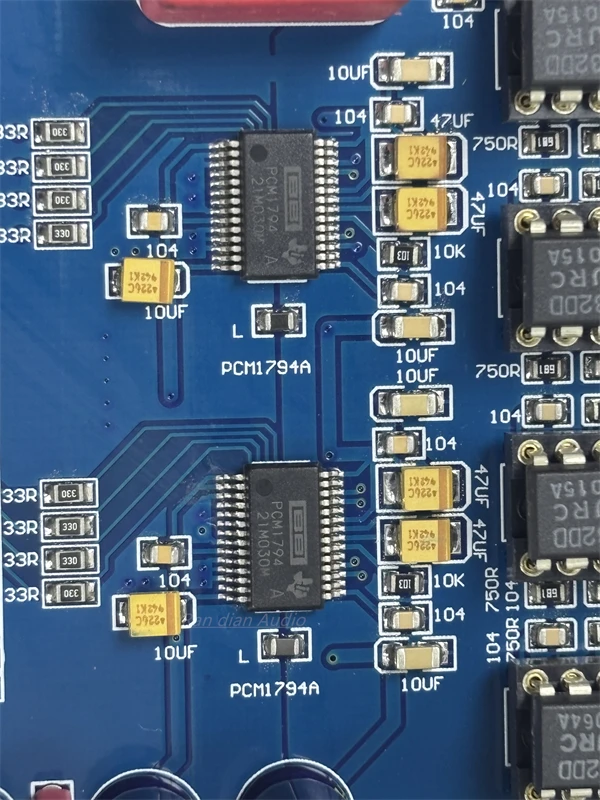

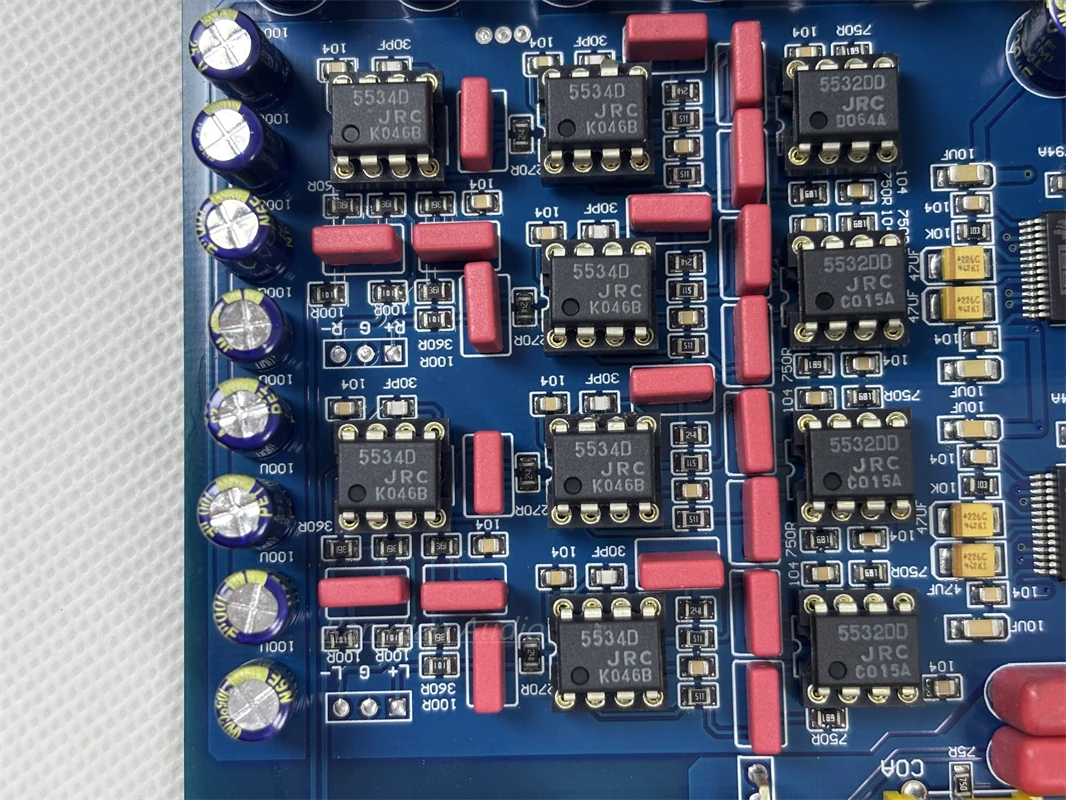

Using original PCM1794 AK4113VF JRC5532 NE5534

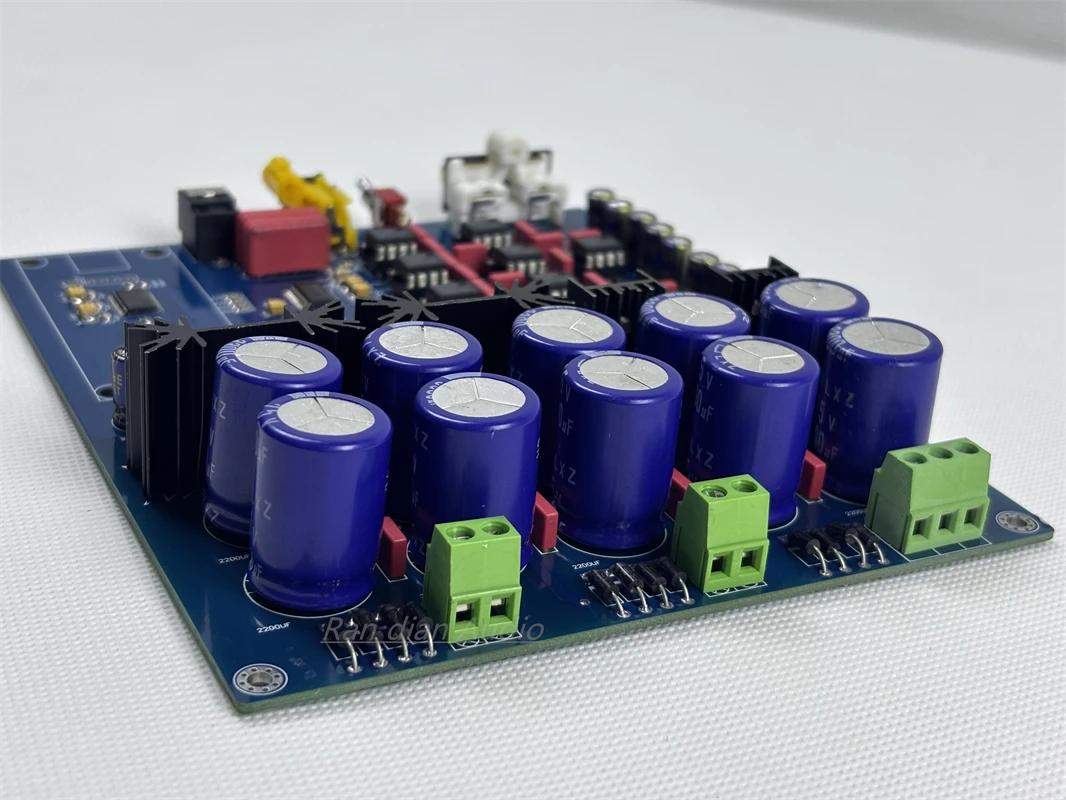

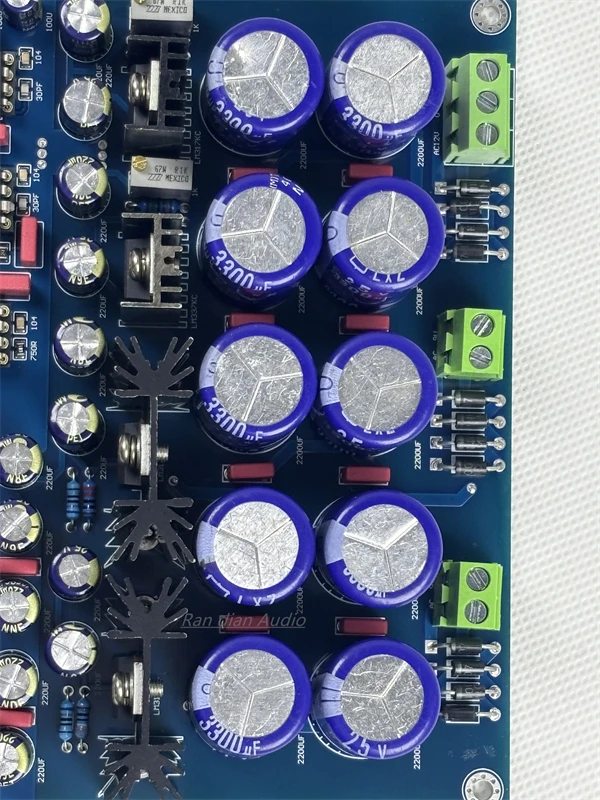

The main circuit of the electrolytic capacitor signal adopts Taiwan, and the main filtering capacitor adopts a special imported Nichicon electrolytic capacitor with a capacity of 3300UF/35V * 10, ensuring strong and continuous power support.

The PCB adopts 1.6mm thick double-sided board, 2.0A copper thickness, and full tin spraying process to ensure good PCB quality with good passing performance of large and small currents.

The signal reception adopts AK4113, which has stable signal and good resolution!

Basic parameters:

Input voltage: AC12V-0-AC12V and two AC9V AC9V

The switch is: fiber coaxial switching

PCB size: 160 * 136MM

Supports 24 BIT 192KH
