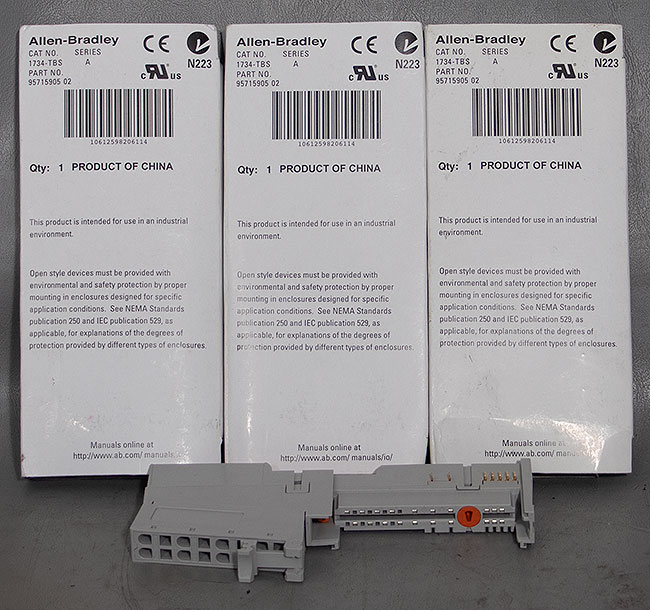

Quantity 3: NEW Allen-Bradley 1734-TBS Terminal Blocks
Comes with what you see in the pictures. If you don't see it, you probably won't get it.
Specifications are from Allen-Bradley and may vary slightly due to upgrades, options, or revisions this unit may or may not have.
MOST ITEMS CAN BE SHIPPED INTERNATIONALLY EVEN THOUGH EBAY'S SITE MAY SAY OTHERWISE. PLEASE CONTACT US FOR A SHIPPING QUOTE. WE CANNOT SHIP TO AN INTERNATIONAL FREIGHT FORWARDER ON SMALLER PACKAGES.
This listing is for a quantity of 3. These are new units.
The Box's Information Tag Reads:
Catalog Number: 1734-TBS
Part Number: 95715905
Series: A
Version: 02
General Specifications:
Dimensions: 65 mm H x 12 mm W x 160 mm D (2.56" x 0.47" x 6.25")
Weight, Approx.: 87.0 g (3.07 oz)
Wire category1, 2: Determined by the installed module
Wire Size: See Allen-Bradley's Wiring without Wire End Ferrule and Wiring with Wire End Ferrule tables for wire size. Use solid or stranded copper wire rated at 75°C (167°F) or higher, with 1.2 mm (3/64") thickness insulation max.
Field Power Bus Supply Voltage: 28.8 VDC, 120/240 VAC
Field Power Bus Supply Current, Max.: 10 A
Signal Terminal Voltage, Max.: 28.8 VDC, 120/240 VAC
Signal Terminal Current, Max.: 2 A
Isolation Voltage: 250 V, Basic Insulation Type, field-side to system, Type tested at 1000 VAC for 60 s
Enclosure Type Rating: None (open-style)
Notes:
1: Use this conductor category information for planning conductor routing as decribed in Industry Automation Wiring and Grounding Guidelines, publication 1770-4.1.
2: Use this conductor category information for planning conductor routing as described in the appropriate System Level Installation Manual.
For Domestic Customers: Packaging, handling, and order processing included in shipping in all domestic shipments as quoted by the shipping calculator. For International Customers there is a $10.00 minimum for packaging, handling, and order processing. International shipping to be determined by destination.
Prior to shipment I will need to know the following information (filled out on a form that I will send you) for International Customers or Packages/Freight being Forwarded internationally. International customers may also be subject to a freight forwarder form if applicable.:
(1) Are you the end-user of this item?
(2) If you are not the ultimate end-user of the item, please state the ultimate end user's name.
(3) What is the ultimate country destination?
