8" 400 Watt RMS 4-Ohm Mid-Range Loudspeaker XL Series XL800-4 DS18

Amplifiers Batteries Tweeter SubWoofers Marine Loud Speakers

Description

DS18 8" XL Series Mid-Range Loudspeaker 400 Watts Rms 4-Ohm XL800-4


This Listing Inlcudes:



  • (1) 8" XL Series Mid-Range Loudspeaker 400 Watts Rms Speaker


DS18’s 8XL800-4 redefines audio excellence with power and precision. This 8-inch mid-range loudspeaker, available in 4-ohm and 8-ohm, ensures seamless integration with diverse audio systems. Boasting 400W RMS and 800W MAX power, it delivers a captivating sound experience with a 60Hz-8KHz frequency response, capturing nuances across music genres. Crafted with a 2" Kapton voice coil, non-pressed paper cone, and a satin black aluminum basket, this speaker combines durability with optimal sound reproduction. The 56oz ferrite magnet ensures powerful and accurate bass responses, elevating your audio game.


Specifications:



  • SKU: 8XL800-4

  • Nominal Diameter: 8" / 203mm

  • Nominal Impedance: 4 Ohm

  • RMS Power Handling: 400 watts

  • MAX Power Handling: 800 watts

  • Sensitivity (1w/1m): 99dB

  • Frequency Response: 60Hz-8KHz

  • Recommended HI Pass Crossover: 90Hz

  • Sold in Pair or Single: Single

  • Grill Included: No


Motor:



  • Voice Coil Diameter: 2" / 50.8mm

  • Voice Coil Former Material: Kapton

  • Winding Material: CCAW

  • Cone Material: Non-pressed Paper

  • Dust Cap Material: Paper

  • Bullet Material: N/A

  • Bullet Color/Finish: N/A

  • Surround Material: Cloth

  • Basket Material: Aluminum

  • Basket Color/Finish: Satin Black

  • Magnet Material: Ferrite

  • Magnet Weight: 56 Oz

  • Displacement Volume: 0.85L / 0.03ft3


THIELE & SMALL PARAMETERS:



  • Equivalent Volume: 14.8L / 0.52ft3

  • Excursion (one way): 2.3mm

  • Free Air Resonance: 90Hz

  • Mechanical Factor: 4.251

  • Electrical Factor: 0.356

  • Total Factor: 0.328

  • Mechanical Mass: 15.784g

  • Mechanical Compliance: 0.23mm/N

  • BL Factor: 8.93

  • Voice Coil Inductance: 0.05mH

  • Cone Area: 211.24cm

  • DC Resistance: 3.2 ohm

  • Mechanical Mass w/o air: 18g

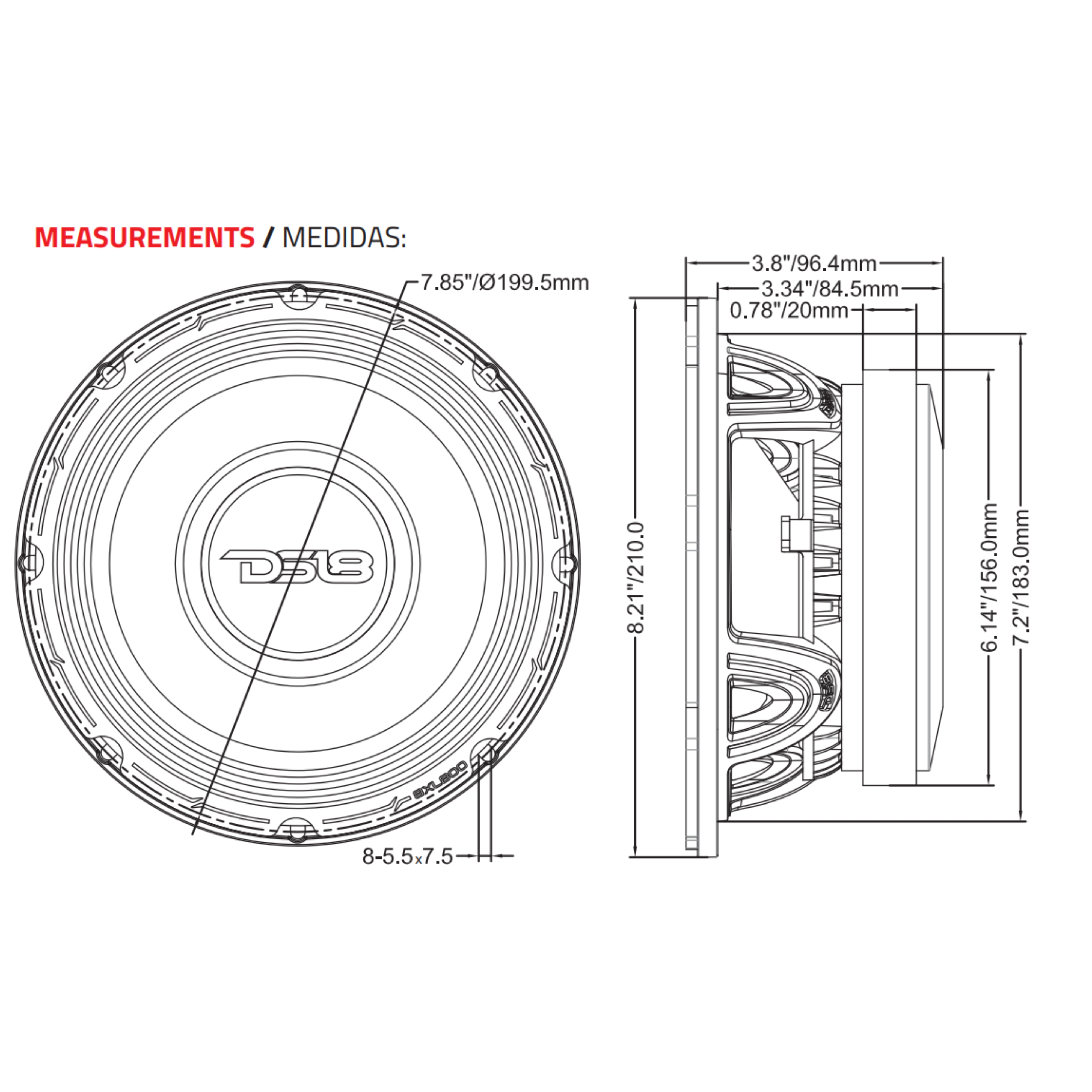

MEASUREMENT:



  • Overall Diameter: 8.2" / 210mm

  • Overall Depth: 3.8" / 96.4mm

  • Front Mount Baffle Cutout: 7.2" / 183mm

  • Mounting Depth: 3.34" / 84.5mm

  • Motor Diameter: 6.14" / 156mm
