Features:
Capacitor discharge mode: 1200V/15A IGBT discharge is faster and safer.
Capacitor capacity: V4.0 capacitor discharge pen can be used for 4700uF/450V and below capacitor discharge. Generally, the higher the voltage on the capacitor, the lower the discharge capacity.
Discharge voltage range: AC 8-630V/DC 12-900V. (The discharge test in the video uses a 1980uF 320V capacitor)
Discharge time: less than 40 seconds. After 40 seconds of continuous discharge, let the discharge rest for a while before continuing to discharge.
Probe length: 110CM/43.3IN
With LED indicator and buzzer
The red and black probes are made of silicone and have super flexibility even in the cold . There is no distinction between positive and negative poles, and the positive and negative poles can be connected freely. Just connect it to the two poles of the capacitor.
Use: Used to discharge high-voltage AC/DC or energy storage capacitors such as high-voltage UPS.
Specifications:

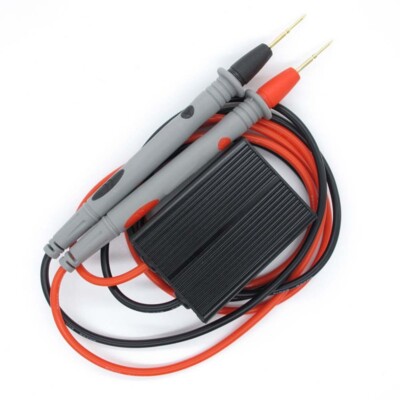

Part Name: Discharge Pen
Material: ABS，Aluminum alloy casing
Color: Black and Red
Size: Probe Length 110cm
Difference: A: V4.0 Normal Tip B: V4.0 Extra Fine Tip
Q&A
How to choose the right capacitor discharge tool?
Since there are many types of capacitors (I mean different UF/power supply voltage), we can't simply check the power supply voltage, but should actually check the UF/power supply voltage together, because a higher power supply voltage means it can be discharged at a lower UF. That's we clearly define the capacitance UF/power supply voltage (V1.0, V2.0, V3.0 and V4.0) of each capacitor discharge pen to for ensure that customers can buy the discharge pen that suits your application. If you still have questions about the choice, please feel to leave a message and I will reply you within 24 hours.
Package Contents:
1 * 1 V4.0 High Voltage Capacitor Discharge Pen with LED Indicator and Buzzer.
Note:
After the LED indicator and buzzer are turned off, it is necessary to continue discharging for about 10 seconds to for ensure that the remaining power has been discharged.
