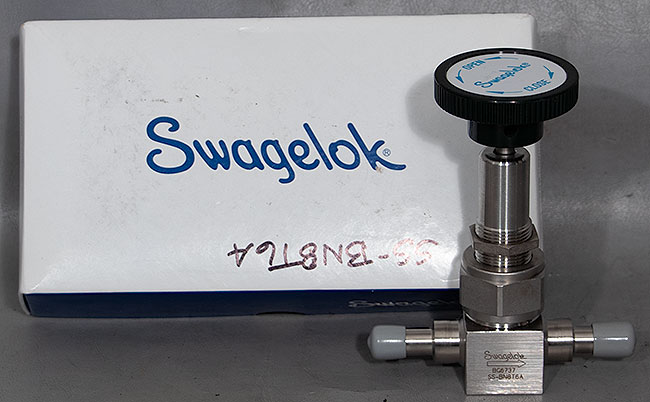

NEW Swagelok SS-BN8T6A 3/8" Manual Stainless Steel Bellows-Sealed Valve
Comes with what you see in the pictures. If you don't see it, you probably won't get it.
Specifications are from Swagelok and may vary slightly due to upgrades, options, or revisions this unit may or may not have.
MOST ITEMS CAN BE SHIPPED INTERNATIONALLY EVEN THOUGH EBAY'S SITE MAY SAY OTHERWISE. PLEASE CONTACT US FOR A SHIPPING QUOTE. WE CANNOT SHIP TO AN INTERNATIONAL FREIGHT FORWARDER ON SMALLER PACKAGES.
This unit is new, old stock surplus but the packaging has been opened. It is guaranteed to work.

The Unit's Information Reads:
Catalog Number: SS-BN8T6A
Serial Number: BG6737

Features:

  • Packless valves with all-metal seal to atmosphere
  • Working pressure up to 500 psig (34.4 bar)
  • Temperatures up to 200°F (93°C)
  • 3/8 tube-weld end connections

    • Specifications:
    Orifice: 0.275 in (6.95 mm) - Measured with a caliper.
    Flow Coefficient1: 0.70 Cv
    Internal Volume1: 0.27 in3 (4.4 cm3
    Valve Ratings:
      Pressure: Vacuum to 500 psi (34.4 bar)
      Temperature: -40°F to +200°F (-40°C to +93°C)
    End Connections:
      Type: Tube weld ends
      Size: 3/8 in.
    Dimensions:
      Height (Open): 4.42 in. (112 mm)
      Body Width: 3.40 in. (86.4 mm)
      Depth: 1.13 in. (28.7 mm)
      Handle Diameter: 1.88 in. (47.8 mm)
    Notes:
      1: Determined using values with male VCR fitting end connections.
