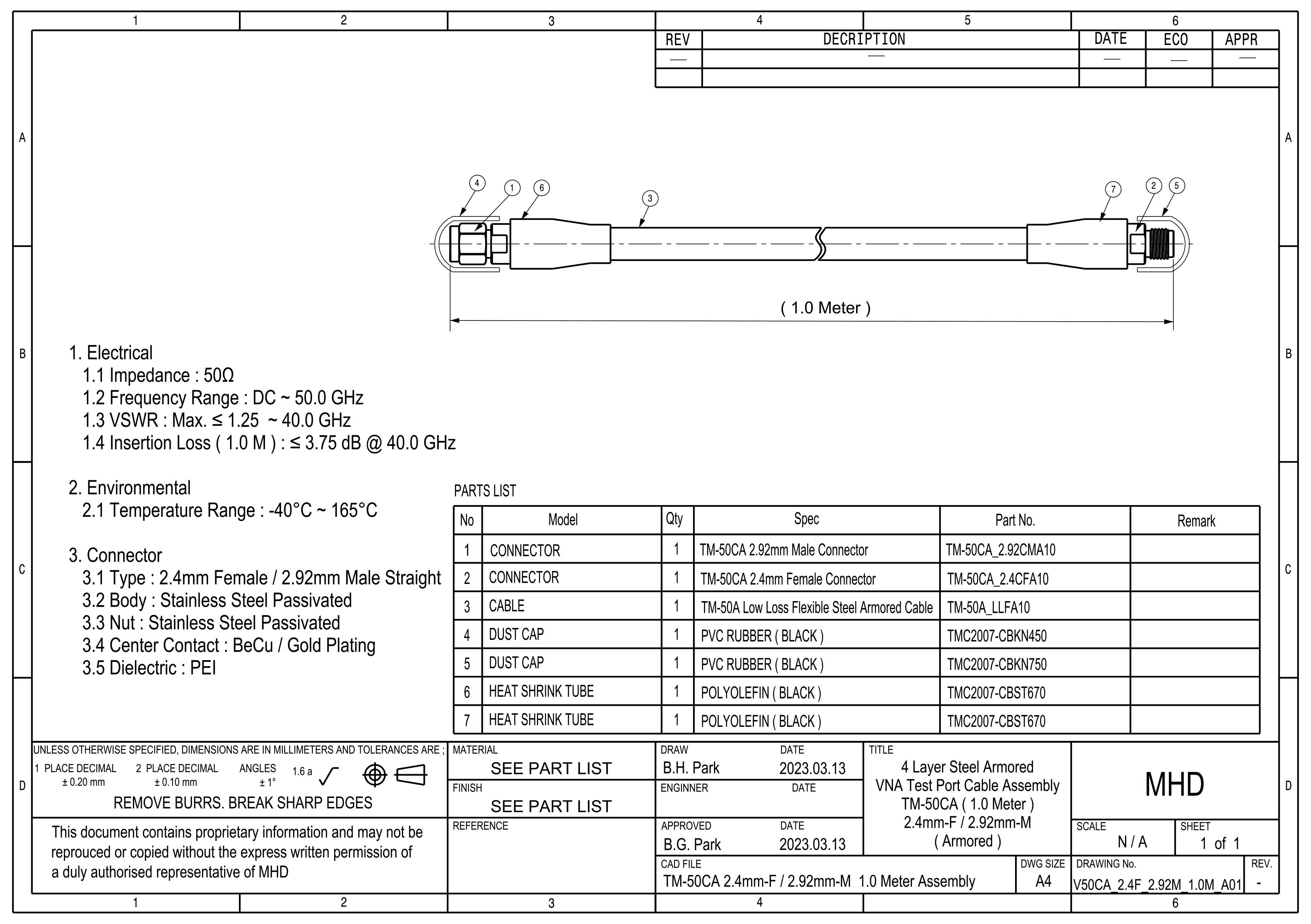

TM-50CA 40 GHz Low Loss Steel Armored VNA Test Port Cable Assembly

2.4 mm Female / 2.92 mm Male Straight 1.0 Meter

( VSWR : Max.  ≤ 1.25  ~ 40.0 GHz )



Additional 4 Layers Steel Armoring

Anti-Crush and Anti-Torsion, Anti-Stress, Waterproof, Anti-UV, High Temperature Resistance

( Stainless Steel Inner Layer + Steel Wire Braiding + PTFE Taping Interlayer + HSPT Outer Braiding Jacket )



For Replacement of Micro-Coax Utiflex UFA125A, Rosenberger RTK 125

Huber+Suhner ( Sucoflex 101 ), Semflex HP120

IW Microwave 1401, 1403 ....

Most of VNA Testing Cable Assembly for up to ~ 50 GHz





( Individual Test Report up to 40 GHz will be included with assembly. )



Composition of TM-50A Low Loss Milimeter-Wave Cable



Class of Cable

LD PTFE Dielectric Low Loss Cable

Cable Part Name

TM-50CA

Flex Ability

Flexible

Impedance

50 Ohm

Center Conductor

Silver Plated Solid Copper Wire

Dielectric

MicroPorous PTFE

Velocity of Propagation

80 %

Shield Layer

Silver Plated Copper Strip Taping

&

Round Wire Braiding Shield Layer

Outer Jacket Diameter

7.2 mm ( 0.283 inch )

Jacket Material

FEP + 4 Layer Steel Arming / HSPT

Max. Frequency

50.0 GHz

Operating Temperature

- 55℃ ~  165℃



 Composition of 2.4mm / 2.92mm Connector for TM-50CA



Frequency

DC ~ 40.0 GHz

Impedance

50 Ohm

V.S.W.R

Max. ~ 40.0 GHz  ≤ 1.20

Impedance

50 Ohm

Body

Stainless Steel Passivated

Center Contact

Beryllium Copper / Gold Plating

Insulator

PEI

Coupling Nut

Stainless Steel Passivated
