AOS04 2in1 Digital Oscilloscope + Multimeter 50MS/s 10Mhz Support Waveform AC/DC

Popular

    Product Introduction

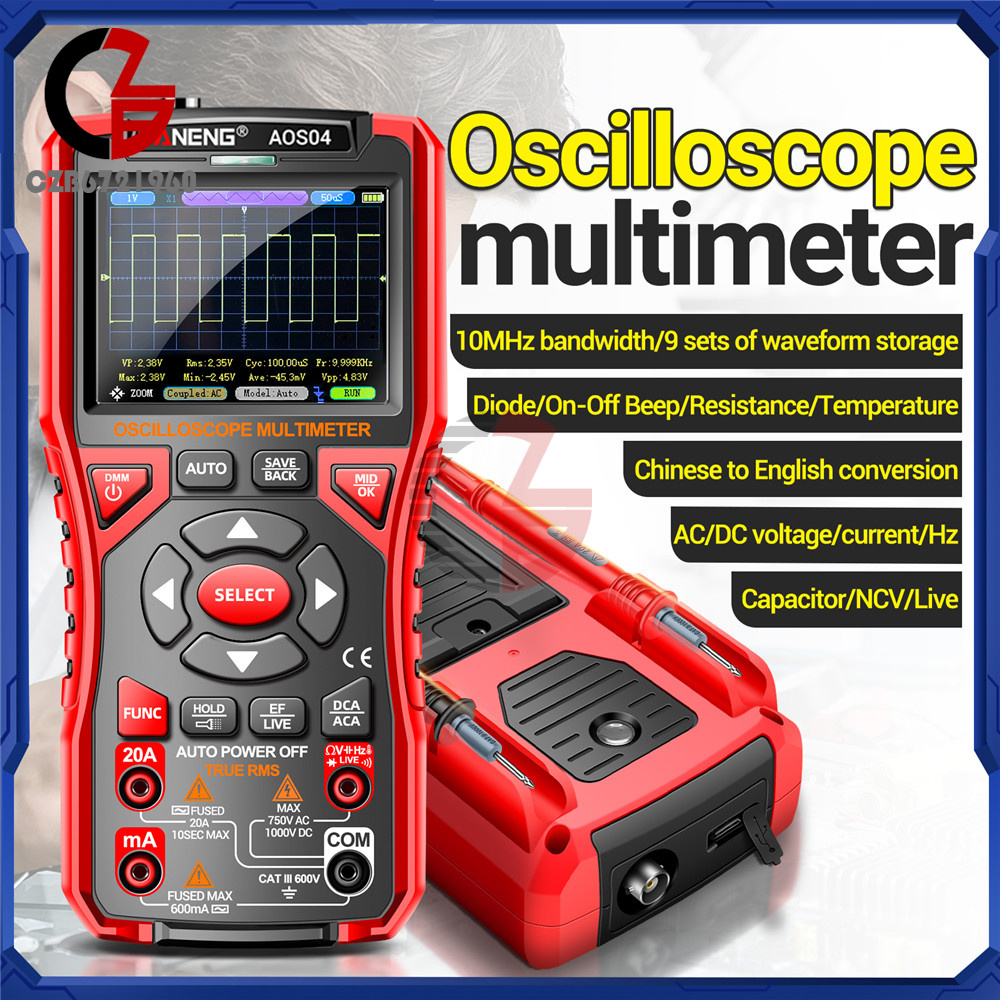

    Features:
    1.Multi-parameter intelligent detection: oscilloscope + multimeter dual function, covering voltage / current / frequency / temperature and other 20 + parameters, a machine to meet the needs of electronic maintenance and teaching.

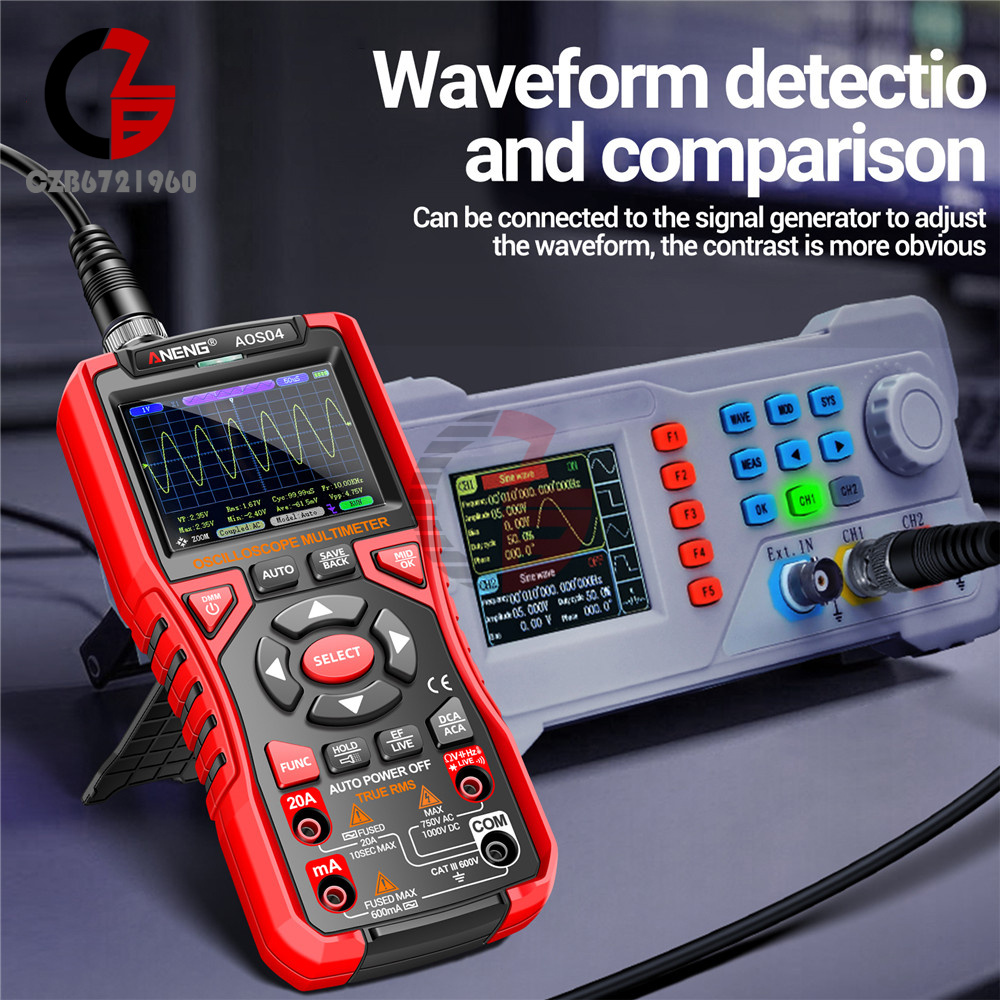

    2. High-precision real-time sampling: Oscilloscope 50MSa/s real-time sampling, ± 0.5% DC accuracy, accurately capture millisecond signal fluctuations, details are not missed.

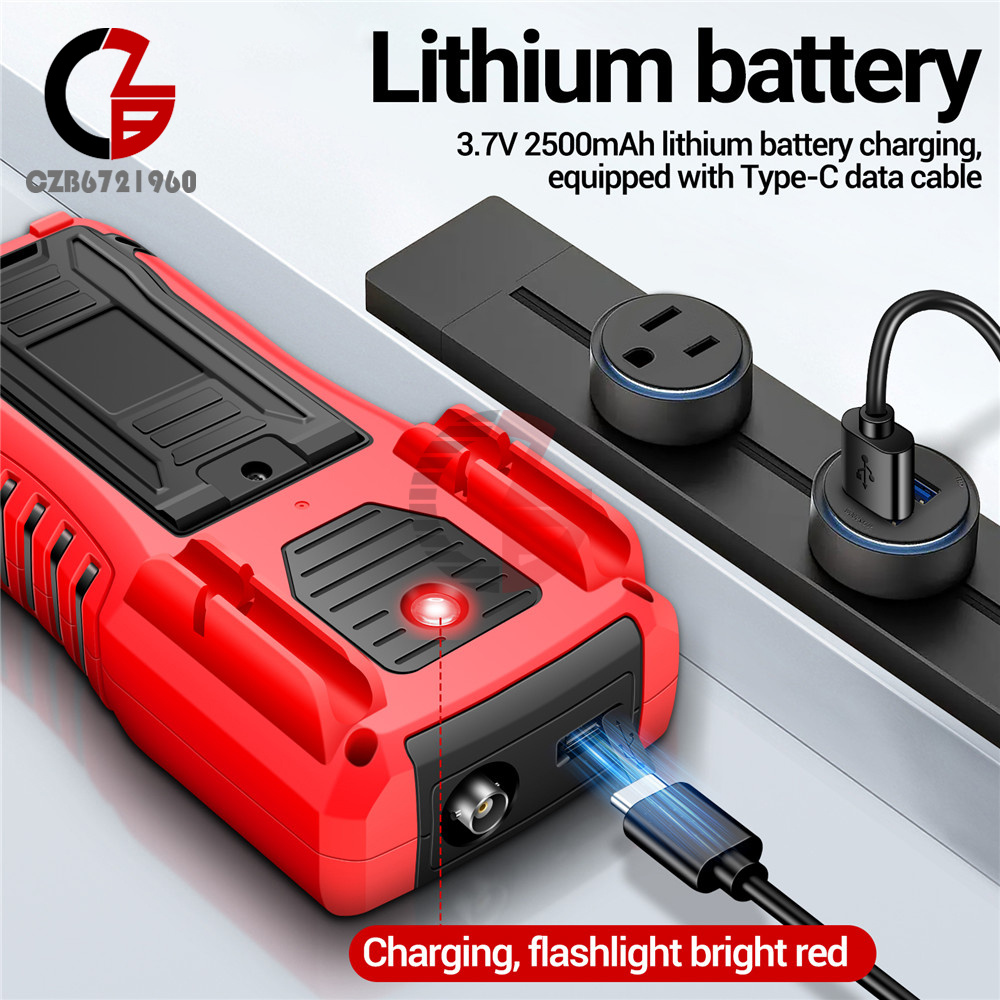

    3. Portable and durable design: 3.2-inch color screen + soft silicone drop-proof case, 2500mAh battery life + Type-C fast charging, lightweight and reliable outdoor work.
    4.Intelligent auxiliary functions: NCV non-contact power measurement/automatic waveform storage/data retention, with sound and light double prompts, novice can also quickly troubleshooting.
    5. Multi-scenario compatibility: oscilloscope 10MHz bandwidth + multimeter 9999 word range, from home appliance repair to laboratory measurements, all-around fit.

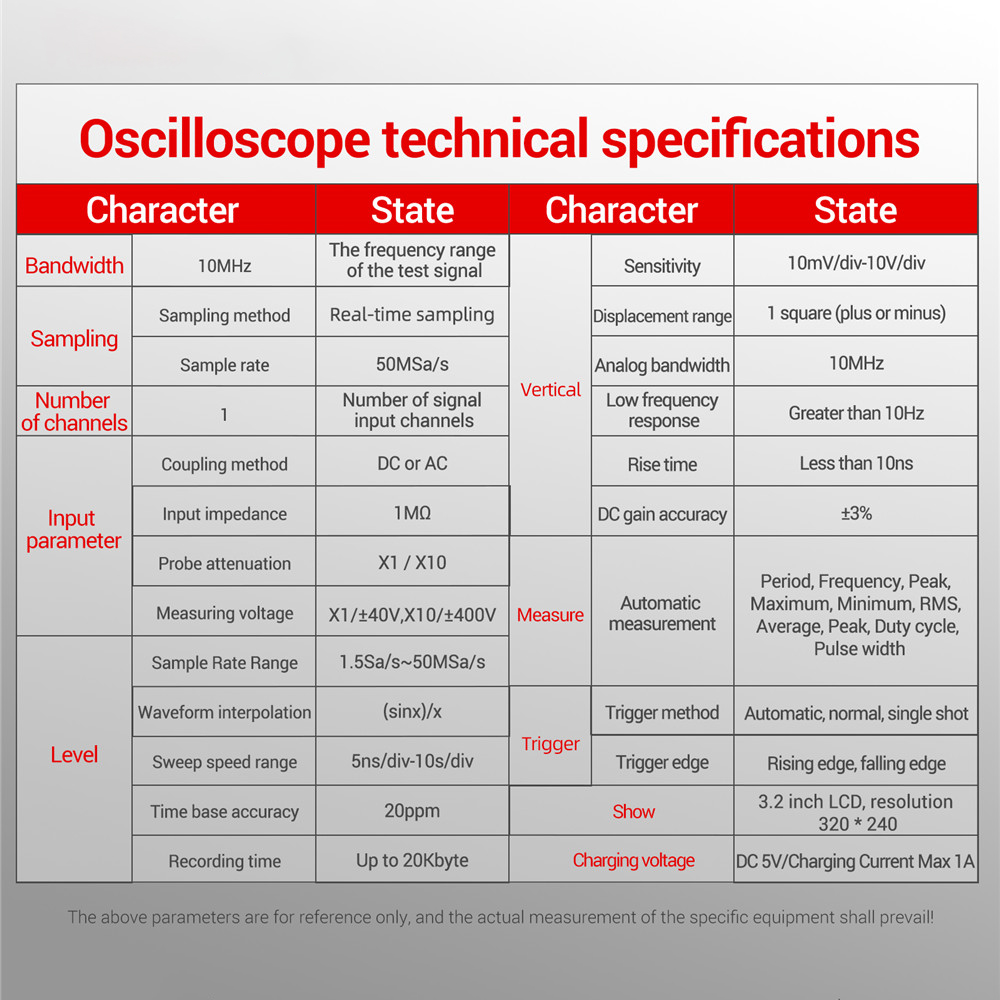

    Oscilloscope basic parameters:
    Bandwidth: 10MHz
    Sampling mode: real-time sampling
    Sampling rate: 50MSa/s
    Number of channels: single channel
    Coupling mode: DC or AC
    Input impedance: 1MΩ
    Probe attenuation: X1/X10
    Measuring voltage: X1/±40V,X10/±400V
    Sampling rate range: 1.5Sa/s~50MSa/s
    Waveform interpolation: (sinx)/x
    Sweep rate range: 5ns/div-10s/div
    Time base accuracy: 20ppm
    Recording duration: up to 20Kbyte
    Sensitivity: 10mV/div-10V/div
    Displacement range: 1 frame (positive and negative)
    Analog bandwidth: 10MHZ
    Low frequency response: greater than 10HZ
    Rise time: less than 10ns
    DC gain accuracy: ±3%
    Automatic Measurement: Period, Frequency, Peak Maximum, Minimum, RMS, Average, Peak, Duty Cycle, Pulse Width
    Trigger mode: automatic, normal, single
    Trigger edge: rising edge, falling edge
    Display: 3.2-inch LCD resolution 320 * 240
    Charging voltage: DC 5V / charging current maximum 1A

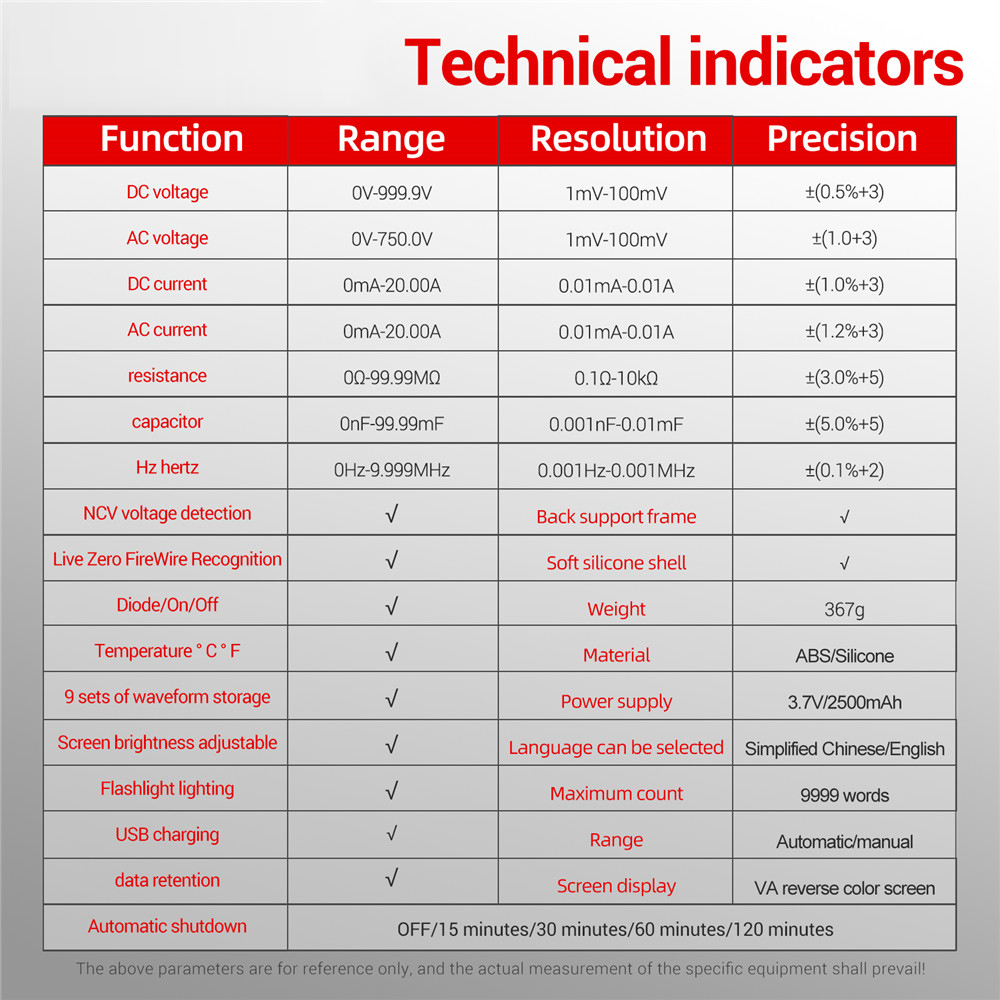

    Multimeter parameters:
    DC voltage: 0V-999.9V, resolution 1mV-100mV, accuracy ± (0.5%+3)
    AC voltage: 0V-750.0V, resolution 1mV-100mV, accuracy ± (1.0+3)
    DC current: 0mA-20.00A, resolution 1mV-100mV, accuracy ±(1.0+3)
    AC Current: 0mA-20.00A, resolution 1mV-100mV, accuracy ±(1.2%+3)
    Resistance: 0Ω-99.99MΩ, resolution 0.1Ω-10kΩ, accuracy ±(3.0%+5)
    Capacitance: 0nF-99.99mF, resolution 0.001nF-0.01mF, accuracy ±(5.0+5)
    Hz Hertz: 0Hz-9.999MHz, resolution 0.001HZ-0.001MHZ, accuracy ±(0.1+2)
    NCV voltage detection: √
    Live zero fire wire recognition: √
    Diode/On/Off: √
    Temperature ℃/℉: √

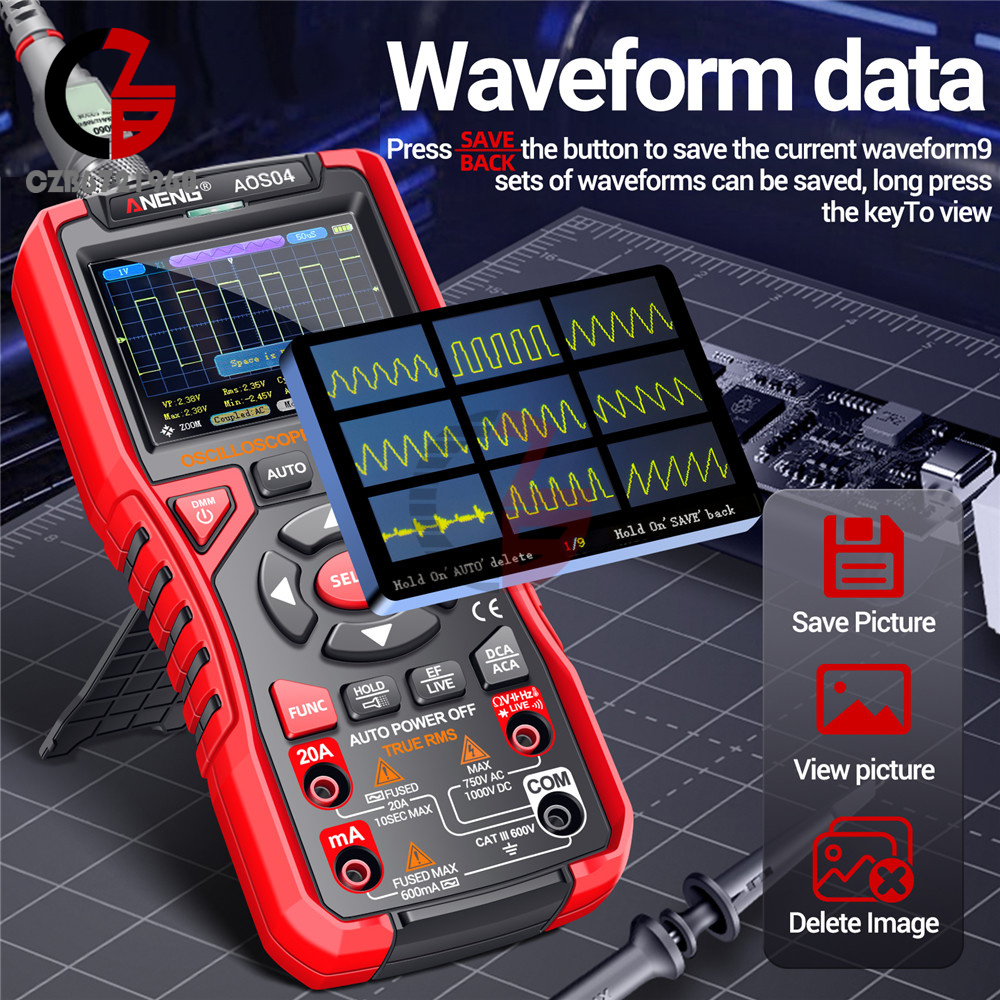

    9 sets of waveform storage: √
    Screen Brightness Adjustable: √

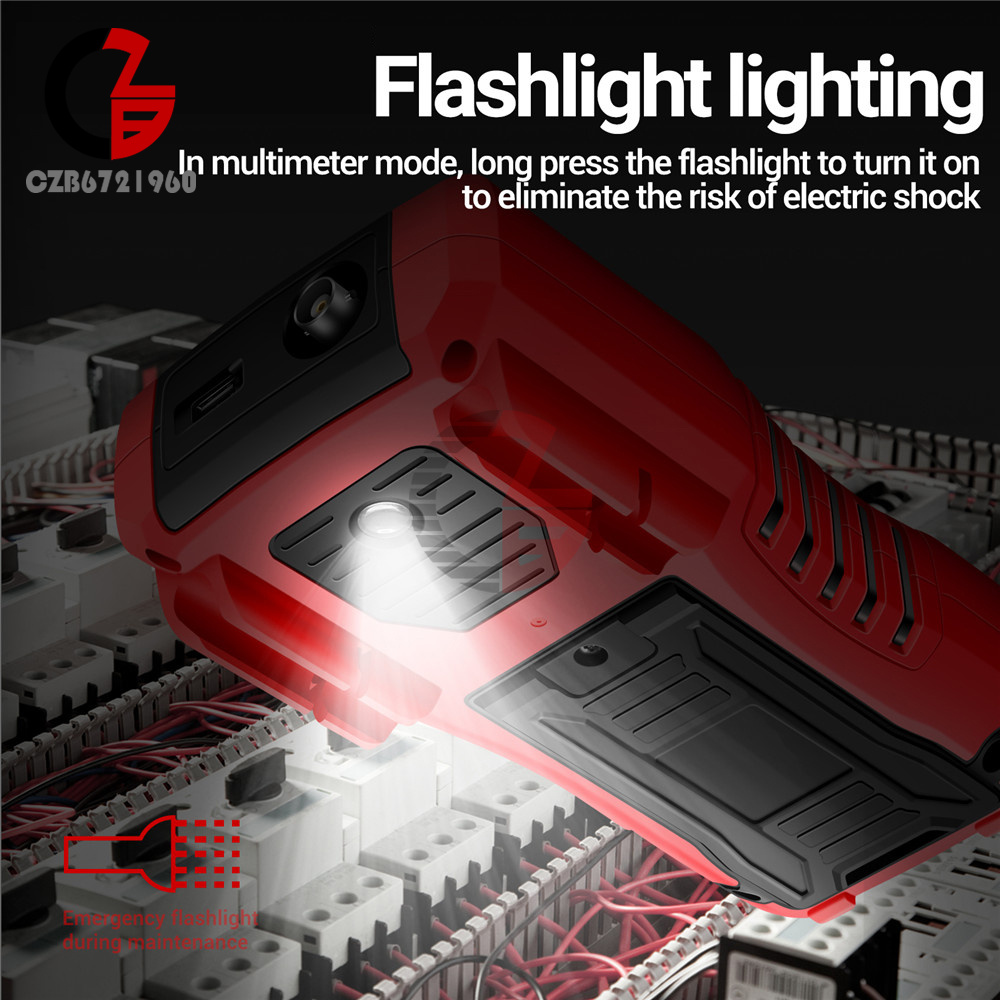

    Flashlight illumination: √
    USB charging: √
    Data hold: √
    Auto power off: √
    Back support stand: √
    Soft silicone shell: √
    Material: ABS/Silicone
    Power supply: 3.7V/2500mAh
    Language selectable: Simplified Chinese/English
    Maximum count: 9999 counts
    Range: Auto/Manual
    Screen display: VA reverse color display

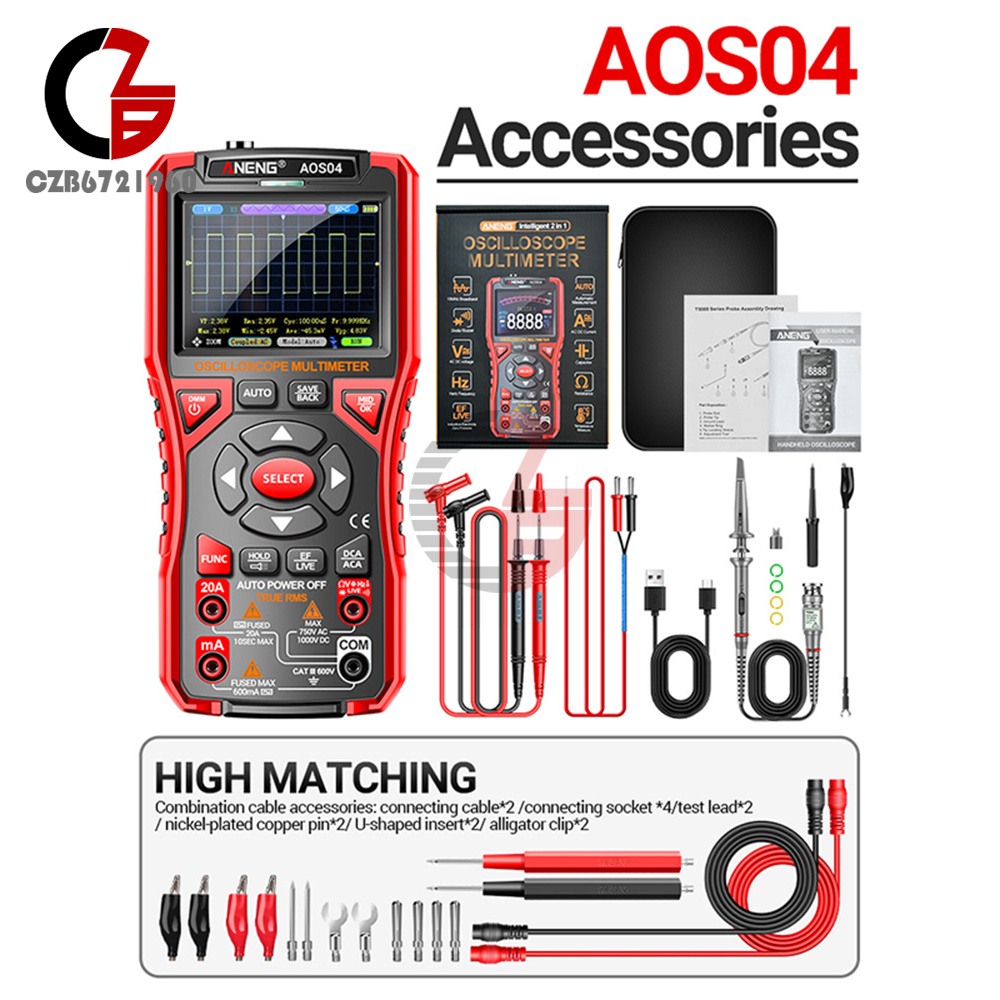

    Package Includes:
    Oscilloscope*1
    Instruction manual *1
    Storage bag *1
    Meter pen cable *1
    Temperature cable *1
    USB-C charging cable *1
    Oscilloscope test cable *1
    Marker ring *4
    Tip Positioning Sleeve*1
    Probe compensation screwdriver *1
    Alligator Clip Ground Lead *1
    Oscilloscope parts manual *1
