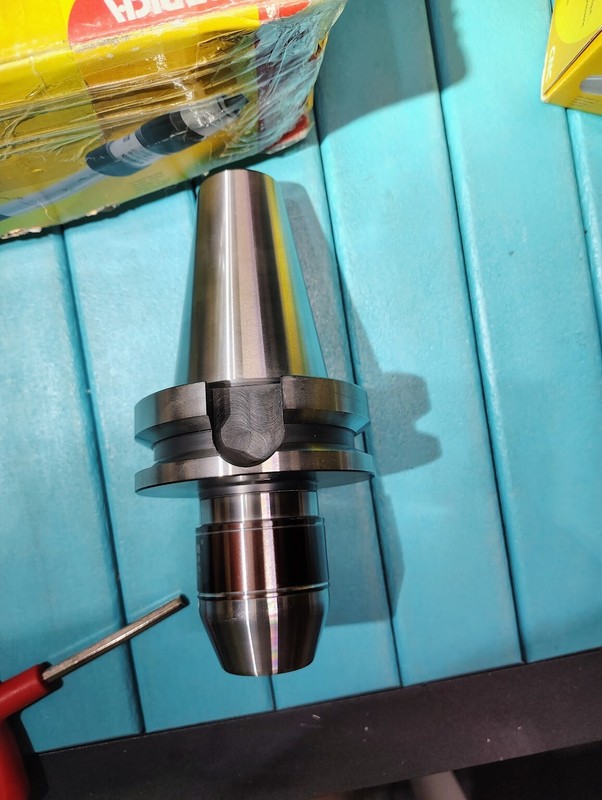

Llambrich HEXA High Precision CNC Drill Chuck BT-50 Shank 1mm-13mm Made in Spain

product image
product image
product image
product image
product image
product image
product image
product image
product image
New in distressed factory box.  This chuck has been sitting in storage for a number of years, but it has never been used in any way.

This is a top quality chuck made in Spain by Llambrich — one of the few brands from the United States or Europe that has not moved its production to China.

Series: HEXA High Precision Drill Chuck -- Super High Precision Dill Chuck with Integrated Shank and Hexagonal Key Lock

Part #:  HX-13 BT-50
Model #:  L40010

Specifications

BT-50 Integrated shank Mount

Capacity: 1mm to 13mm (.039" to .512")

Max run-out: 0.0012”

High gripping torque, exceeding 75 ft/lbs.

 Maximum revolutions per minute without balancing: 8,000

Features

Used primarily for CNC machines.

All components made of hardened steel.

Right or left rotation

Hexagonal key lock system (comes standard with hex key)
