8pcs Ultrasonic Module HC-SR04 Distance Sensor+2pcs Mounting Bracket for Arduino
8pcs HC-SR04 Ultrasonic Module Distance Sensor for Arduino
About this item
- HC-SR04 Ultrasonic Distance Sensor: Power Supply: 5V DC; Quiescent Current : <2mA; Effectual Angle: <15°; Detection Distance: 2 - 500cm; Resolution: 0.3cm
- All in One Designed: HC-SR04 Consists of Ultrasonic Transmitter, Receiver, and Control Circuit;When Trigged it Sends Out a Series of 40KHz Ultrasonic Pulses and Receives Echo from an Object.
- Easy to Install: HC-SR04 Ultrasonic Distance Sensor with 4 Pins: VCC; Trig(Control Side); Echo (Receiver); Out (Empty); GND; Small Size Designed,Easy for Embedded Installation.
- Applications: HC-SR04 Ultrasonic Distance Sensor Widely used for Robot Obstacle Avoidance, Object Distance Measuring, Liquid Level Detection, Public Security, Parking Lot Detection etc.
Product Description

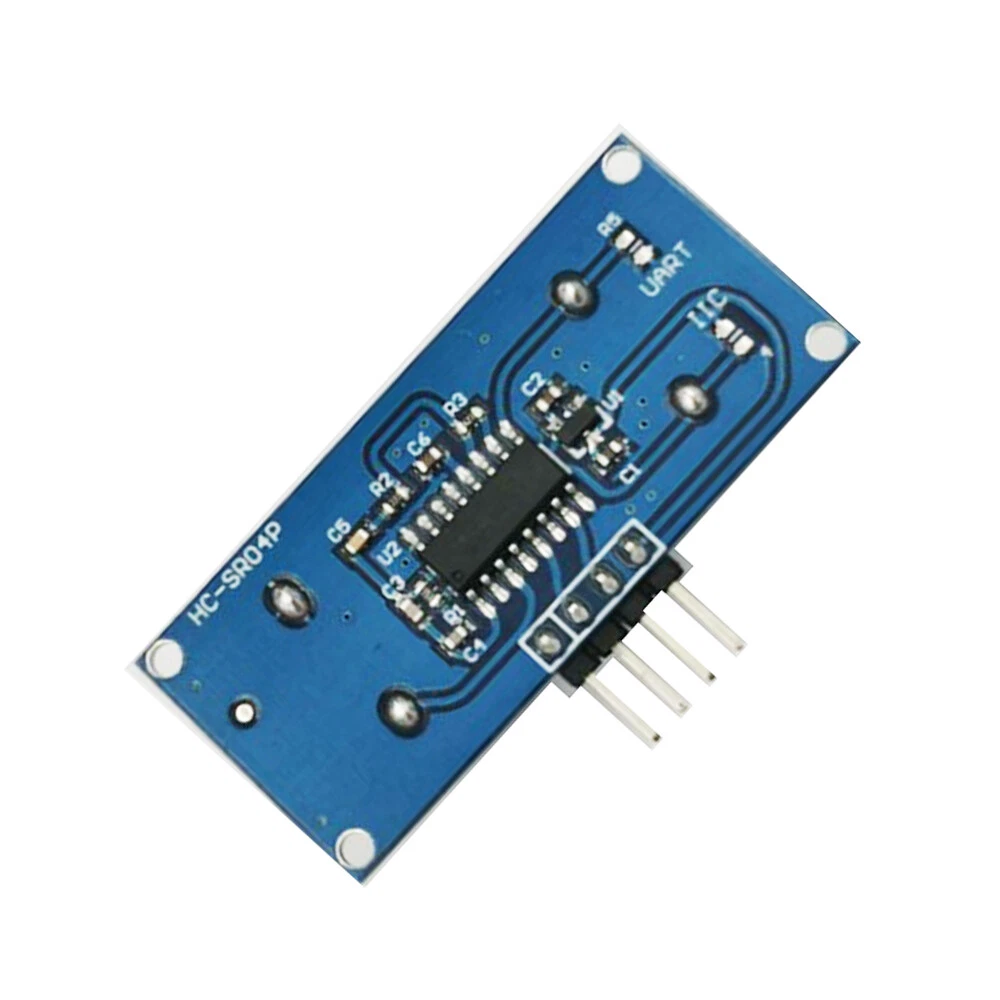

HC-SR04 Ultrasonic Module Distance Sensor
Specification:
- Power Supply: DC 5V
- Quiescent Current : <2mA
- Effectual Angle: <15°
- Ranging Distance: 2 - 500cm
- Trigger Input Pulse Width: 10uS
- Resolution : 0.3cm
- Dimensions: 1.3 x 0.4 x 0.1in / 3.03 x 1 x 0.25cm (L*W*H)
- Connection: VCC/ Trig(T)/ Echo(R)/ GND (VCC: 5V; GND is Ground Wire; TRIG is Trigger Control Signal Input;, ECHO is Echo Signal Output.)
Package Contents:
- 8x HC-SR04 Ultrasonic Distance Sensor
- 4 x Cartoon Mounting Bracket(Support HC-SR04 only)
- 2 x Male to Female Jumper Wires
Ultrasonic Timing Diagram
Module Working Principle:
- Pull the Trig Pin to High Level for More Than 10us Impulse and the Module Start Ranging.
- The Module Sends Eight 40KHz Square Wave to Detect Whether a Signal is Returned Automatically.
- Finished Ranging, If Find an Object in the Front, Echo Pin will be High Level; Different Distance, Different Duration of High Level.
- So It is Easy to Calculate the Distance; The Distance = (Duration of High Level*Sonic: 340m/s) /2.
Pay Attention:
- 1. Before Powered,HC-SR04 Sensor Module Should be Inserted in the Circuit to Avoid Producing High Level of Misoperate; if Misoperated ,Power the Module Again.
- 2. HC-SR04 Ultrasonic Distance Sensor is NOT Suggested to Connect to Electric Directly, When Connected to Electric, the GND Terminal Should be Connected w/ Sensor Module, Otherwise,it will Affect the Module’s Normal Work.
- 3. When Tested Objects, the Area Range Should More than 0.5 Square Meters and the Plane Requests Smoothly; Otherwise,it will Affect the Results of Measuring.
