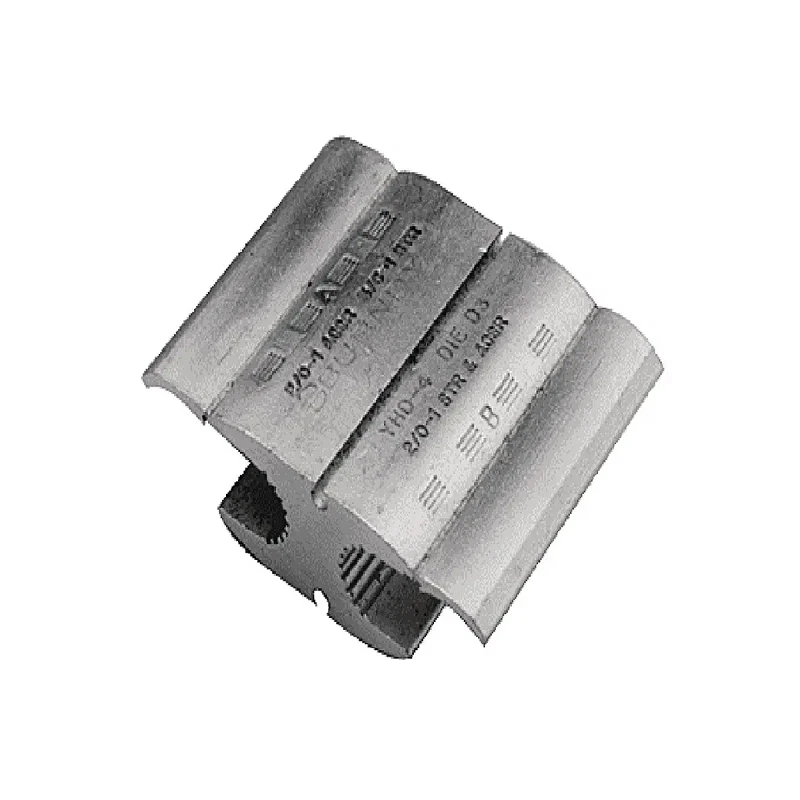

Burndy YHD6 Aluminum Compression Tap Connector Wire Range 0.461" to 0.563"
Click Thumbnails to Enlarge
DESCRIPTION
• Burndy YHD6 Compression Line Tap Connector for Aluminum to Copper and Aluminum to Aluminum applications,1.42 H,2.25 L,.83 W.
APPLICATION
FEATURES
• LOKTAP compression connectors are high quality, range-taking devices accommodating many combinations of conductor
• LOKTAP connectors feature a C groove on both sides of the connector for use in street lighting applications
PRODUCT SPECIFICATIONS
| Part Number | YHD6 |
|---|---|
| Plated | N |
| Die Index | D3 |
| EU RoHS Indicator | Yes |
| Material | Aluminum |
| Plating Type | Unplated |
| Prefilled Oxide Inhibitor | Y |
| Dimensions | 2.25 in L x 0.83 in W x 1.42 in H |
| Groove A (Run) Wire Diameter Range | 0.461" - 0.563" |
| Groove B (Tap) Wire Diameter Range | 0.336" - 0.447" |
| Conductor - ACSR Cmpt Run Range | 3/0 AWG-266.8 kcmil |
| Conductor - ACSR Cmpt Tap Range | 1/0 AWG-2/0 AWG |
| Conductor - ACSR Str Run Range | 3/0 (6/1) Pigeon AWG-4/0 (6/1) Penquin AWG |
| Conductor - ACSR Str Tap Range | 1 (6/1) Robin AWG-2/0 (6/1) Quail AWG |
| Conductor - AL Str Run Range | 3/0 AWG-4/0 AWG |
| Conductor - AL Str Tap Range | 1 AWG-2/0 AWG |
| Conductor - Copper Solid Run Range | 250 KCMIL-300 KCMIL |
| Conductor - Copper Solid Tap Range | 2/0 AWG-3/0 AWG |
| Conductor - Copper Str Run Range | 3/0 AWG-4/0 AWG |
| Conductor - Copper Str Tap Range | 1 AWG-2/0 AWG |
| Weight(lbs) | 0.25 |
