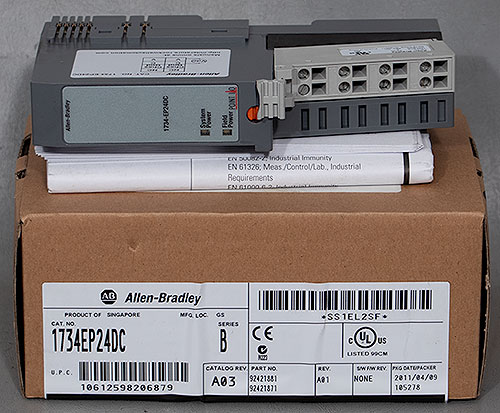

NEW Allen-Bradley 1734-EP24DC POINT I/O 24 VDC Expansion Power Supply Module with 1734-RTB Terminal Block
Comes with what you see in the pictures. If you don't see it, you probably won't get it.
Specifications are from Allen-Bradley and may vary slightly due to upgrades, options, or revisions this unit may or may not have.
MOST ITEMS CAN BE SHIPPED INTERNATIONALLY EVEN THOUGH EBAY'S SITE MAY SAY OTHERWISE. PLEASE CONTACT US FOR A SHIPPING QUOTE. WE CANNOT SHIP TO AN INTERNATIONAL FREIGHT FORWARDER ON SMALLER PACKAGES.
This module is new, old stock surplus.

The Main Unit's Serial Number Tag Reads:
Catalog Number: 1734-EP24DC
Part Number: 92421871
Series: B
Revision: A01
Serial Number: SS1EL2SF
Input Power Requirements: 24 VDC, 400 mA/12 VDC 800 mA
Pointbus Power Output: 5 VDC, 1.3 A
Field Power: 24 VDC/12 VDC, 10 A

The Terminal Block's Information Reads:
Catalog Number: 1734-RTB
Part Number: 95716003
Series: A
Revision: A01

Description:
The expansion power supply passes 24 VDC field power to the I/O modules to the right of it. The expansion power supply extends the backplane bus power for up to 17 I/O modules to the right of the supply and creates a new field voltage partition segment for drivign field devices. The expansion power supply separates field power from I/O modules to the left of the unit, effectively providing functional and logical partioning for the following:

  • Separate field power between input and output modules.
  • Separate field power to the analog and digital modules.
  • Group modules to perform a specific task or function.

    • The dark-gray color of the expansion power supply allows for easy visual inspection and indentification.

    Use multiple expansion power supplies with POINT I/O adapters to asssembly a full system. With any POINT I/O adapter, use an expansion power supply to add additional modules in 4-17 module increments, for a total of 63 I/O modules.

    Main Specifications:
    I/O Module Capacity: 4-17 modules, depending on current rating of each module
    Input Voltage Rating: 24 VDC nominal, 10 - 28.8 VDC range
    Field Side Power Requirements: 24 VDC (+20% = 28.8 VDC maximum) @ 400 mA maximum
    Inrush Current: 6 A maximum for 10 ms
    Indicators: 1 Green Field Power Status Indicator, 1 Green 5 V System Power Indicator
    POINTBus Output Current:
      Horizontal Mounting: 1 A at 10 - 19.2 V input; 1.3 A at 19.2 - 28.8 V input
      Vertical Mounting: 1 A at 10 - 28.8 V input
    Input Overvoltage Protection: Reverse polarity protected
    Interruption: Output voltage will stay within specifications when input drops out for 10 ms at 10 V with maximum load.
    Module Location: Between I/O modules in 1734 system. Breaks field power bus.
    Limitations: Use with POINT I/O Adapters only
    Dimensions: 76.2 mm H x 25.4 mm W x 133.4 mm L (3" x 1" x 5.25")
    Weight: 0.12 kg (0.27 lb)
    Terminal Base Screw Torque: 0.6 Nm (7 lb-in)

    General Specifications:
    Power Consumption: 9.8 W maximum @ 28.8 VDC
    Power Dissipation: 3.0 W maximum @ 28.8 VDC
    Thermal Dissipation: 10.0 BTU/hr maximum @ 28.8 VDC
    Isolation Voltage (Continuous-voltage Withstand Rating): 50 V continuous. Tested to withstand 2600 V DC for 60 s
    Field Power Bus:
      Supply Voltage: 24 VDC nominal
      Voltage Range: 10 to 28.8 VDC range
      Supply Currant: 10 A maxium

    Environmental Specifications:
    Operational Temperature: IEC 60068-2-1 (Test Ad, Operating Cold), IEC 60068-2-2 (Test Bd, Operating Dry Heat), IEC 60068-2-14 (Test Nb, Operating Thermal Shock), -20 to +55°C (-4 to 131°F)
    Storage Temperature: IEC 60068-2-1 (Test Ab, Unpackaged Non-operating Cold), IEC 60068-2-2 (Test Bd, Unpackaged Non-operating Dry Heat), IEC 60068-2-14 (Test Na, Unpackaged Non-operating Thermal Shock), -40° to +85°C (-40°F to +185°F)
    Relative Humidity: IEC 60068-2-30 (Test Db, Unpackaged Non-operating Damp Heat), 5 to 95% non-condensing
    Shock Operating: IEC 60068-2-27 (Test Ea, Unpackaged Shock) 30 g
    Shock Non-Operating: IEC 60068-2-27 (Test Ea, Unpackaged Shock) 50 g
    Vibration: IEC 60068-2-6 (Test Fc, Operating), 5 g @ 10 - 500 Hz
    Emissions: CISPR 11: Group 1, Class A
    ESD Immunity: IEC 6100-4-2, 6 kV contact discharges, 8 kV air discharges
    Radiated RF Immunity: IEC 61000-4-3, 10 V/m with 1 kHz sine-wave 80% AM from 30 MHz to 2000 MHz, 10 V/m with 200 Hz 50% Pulse 100% AM at 900 MHz, 10 V/m with 200 Hz 50% Pulse 100% AM at 1890 MHz
    EFT/B Immunity: IEC 61000-4-4 ±4 kv at 2.5 kHz on power ports
    Surge Transient Immunity: IEC 61000-4-5 ±1 kV line-line (DM) and ±2 kV line-earth (CM) on power ports
    Conducted RF Immunity: IEC 61000-4-6 10 Vrms with 1 kHz sine-wave 80% AM from 150 kHz to 80 MHz
    Enclosure Type Rating: None (open-style)
    Conductor Size: #22 to #14 AWG (0.234 to 2.08 sq. mm) solid or stranded copper wire rated @ 75°C or greater, 3/64" (1.2 mm) insulation maximum
    Conductor Category1: 1 - on power ports
    Note:
      1: Use this Conductor Category information for planning conductor routing. Refer to publication 1770-4.1, Industrial Automation Wiring and Grounding Guidelines.
