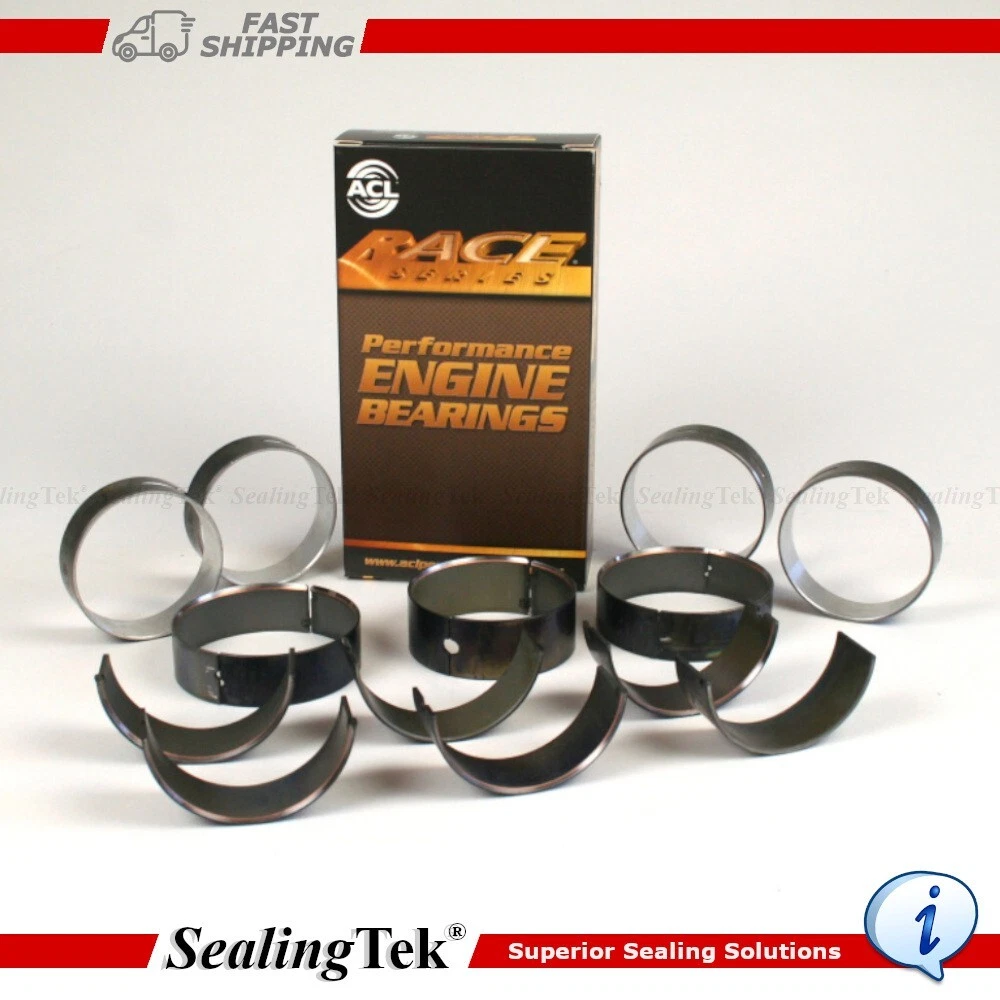

BRAND NEW "ACL Race" Performance Connecting Rod Bearings + Crankshaft Main Bearings Combo
ACL # 4B1912H-STD+5M1913H-STD

Details

The unique combination of design, metallurgy and engineering come together to deliver what drivers expect from high performance Trimetal engine bearings.

Designed to withstand higher RPM conditions, ACL Race Series Bearings are available for many of the popular 4, 6 & 8 cylinder applications and feature:

* *High strength overlay plate* with reduced thickness for improved fatigue properties
* *Hardened steel backs* on all rod bearings to improve the support of the bearing lining and assist with bearing retention in the housing.
* *Increased crush* for improved bearing retention
* *Elimination of flash plating* on the back of the bearings to improve heat transfer through the bearings and to maximize the grip between the bearings and its housing.
* *Increased eccentricity* to compensate for bore distortion at high rpm and to assist in the formation of hydrodynamic oil films.
* *Tight consistent wall tolerances* to help you maintain consistent clearances.
* *Enlarged ID chamfers* on bearing edges where required to accommodate large fillet radius on performance crankshafts.

Specs

Connecting Rod Bearing


Max Std Tunnel Size:2.0088"(51.024mm)
Min Std Tunnel Size:2.008"(51.004mm)
Max Overall Length:0.764"(19.40mm)
Max Std Shaft Size:1.8898"(48.000mm)
Max Wall at Crown:0.0589"(1.496mm)
Min Std Shaft Size:1.8890"(47.980mm)
Oil Clearance:Standard
Size:Standard
Grade Type:Performance
Outside Diameter:2.008
Shaft Diameter:1.889
Width:19.4
Max Wall:0.0589

Crankshaft Main Bearing

Max Wall at Crown:0.0986" (2.504mm)
Max Std Shaft Size:2.1654" (55.000mm)
Max Std Tunnel Size:2.3630" (60.020mm)
Min Std Shaft Size:2.1644" (54.976mm)
Oil Clearance:Standard
Size:Standard
Max Overall Length:0.787" (20.00mm)
Min Std Tunnel Size:2.3622" (60.000mm)
Grade Type:Performance
Outside Diameter:2.3622
Shaft Diameter:2.1644
Width:0.787
Max Wall:0.0986

Applicable Engines

    Honda 2.0L (1997cc) DOHC L4 (16 Valve) VTEC 87.0mm Bore, Engine Codes "F20C" "F20C1" 2000-2003

    Honda 2.2L (2157cc) DOHC L4 (16 Valve) VTEC 87.0mm Bore, Engine Code "F22C1" 2004-2009



    Applicable Models

    • "AP1" 2000-2003 Honda S2000 2.0L DOHC 16 Valve L4 VTEC Engine Codes "F20C" "F20C1"
    • "AP2" 2004-2009 Honda S2000 2.2L DOHC 16 Valve L4 VTEC Engine Code "F22C1"

    Components

    • 1 "ACL Race Series" Performance Connecting Rod Bearing Set (Standard size)

    • 1 "ACL Race Series" Performance Crankshaft Main Bearing Set (Standard size)
