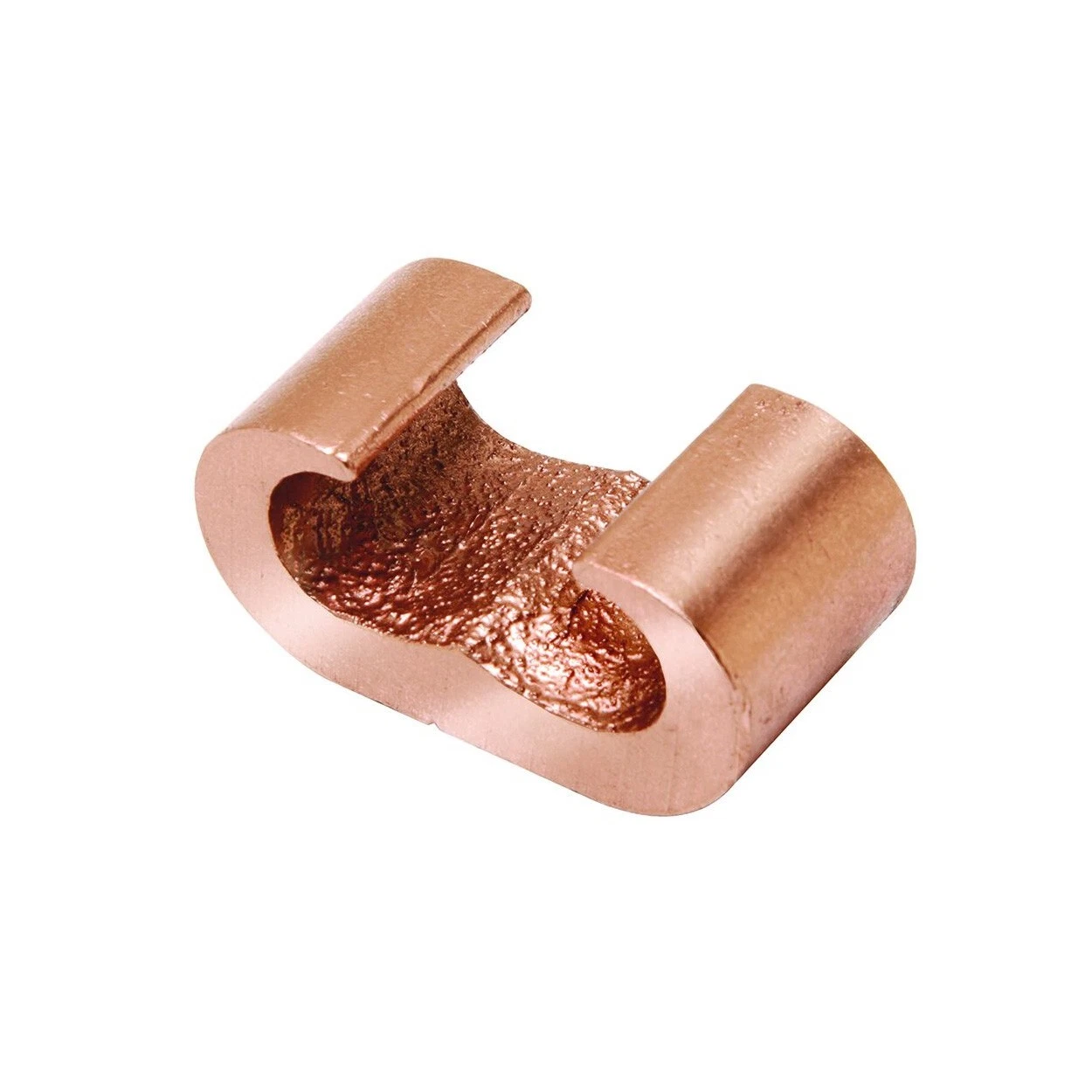

Burndy YGHC34C29 Compression Grounding C-TAP Connector
Click Thumbnails to Enlarge
DESCRIPTION
• Burndy YGHC34C29 Copper Compression C Connector, 300-500 kcmil (Run) & 3/0 AWG(Stranded) - 250 kcmil (Tap).
FEATURES
• Irreversible compression ground tap figure C connector
• C-shaped opening permits placing two continuous parallel cables into conductor groove
• UL467 Listed
• Acceptable for direct burial in earth or concrete
• Prefilled with PENETROX compound and strip sealed
GENERAL SPECIFICATION
• Application: for Direct Burial Cables
• Connector Type: Tap
• Die Index: 1011
• EU RoHS Indicator: Yes
• Material: Copper
• Number of Crimps Required: 2
• Plated: N
• Plating Type: Unplated
• Type: Taps
CONDUCTOR RELATED
• Copper Stranded Run: 300 MCM, 350 MCM, 400 MCM, 450 MCM, 500 MCM
• Copper Stranded Run Range: 300 MCM to 500 MCM
• Copper Stranded Tap: 3/0 AWG ; 4/0 AWG ; 250 MCM
• Copper Stranded Tap Range: 3/0 AWG to 250 MCM
CERTIFICATIONS AND COMPLIANCE
• CSA Approved: Yes
• cULus: No
• ETL: No
• UL Listed Direct Burial: Yes
• UL Recognized: No
• Industry Standard(s): Direct Burial
• Industry Standards Met: UL 467 ; IEEE 837 ; UL 468A - 468B
• RoHS Compliance Status: CM
• UL Listed: Yes
