4 Band 15V half-Din Wireless Streaming Line Driver Graphic Bluetooth Equalizer

Amplifiers Batteries Tweeter SubWoofers Marine Loud Speakers

Description

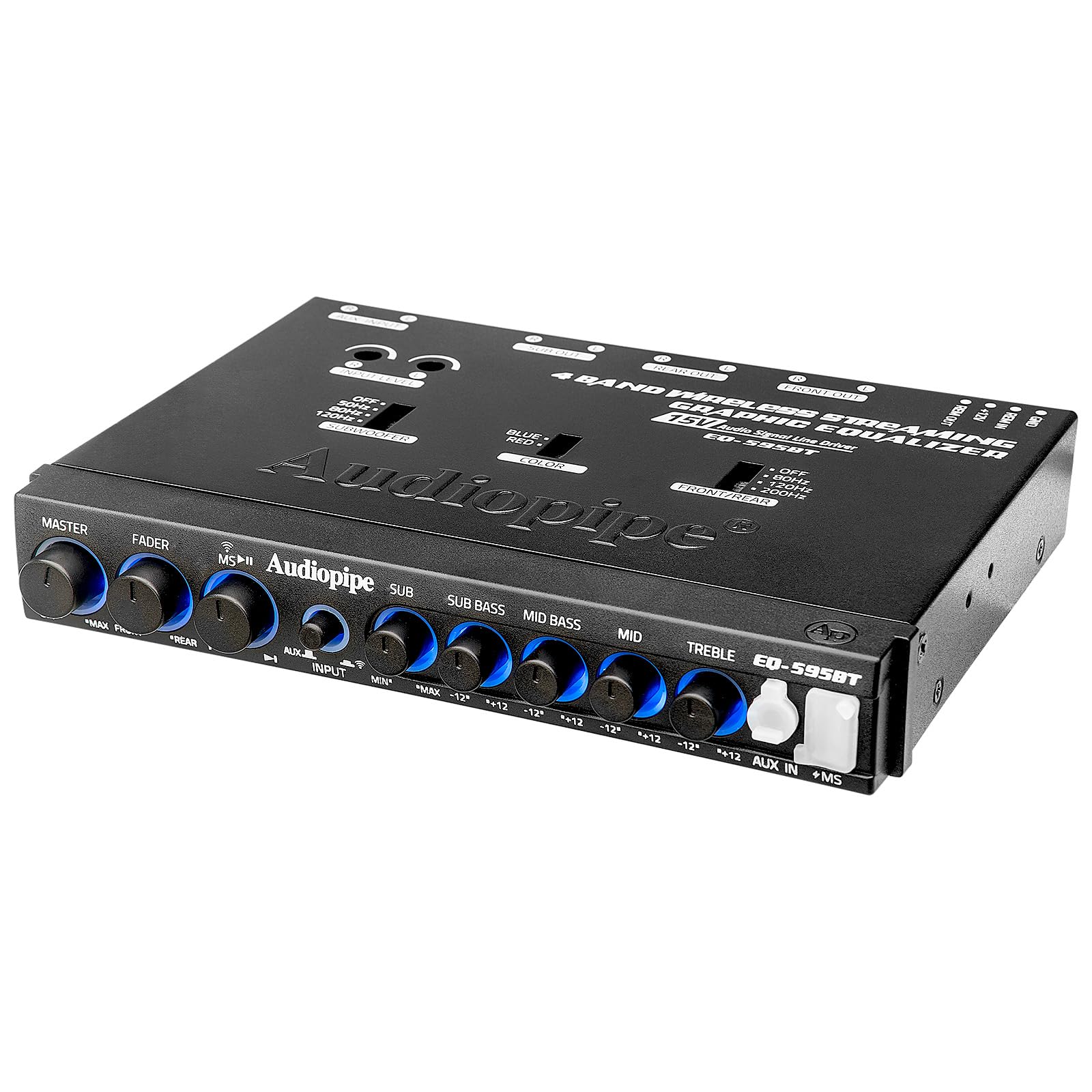

Audiopipe 4-Band 15V 1/2 Din Wireless Streaming Line Driver Graphic Bluetooth Equalizer


This Listing Includes



  • (1) Audiopipe 4-Band 15V 1/2 Din Wireless Streaming Line Driver Graphic Bluetooth Equalizer

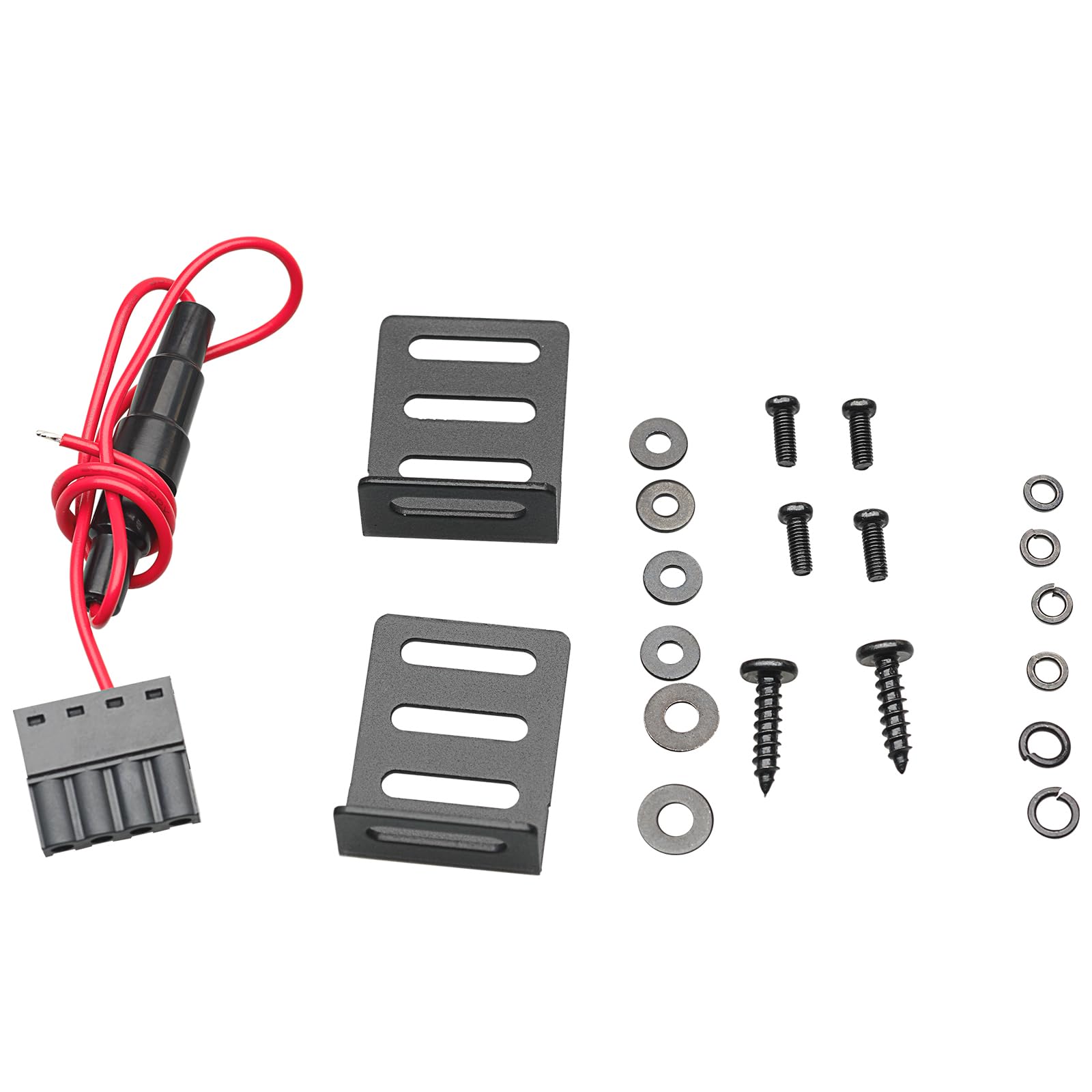

  • Installation Hardware


This Audiopipe 4-Band 15V 1/2 Din Wireless Streaming Line Driver Graphic Bluetooth Equalizer is designed to upgrade your audio system with wireless streaming, precise control, and signal amplification. This equalizer offers a high signal-to-noise ratio, wide frequency equalization, and low distortion to provide a premium listening experience. Featuring adjustable gain controls, high and low-pass filters, and customizable subwoofer settings, you can fine-tune your system to perfection. With its 1/2 DIN design, easy installation, and water-resistant face, it’s built to last and enhance your audio experience like never before.


Key Features



  • Wireless Streaming: Bluetooth capability for seamless streaming

  • 4-Band Equalizer: Equalization frequencies of 45Hz, 120Hz, 2200Hz, and 12000Hz for precise sound control

  • Adjustable Gain: Gain control of up to >40dB with adjustable low-pass and high-pass filters

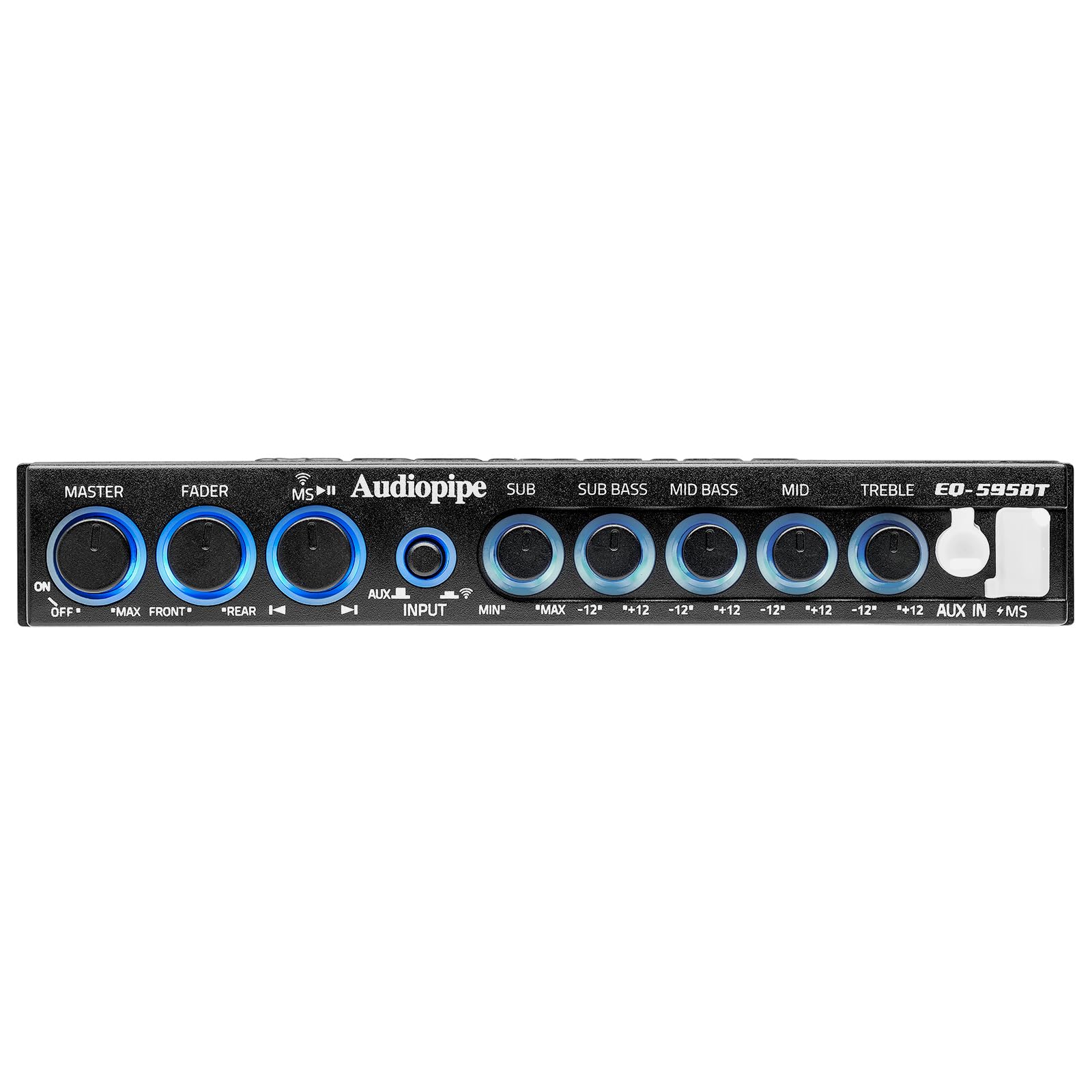

  • Water-Resistant Front Face: Durable design for enhanced reliability (not submersible)

  • High Output Voltage: Provides >15V maximum output voltage for improved signal amplification

  • Compact & Easy Installation: 1/2 DIN design with included mounting brackets for hassle-free setup


Specifications



  • Input Range of Gain Control: >40dB

  • Maximum Input Voltage: >10V

  • Input Impedance: >20kOhms

  • Maximum Output Voltage: >15V

  • Volume Gain: >40dB

  • Low Pass Frequency: 50Hz, 80Hz, 120Hz (-3dB)

  • High Pass Frequency: 80Hz, 120Hz, 200Hz (-3dB)

  • Low Pass/High Pass Slope/OCT: 12dB

  • Equalization Frequencies: 45Hz, 120Hz, 2200Hz, 12000Hz

  • Equalization Boost/Cut: 18dB

  • Distortion at 1kHz(1V): 0.01%

  • Channel Separation at 1kHz(1V): >80dB

  • Signal to Noise Ratio: >100dB

  • Frequency Response (-1dB): 10Hz-50kHz


Dimensions



  • Length: 7.5"

  • Width: 3.5"

  • Height: 1.5"

  • Weight: 0.9 lb
