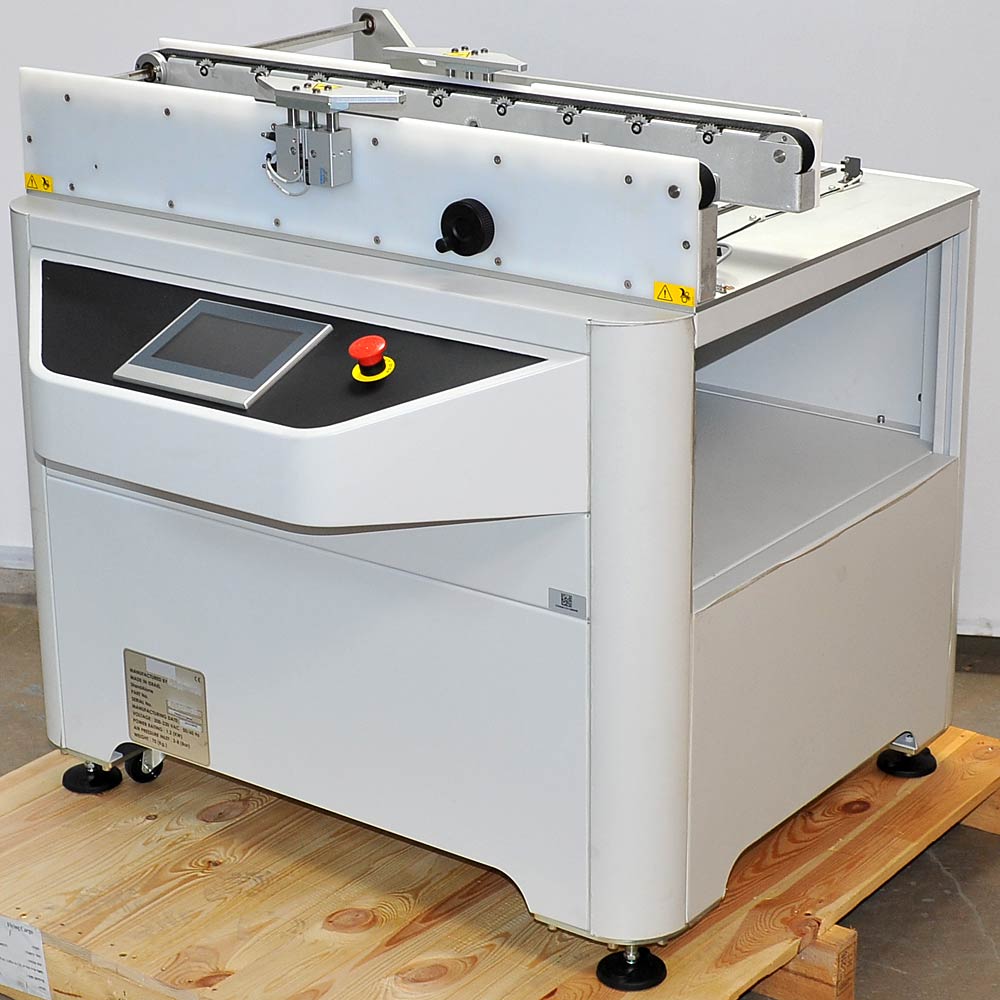

NEW 1m Wide 1" Belt Open Center Standalone Conveyor w/ Beckhoff Control Computer
Manufacturer: Unbranded
Model: Standalone
Condition: New Other
- Residential area?
- Dock or forklift?
- Zip code?
*Shipping to be arranged by seller
Manufacturer: Unbranded
Condition: New Other. This unit is in Good cosmetic condition. It was in its factory-new crate until we unboxed for inspection. The original protective film is still on several of the side panels. The unit you receive may have either a matte (shown) or glossy black panel around the display.
Notes: We were able to run the conveyor in both directions, run the width adjustment both directions, operate the grippers and stops, and verify operation of all product sensors. We used 120V power for testing and found the unit functional but can't guarantee it will work on other than 200-230V power. We noted the computer has an internal clock set at 2006, which may mean the BIOS battery has died. We did not see a password prompt, but if there are any necessary we have no passwords for this machine. NO other testing was done.
No manuals, cords/cables, or additional items are included if not listed or shown.
Included:
- (1) 1m Open-Center Edge Belt Conveyor
Specifications:
- Open-center edge-belted conveyor
- 1m total length
- Right-to-Left or Left-to-Right
- Manual and motorized width adjustment, 20 to 63cm center opening between belt edges
- 1" Wide cloth-topped belts
- Belts are gear driven by step motor Beckhoff AS1060-1000
- Width adjustment driven by step motor Beckhoff AS1050-0110
- Dual linear rails (52cm long), CPC MR9M bearings and dual screws for width adjustment
- Engraved scale shows belt opening width
- Optical switches on both sides of width adjustment range, looks like could be set as narrow as 10cm
- Pneumatic product stops "Grippers/Tray Locks" on both sides, (Festo DFM-20-20-P-A-GF)
- Tray locks have 5mm to 25mm under-stop clearance, only block a few mm on outside of belts
- Tray locks have autoswitches for up and down
- Stop pin with 10mm stroke interrupts product flow (Festo ADVC-10-10-A-P-A)
- (3) optical product sensors, Sick WTB2S-series
- Entire conveyor assembly has a flat bottom plate, simple to integrate in your setting
- Approximately 15.5cm from bottom of plate to top of conveyor belts
- Controlled by Beckhoff CX9020-0115/U900 industrial PC with Windows 7
- User-friendly user interface
- HMI is a color touch screen Beckhoff CP2907
- Festo pneumatics
- SMEMA conveyor connections
- Large opening under conveyor
- Base cabinet contains electronics, otherwise empty
- Power requirement: 200-230V 1phase 50/60Hz 1.2kW
- Wheels for easy relocation, adjustable legs
