Size:27.5 / 29 inch
Springs: Air

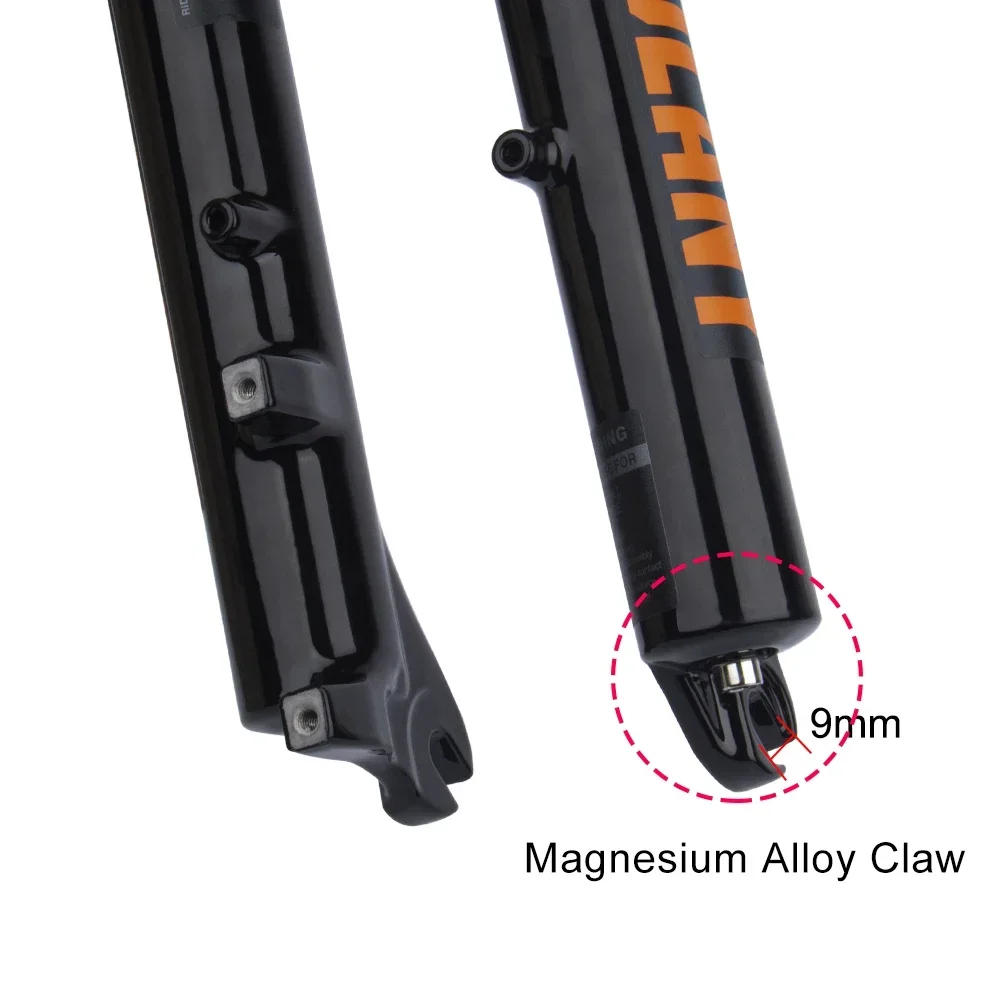

Axle :9 mm *100 mm
Stanchion Size :32mm

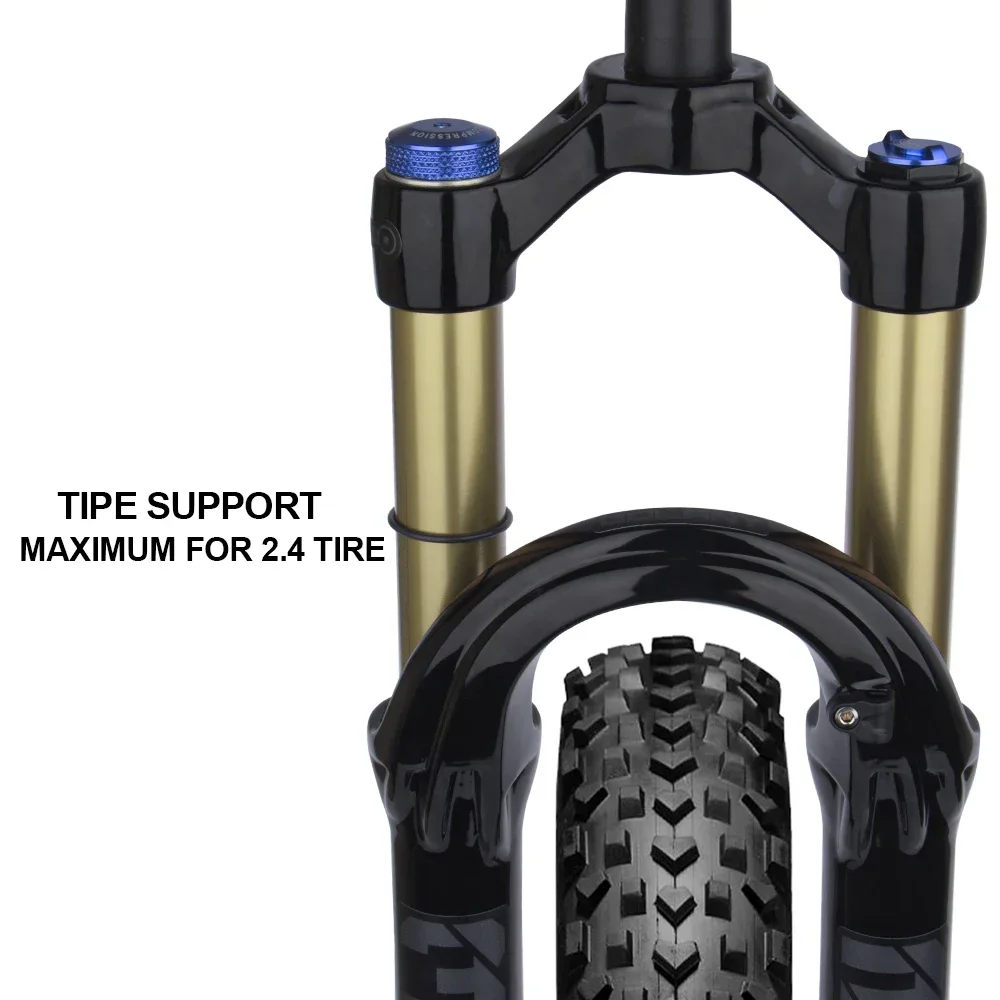

Tire Clearance:Within 2.4inch
Steerer Options : Straight (1.125")

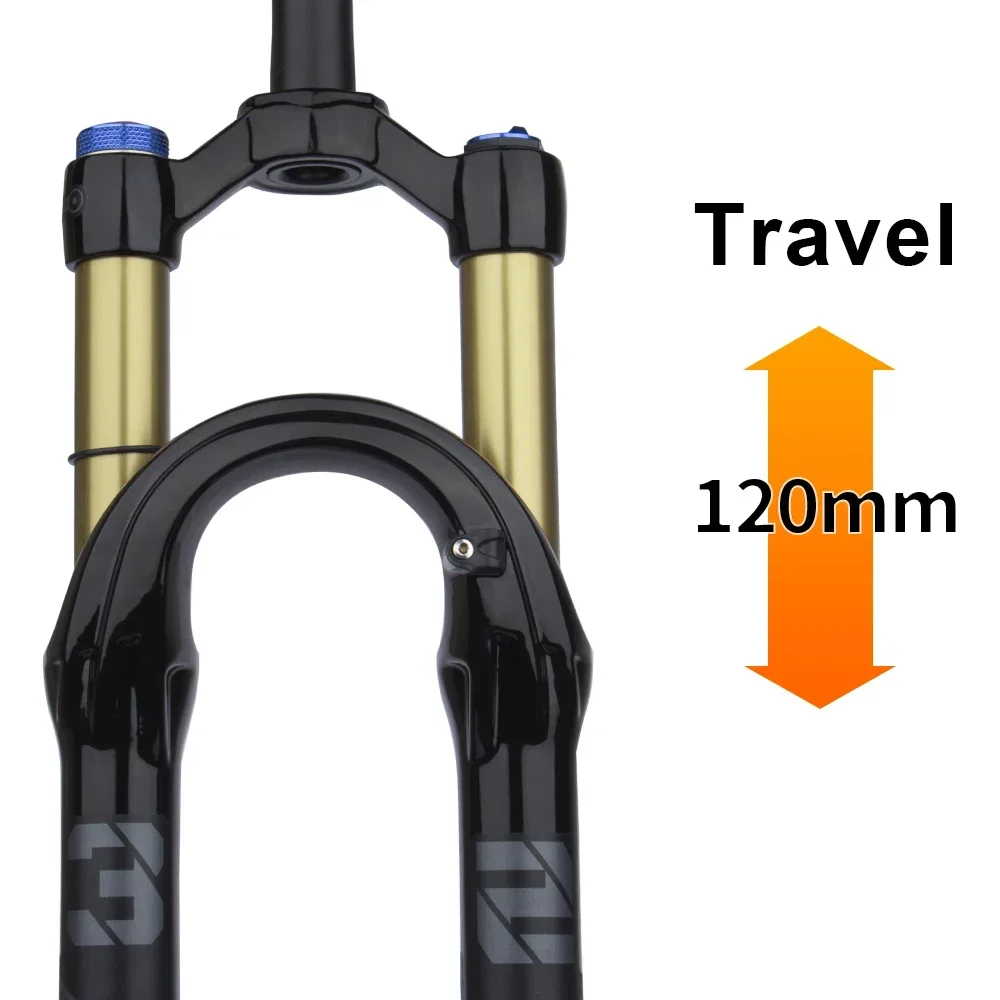

Travel: Active Travel 100mm ,Exposed Travel 120mm

Axle-To-Crown(Length):27.5 Inch : 515mm, 29 Inch: 540mm
Lockout Type : Manual Lockout And Remote Lockout

Weight:1800g for 27.5 Inch, 1900g for 29 Inch(Manual Lockout)
1850g for 27.5 Inch, 1950g for 29 Inch(Remote Lockout)

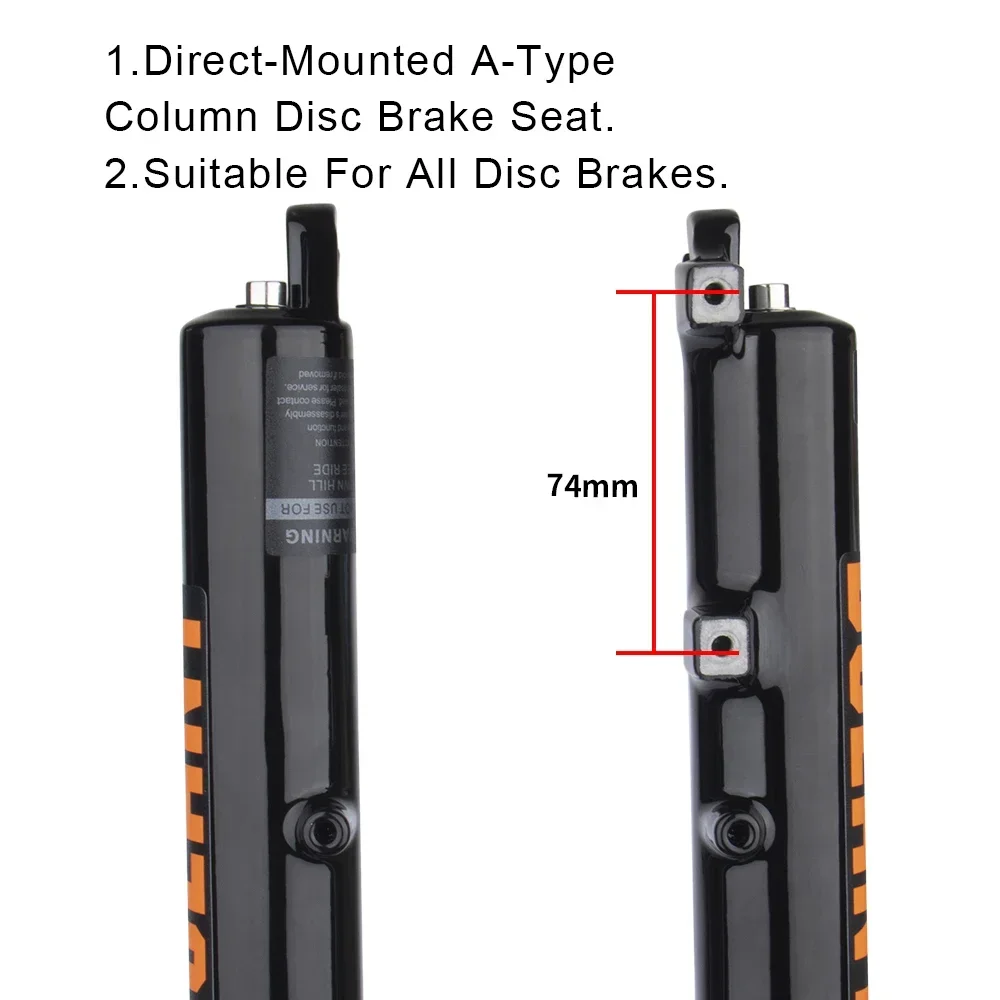

Brake Type: Disk Brake. 160mm PM (Disc Only),180-203mm Need Use Adapter.

【Materia】: Mountain Bike Suspension Fork, Made Of High Quality Aluminum Alloy+Magnesium Alloy, Strong And Durable, Stable Control Of Your Bike, Play A Protective Role In Your Outdoor Cycling.

【Highlights】:Can Be Quickly Disassembled And Assembled,Oil And Gas Structure Process.According To The Rider's Weight And Riding Condition,Adjust The Comfortable Air Pressure Value To Achieve Better Experience Effect.

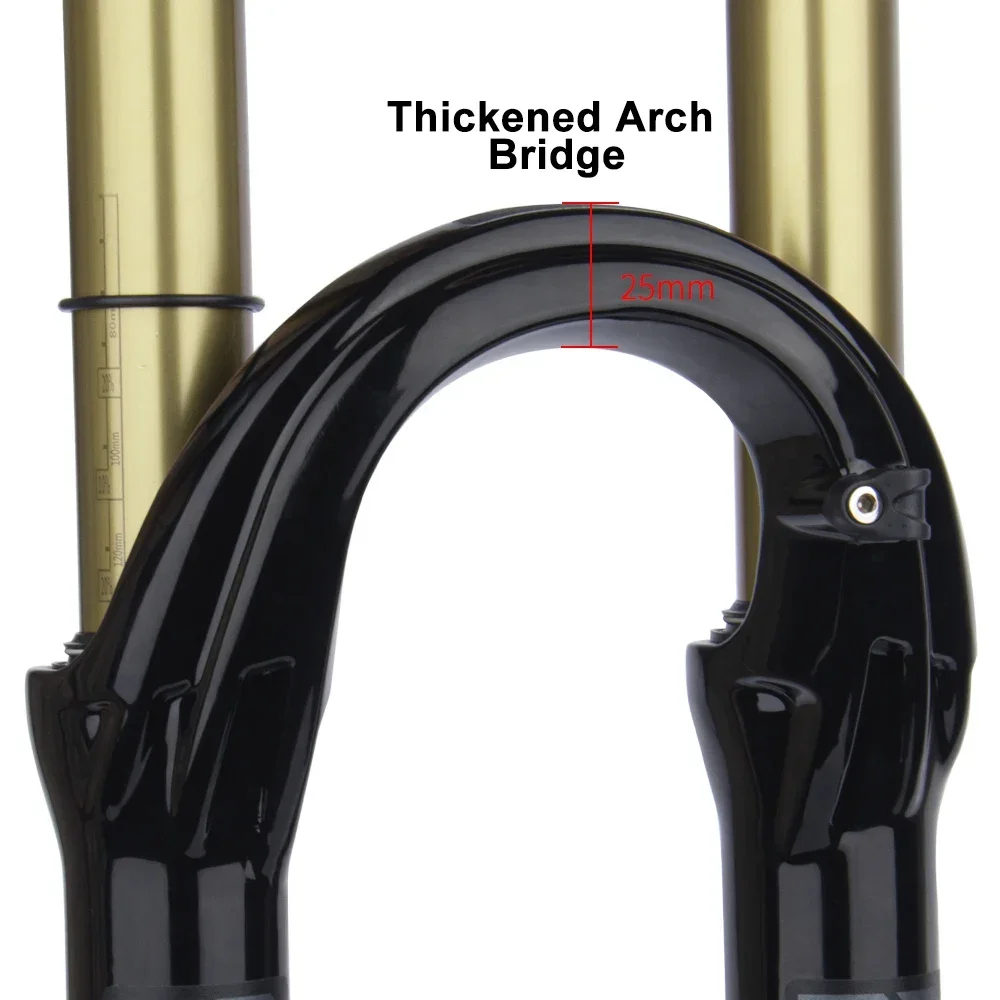

【Advantage】: The Outer Tube Of The Fork Tube Is More Stable And Stronger, Effectively Preventing The Circulation Of The Traveling Tube From Being Polluted By Dust. Surface Polishing Plus Hard Fat Oxidation, Wear Resistance, Lubrication, Low Resistance, Smooth Rebound.

【Professional Design】: Exquisite Workmanship, Beautifully Painted And Has A Bright Appearance, Numerical Controlled Precision Bending.Shockproof And Durable. Ergonomic Design Provides Good Condition In The Long-Distance Cycling.

NEW: Internal Upgrade--Upgrade Of Sliding Sleeve--Plastic Upgrade To Teflon Material.

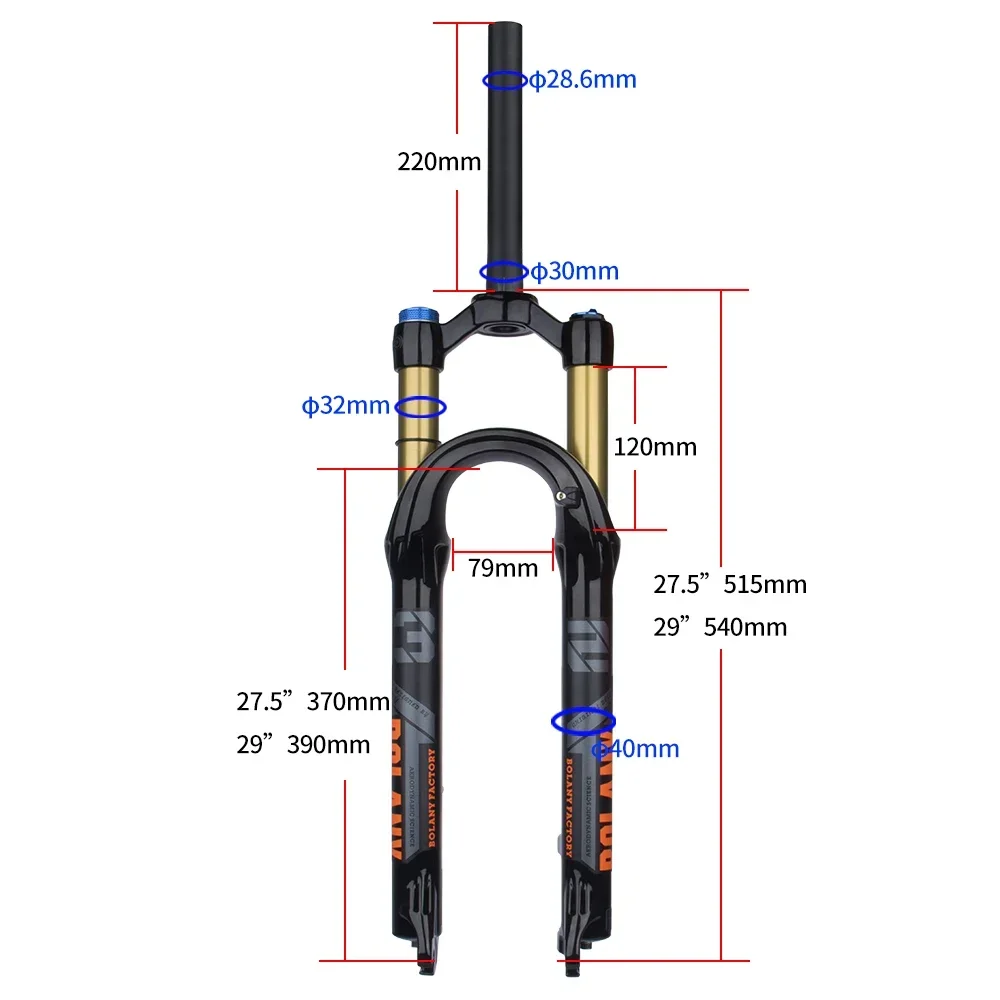

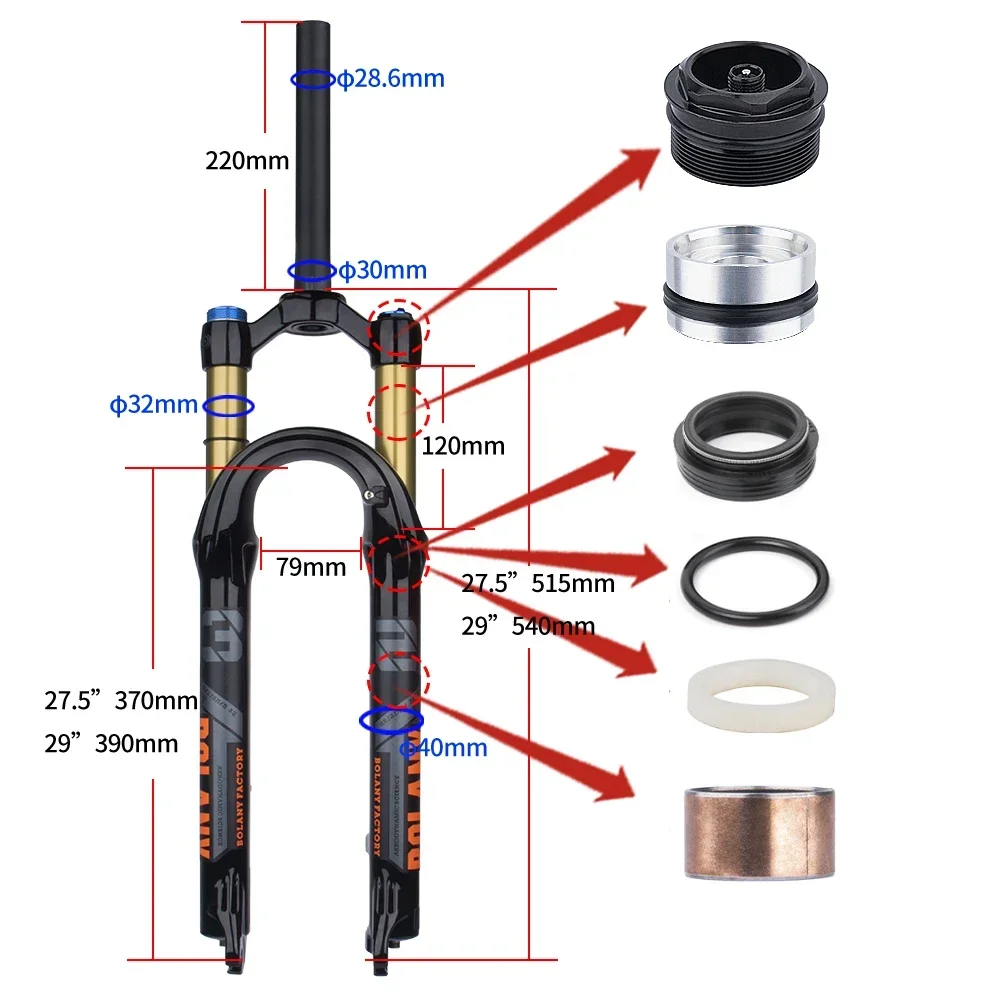

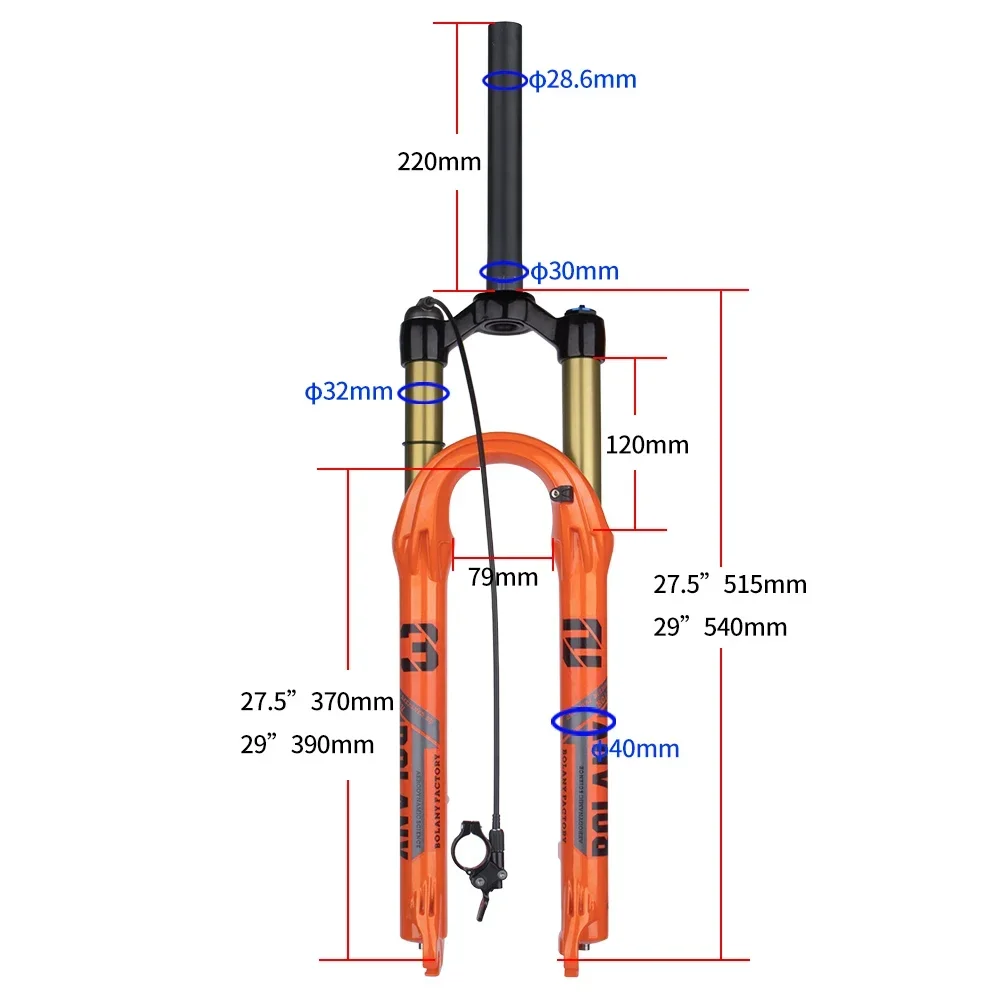

Dimensional Drawing Of Front Fork:

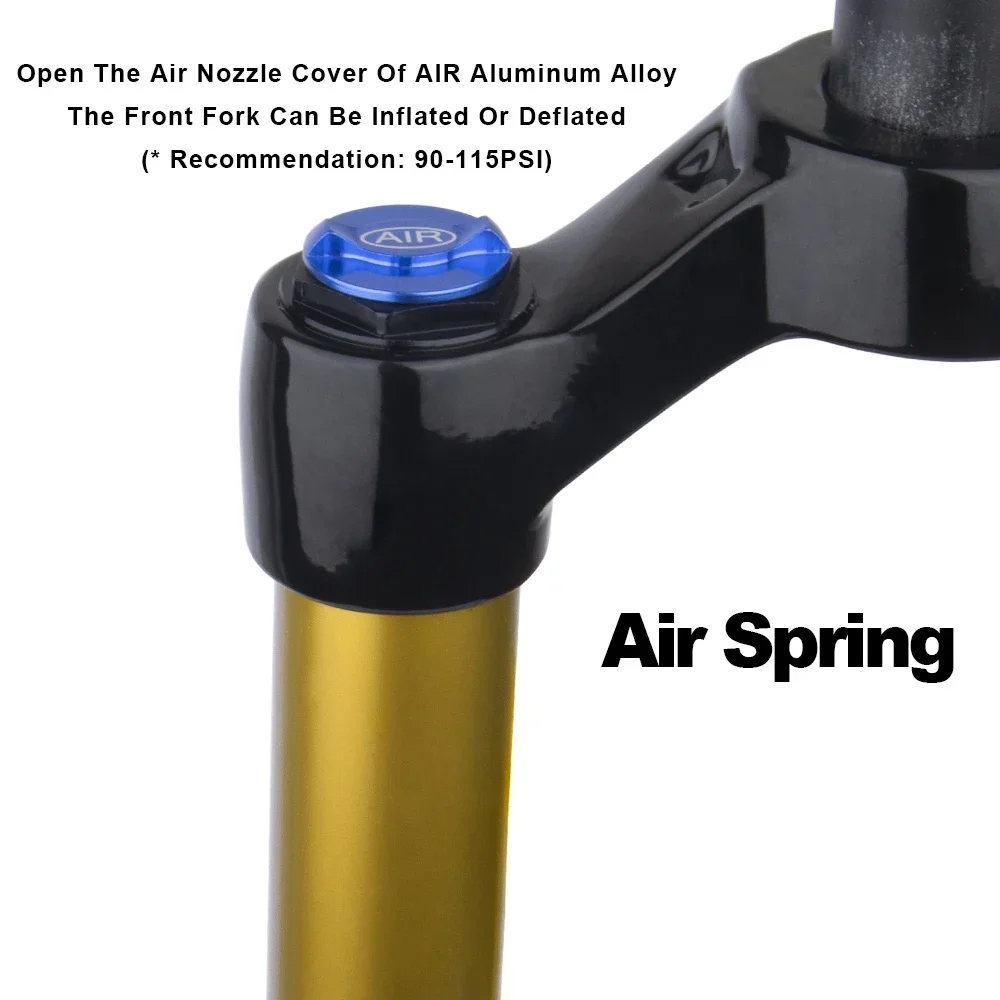

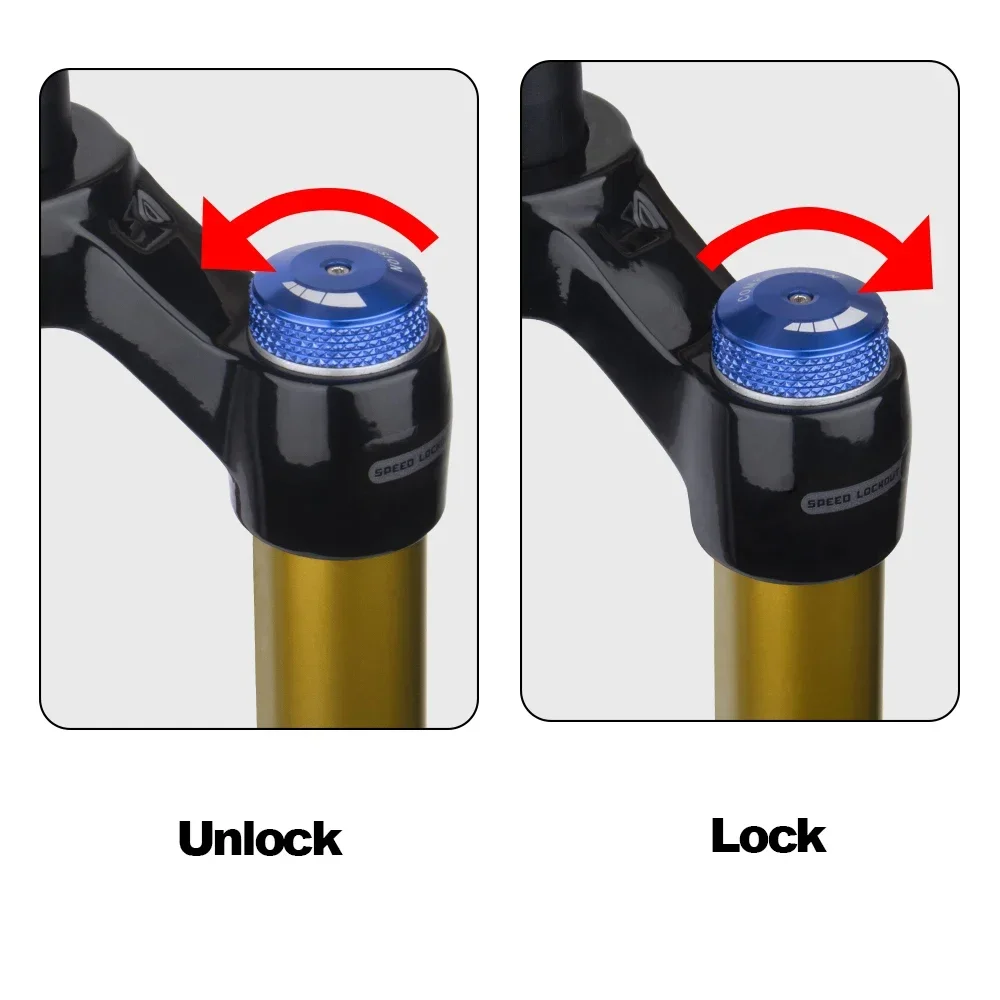

The Front Fork Can Be Inflated Or Deflated At This Position. Recommended Value: 90-115PSI.This Position Is A Schematic Diagram Of The Direction That The Shoulder-Controlled Fork Can Be Locked And Unlocked Manually.
