Olide Swing Glass Door Automatic Entrance Door Openers for Office Door,Home Door,Stroe Door with 2pcs Wireless Push Panels

Swing Glass Door Closer Includes

2 pcs Wireless and not hardwired remotes,working frequency is 315MHz
2 pcs Wireless and not hardwired wireless push switches

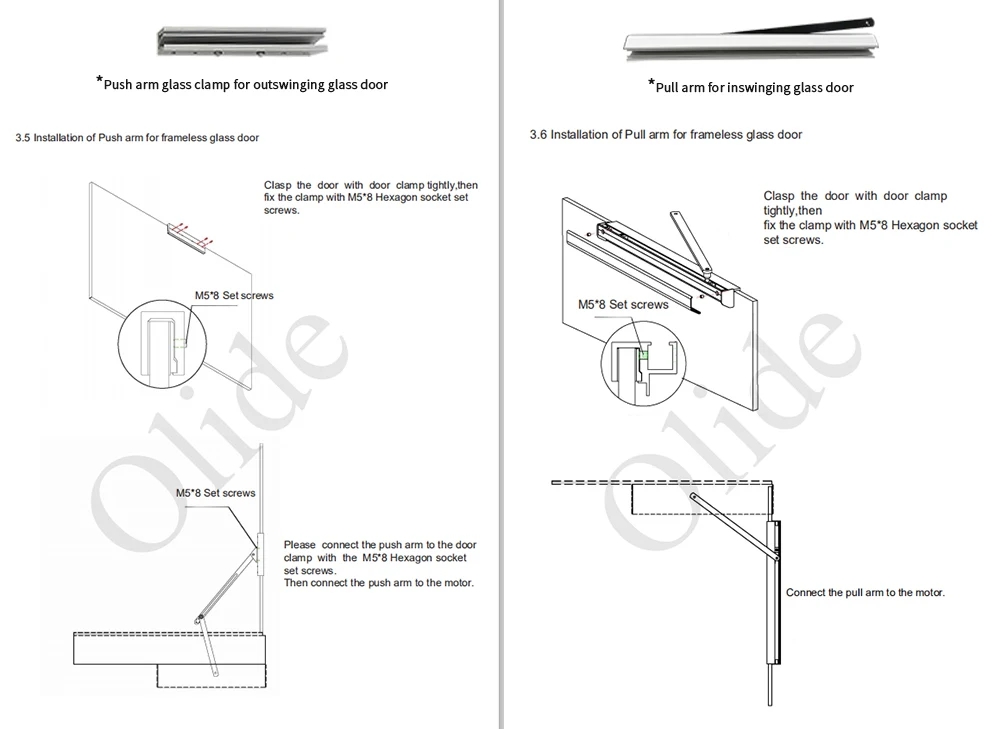

Outswing bracket push arm and push arm glass clamp
pull arm for inswing glass door
Parameters adjusting hand programmer
2 pcs auto door attention stickers
Screw and screw anchors
Black and white manual
Standard plug and cords

The DSW120 is a low energy automatic ada swing door opener that is activated by wireless push buttons.This system operates in both automatic and manual modes,In manual mode, door opens with very little pressure and closes slowly providing easy operation for handicapped or pedestrians

With advanced wide voltage technique,it makes the DSW120 highly adapt to voltage fluctuations between 110-220VAC +/-10%, it can be used in areas almost of the world whether it is a peak in urban power or insufficient power supply in remote areas.More energy saving and durable than ordinary single input voltage.

The DSW120 is a kit with an automatic door opener for both inswinging and outswinging doors and two stainless handicap push to exit buttons for automatic doors. This system is designed to secure your door and have the capabilities of automatically and manually opening and closing it as well. A simple yet secure system for areas such as offices, hospitals, elderly homes, banks, commercial locations, and much more.

Easy Program and Debug Front Door Automatic Door Opener Closer with 1PCS Wired Surface-Mounted Face Recognition Sensor via Handheld Programmer

Always Keeping Door Open Available via adjust parameter"hold-open time"to"--"

electric smart wifi door opener with AI image recognition sensor,touch free automatic door

Integrated High-Efficiency Working Controller and Wide Voltage, Durable Motor

Olideauto automatic swing door opener with magnetic lock kit

Knowing More Details


Large Wireless Fob Keys for Olide-120B The remotes that come in this kit are Wireless and not hardwire The remotes working frequency is 315MHz You can add up to 15 wireless devices per automatic door opener	Handheld Programmer for Olide-120B Please plug into Olide-120B to adjust parameters such as closing force,locking mode,etc If shows Err03 on the display,please plug and re-plug the handheld programmer with power on,it will disappear	Wireless push button Working frequency:355MHz Power supply:AC/DC 12V-36V Receiving sensitivity:less than -105dBm Working Area:Up to 50meters in open area

auto open electric double door opener

Olideauto Commercial Handicap Door Opener Swing Door for The Disabled Hand Programmer

Olide SW100 Remote Control Automatic Swing Door Closer Wireless push switch

Large Wireless Fob Keys for Olide-120B

The remotes that come in this kit are Wireless and not hardwire
The remotes working frequency is 315MHz
You can add up to 15 wireless devices per automatic door opener

Handheld Programmer for Olide-120B

Please plug into Olide-120B to adjust parameters such as closing force,locking mode,etc
If shows Err03 on the display,please plug and re-plug the handheld programmer with power on,it will disappear

Wireless push button

Working frequency:355MHz
Power supply:AC/DC 12V-36V
Receiving sensitivity:less than -105dBm
Working Area:Up to 50meters in open area

Technical Parameter

Swing application: one-way inswing or outswing open, single leaf and double leaf standard doors
Voltage: 110-220 VAC +/-10%
Motor: DC 24V brushless motor
Power Consumption: 50W
Opening Time: 3-7 sec. @ 90 degrees
Hold Open Time: 1-30 sec. Adjustable
Max. Door Frame Depth:200mm / 7.87"(the data is only applicable to work with push arm)
Door Width: Max. 1200mm / 47.2" Min. 660mm / 26"
Max. Opening Angle:120 degrees
Environment Temperature: -20C to 50C -4F to 122F
Operation noise: Less than 55db
Opener size: 21.45''(L)*3.35''(W)*3.74''(H)
Opener weight:9.5kg/ 20.9 LBS

Installation And Technical Specifications

Trouble Shooting

Symptoms 1 Motor always spin slowly and not stop
Remedies 1 Please install the whole item on the door to test,the door opener need to find a closing position firstly, if not installed, the motor just keep spin very very slowly in one direction and not stop. The system will go to a properly operation after find a closing position. If want to test on your workbench, you can install a arm, and manually stop in a position. (As closing position), And then give system a open signal.
Symptoms 2 The door opens in wrong direction and machine does not work
Remedies 2 Power off, manually open the door in half open,then power on, the door goes to closing direction, if not, change the open direction
Symptoms 3 Rebound when closing the door,repeat open and close actions
Remedies 3 Clear the obstacle away or increasing the closing force by hand programmer
Symptoms 4 Electric Lock not work
Remedies 4 Please press the lock button on the remote for first close
