Note: Battery and Liquid not Included During The Shipping !!!

Overview:

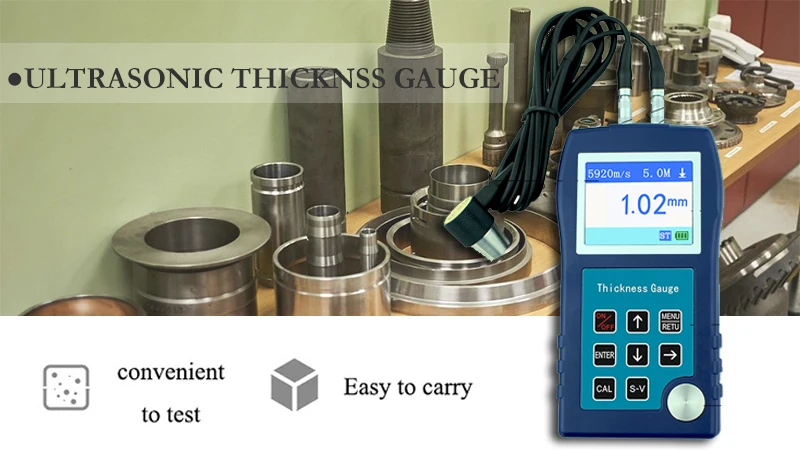

• Ultrasonic thickness gauge is a kind of high-precision thickness gauge which uses ultrasonic measurement principle, adopts high-speed processor and high integrated chip design to realize portable, nondestructive, fast and accurate measurement of thickness and sound velocity of various materials.

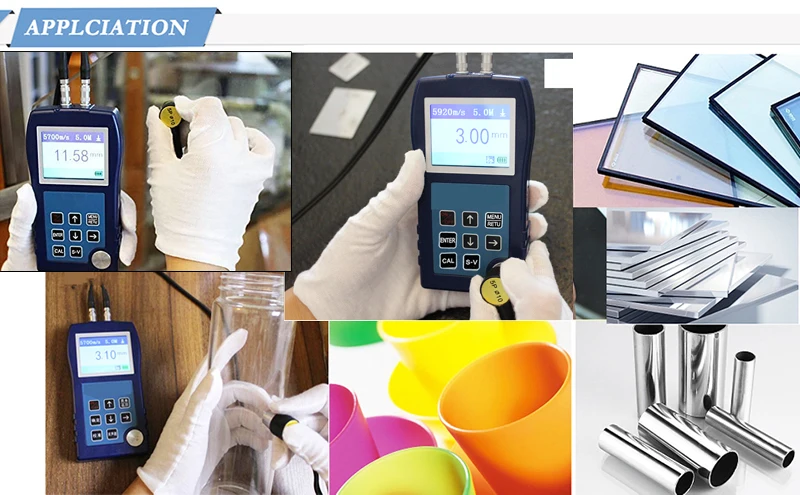

• It is suitable for measuring the thickness of various materials, such as steel, metal, glass, ABS, plastics, PVC, ductile iron, etc., which can be transmitted by ultrasonic wave at a constant speed in its back.

Features:

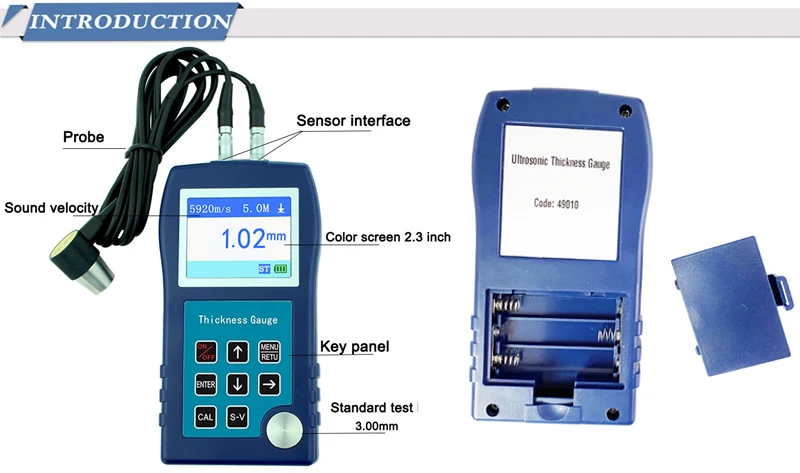

• Almost suitable for thickness measurement of all materials, such as: metal, glass, plastic and other materials; The instrument is exquisite, compact and intuitive, with a large 2.3-inch color screen display, convenient to carry, suitable for on-site testing
• Two measurement modes: standard mode / ultra-thin mode High measurement accuracy, large measurement range, a standard probe completes the full range Chinese and English dual language version
• Two kinds of manual shutdown and automatic shutdown, users can choose at will; Built-in sound velocity of 7 commonly used materials, which can be edited, which is convenient for users to use;
• Humanized data storage mode: large-capacity storage, and can store data in groups, can store 10 groups of data, each group can store 200 data, can store 2000 data, manual storage is more autonomous, which is beneficial to result analysis;
• Mass storage, viewing, deleting operations, convenient and simple Multi-probes are used together, and high temperature probes can be selected for high temperature environment measurement.

Specification:

• Range:Ultra-thin mode: 2.5-25mm ,Standard mode: 0.75-500mm
• Display accuracy: 0.01mm
• Measurement error: "±（0.05+0.5%H）mm
• H is the thickness of the measured object"
• Material sound speed: 1000-9999m/s
• LCD screen: 2.3 inch large color screen display
• Calibration function: instrument calibration and sound velocity calibration
• Data storage function Each group can store 200 data, a total of 10 groups can store 2000 data
• Power display: Yes
• Bluetooth optional
• Shutdown mode: manual/automatic (automatic shutdown after 5 minutes without operation)
• External dimensions of the host: 130mm*70mm*26mm
• Power supply Three (No. 7) alkaline batteries (not included)
• Working temperature: 0℃-50℃
• Working humidity: 20%RH—90%RH
• Weight: 125g (without probe and battery)
