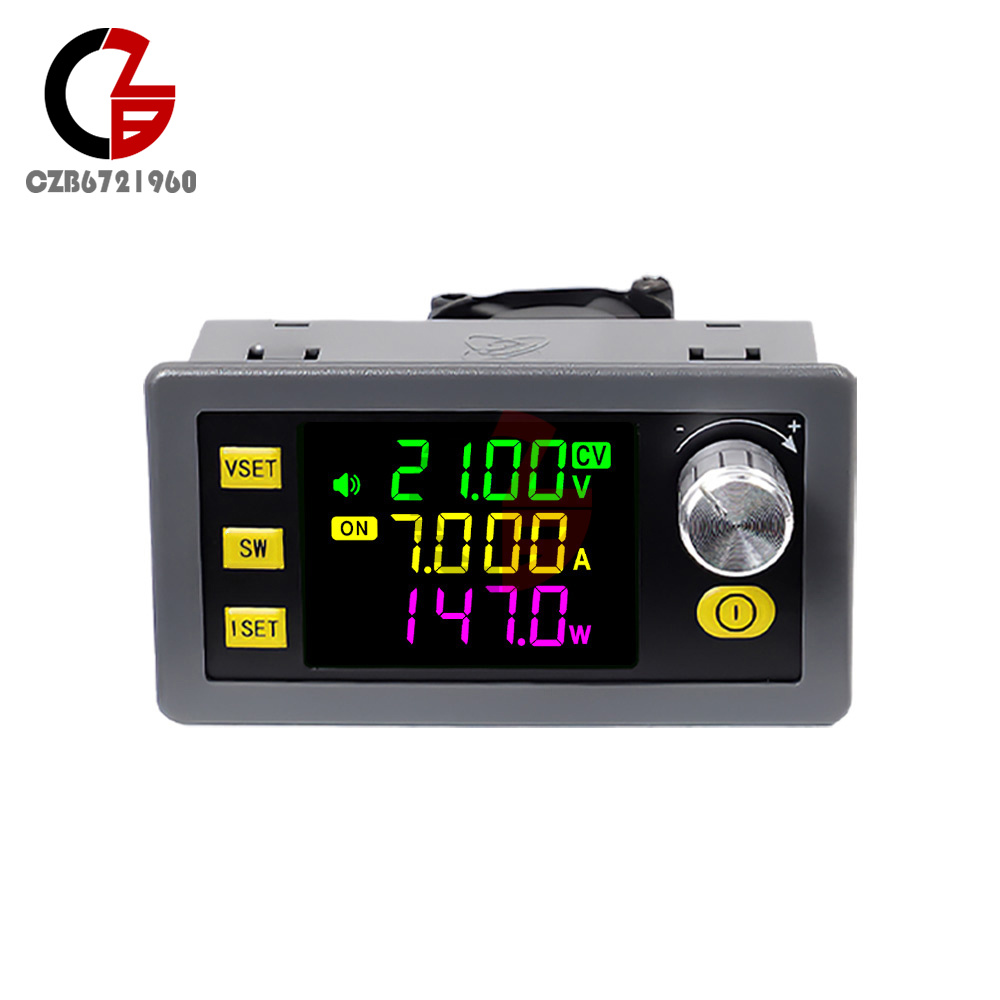

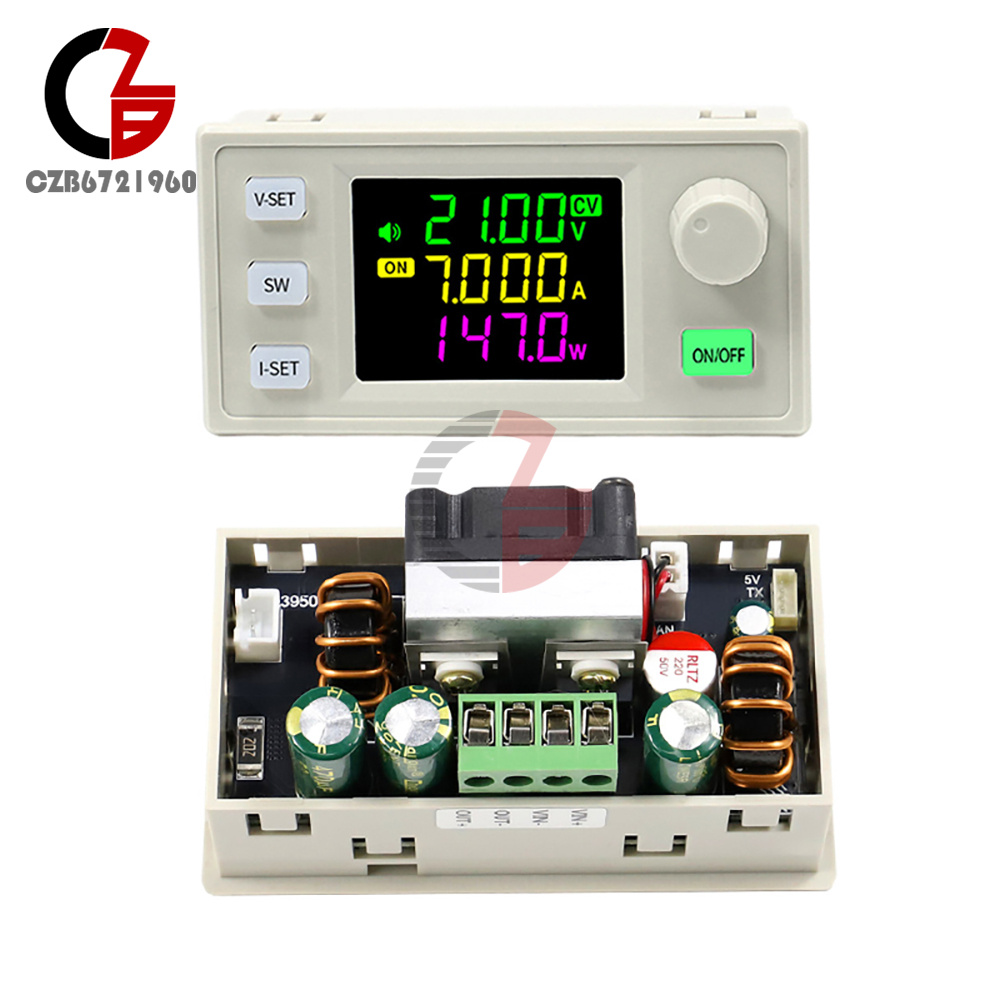

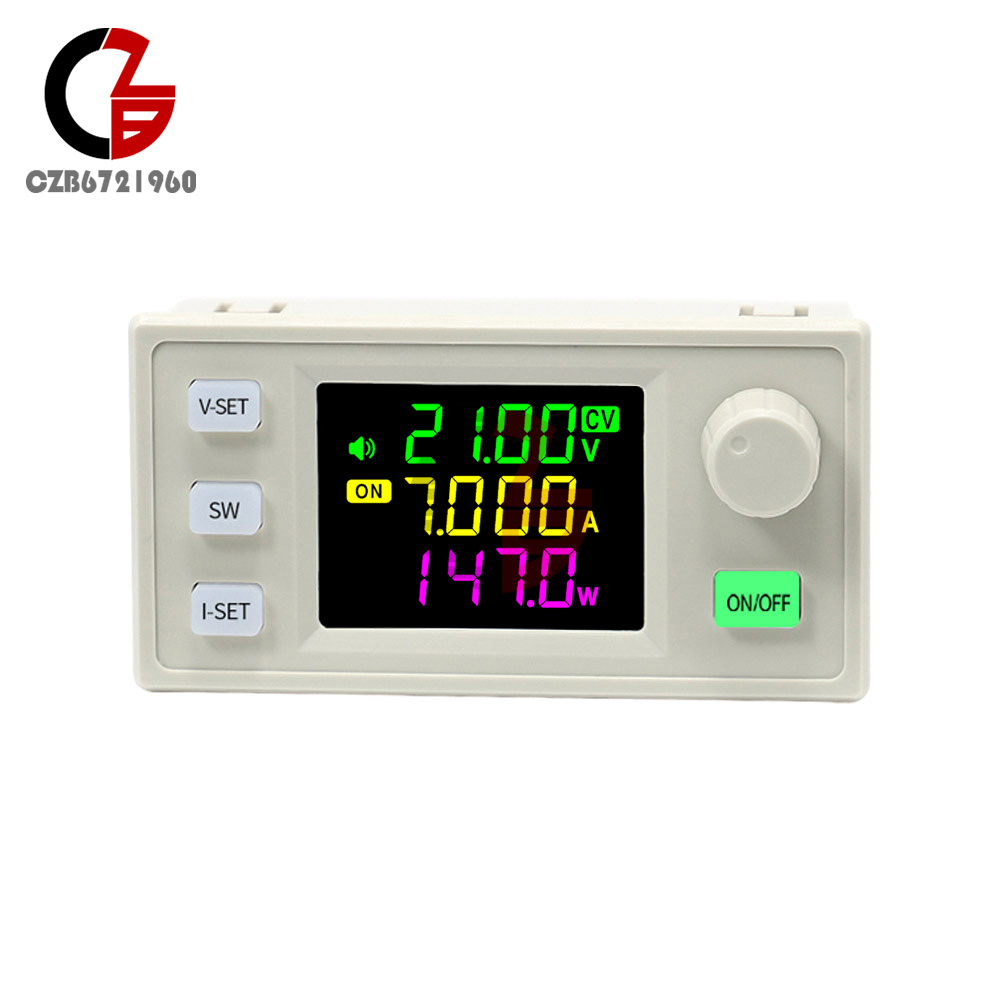

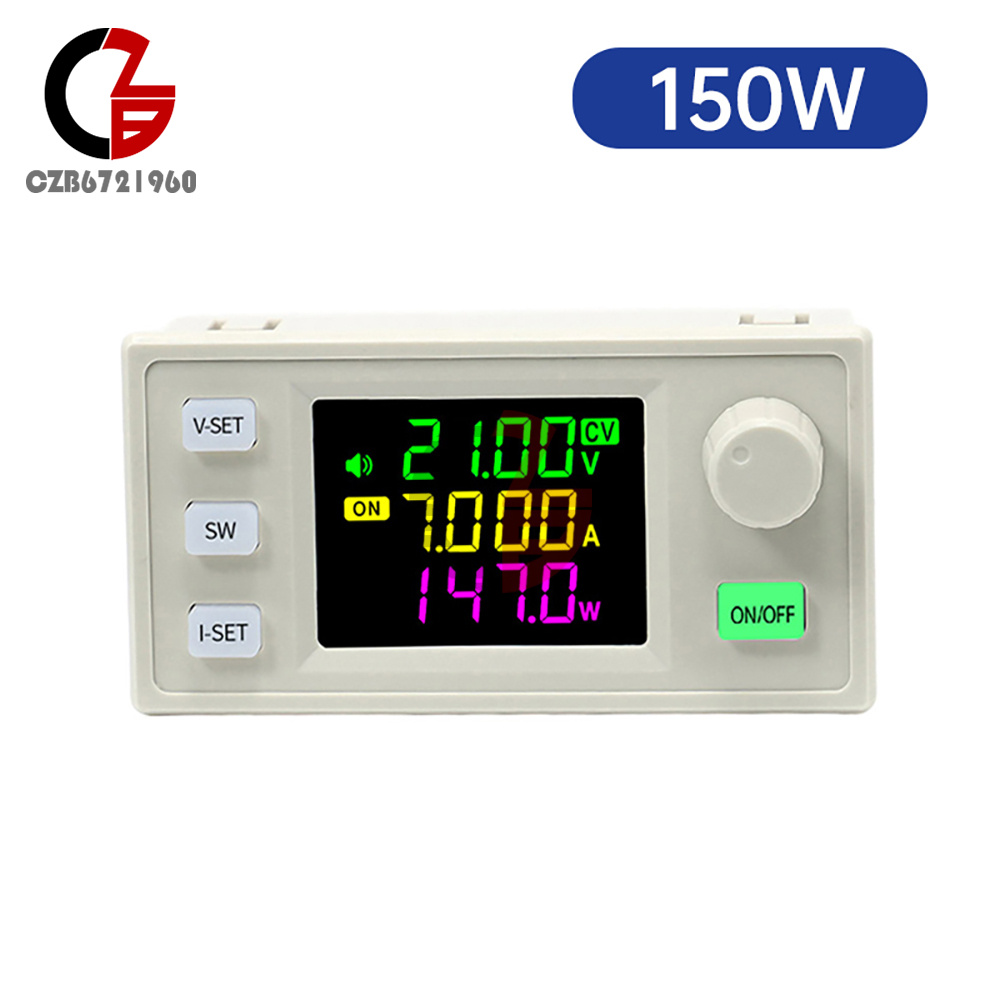

SK150/SK150X CNC Buck-Boost DC Adjustable Voltage Regulator Power Supply Module

Popular

    Product Introduction

    Features:

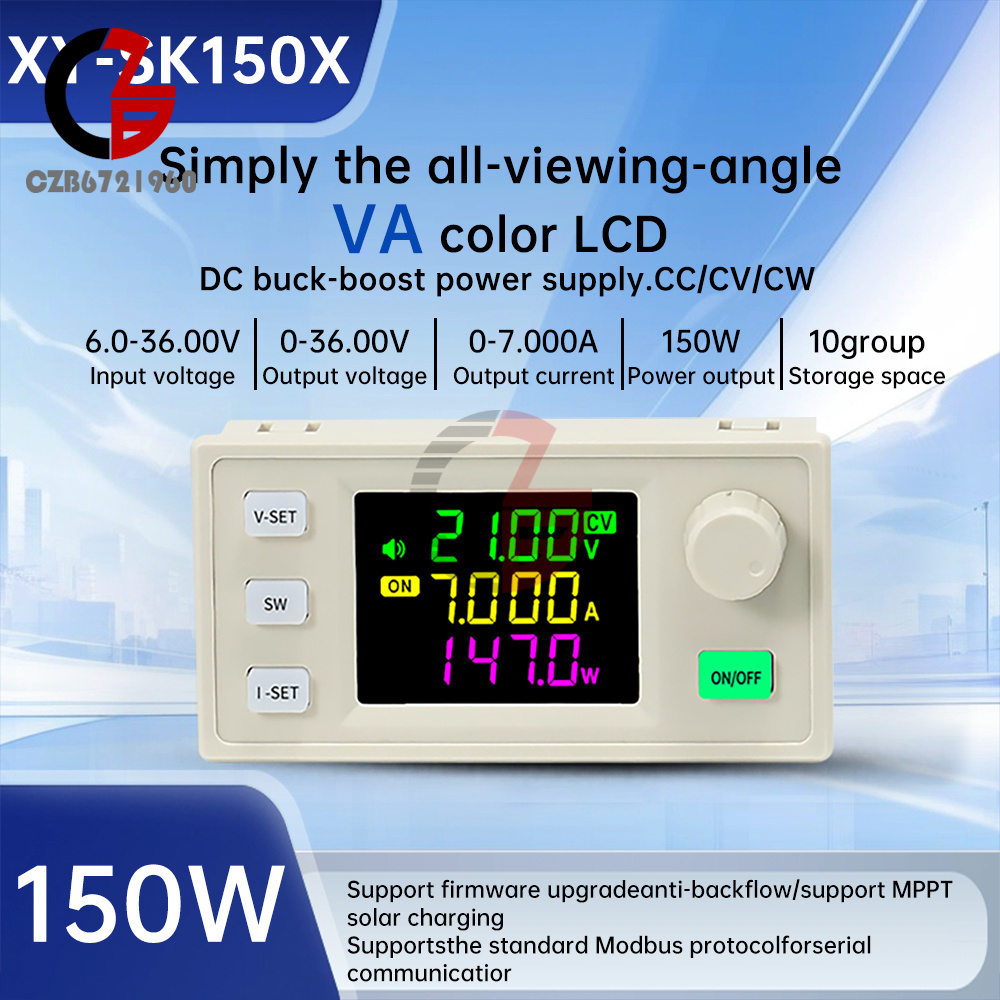

    1.X series products use silicone buttons, comfortable hand feeling, each button with cool indicator light (SK150X)
    2.Strict performance test and aging test to ensure the reliability and stability of the product.
    3. Support up to 150W output power, to meet the power needs of high-power devices.
    4. Built-in buzzer, key prompts, alarm prompts, safer and more secure use.
    5. Through the key control to realize precise voltage and current adjustment, the adjustment accuracy is as high as 0.01V/0.001A.
    6. Wide range of applications, with MPPT function, support MPPT solar charging, can be connected to external temperature probe to support over-temperature protection.

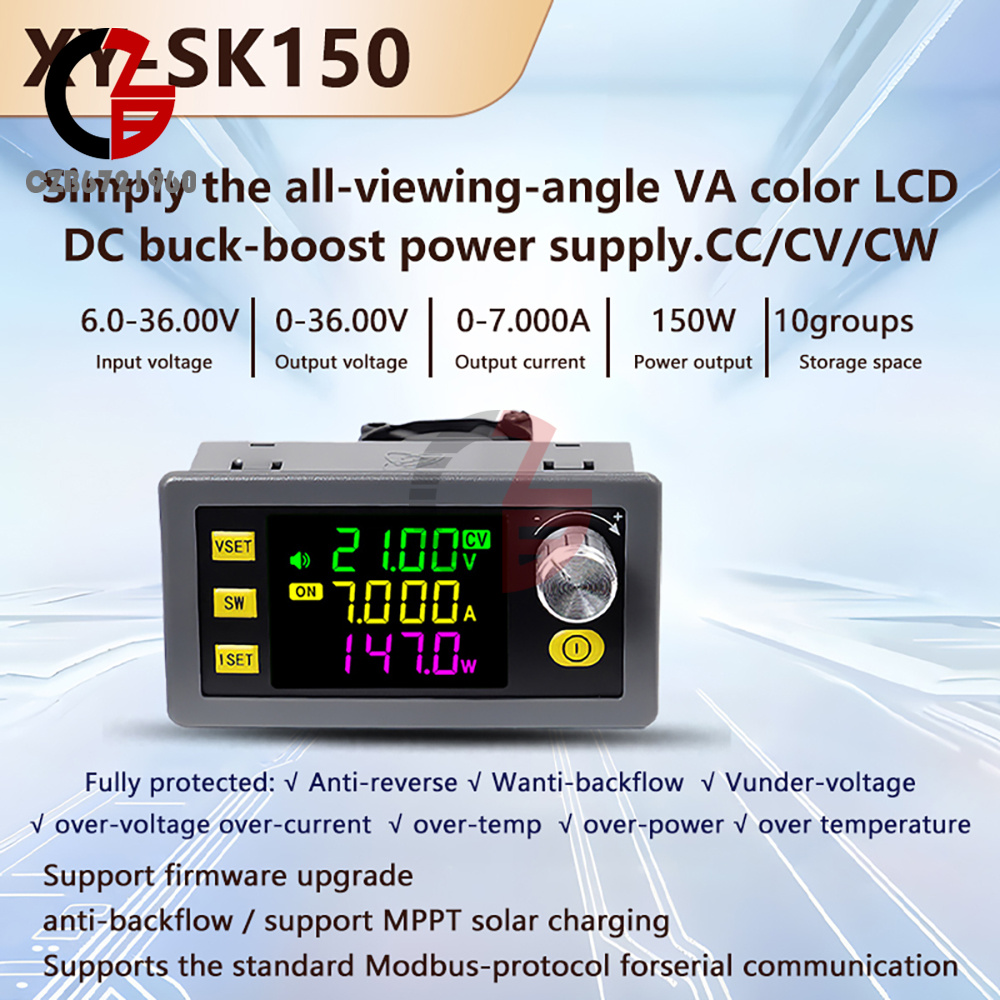

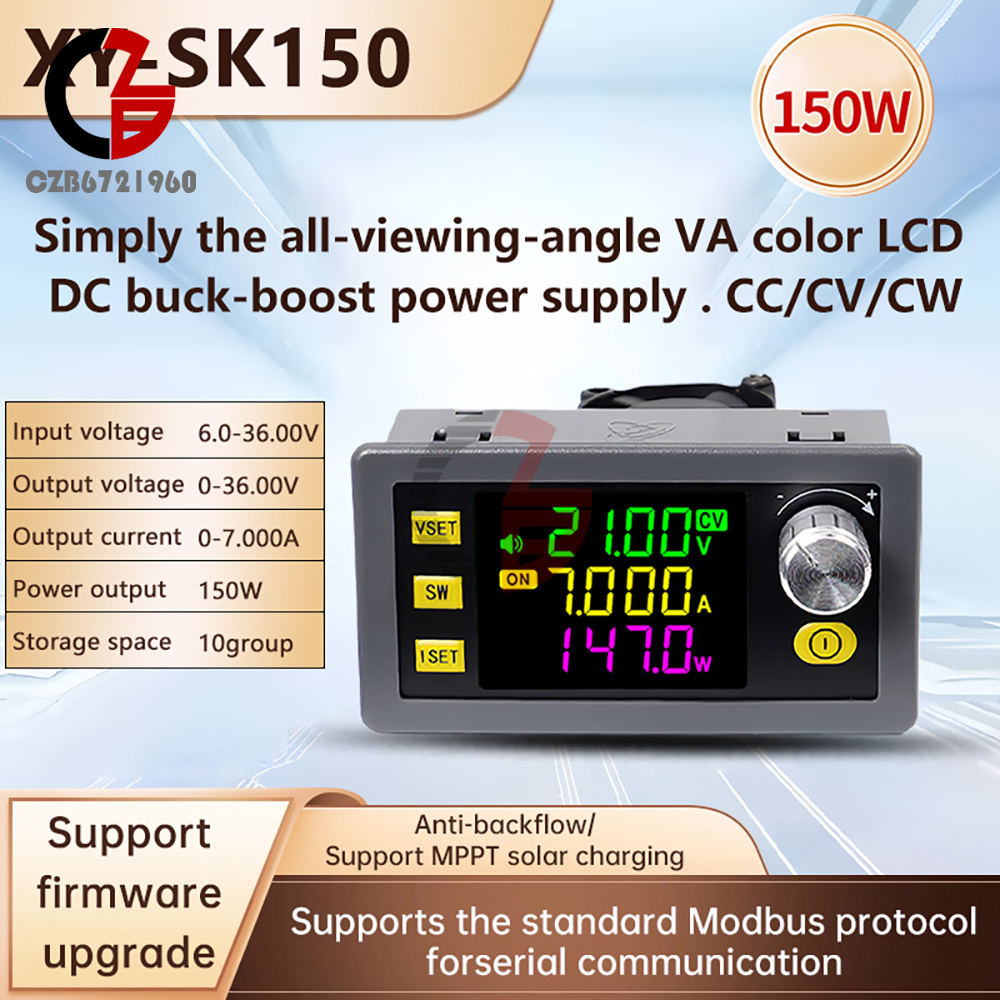

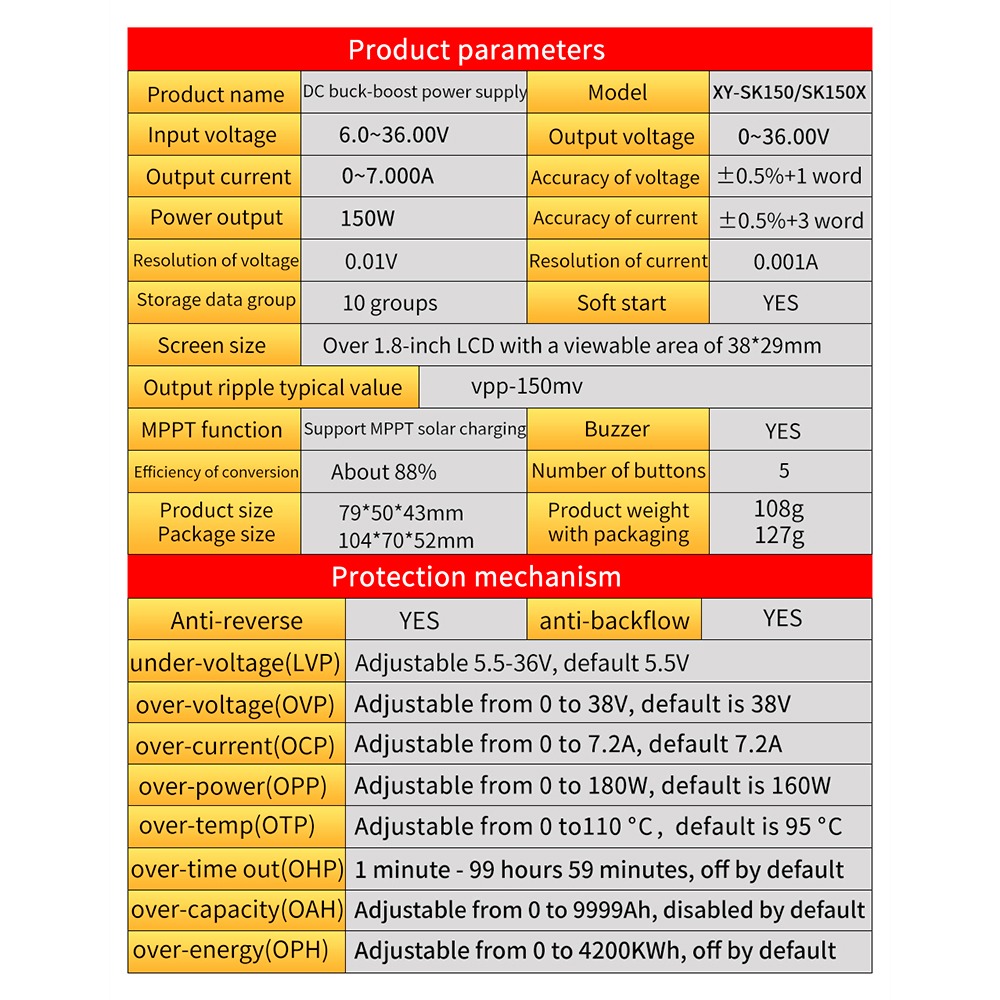

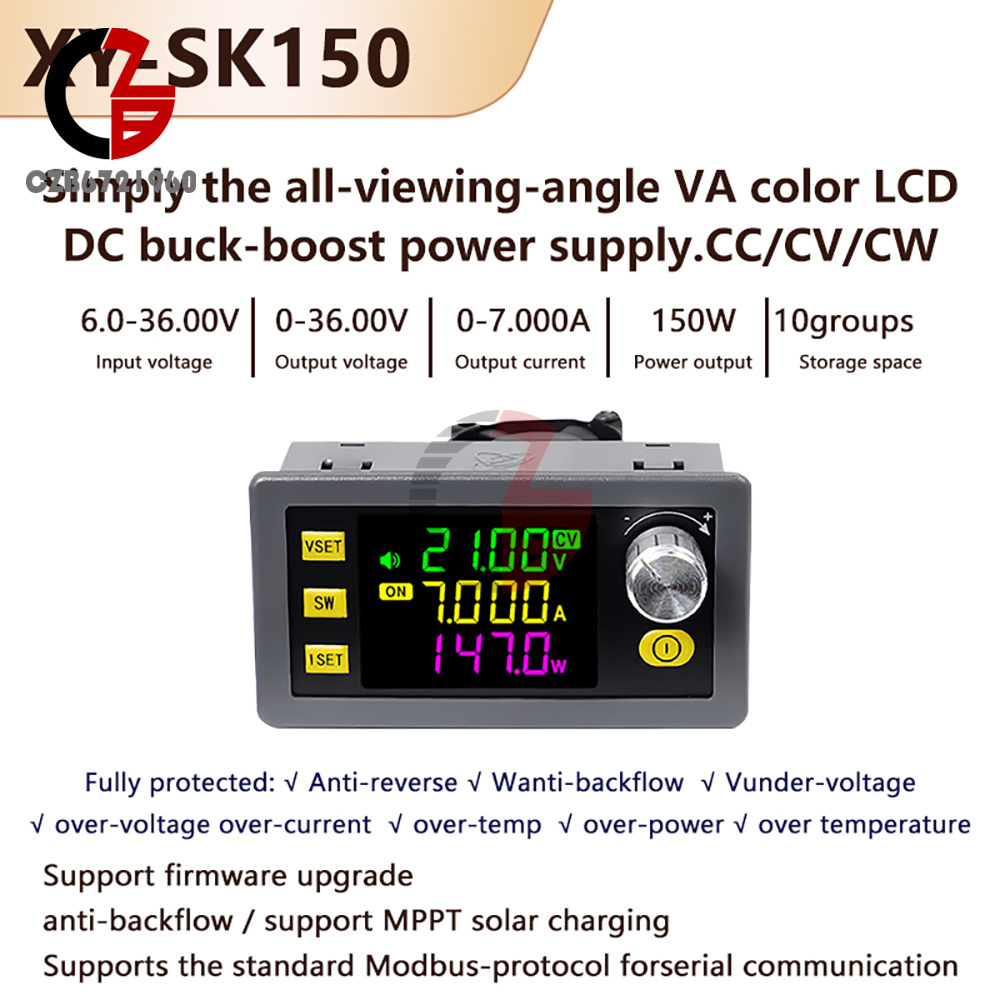

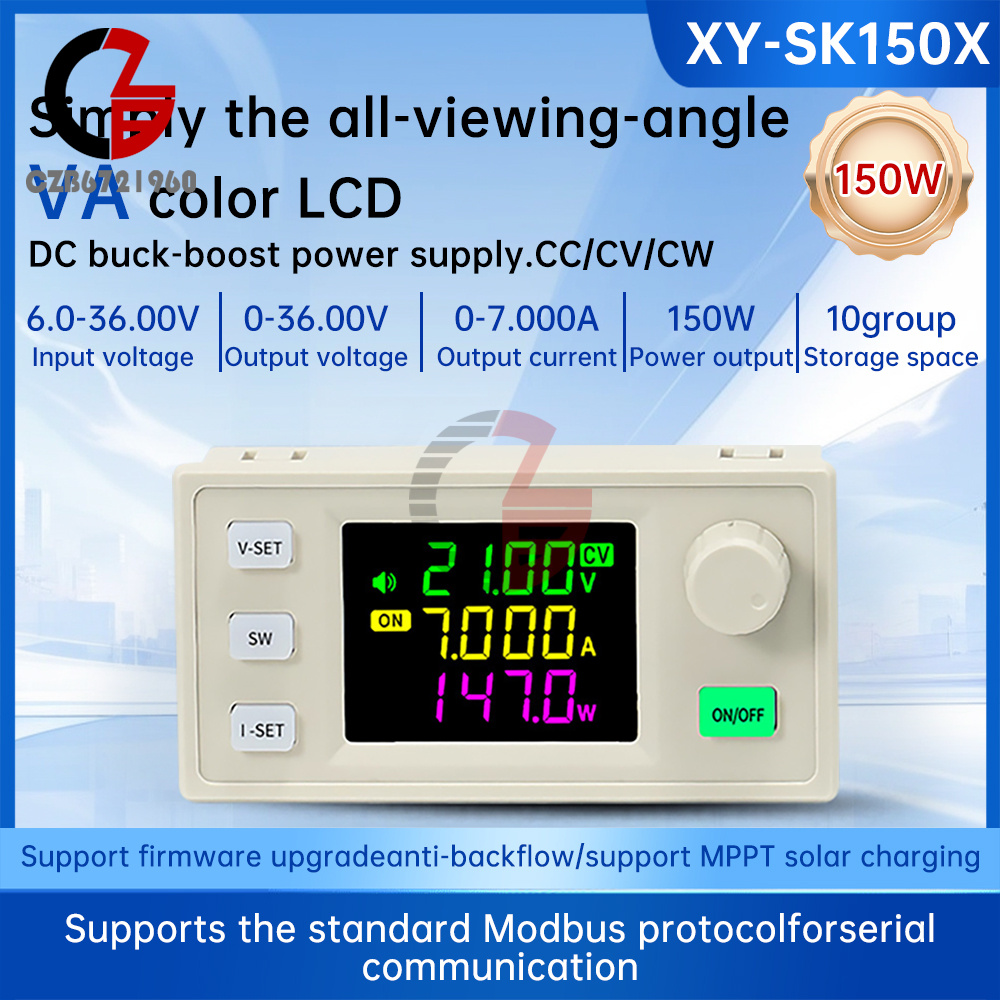

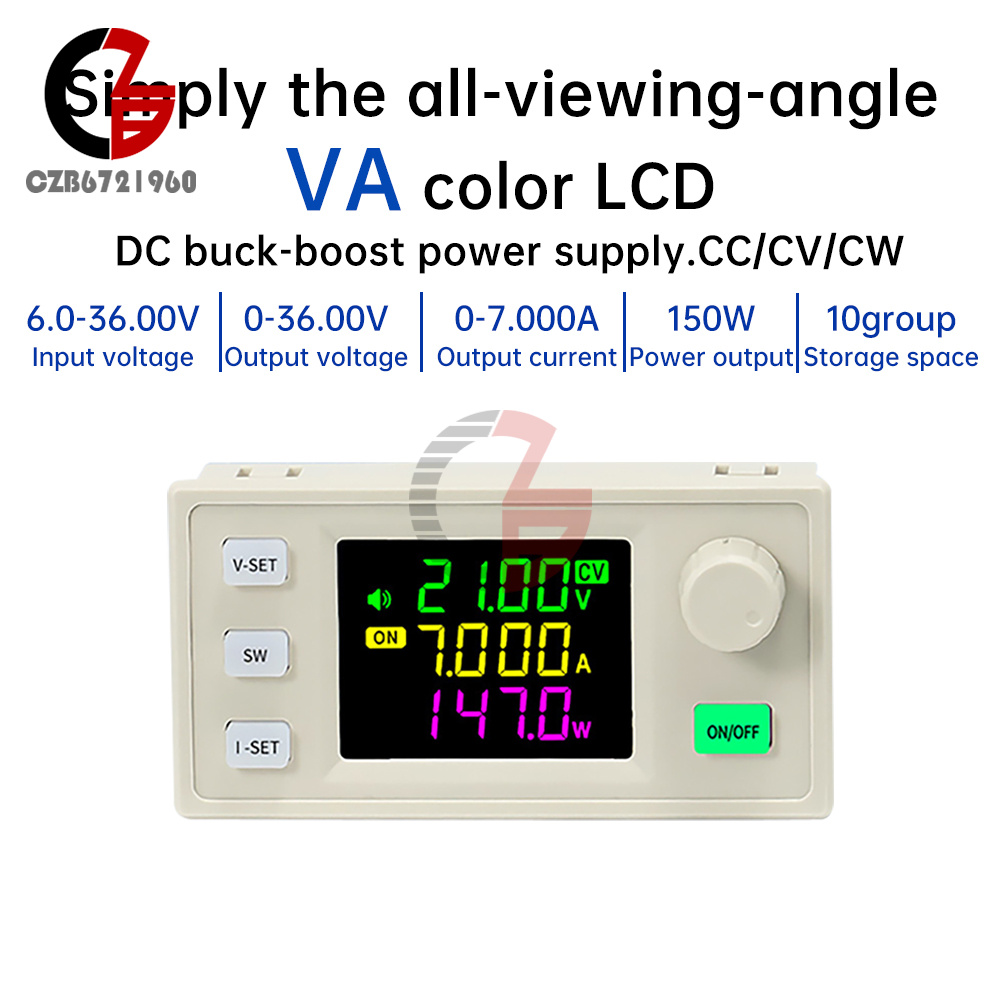

    Parameter:
    Input voltage: 6.0~36V
    Output current: 0~7.000A
    Output power: 150W
    Voltage resolution: 0.01V
    Conversion efficiency: 88% or so
    Output Voltage: 0~36V
    Voltage accuracy: ±0.5%+1 word
    Current accuracy: ±0.5%+3 words
    Current resolution: 0.001A
    Storage data group: 10 groups
    MPPT function: support MPPT solar charging
    Buzzer: Yes
    Soft start: Yes

    Protection mechanism:
    Input anti-reverse connection: Yes
    Output anti-reverse: Yes
    Input undervoltage protection: 5.5-36V adjustable, default 5.5V
    Output over-voltage protection: 0-38V adjustable, default 38V
    Output overcurrent protection: 0 -7.2A adjustable, default 7.2A
    Output over power protection: 0-180W adjustable, default 160W
    Over-temperature protection: 0-110°C adjustable, default 95°C
    Timeout protection: 1 minute -99 hours and 59 minutes, default off
    Over capacity protection: 0~9999AH adjustable, default off
    Super energy protection: 0~9999KWH adjustable, default off

    Package include:
    Adjustable boost and buck module *1
