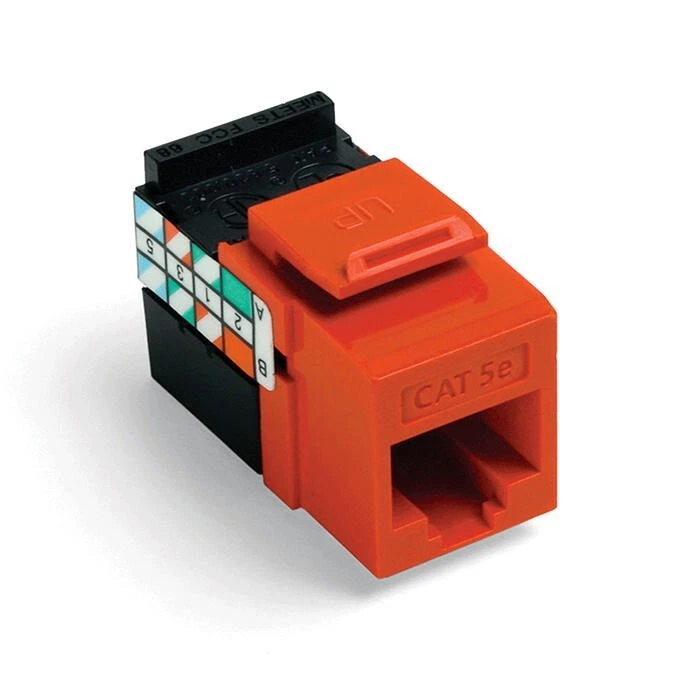

Leviton 5G108-RO5 Gigamax Cat 5e UTP Quickport Jack Orange
Click Thumbnails to Enlarge
DESCRIPTION
• GIGAMAX Cat 5e UTP QUICKPORT Jack, Orange.
APPLICATION
• The GIGAMAX Category 5e UTP QUICKPORT Jack is designed to be used with any Category 5e UTP structured cabling system. The modular jack features a one-piece narrow design that supports high port density in a small area, and is ideal for use in residential, MDU, and high megabit applications..
FEATURES
• Available in Orange colors.
• Dual wiring code label allows connector to be wired to
either T568A or T568B.
• Individual port configurability allows specification flexibility.
• Robust one-piece lead-frame design increases
power-carrying capacity and efficiency while providing
improved durability.
• Narrow connector allows high port density in a small area.
• Will exceed IEEE 802.3 standard up to 0.7 amps per
conductor continuously.
• Supports high-megabit and shared-sheath applications
.
• IEEE 802.3bt PoE Type 1 (15.4 Watts) formerly 802.3af, Type 2 (30 Watts) formerly 802.3at, Type 3 (60 Watts), Type 4 (90 Watts).
• Cisco UPoE (60 Watts), UPoE+ (90 Watts).
• Power over HDBaseT PoH (95 Watts).
• UL 2043 Plenum Certified.
CLASSIFICATIONS
• Brand Name: Leviton
PRODUCT SPECIFICATIONS
| Part Number | 5G108-RO5 |
|---|---|
| Product Type | UTP Modular Jack |
| Connector Body Material | High-Impact Fire-Retardant Plastic |
| Color | Orange |
| Number of Ports | 1 |
| Category Rating | Cat 5e |
| Position / Conductor | 8P8C |
| Cable Type | 8-Conductor UTP Copper Cat 5, 5e and 6 |
| Module Type | Category 5e |
| Termination Type | 110 Punchdown |
| Contact Base Material | Phosphor Bronze |
| Module Style | Connector |
| Shielding | UTP |
