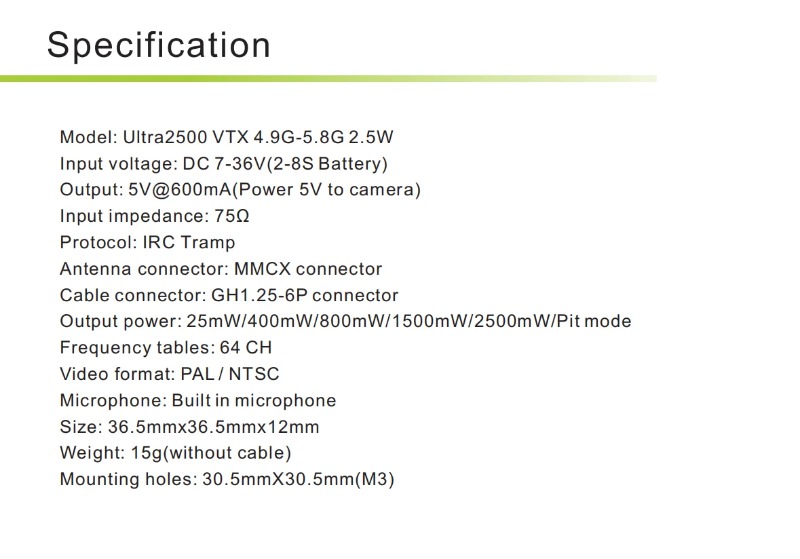

Item description :

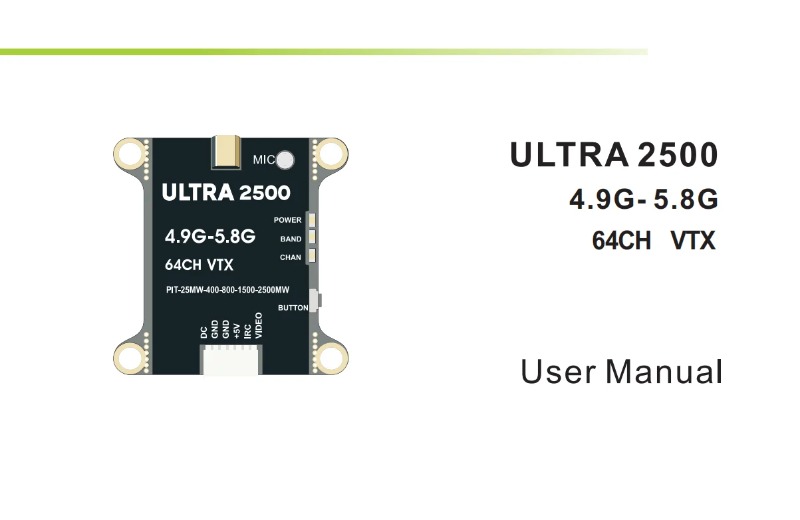

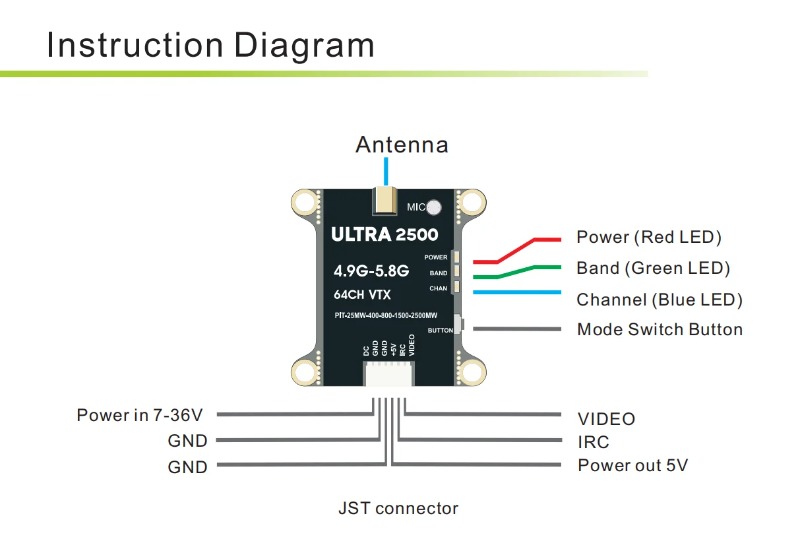

Model: Ultra2500 2.5W VTX

Inputvoltage: DC 7-36V(2-8S Battery)

Output: 5V@600mA(Power5Vtocamera)

Inputimpedance: 75Ω

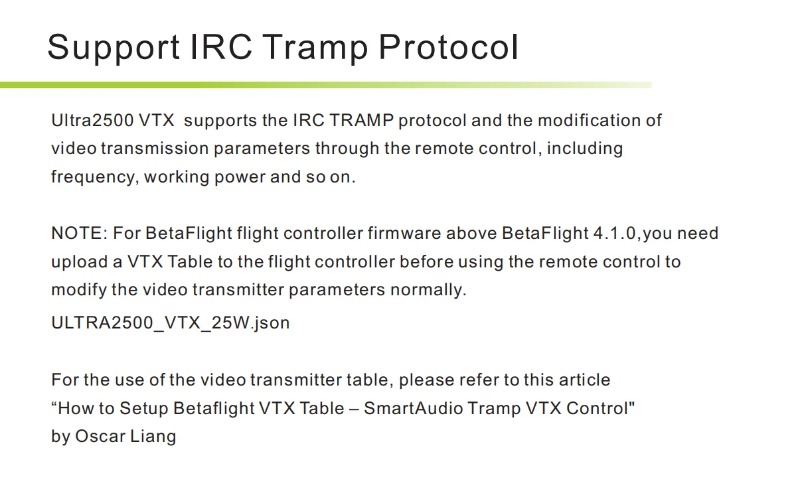

Protocol: IRCTramp

Antennaconnector: MMCX connector

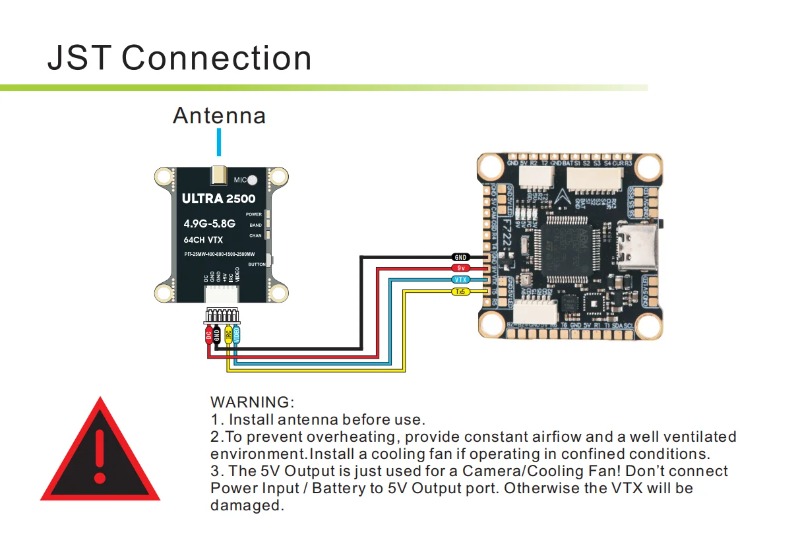

Cable connector: GH1.25-6P connector

Outputpower: 25mW/400mW/800mW/1500mW/2500mW/Pit mode

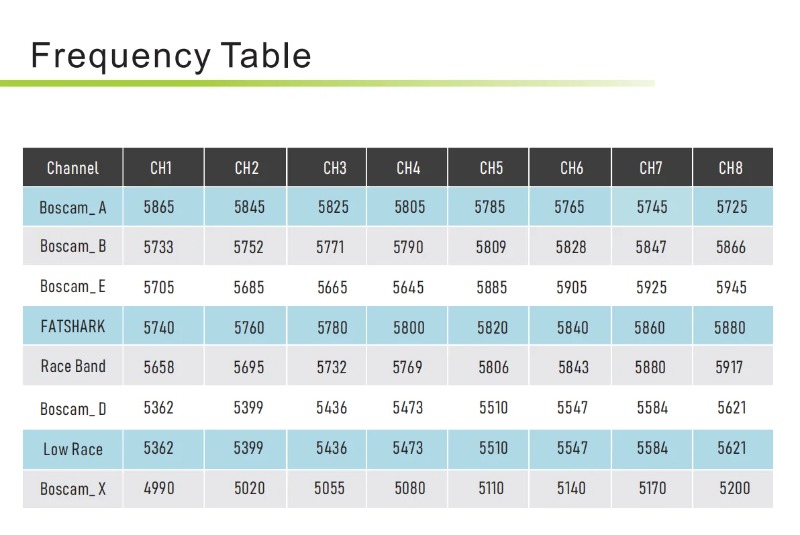

Frequencytables: 64 CH

Videoformat: PAL / NTSC

Microphone: Built in microphone

Size: 36.5mmx36.5mmx12mm

Weight: 15g(withoutcable)

Mountingholes: 30.5mmX30.5mm(M3)


Package including :


1 piece 2.5W VTX


cables

Note : If you want to use 4.9G and 5.8G bands at the same time, please use an antenna and VRX that can cover the frequency from 4.9Ghz-5.8Ghz . If the antenna and VRX cannot cover all bands, you may need to use different antenna and receiver when using 4.9G and 5.8G.
