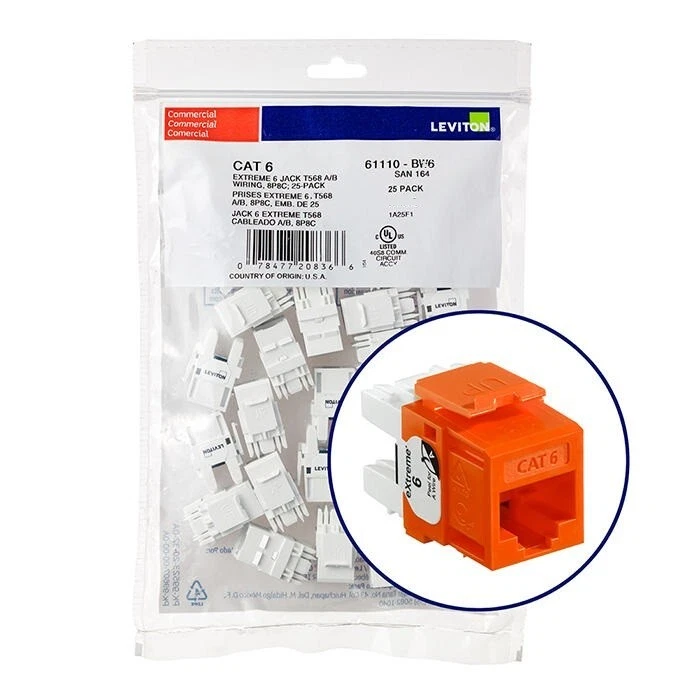

Leviton 61110-BO6 Extreme Category 6 8P8C UTP Quickport Jack Orange 25-pack
Click Thumbnails to Enlarge
DESCRIPTION
• EXTREME Cat 6 Component-Rated UTP QUICKPORT Jack, Orange 25-pack.
APPLICATION
• The EXTREME Category 6 jack is designed to be used with all QUICKPORT compatible products. The jack includes patented Retention Force Technology which promotes consistent performance over the life of the system. It features unique pair separation towers allowing for quicker and easier terminations. The jack is built on a 180-degree configuration with the punch field in the back, allowing for rear termination.
FEATURES
• Terminates 26- and 22 AWG solid conductors.
• Terminates 26 AWG stranded conductors up to 5 times.
• Capable of multiple re-terminations.
• Gas-tight IDC connectors prevent corrosion.
• Dual-layer T568B/T568A wiring label simplifies punchdown.
• Patented Retention Force Technology protects tines from damage and increases system longevity.
• Pair Separation Tower design facilitates separation of conductors and minimizes untwisting.
• 180-degree configuration allows for rear termination.
• Available in 13 ANSI/TIA-606-C compatible colors for color coding or organization.
• Will exceed IEEE 802.3bt standard up to 0.5 amps per conductor (100 watts) continuously.
• ETL verified to meet the IEC 60512-99-002 standard for support of IEEE 802.3bt Type 4 PoE (90-watt) applications.
CLASSIFICATIONS
• Brand Name: Leviton
PRODUCT SPECIFICATIONS
| Part Number | 61110-BO6 |
|---|---|
| Product Type | UTP Jack |
| Connector Body Material | High-Impact Fire-Retardant Plastic |
| Color | Orange |
| Number of Ports | 1 |
| Category Rating | Cat 6 |
| Position / Conductor | 8P8C |
| Cable Type | 8-Conductor UTP Copper Cat 5, 5e and 6 |
| Module Type | Category 6 |
| Termination Type | 110 Punchdown |
| Contact Base Material | Phosphor Bronze |
| Module Style | Connector |
| Shielding | UTP |
| Spring-Wire Contacts | High-quality copperbased alloy, plated with 50 micro-inches of gold
over 100 micro-inches of nickel for lowest
electrical contact resistance and maximum life
|
