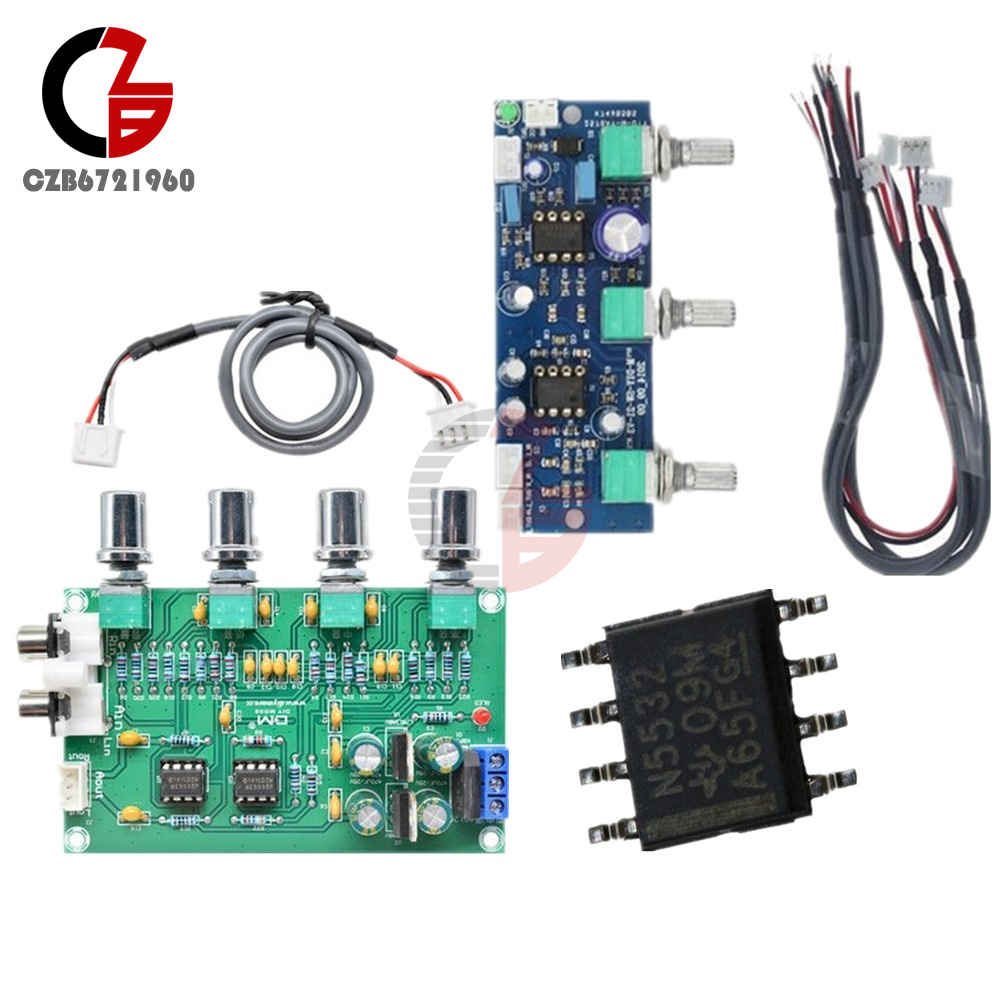

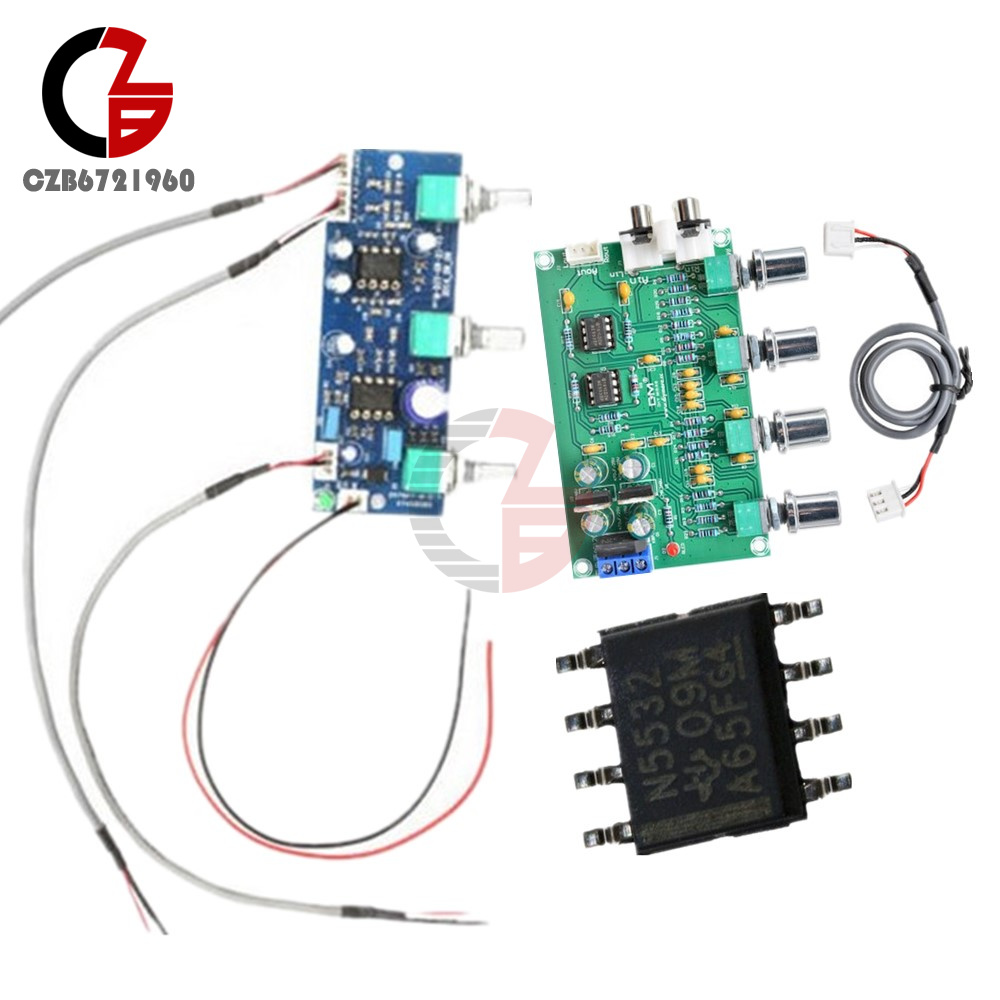

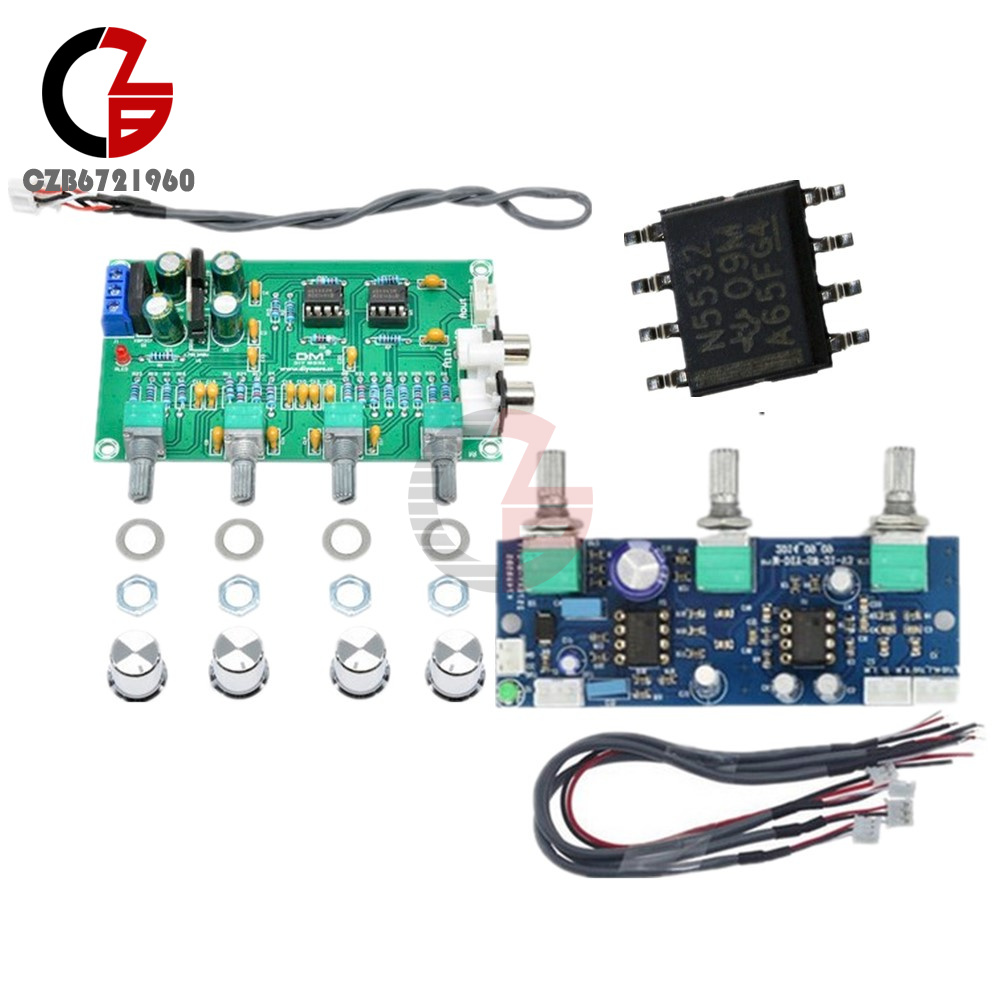

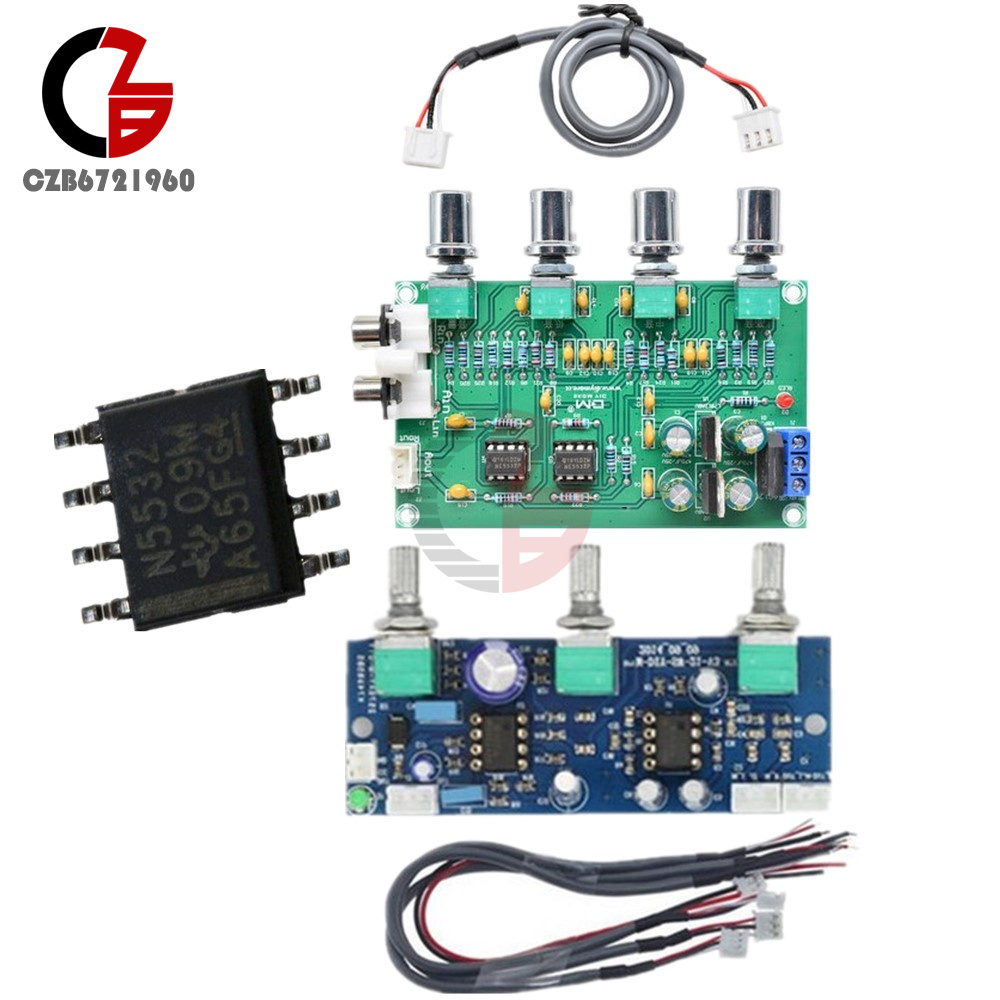

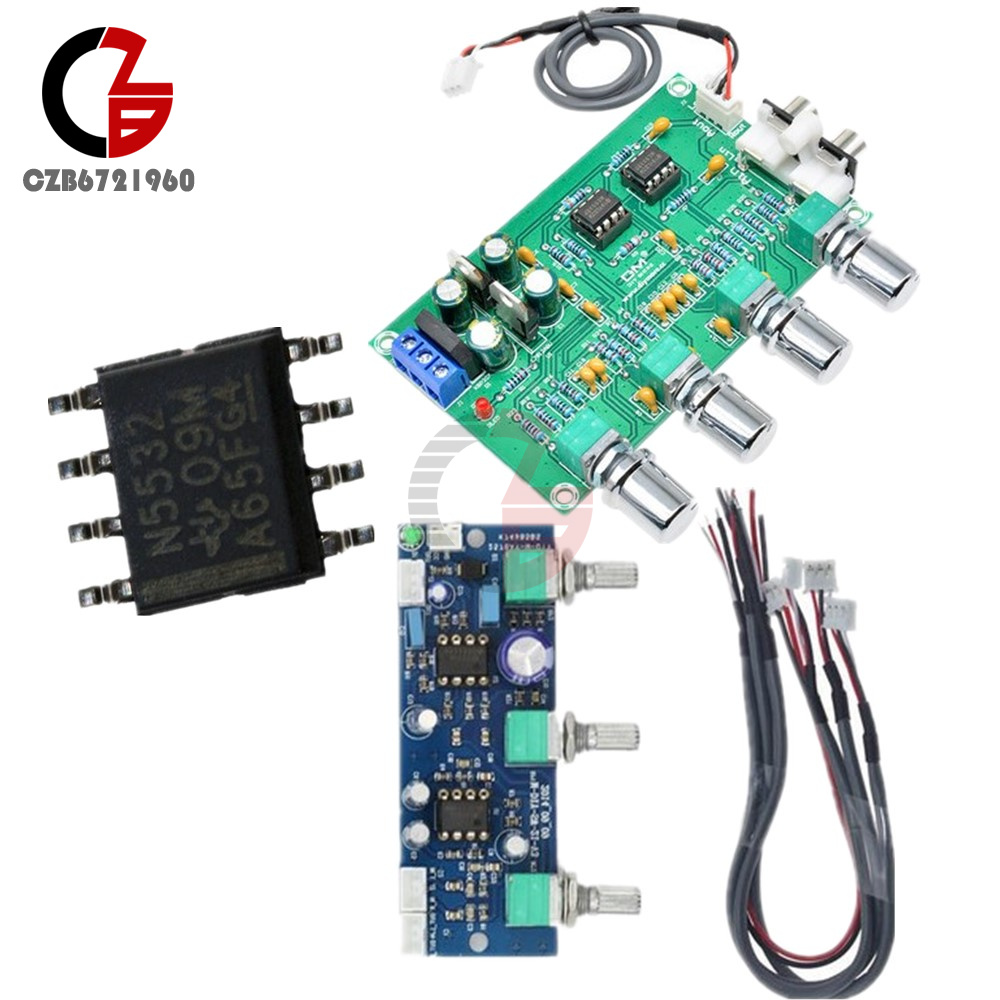

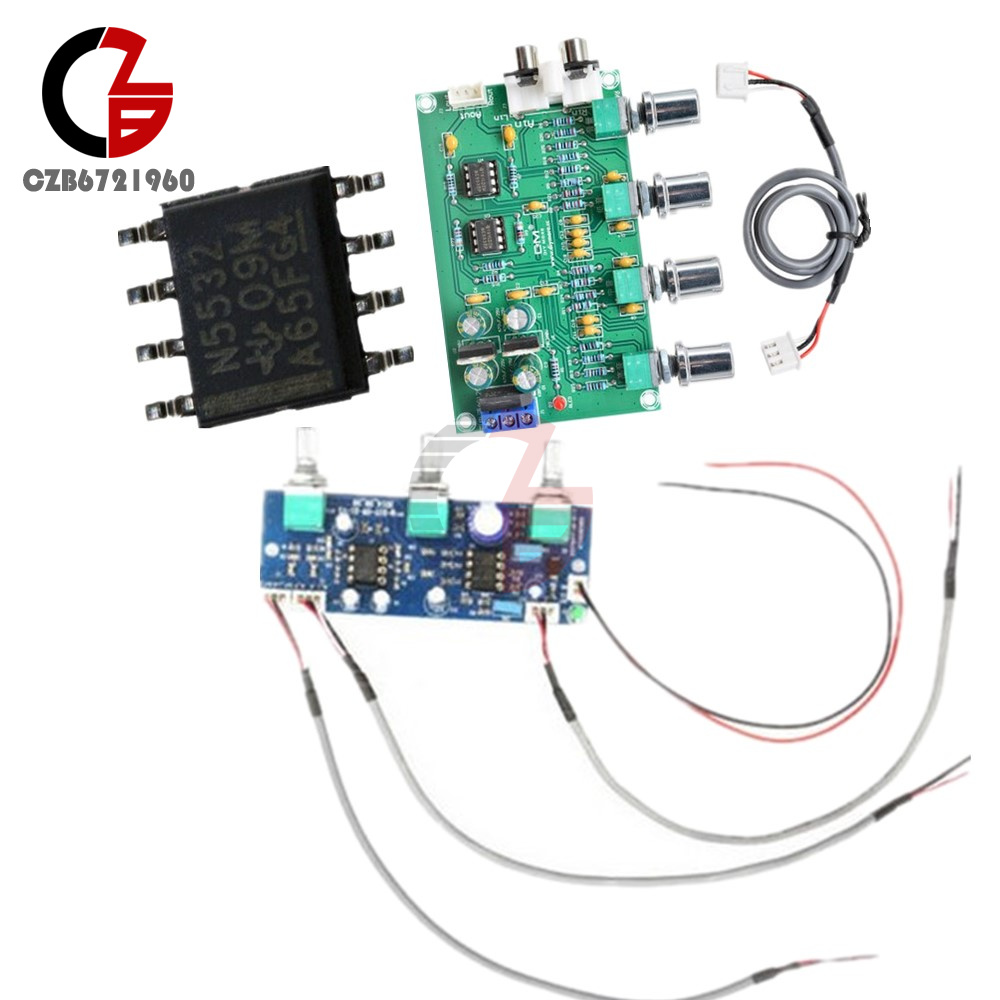

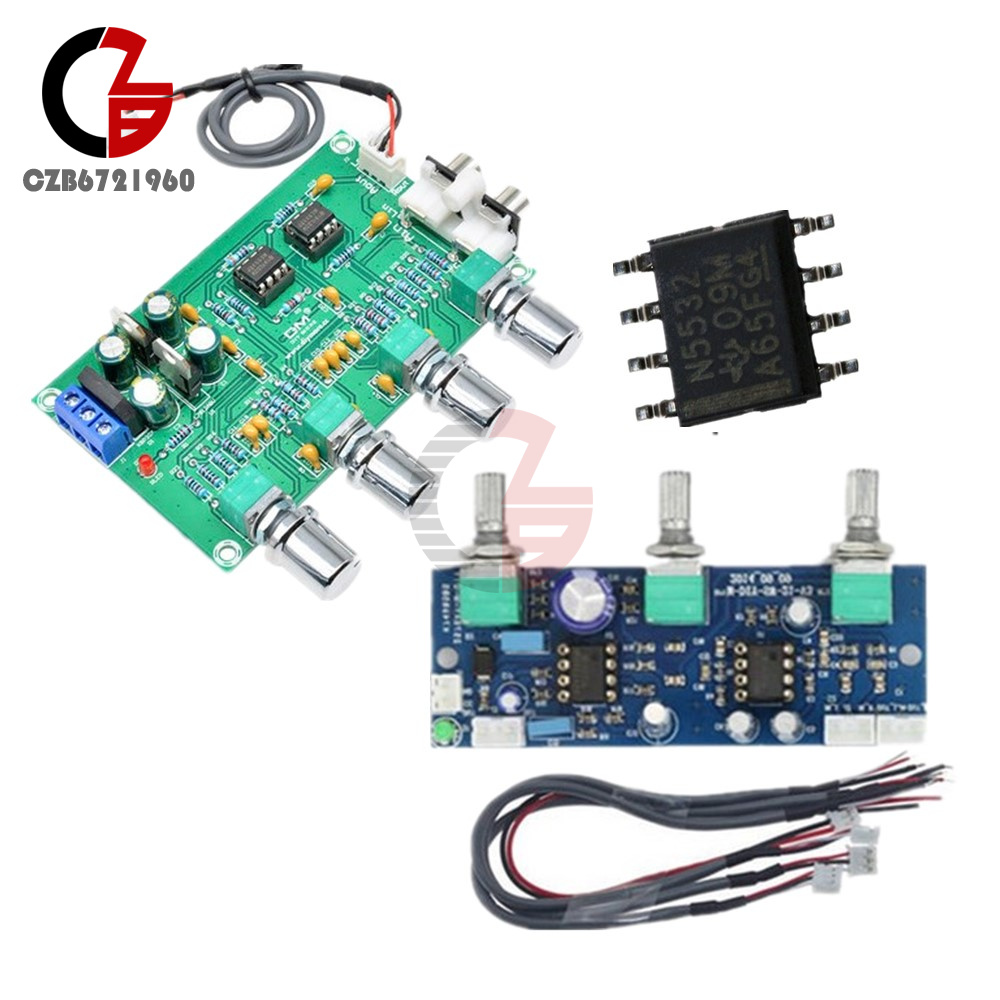

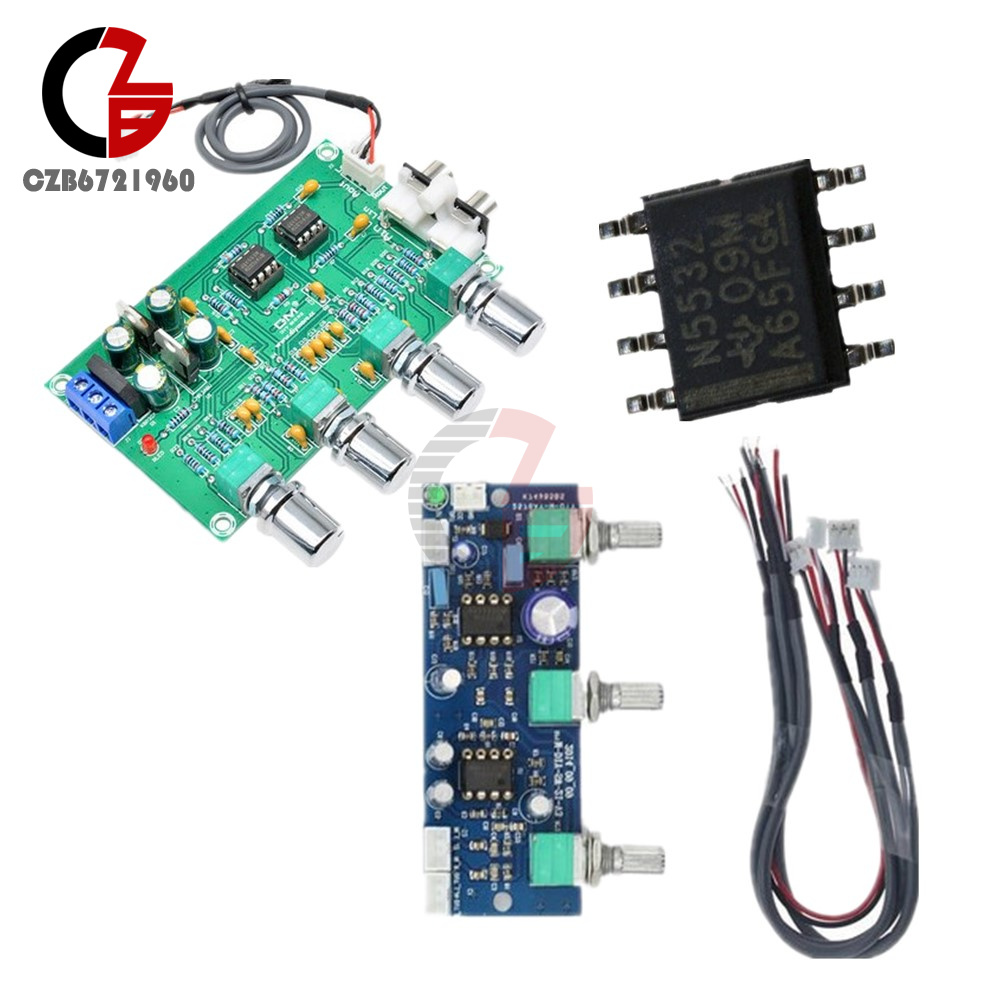

12-24V NE5532 Low Noise Stereo Audio Amplifier Pre-amp Preamplifier Tone Board

Popular

Product Introduction

NE5532 SOP-8
NE5532 N5532 SOP-8 SMD Dual Low Noise Op-Amp TI IC TOP
Package Included:
10 x NE5532 N5532 SOP-8 SMD Dual Low Noise Op-Amp TI IC
DC 12V-24V NE5532 Pre-Amplifier
Product Detail
For DIY enthusiasts, now really inconvenient to use, after all, easy to find a single power supply, dual power to get up more trouble, to ensure the effectiveness of the premise, we have developed a single-supply low-pass filter plate can be directly and amplifier using a set of power sharing is very convenient, welcome everyone to buy, what are the strength of our school, and the use of very standards.
Performance parameters:
(A) innovative use of a single power supply and power amplifier board can share power, very convenient, the op amp using NE5532, welded op amp IC holder, easy to replace the op amp to enhance playability, and all are Philips CBB capacitance capacitors, potentiometers uses high-quality sealed units produced potentiometer.
(B) with a full-range signal to adjust the volume potentiometer, very convenient to 2.1 amplifier board preamp.
(C) The LED monitor real-time power status.
(D) Dual-panel design, and strive to simple signal transmission, signal to noise ratio is very high.
(E) Input voltage: DC10-24V.
(F) can be a single / dual-channel input and mono output.
(G) PCB ultra-hardness FR-4 fiberglass board, board size: 82x30mm, excluding protruding parts, thickness: 1.6mm.
(H) frequency adjustment range 22Hz-300Hz, this frequency range is not the human voice, so-called low-pass only low-frequency output, to be added after stage amplifier power amplifier board can be used. The intensity of low-frequency performance with power amplifier board and speakers match, please choose a different amplifier board and subwoofer (passive subwoofer) according to different occasions.
Package Included:
1x Low-pass Filter NE5532 Hifi Subwoofer 2.1CH Pre-Amplifier Preamp Board
4x Cables
12-24V NE5532 Tone Board
This item adopts NE5532 Front chip for for better noise performance and good output drive capability. It's suitable for high-quality and professional sound equipment, control circuit and telephone channel amplifier.

Features:

Adopts NE5532 front chip for for better performance.
High quality potentiometer contacts well, stable for audio output.
Adjustment Types: 4 channels(treble+alto+bass+volume)
12-24V AC dual power supply, wide input voltage.
For the input part, uses dual RCA plug, audio contacts well and long life span.
Suitable for high-quality and professional sound equipment, telephone channel amplifier.

Specifications:

Working Voltage: 12-24V AC Dual Power(12V-0-12V 24V-0-24V)
Power Consumption: 5W
Front Chip: NE5532
Input Interface: RCA
Output Interface: 2.54-3P
Number of Channel: Dual-channel Audio
PCB Board Size: 10 * 60 * 23mm / 3.94 * 2.36 * 0.9in
Weight: 63g / 2.23oz
Package Size: 12.5 * 10 * 2.5cm / 4.92 * 3.94 * 0.98in
Package Weight: 75g / 2.65oz

Package List:
1 * NE5532 Stereo Preamp
1 * Audio Cable
