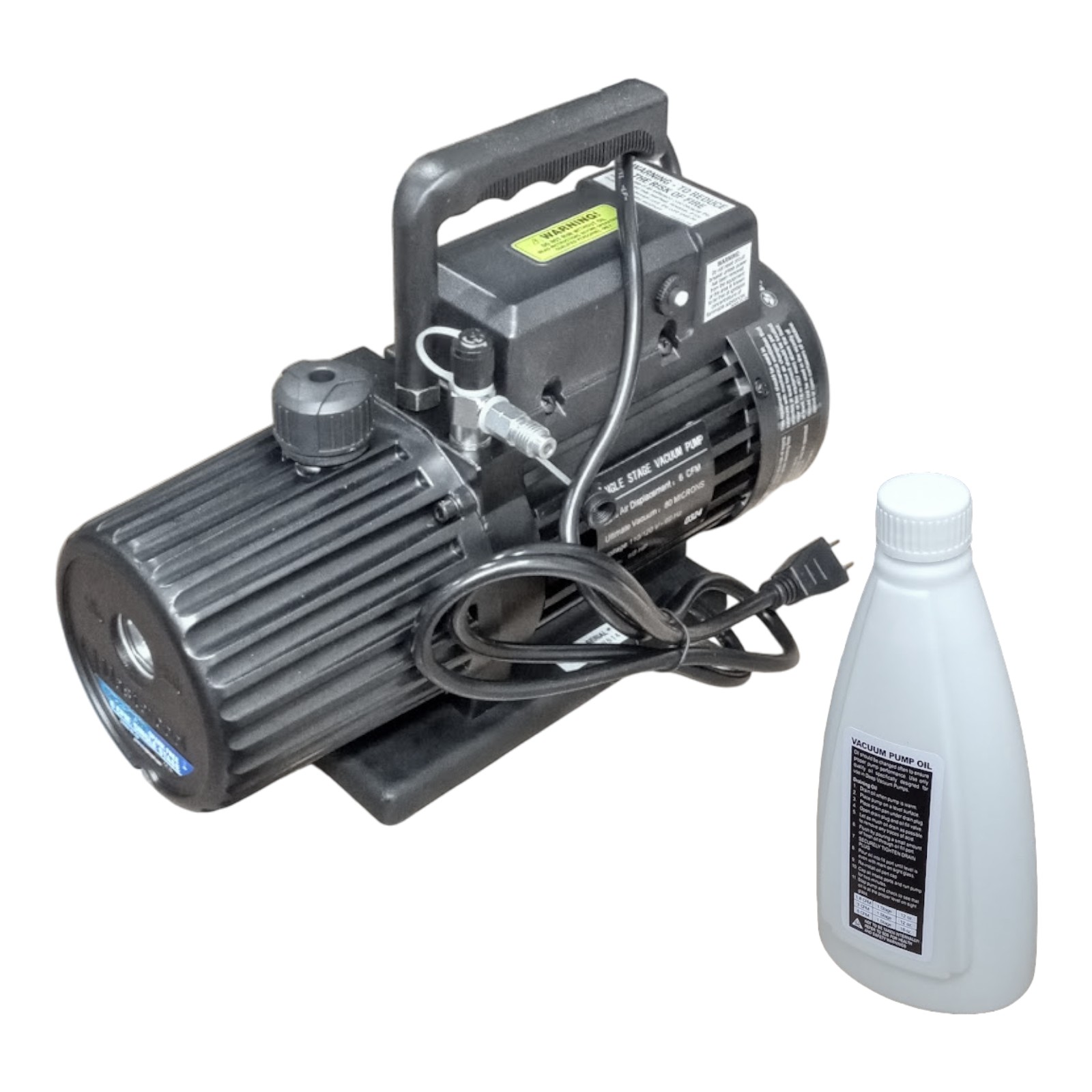

Mastercool 90066-BL-SF Spark Free 6 CFM Single Stage Vacuum Pump 80 Microns

Mastercool part number 90066-BL-SF.

Spark Free 6 CFM Single Stage Vacuum Pump.

Ultimate Vacuum: 80 Microns

Pump runs with extremely high ultimate vacuum and low noise

Excellent for use with R600a (Iso-Butone) and R290 (Propane) Refrigerants.

• Constructed with spark free components


• High volume fan provides cool air motor and pump


• Vapor discharge/oil fill port, easily removable, contains internal check valve to prevent escape of liquid oil


• Internal check valve to prevent oil back flow and to prevent oil backup in case of power loss


• A built in device eliminates oil mist and oil-gas separator at the air exhaust outlet takes care of oil contamination in the air exhaust


• Specially designed for low temperature and low voltage conditions to guarantee normal starting in winter


• Cooling fins to keep temperature cooler during extended motor operation


• Thermally protected motor with on/off rocker switch


• Large, lightweight reinforced base for stable positioning


• Easily accessible oil drain valve


• Large oil level sight glass with max/min oil level indicator

Specifications:

• No. of Stages: 1


• Free Air Displacement: 6 CFM


• Ultimate Vacuum: 80 Microns


• Pump Motor: 1/3 HP


• Pump Speed: 1720 RPM


• Electrical Specs: 110/120 Volts, 60 Hertz


• Dimensions: 15 x 6.5 x 11 inches


• Shipping Weight: 20.5 lbs

Service Information:

• Oil Capacity: 18 oz / 536 ml

Product Details

Brand	Mastercool
Manufacturer	Mastercool
Product Type	Vacuum Pump
Mpn	90066-BL-SF
