| Size: |
700c Road Disc |
||
| Material： |
Toray T800 Carbon Fiber |
||

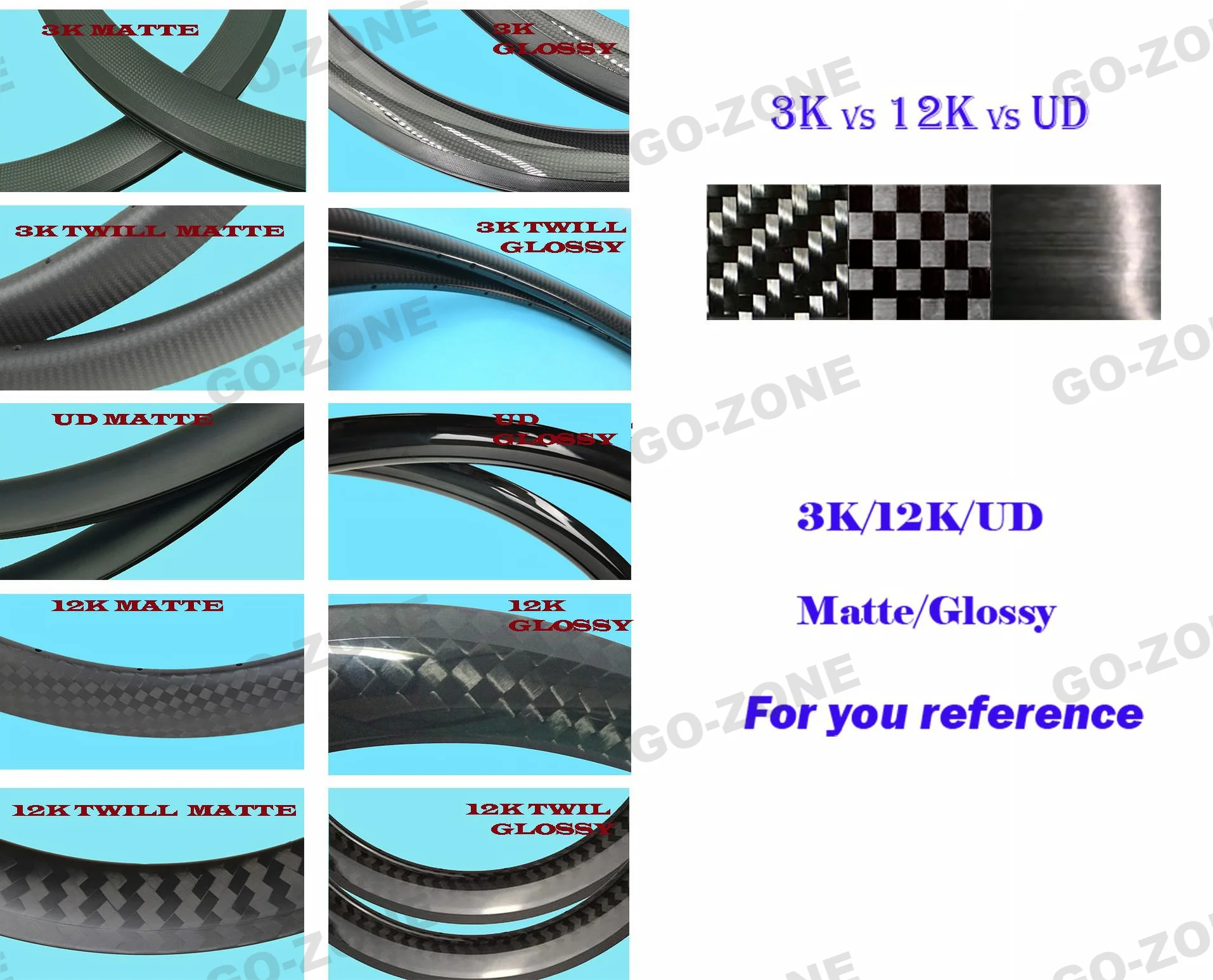

| Surface Finish： |
UD/3K/3K Twill Matte or Glossy |
||
| Type: |
Clincher Tubeless |
||
| Width：: |
26mm |
||

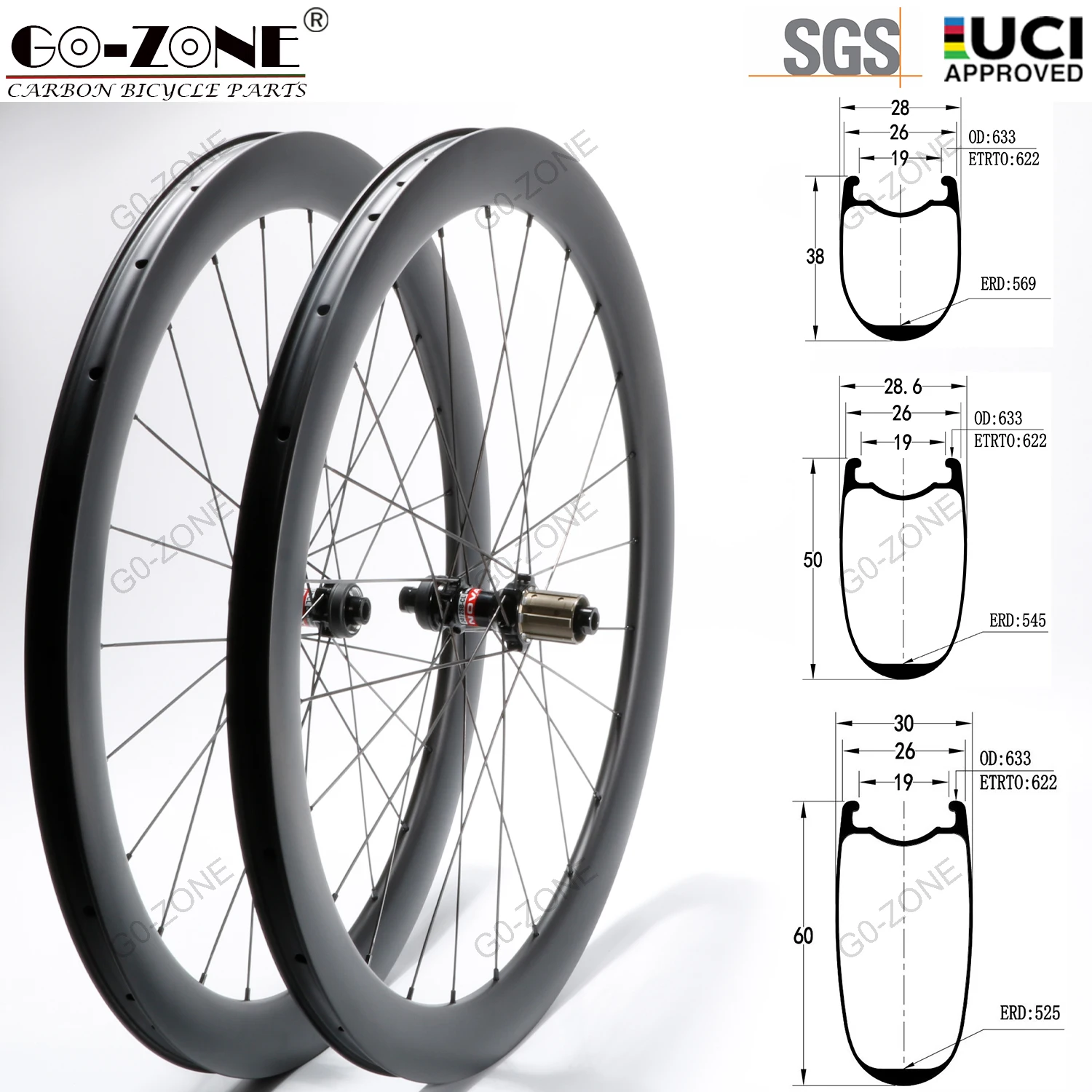

| Depth: |
30mm/35mm/38mm/40mm/45mm/50mm/55mm/60mm/75mm/80mm/90mm... (Or Customized) |
||
| Braking System: |
Disc Brake |
||
| Spoke Holes: |
24/24H (Or Customized) |
||

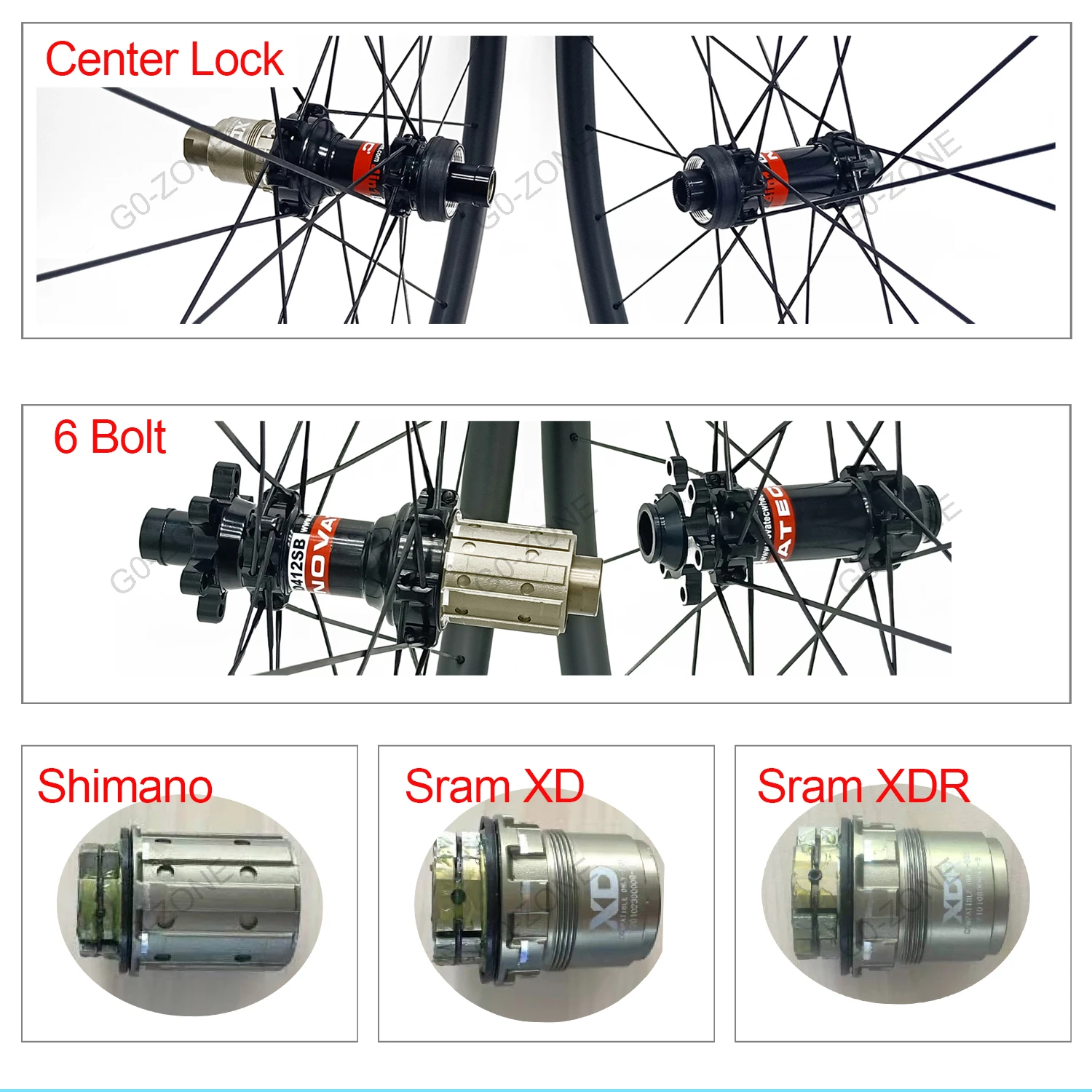

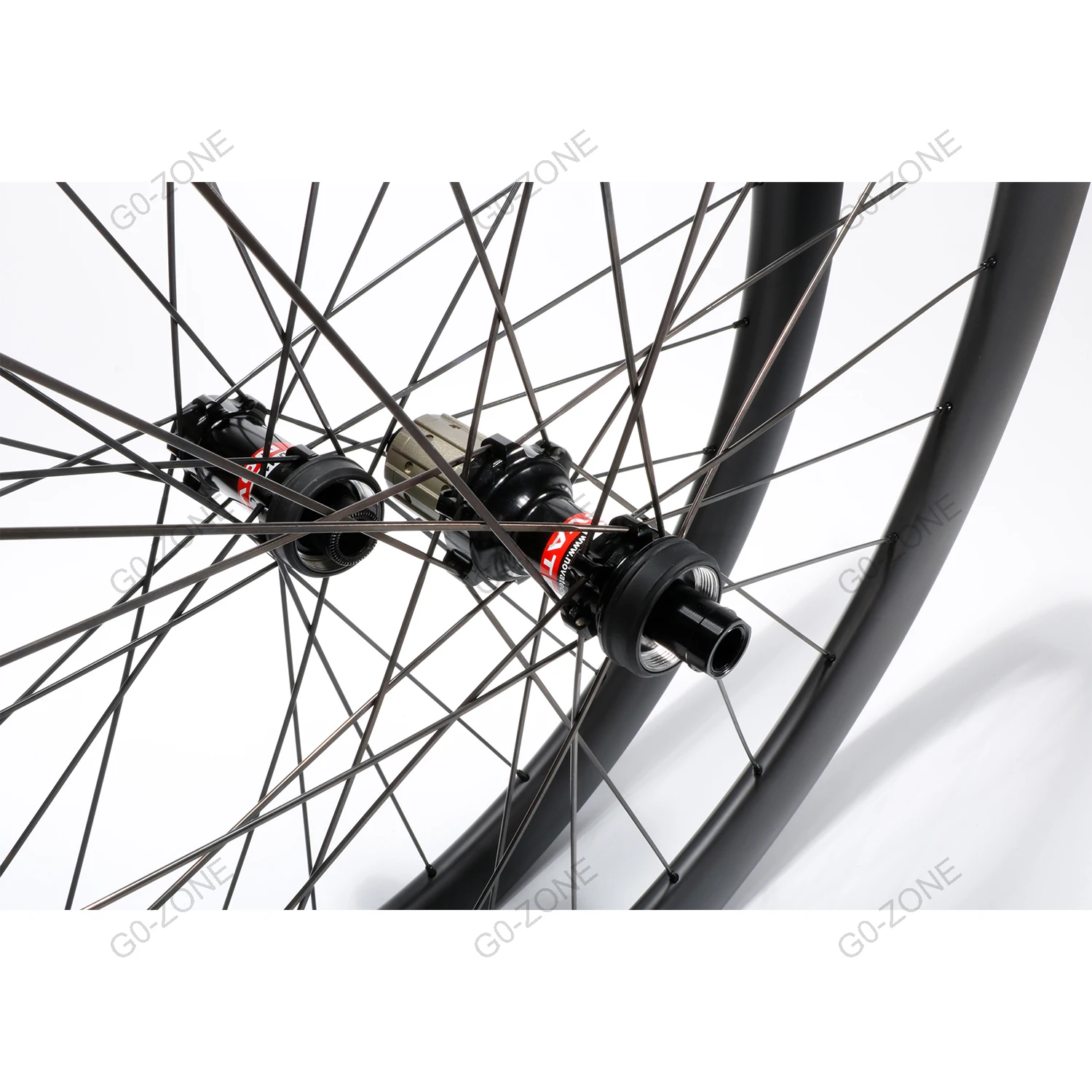

| Hubs: |
Novatec 411 412 / 791 792 （Center Lock Or 6 Bolt） |
||
| (Or Customized) |
|||
| Hubs Colour: |
Black |
||
| O.L.D |
Thru AXle：Front 100X12mm Rear 142x12mm Quick Release：Front 100mm/Rear 130mm |
||

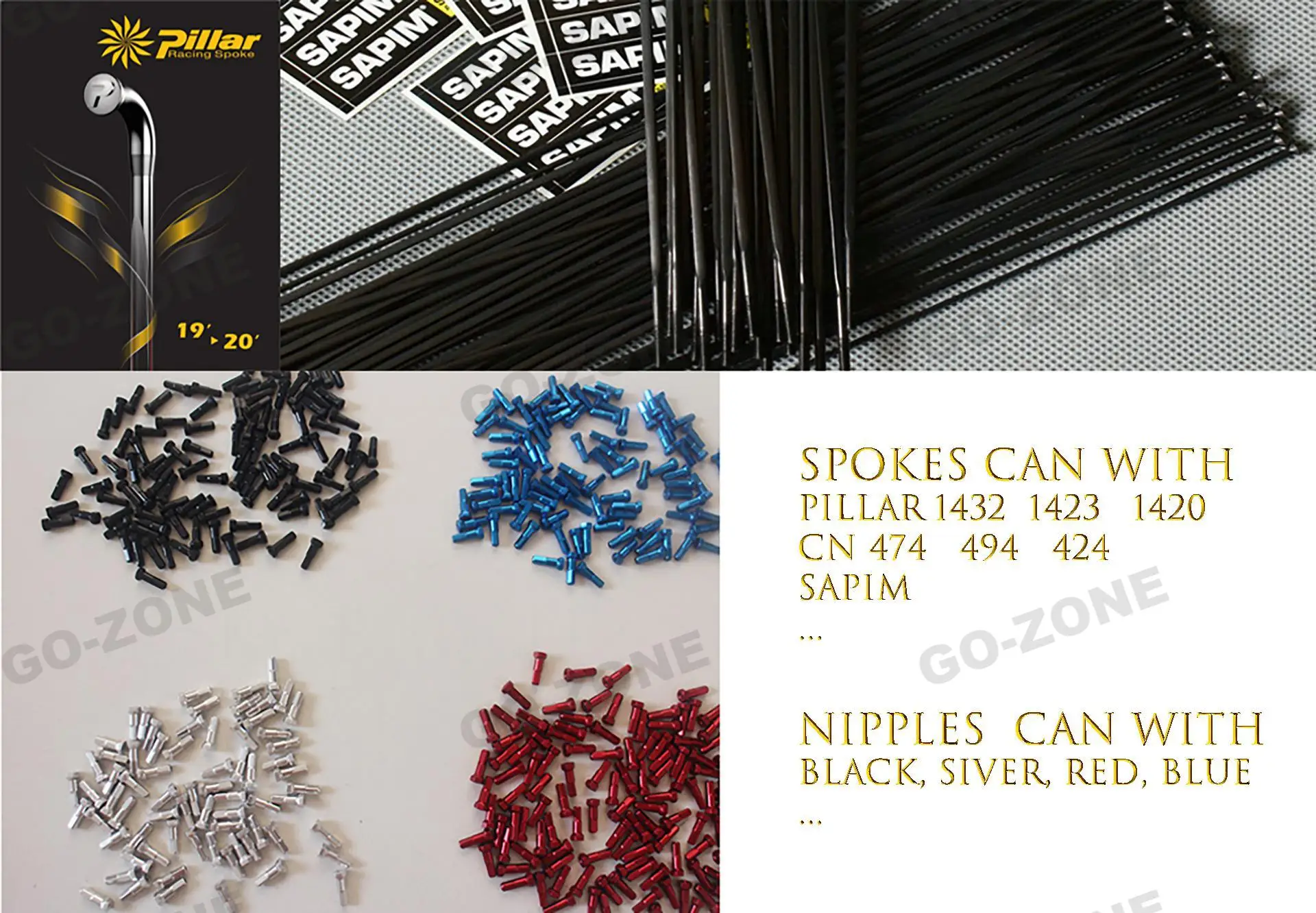

| Spokes: |
Pillar 1432 (Or Customized) |
||
| Nipple Colour: |
Black/Siver/Red... |
||

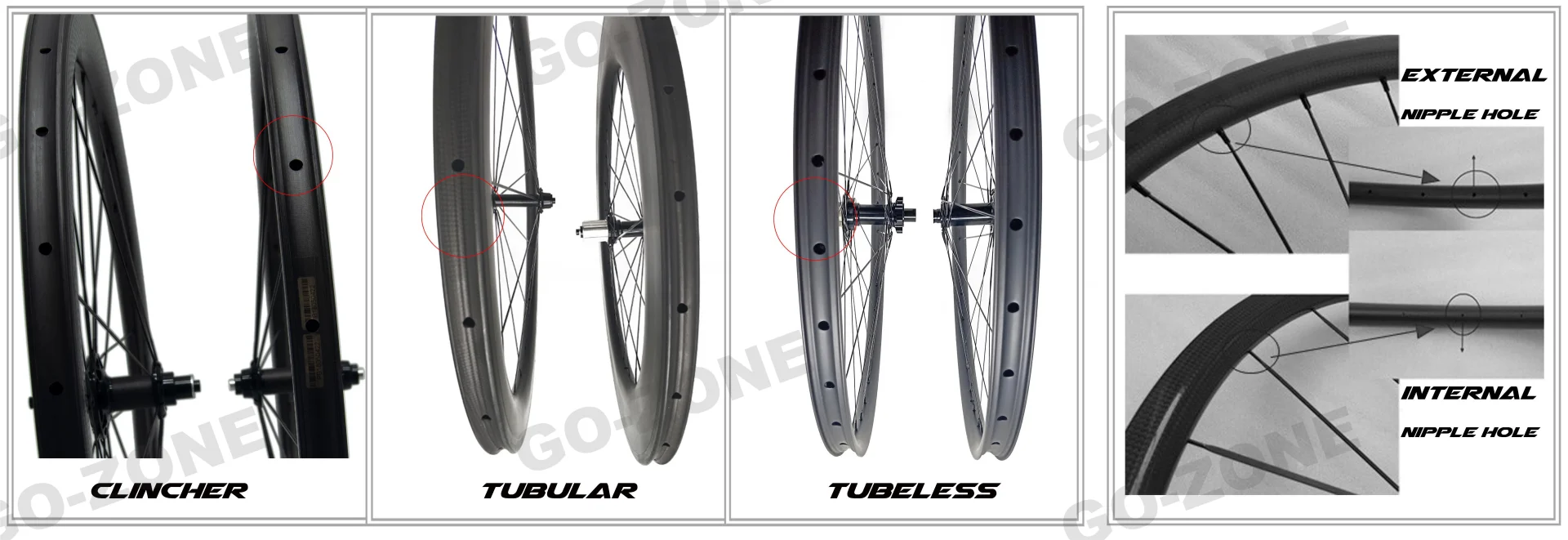

| Nipple Position: |
External Or Internal |
||
| Cassette Body: |
Shimano 9/10/11s Or Sram XD 11S (XDR 11/12s) |
||
| Max Tire Pressure: |
130psi |
||
| Max Cyclist Weight: |
150kg |
||
| Applicable Bicycle: |
Road Bicycle |
||
| Shipping: |
By Express |
||
| Standard: |

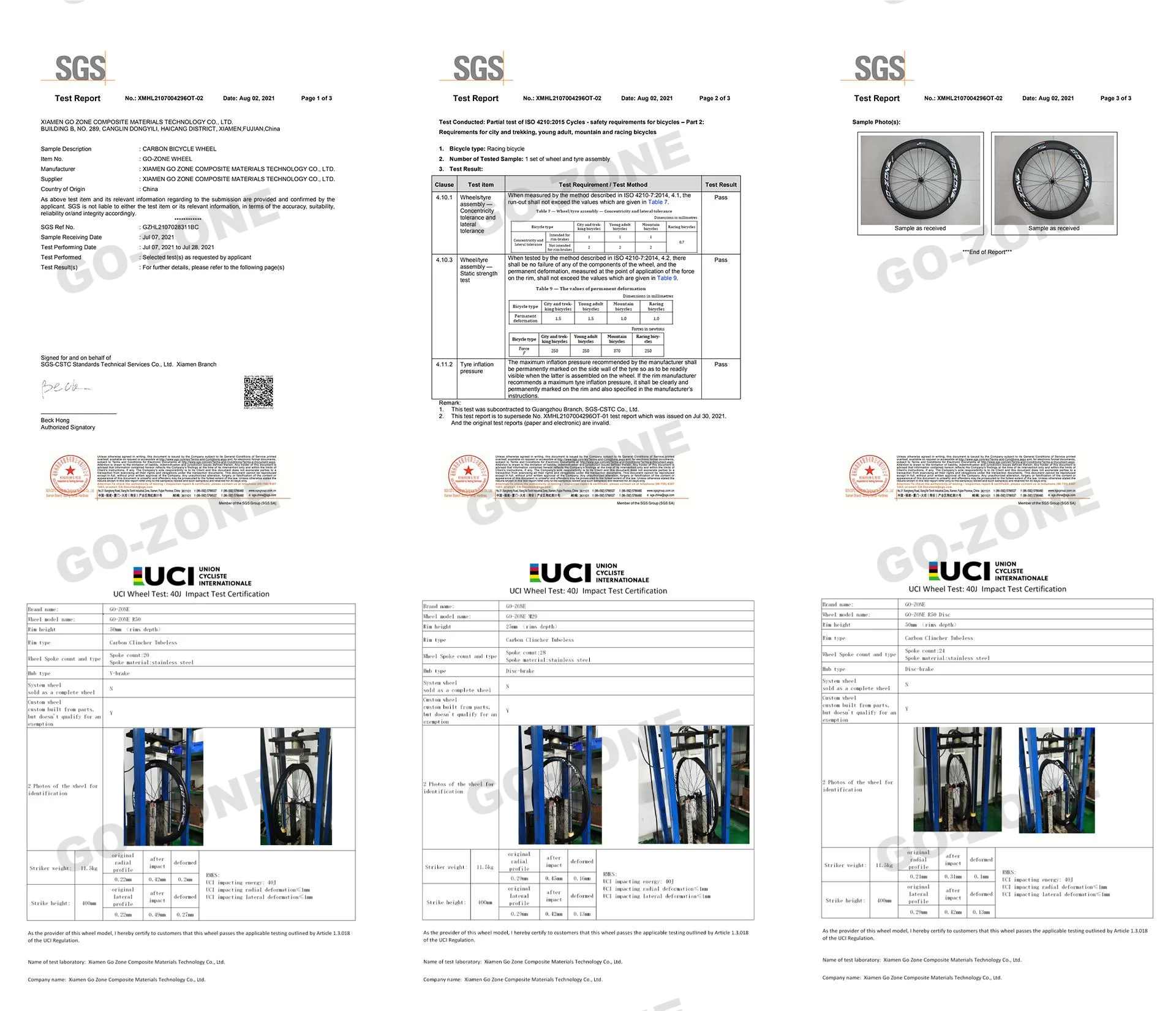

UCI/SGS(ISO)/EN... |
||
| Warranty： |
2 Years |
||
| Place Of Origin： |
Xiamen, China |
||
| Logos Customized: |
Available |
||
| OEM & ODM: |
Available |
||
| Free: |
3 Extra Spokes（nipples), QR Skewers(Only for quick release） |
||
Weight Of Wheelset Reference（24/24 holes)
| Weight (+/-3%) |
Novatec 411/412 |
Novatec 791/792 |
GO-ZONE PRO4 |
DT Swiss 240EXP |
DT Swiss 350SL |
DT Swiss 180EXP |
Powerway CT31 |
Powerway CX32 |
| (g/pair) |
(g/pair) |
(g/pair) |
(g/pair) |
(g/pair) |
(g/pair) |
(g/pair) |
(g/pair) |
|
| 30mm Clincher Tubeless |
1500 |
1600 |
1510 |
1490 |
1550 |
1460 |
1600 |
1560 |
| 30mm Clincher |
1500 |
1600 |
1510 |
1490 |
1550 |
1460 |
1600 |
1560 |
| 30mm Tubular |
1360 |
1460 |
1370 |
1350 |
1410 |
1320 |
1460 |
1420 |
| 35mm Clincher Tubeless |
1560 |
1660 |
1570 |
1550 |
1610 |
1520 |
1660 |
1620 |
| 35mm Clincher |
1560 |
1660 |
1570 |
1550 |
1610 |
1520 |
1660 |
1620 |
| 35mm Tubular |
1360 |
1460 |
1370 |
1350 |
1410 |
1320 |
1460 |
1420 |
| 38mm Clincher Tubeless |
1580 |
1680 |
1590 |
1570 |
1630 |
1540 |
1680 |
1640 |
| 38mm Clincher |
1580 |
1680 |
1590 |
1570 |
1630 |
1540 |
1680 |
1640 |
| 38mm Tubular |
1420 |
1520 |
1430 |
1410 |
1470 |
1380 |
1520 |
1480 |
| 40mm Clincher Tubeless |
1580 |
1680 |
1590 |
1570 |
1630 |
1540 |
1680 |
1640 |
| 40mm Clincher |
1580 |
1680 |
1590 |
1570 |
1630 |
1540 |
1680 |
1640 |
| 40mm Tubular |
1440 |
1540 |
1450 |
1430 |
1490 |
1400 |
1540 |
1500 |
| 45mm Clincher Tubeless |
1610 |
1710 |
1620 |
1600 |
1660 |
1570 |
1710 |
1670 |
| 45mm Clincher |
1610 |
1710 |
1620 |
1600 |
1660 |
1570 |
1710 |
1670 |
| 45mm Tubular |
1480 |
1580 |
1490 |
1470 |
1530 |
1440 |
1580 |
1540 |
| 50mm Clincher Tubeless |
1640 |
1740 |
1650 |
1630 |
1690 |
1600 |
1740 |
1700 |
| 50mm Clincher |
1640 |
1740 |
1650 |
1630 |
1690 |
1600 |
1740 |
1700 |
| 50mm Tubular |
1500 |
1600 |
1510 |
1490 |
1550 |
1460 |
1600 |
1560 |
| 55mm Clincher Tubeless |
1680 |
1780 |
1690 |
1670 |
1730 |
1640 |
1780 |
1740 |
| 55mm Clincher |
1680 |
1780 |
1690 |
1670 |
1730 |
1640 |
1780 |
1740 |
| 55mm Tubular |
1520 |
1620 |
1530 |
1510 |
1570 |
1480 |
1620 |
1580 |
| 60mm Clincher Tubeless |
1700 |
1800 |
1710 |
1690 |
1750 |
1660 |
1800 |
1760 |
| 60mm Clincher |
1700 |
1800 |
1710 |
1690 |
1750 |
1660 |
1800 |
1760 |
| 60mm Tubular |
1540 |
1640 |
1550 |
1530 |
1590 |
1500 |
1640 |
1600 |
| 75mm Clincher Tubeless |
1780 |
1880 |
1790 |
1770 |
1830 |
1740 |
1880 |
1840 |
| 75mm Clincher |
1780 |
1880 |
1790 |
1770 |
1830 |
1740 |
1880 |
1840 |
| 75mm Tubular |
1660 |
1760 |
1670 |
1650 |
1710 |
1620 |
1760 |
1720 |
| 80mm Clincher Tubeless |
1920 |
2020 |
1930 |
1910 |
1970 |
1880 |
2020 |
1980 |
| 80mm Clincher |
1920 |
2020 |
1930 |
1910 |
1970 |
1880 |
2020 |
1980 |
| 80mm Tubular |
1720 |
1820 |
1730 |
1710 |
1770 |
1680 |
1820 |
1780 |
Note:
please take message for the goods u want :
1.Appeance?(UD/3K/3K Twill)
2.Finishing?(matte or glossy)
Otherwise we will prepare your wheels
with UD matte,Hub/Spoke/Nipple Colour:Black, Fit For Shimanno Cassette Body
IF NEED 12K/12K TWILL, PLS ADVISE US FIRST!
