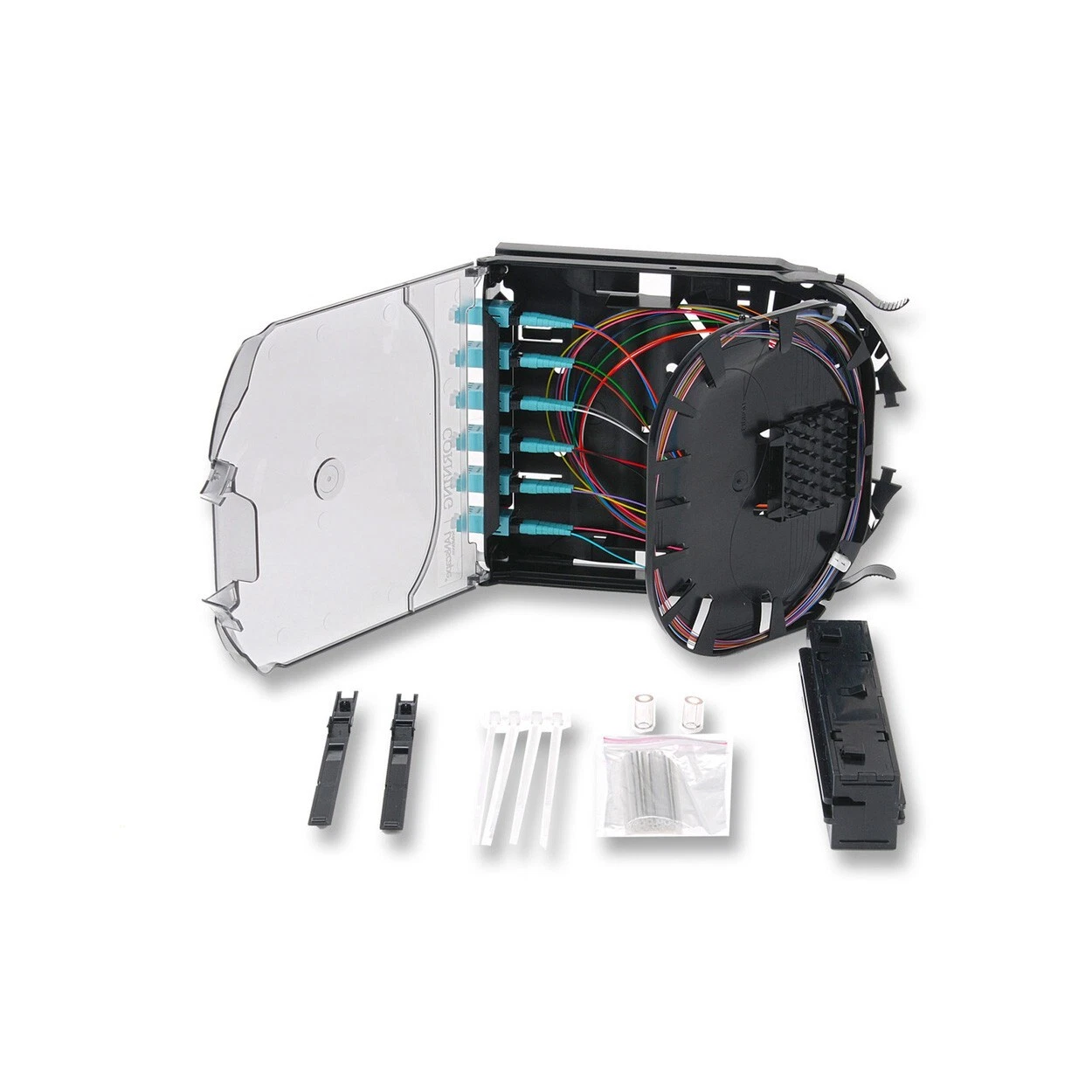

Corning CCH-CS12-E4-P00QE 12 Fiber Type LC Duplex CCH Pigtailed Splice Cassette

Click Thumbnails to Enlarge

DESCRIPTION

• Corning CCH-CS12-E4-P00QE CCH Pigtailed Splice Cassette  12 F, LC duplex, aqua, 50 µm multimode (OM4)

FEATURES

• Manage cable slack for a CCH panel in a modular footprint ; Fast, easy and reliable initial routing, and quick, simple reaccess for moves, adds and changes (MACs)
• Includes Includes everything needed to convert a CCH housing for modular routing and/or splicing ; Easy ordering and field installation
• Modular splice capability ; Manage all splices inside the housing
• Colored 250 µm at splice point ; Easy to identify and prep colored 250 µm for fast and easy splicing
• Pre-prepped splice cassette ; Saves time in the field with a ready to splice product
• Broad operating Temperature range (-40°C to +65°C) ; Utility and flexibility

GENERAL SPECIFICATIONS

• Product Type: CCH Pigtailed Splice Cassette
• Fiber Category: 50 µm MM (OM4)
• Cable Type: 250 µm
• Technology: Fusion Splice
• Mounting Type: CCH Housings, Wall-Mountable
• Application: Data Center, Enterprise Networks

STANDARDS

• RoHS: Free of hazardous substances according to RoHS 2011/65/EU
• Approvals and Listings: Meets ANSI/TIA/EIA-568A and 606,  Tested in accordance with Telecordia GR-3125, UL1863 - Communication Circuit Accessories

ENVIRONMENTAL CONDITIONS

• Temperature Range, Operation: -40°C to 65°C  (-40°F to 149°F)

DESIGN

• Fiber Count: 12
• Connector Configuration: LC Duplex
• Panel or Module Type: CCH
• Splice Protectors Type: Heat Shrink Splice Protection
• Number of Splice Protectors: 12

DESIGN - ADAPTER

• Adapter Type: LC Duplex
