At present, many televisions, set-top boxes, PCs, players themselves, although the audio output, but the sound quality is very general, but if the coaxial and optical fiber connected to the DC-01 decoder, through the powerful ES9038Q2M decoder chip, the details, levels, dynamics, the letter than will enhance a lot!

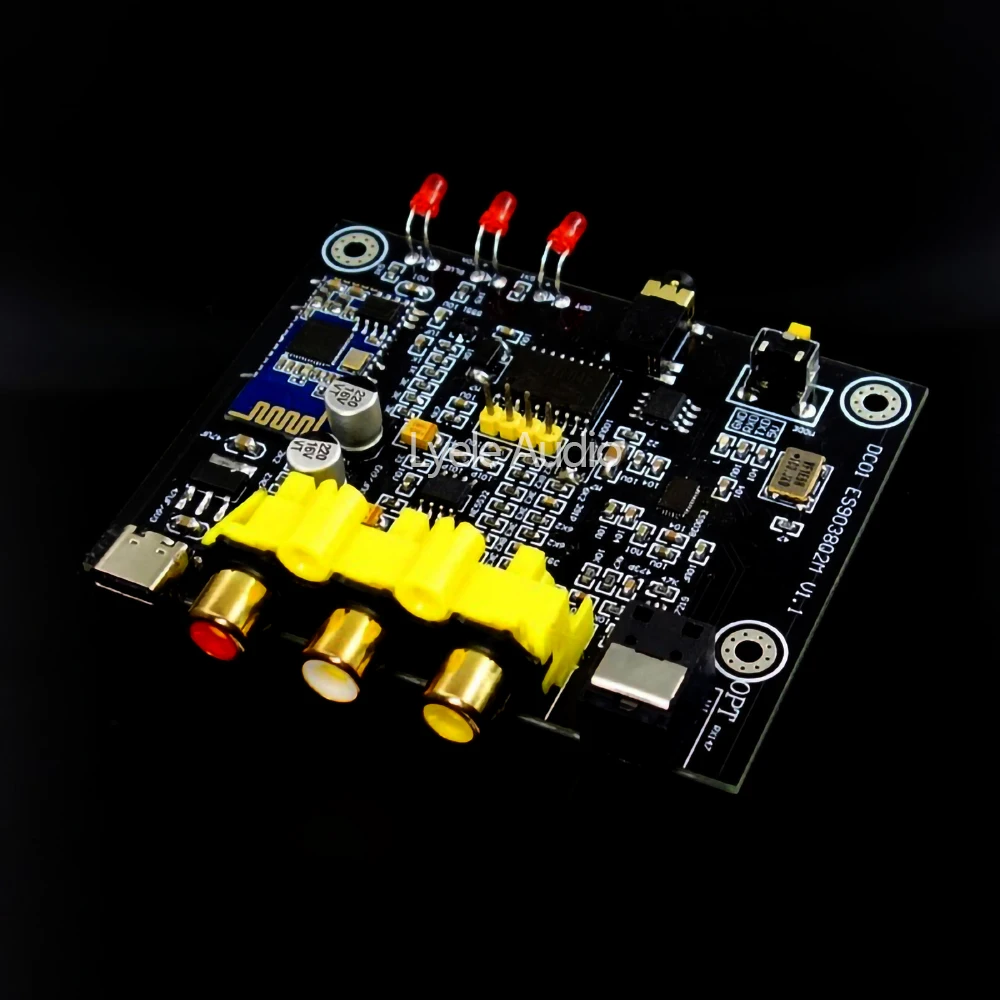

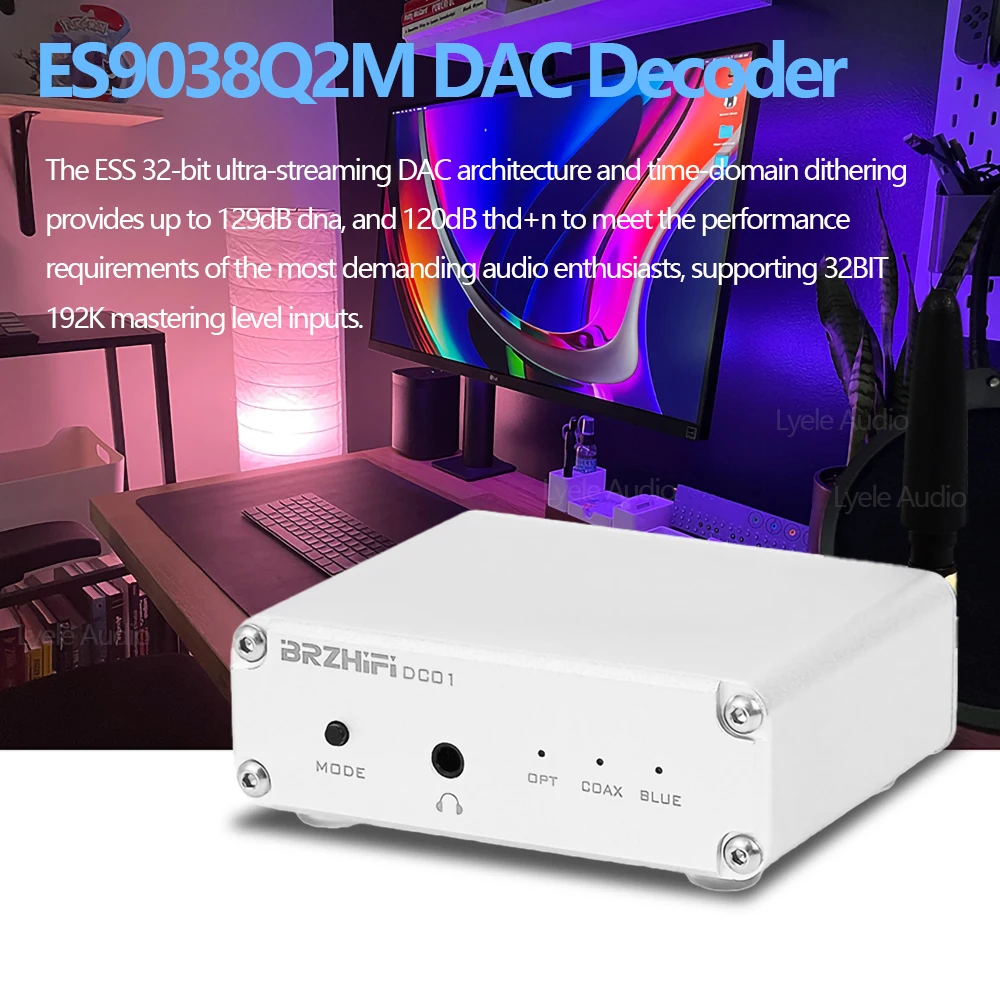

ES9038Q2M using the highly acclaimed ESS 32-bit super-streaming "DAC architecture and time-domain dithering, to provide up to 129dB dna, and 120dB thd + n, to meet the most demanding audio enthusiasts performance requirements, support for 32BIT 192K mastering level input.

Products also support Bluetooth 5.0, with Qualcomm's QCC3003, although many products are Bluetooth 5.0. But Qualcomm's level of detail accuracy is not generally comparable to Bluetooth.

Input: coaxial + optical + Bluetooth (Qualcomm imn)

Output: RCA + 3.5MM headphone port

Power supply: TYPE-C (5v)

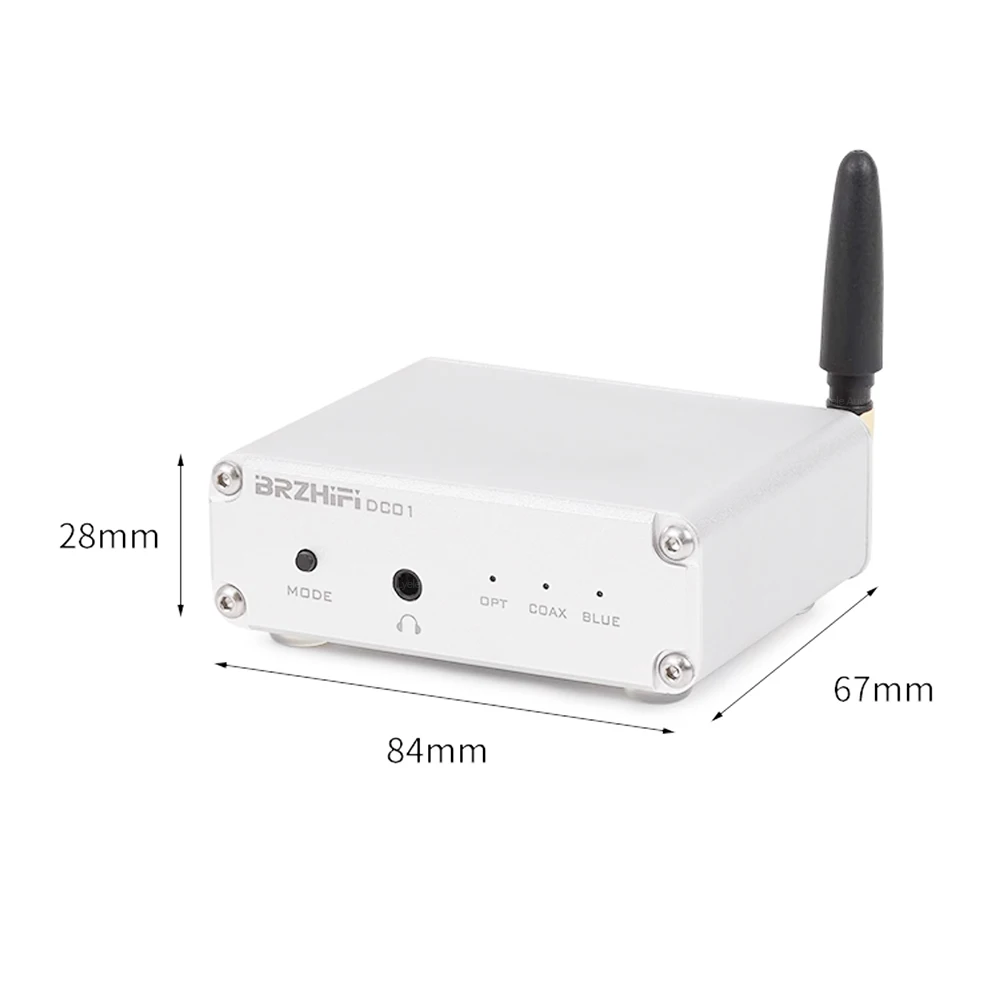

Board Size:82X62MM

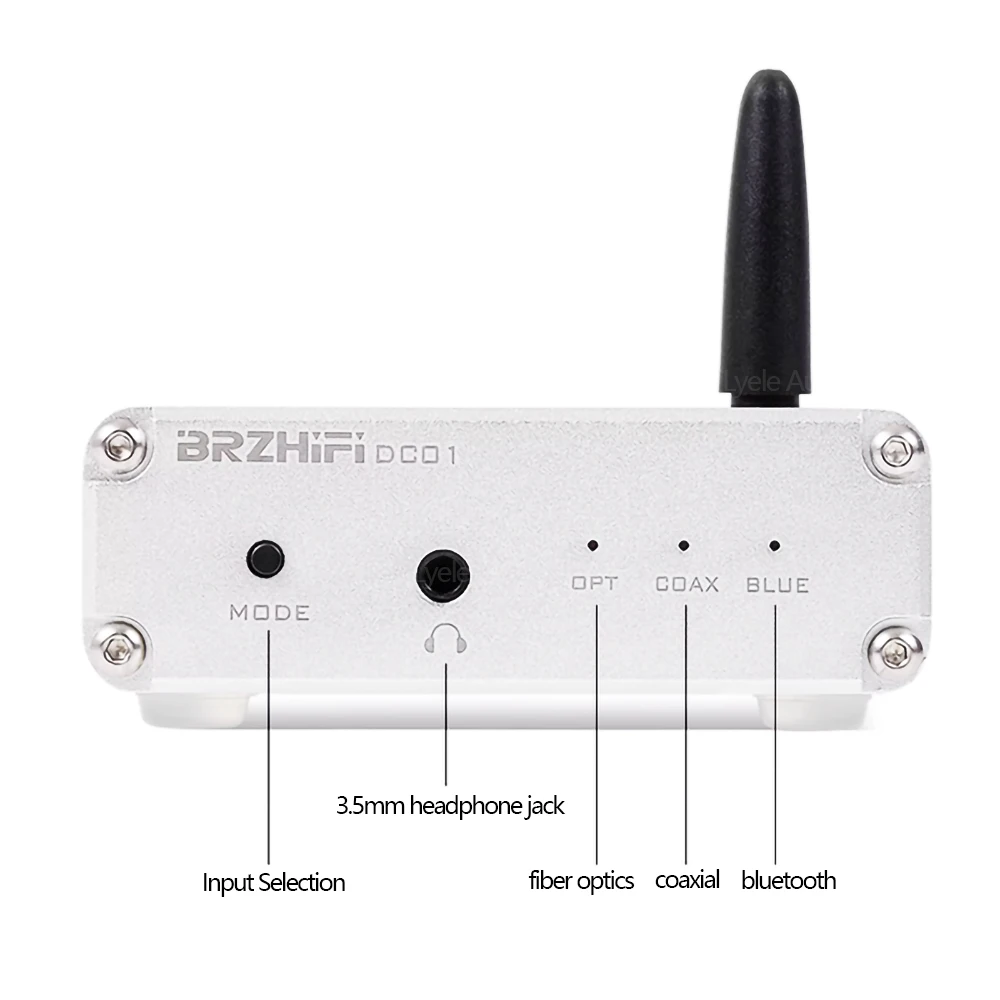

How to use coaxial:Turn on the power, press the input button, when C0X lights up is connected to the coaxial signal.

Fiber Optic Usage:Turn on the power, press the input button, when 0PT lights up, it is connected to the coaxial signal.

How to use Bluetooth: Turn on the power, press the input button, when BLUE lights up is connected to the Bluetooth signal. Cell phone foot link Bluetooth when you find QCC3003, link, prompted to enter the password, enter 0123 can be.

Coaxial support format: 384K/24BIT

Fiber optic format support: 192K/24BIT
