Original WYDZ brand

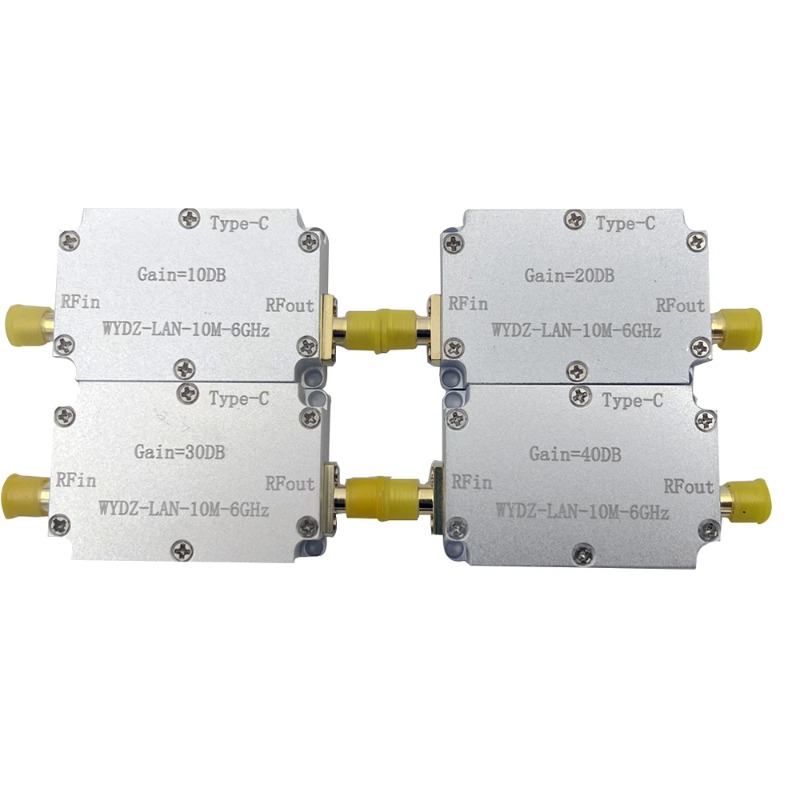

High flatness amplifier 10M-6GHz gain 10DB 20DB 30DB 40DB RF drive



Application scenario:

1. Beidou/GPS receiver

2. Receiver system (FM radio reception, radar reception, etc.)

3. Electromagnetic compatibility receiving system

4. Software Radio Receiver

5. Intermediate frequency signal amplification

2、 Indicator parameters

1. Power supply: TYPE-C line;

2. Module frequency range: 10M-6GHz;

3. Noise coefficient: NF=4-5dB (refer to the measured curve for specific frequencies);

4. Gain: 10DB-20DB-30DB-40DB (refer to the measured curve for different frequencies);

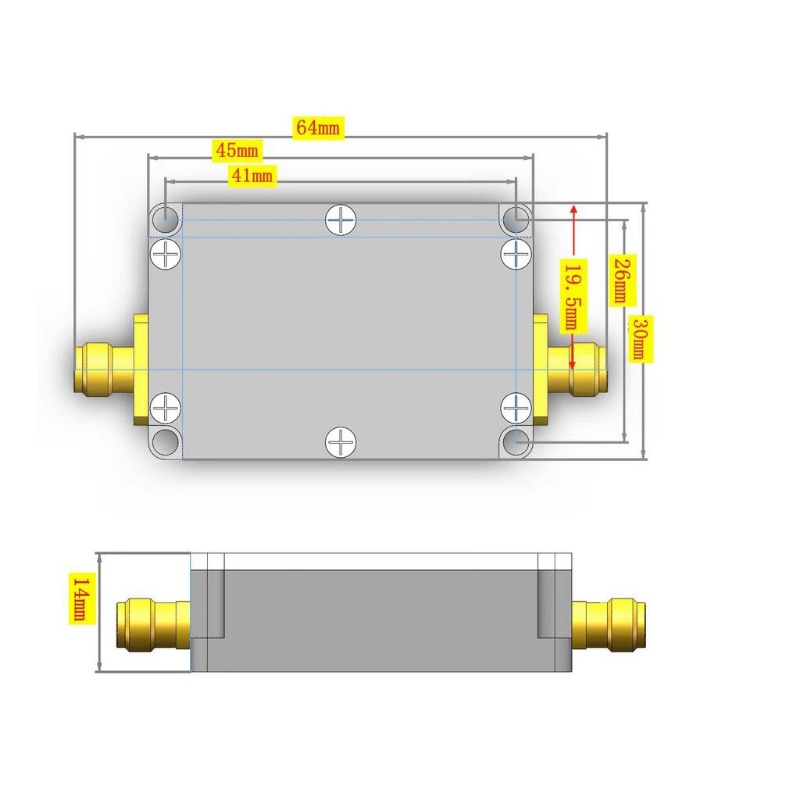

5. Volume: 4.5 * 3 * 1.4cm (excluding protruding SMA),

Weight: 66g (including host+TYPE-C cable);

6. Current:<100mA;

7. P1dB= 18dBm@2GHz ;

8. Output interface: SMA female, input-output impedance: 50 ohms

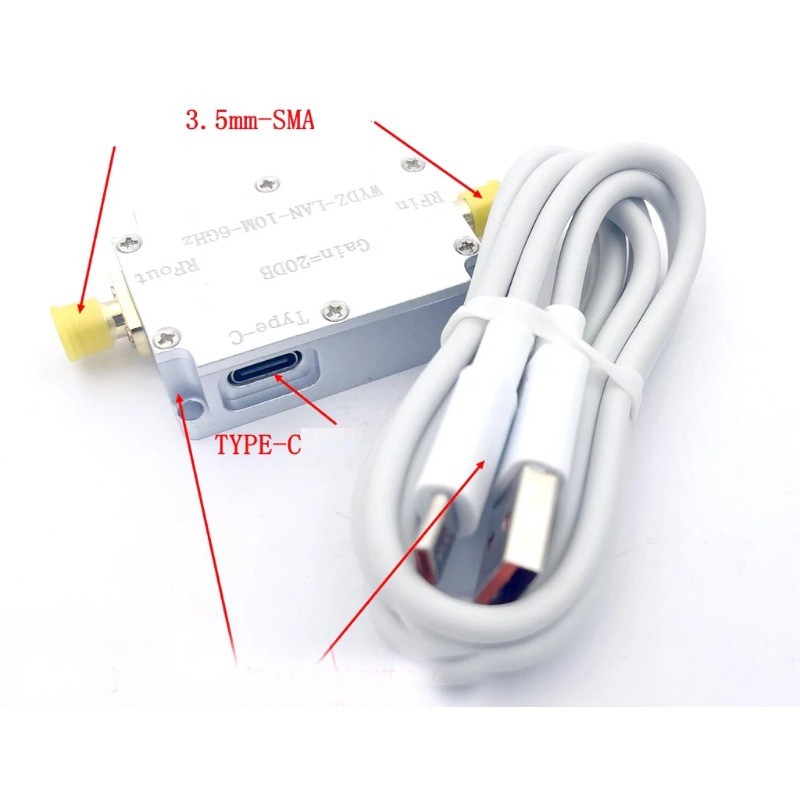

9. Shipping list: Host with aluminum alloy shell * 1+TYPE-C cable * 1

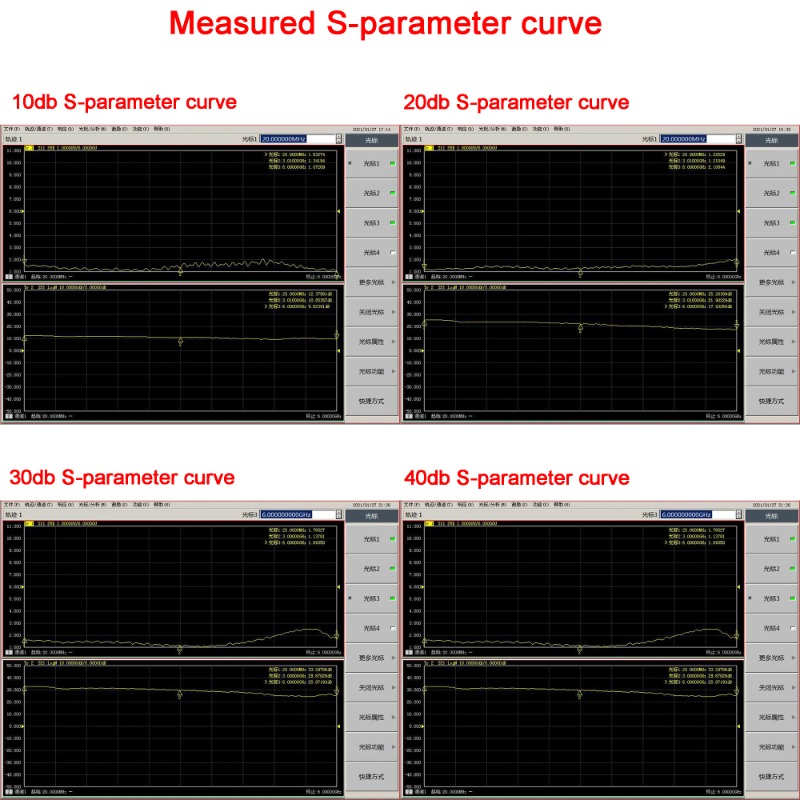

Measured S-parameter curve
