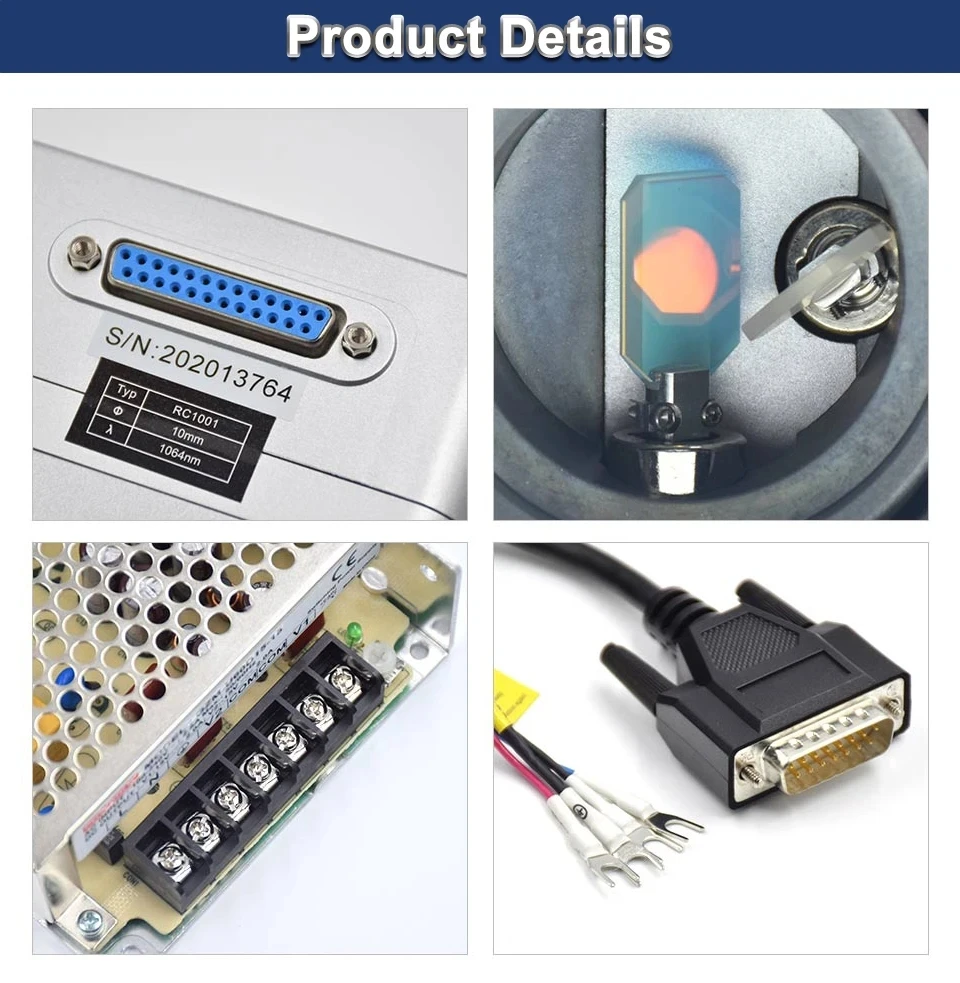

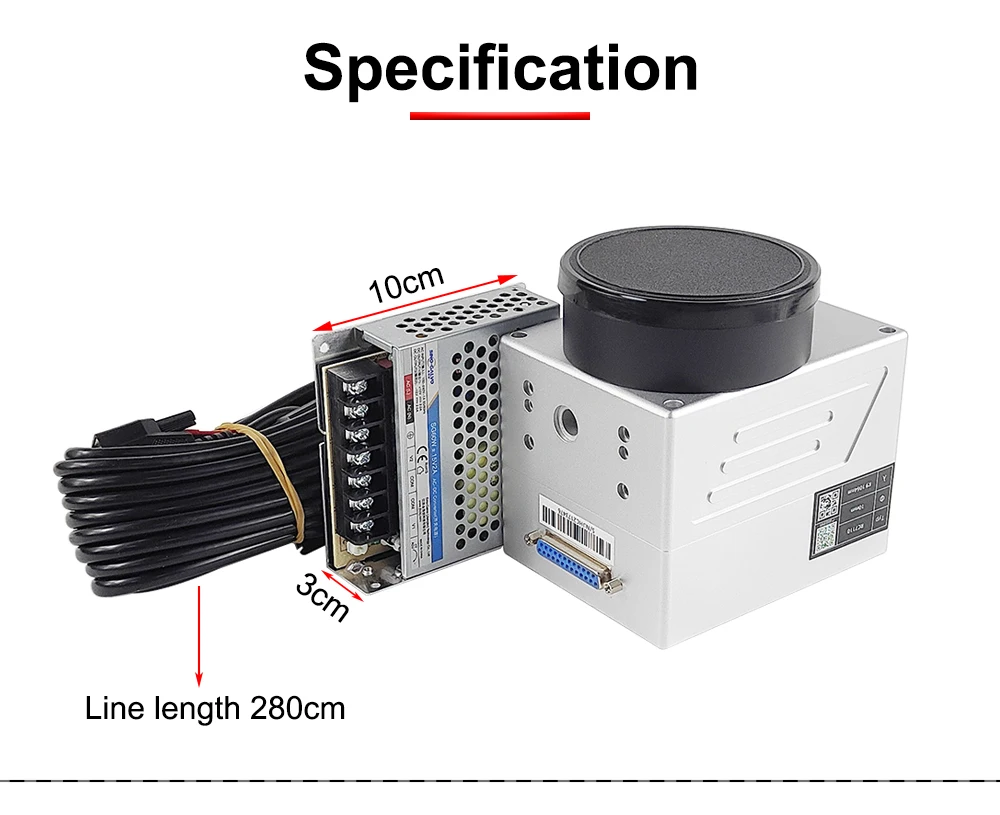

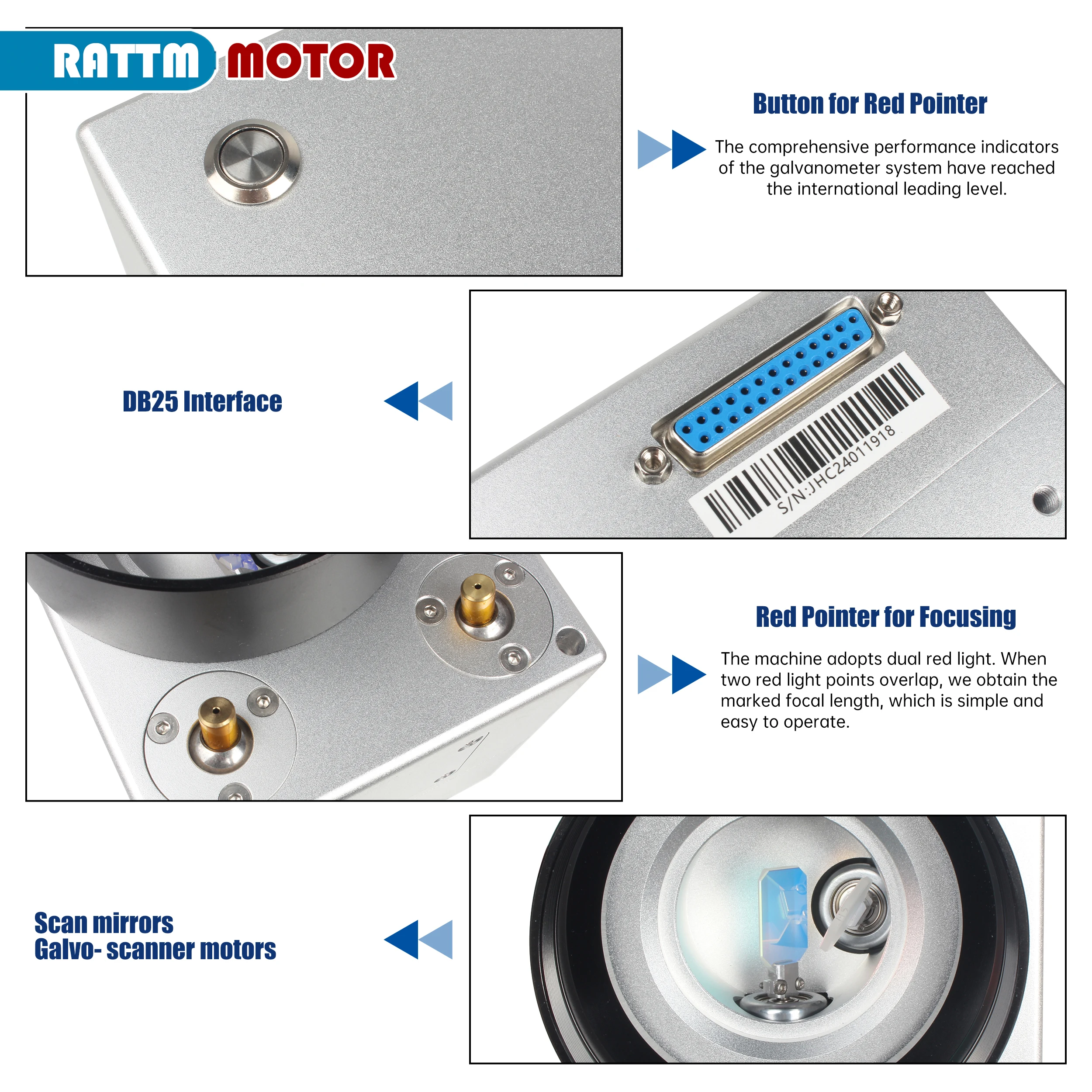

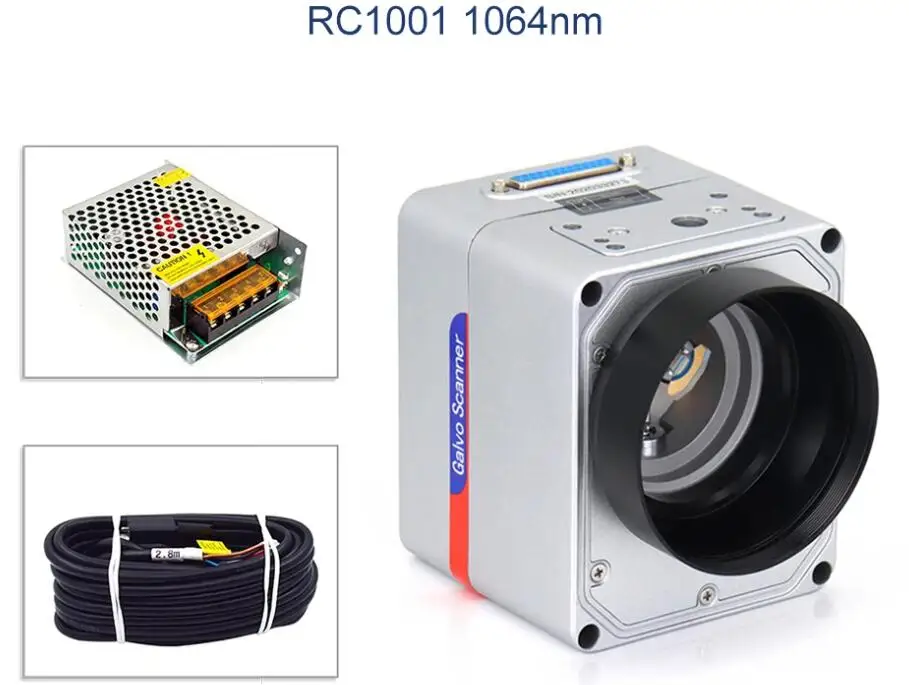

    • 1 x RC1001 or SG7110 Fiber Laser Scanning Galvo Head （with Double red light）

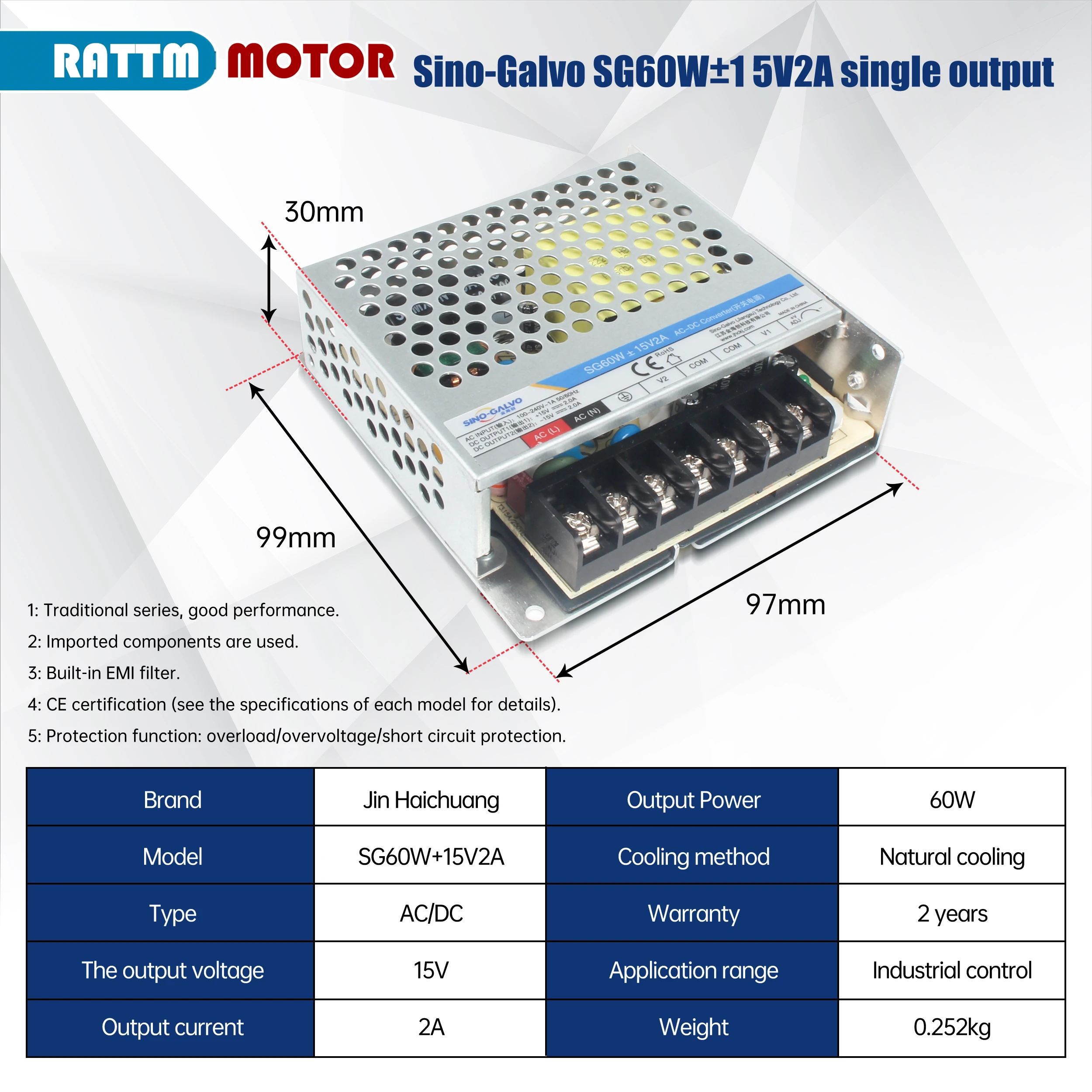

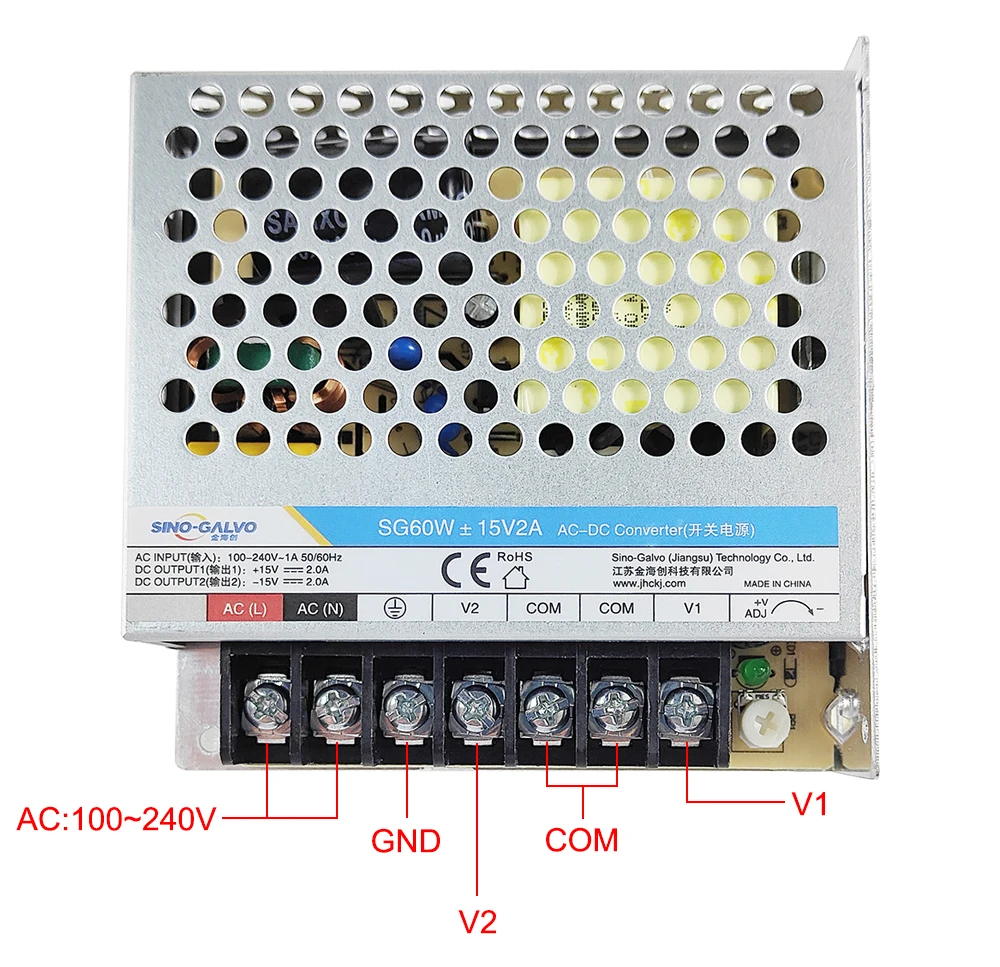

    • 1 x 60W 15V DC Switching Power supply

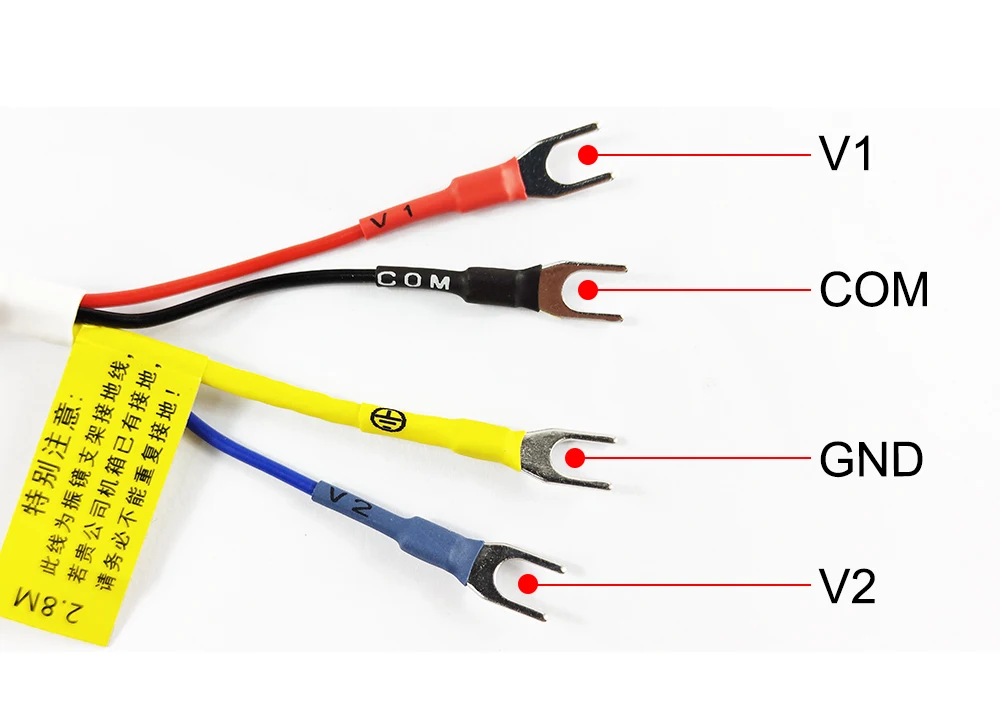

    • 1 x DB25 cable

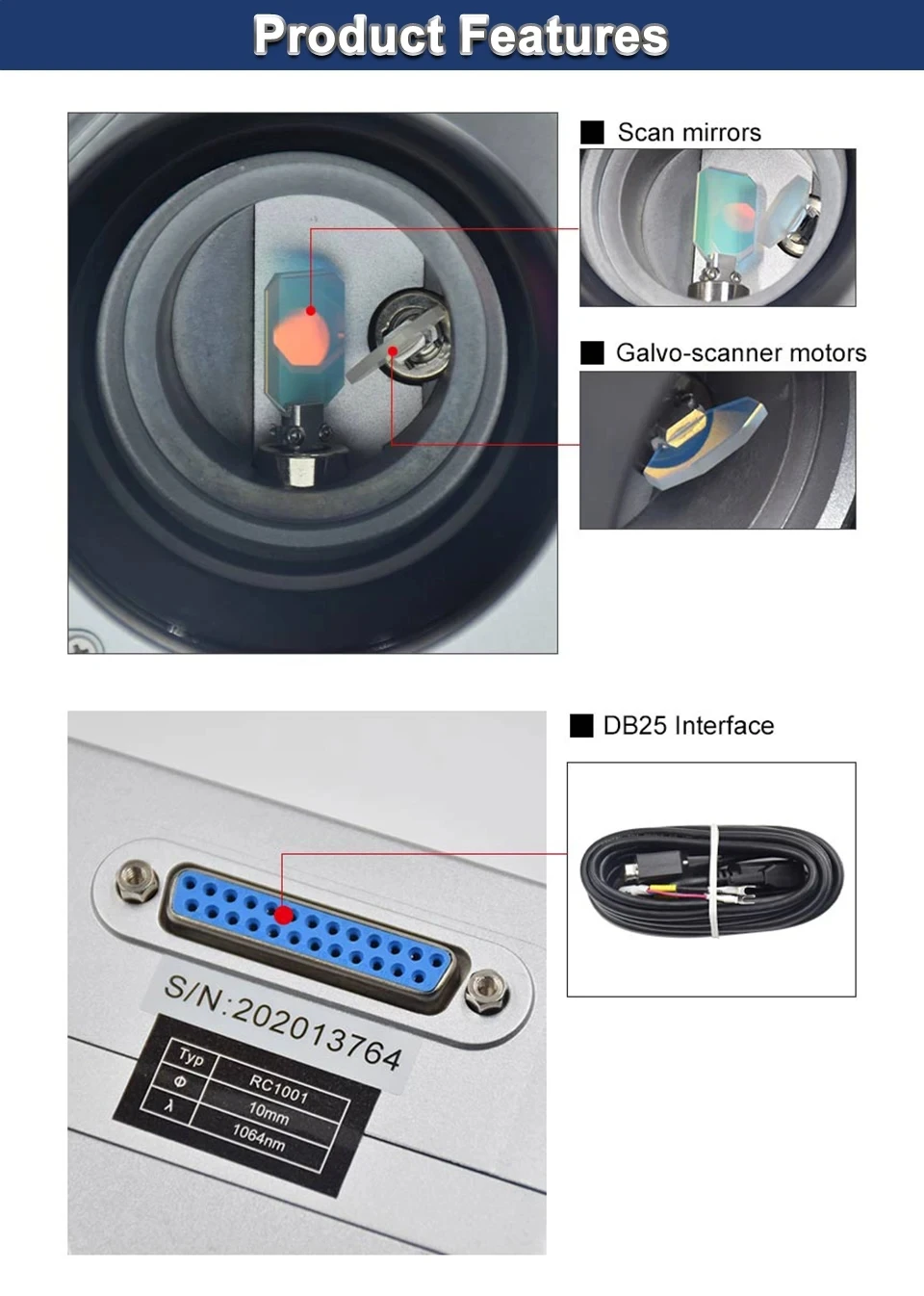

    RC1001 Product show:

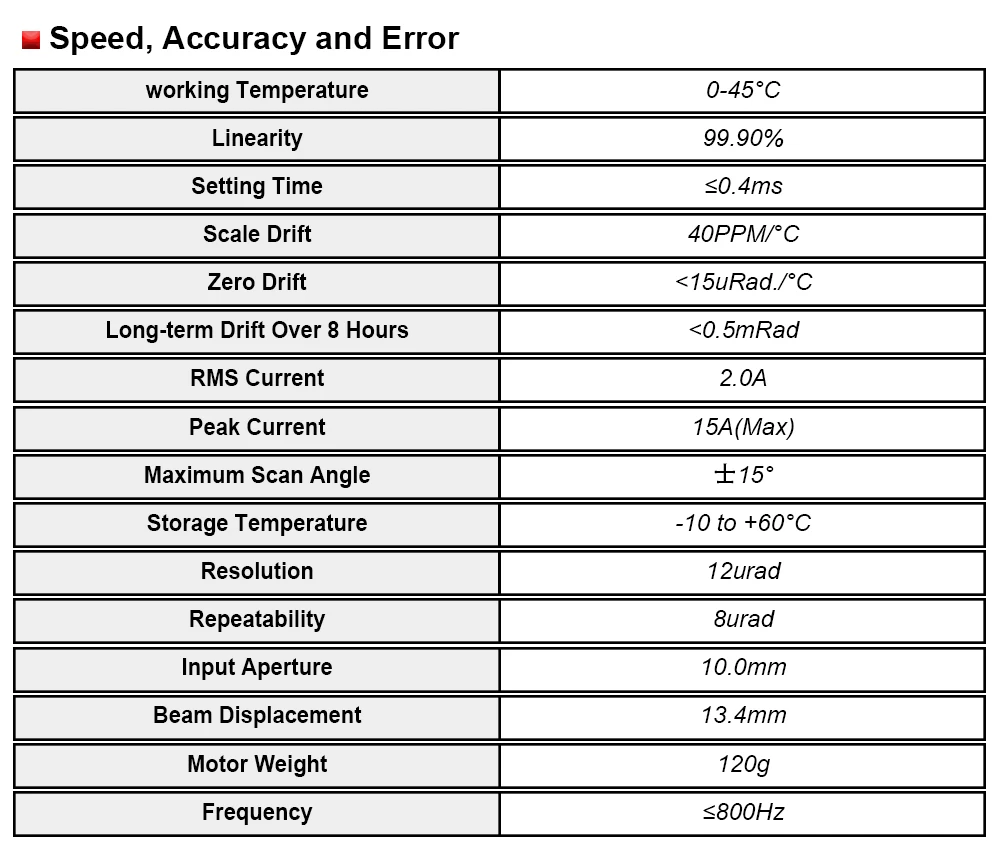

    Feature:



    Marking speed:4000mm/s

    Positioning speed:5000mm/s

    Small step response time:≤0.4ms

    Wavelength:10.6um 1064nm 355nm accuracy and error

    Linearity:99.9%

    Repeat positioning accuracy/electrical value:8μRad.

    Long-term drift (8 hours of continuous work): <0.5mRad

    Gain error:<8mRad

    Zero offset (batch origin error):<20μRad./℃

    Tracking error:≤180us

    Proportion drift:<40PPM/℃

    Zero drift:<15μRad./℃

    Lens damage threshold

    K9 matrix:9.1J/cm^2

    Si substrate:10J/cm^2

    Power and Signal

    Input voltage:±15VDC

    Average working current:2.0A

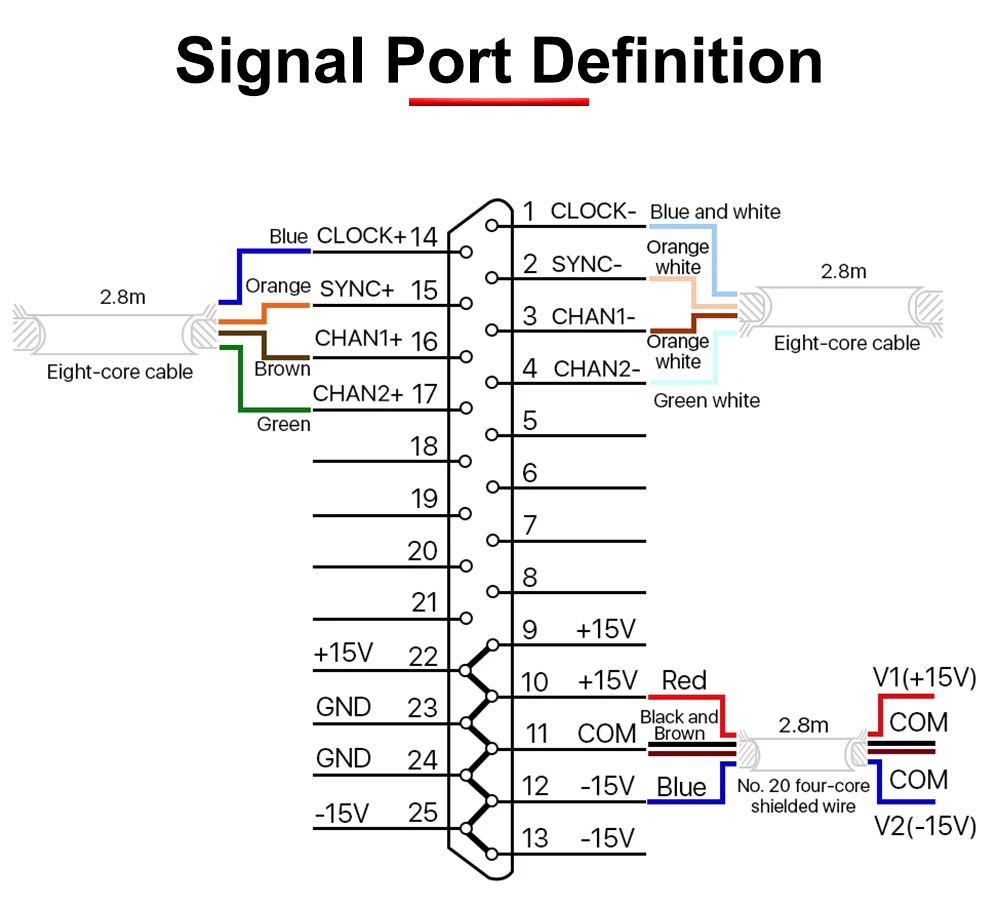

    Signal interface number:XY2-100

    Peak current:15A

    Working temperature:10℃- 45℃

    Position signal input impedance:0KΩ±1%

    Position signal input proportional coefficient:0.33V/°

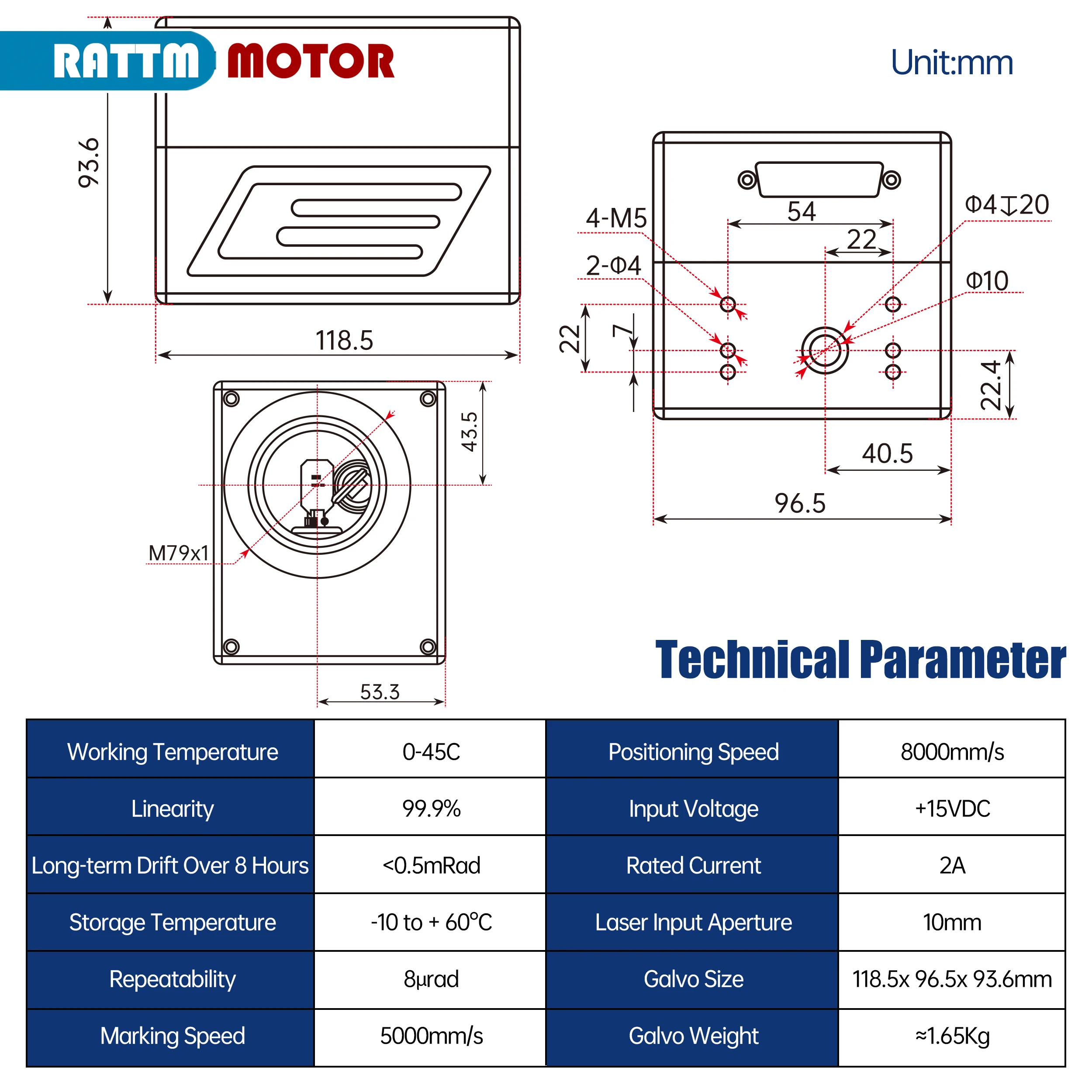

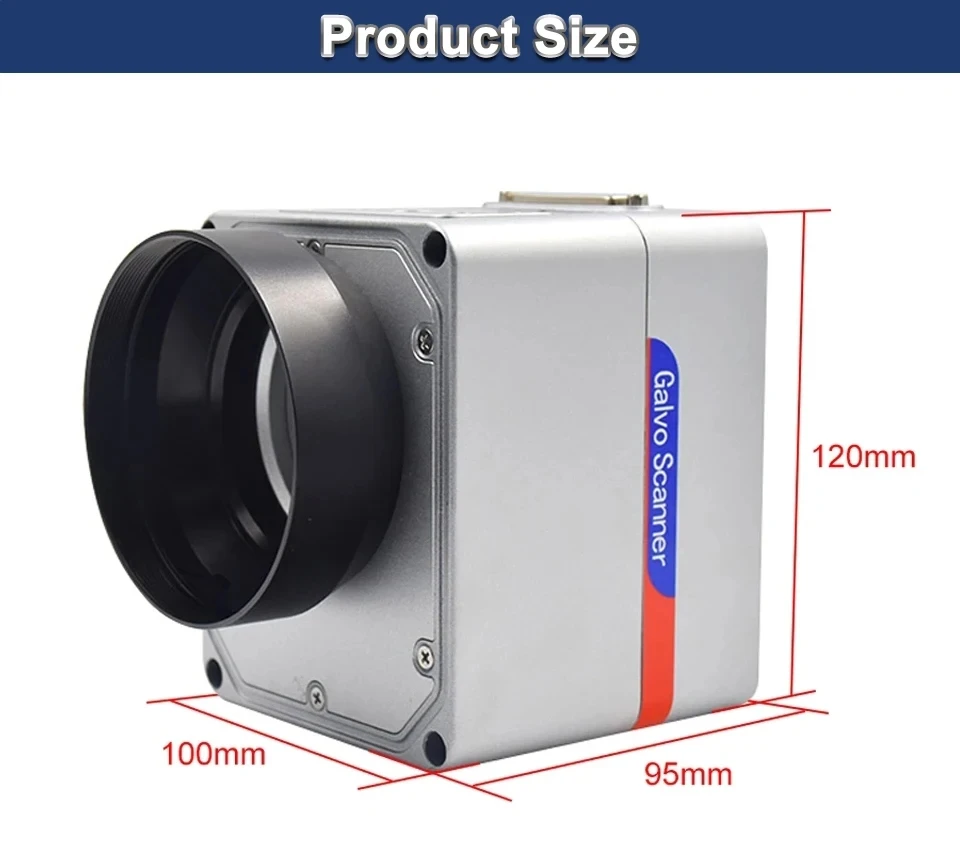

    Working current, temperature, size

    Working temperature:0℃- 45℃

    Storage temperature:-10℃- +60℃

    Laser input aperture:10mm

    X, Y lens center distance:13.5mm

    Maximum scanning angle:±15°

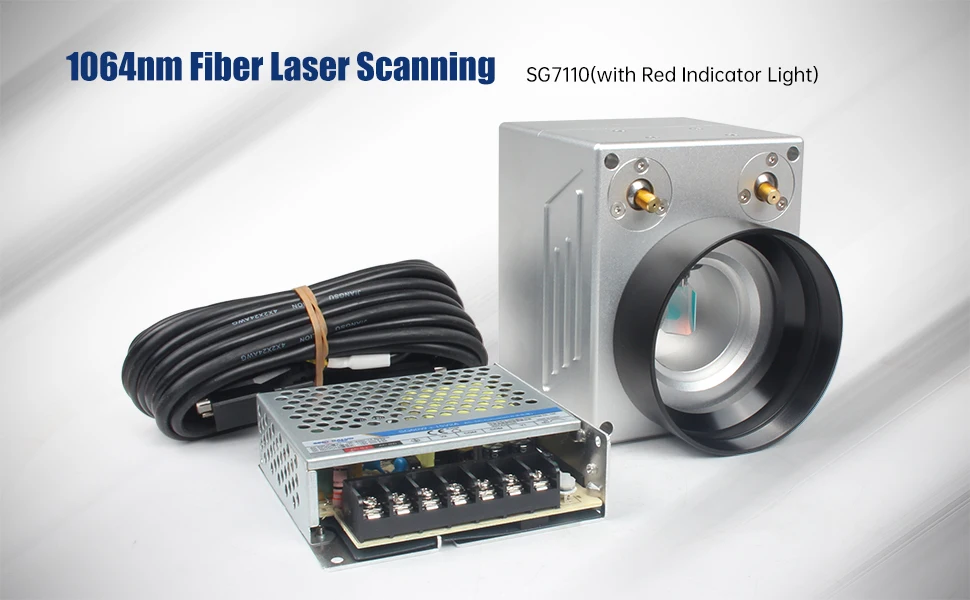

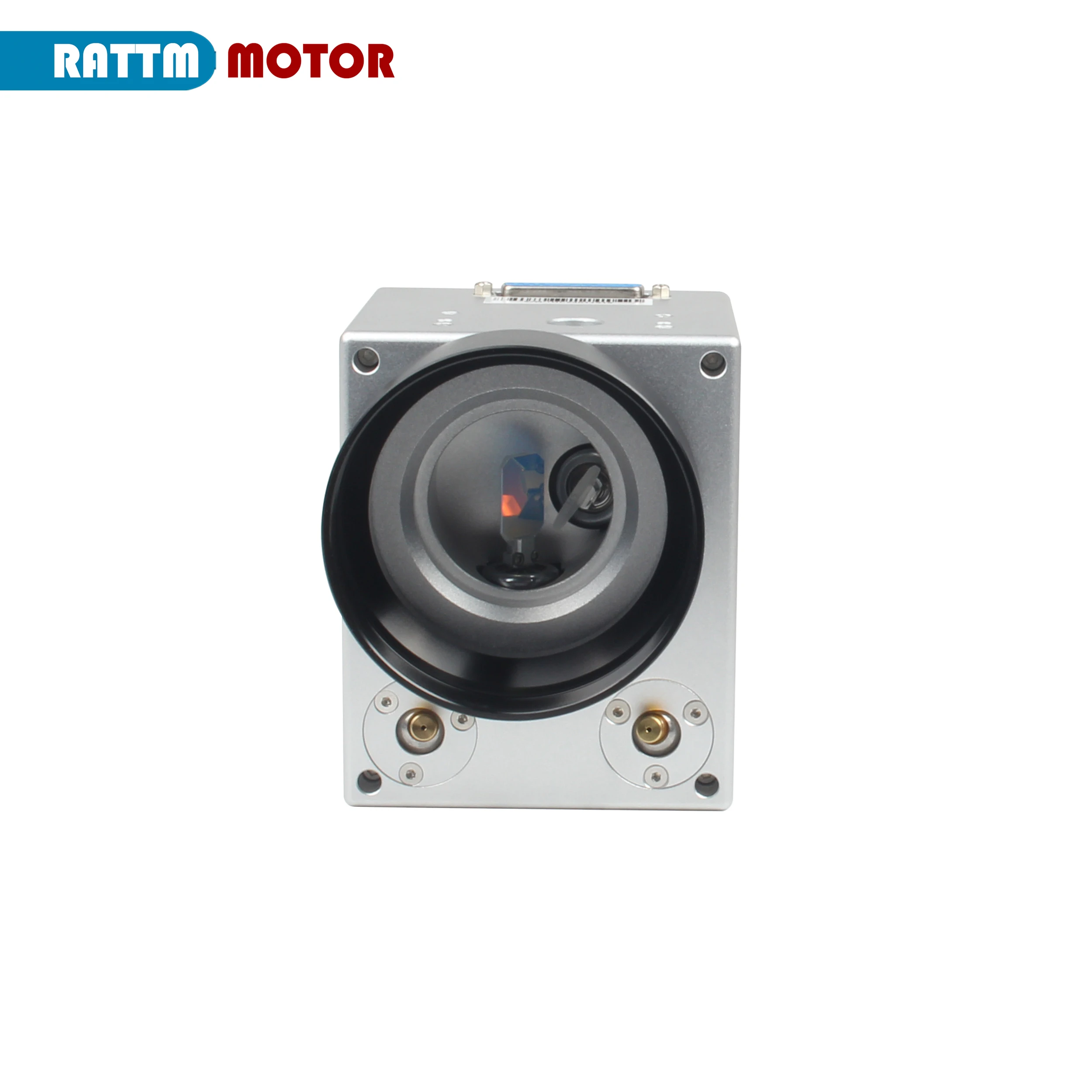

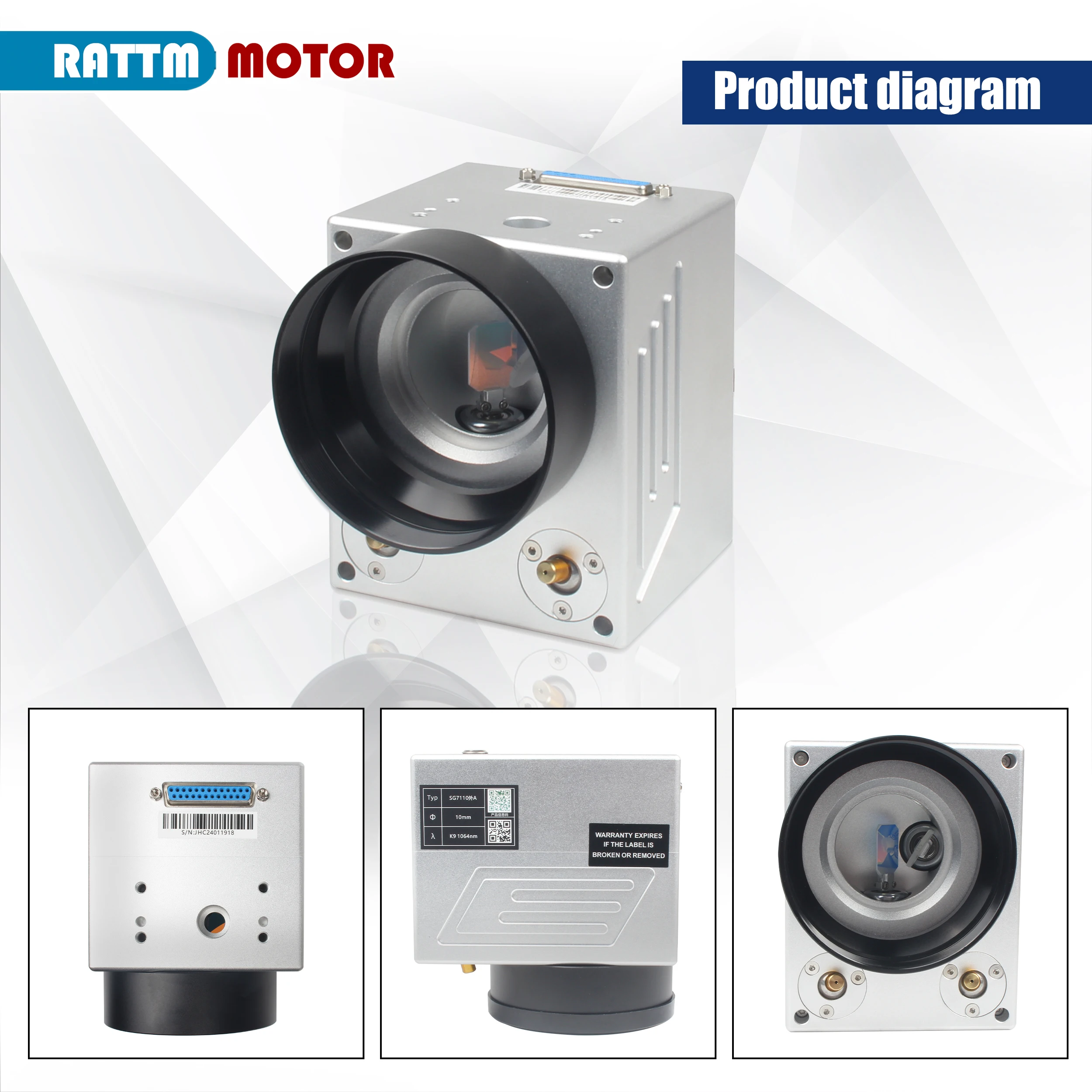

    SG7110 Product show:




    Introduction:

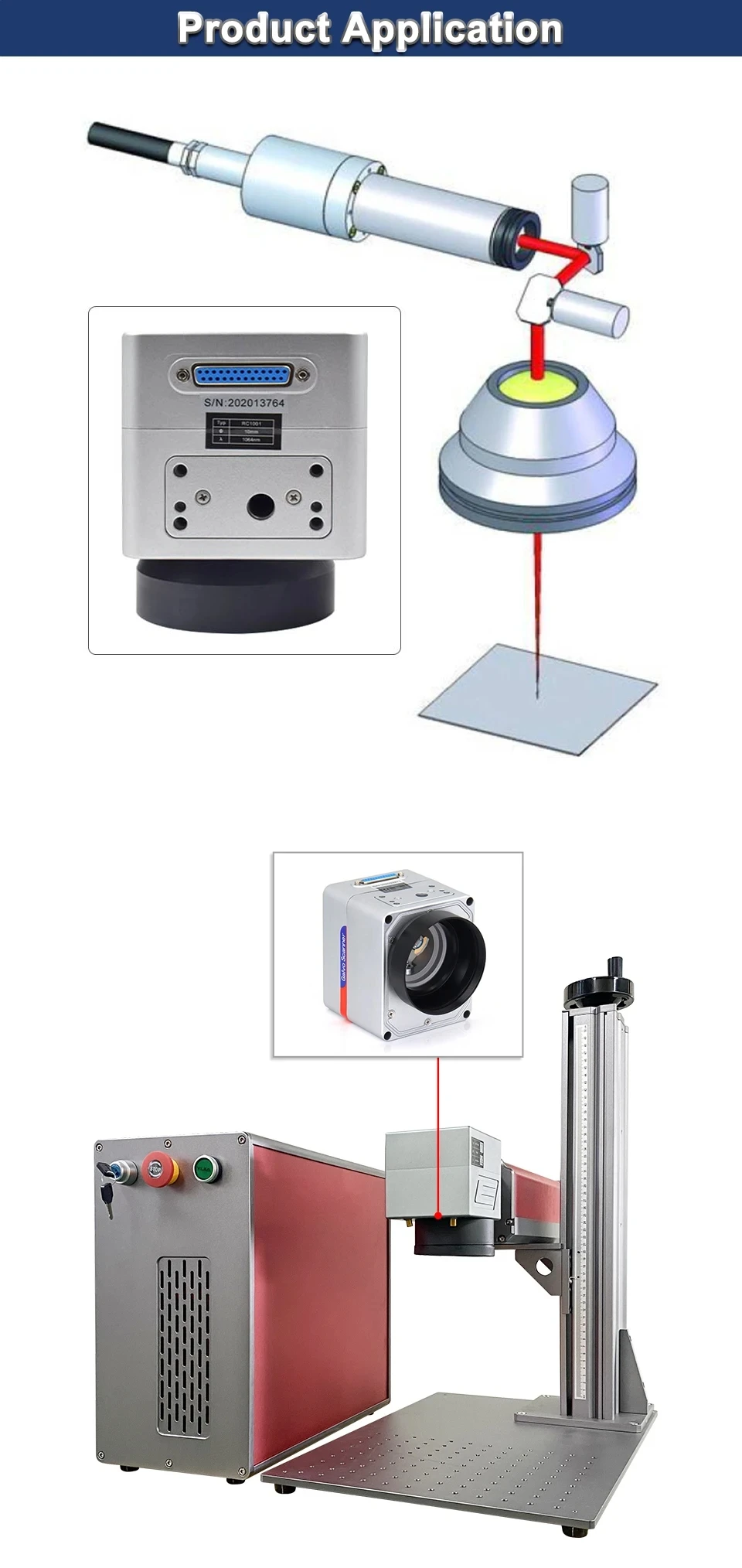

    SG7110 galvanometer is mainly suitable for high-speed and online flying marking. The standard incident spot diameter is 10mm. The galvanometer system has the characteristics of zero drift, fast speed, small size, low temperature and stable and reliable operation. The comprehensive performance indicators have reached the international professional level and have obtained a number of national patents.


    Features:

    1. Adopted the photoelectric sensors which imported from America, and owned the proprietary intellectual property rights.

    2. Differential photoelectric sensor for accurate detection of motor rotor position, good linearity, lower drift, high resolution and repeat positioning.

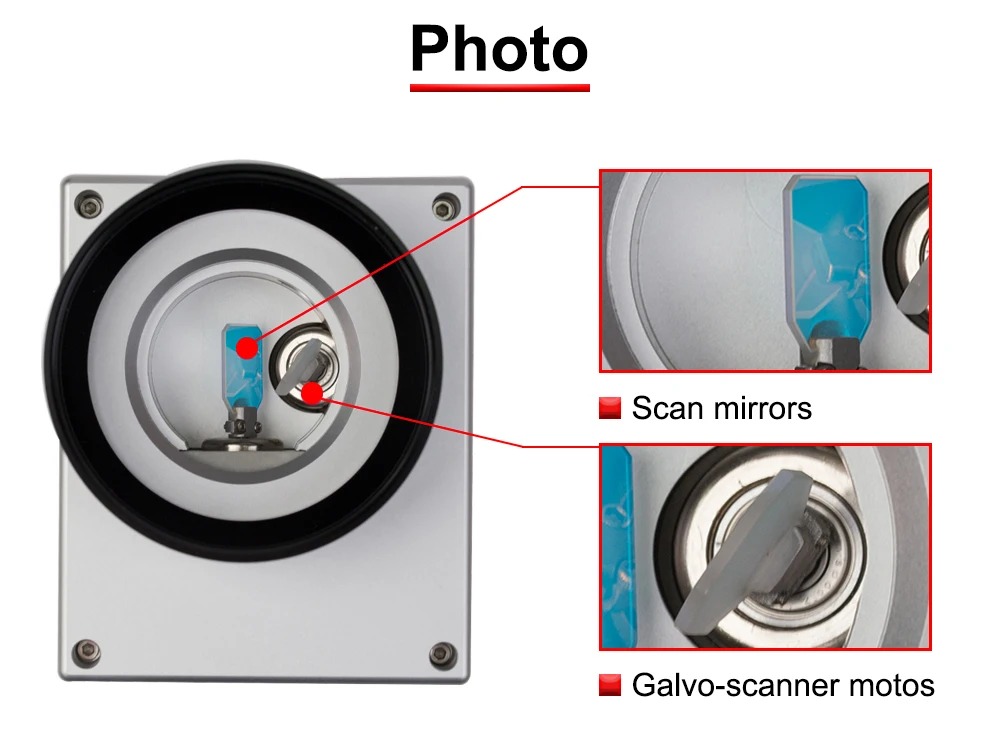

    3. Accurate load design for 10 mm mirrors, high accuracy of motor assembly, reasonable structure, very small static friction coefficient and zero offset, all ensured the best dynamic characteristics for the whole system.

    4. Drives with advanced detection ability of position and speed, greatly improved the dynamic response performance and scanning speed of the whole system.

    5. Design of overload, over-current and reverse connect protection, makes the system running more reliable.

    6. The whole system adopted the optimization Designing of electromagnetic compatibility, with high signal-to-noise ratio and strong anti-interference ability.

    7. This scanner system solved the common problems of motor temperature drift, signal interference and zero drift, etc.
