Automatic Door Smart RFID Controller and Tags, Phone Remotely Control Sensor Tag

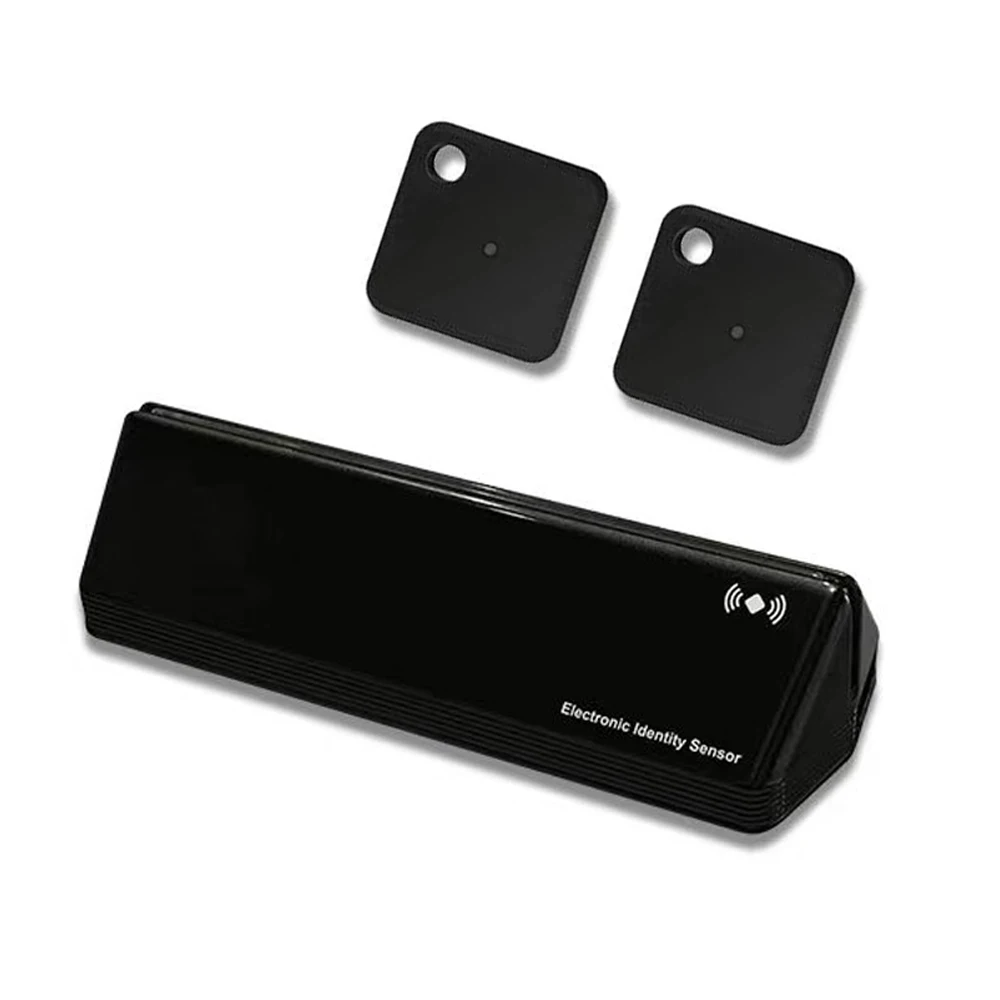

One set including one sensor and two tags. If you need more tags, feeling free to contact with us.



  1. WIFI RFID SENSOR AND TAGS FOR PETS,DISABLED: smart wifi sensor and wireless tags works with automatic door opener,wireless tags can be wear or tied on pets,wheelchair,pocket,etc,When tags approaching sensor door opener,door open automatically.
  2. SAFE FOR PETS&PEOPLE:The RFID sensor provide continuous door opening signal to ensure safe entry of pets,people without getting caught in the door,The door opening signal will be continuously maintained until the pet or people enters safely
  3. COMPATIBLE WITH ALEXA,GOOGLE HOME,PHONE APP:The RFID sensor is compatiable with alexa,google home,phone APP,you can remotely control door via phone app after the rfid sensor connect wires with auto door opener
  4. WIRELESS RFID TAGS:The wireless rfid tags is small and easy to encode with receiver,maximum 300pcs tags can be added.
  5. FLEXIBLE WEARING AND PLACING WIRELESS TAGS:Wireless RFID tags can be worn or placed flexibly by simply stringing a rope



The Smart Pet Collar Set uses RFID technology to communicate between your pet's tags and the RFID transmitter to activate your auto enabled door. It offers the highest security in preventing the chance of wild animals such as possums, raccoons, or your neighbors’ pets from activating your auto door system. It does not take into consideration that unwanted animals could be stalking closely behind your pet as they enter.

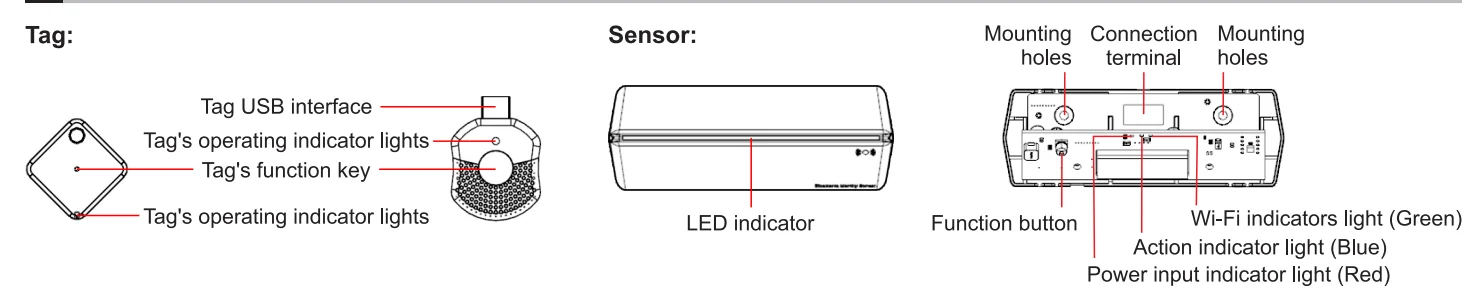

Characteristics of Olide Smart Pet Collar Sensor Receiver and Tags

1. The tag adopts waterproof design and has a compact appearance.

2. Three-gear sensing distance adjustable, more flexible.

3. Adopt dual frequency wireless signal control (125KHZ and 2.4GHZ )

4. The tag is low-power comsumption design, which makes battery life more durable.

5. The identifier adopts a wide voltage AC and DC power supply design, which is flexible in power supply.

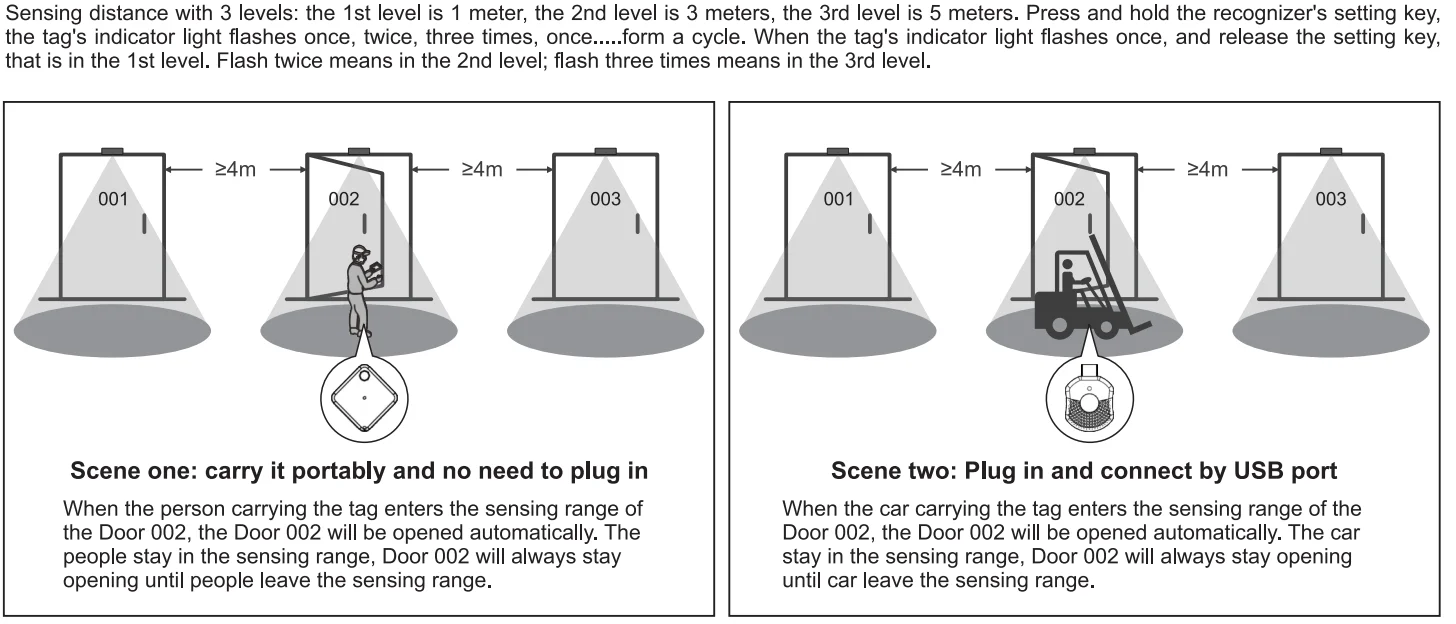

Smart WIFI RFID PET Sensor Distance Setting




Technical Specification:

Matching method: Learning code with tags
The minimum distance between door and door: 13.12feet
The workabel maximum quantity of the tags:300pcs
Power supply: AC/DC 12~30V
Action current: 90mA
Dimension:5.2(L)X1.92(W)X1.22(H)in
Special function:Compatible for Alexa,google home,Phone APP
Output Signal:COM,NO,Dry Contact
RFID Tags Technical Specification:
Power supply: 3V
Launch range: 39in/118in/196in(adjustable)
Dimenstion: 1.81(L)X1.81(W)X0.43(H)in
