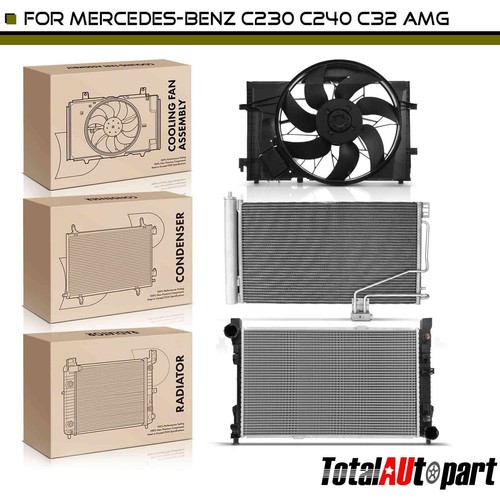

New Radiator & AC Condenser & Cooling Fan Kit for Mercedes-Benz CL203 C230 02-04
Items Description
| Make | Model | Series | Year | Engine | Body Style |
| Mercedes-Benz | C230 | CL203 | 2002 | L4 2.3L | Coupe |
| Mercedes-Benz | C230 | CL203/W203 | 2003-2004 | L4 1.8L | Sedan |
| Mercedes-Benz | C230 | CL203/W203 | 2003-2004 | L4 1.8L | Coupe |
| Mercedes-Benz | C240 | S203/W203 | 2001-2004 | V6 2.6L | Sedan |
| Mercedes-Benz | C240 | S203/W203 | 2003-2004 | V6 2.6L | Wagon |
| Mercedes-Benz | C32 AMG | W203 | 2002-2004 | V6 3.2L | Sedan |
| Mercedes-Benz | C320 | CL203/W203/S203 | 2001-2005 | V6 3.2L | Sedan |
| Mercedes-Benz | C320 | CL203/W203/S203 | 2002-2004 | V6 3.2L | Wagon |
| Mercedes-Benz | C320 | CL203/W203/S203 | 2003-2005 | V6 3.2L | Coupe |
Product Features
1 Manufactured with Precision to Meet OE Standards IATF16949 Certified.
2 High Quality & Brand New
3 One Year Warranty.
4 After Market Replacement
5 Customers Service Center Will Deal with Pre-sale and After-sale Problems In Time
6 Factory Affordable Price with High Quality Service: Return/ Replace/ Offer Technical Support.
Product Specifications
Part Number-Radiator: 2337, 13173, 2035000503, 2035000603, 2035001103
Part Number-Condenser: 3268, CN3268PFC, 2035000054, 2035000554, 2035001254
Part Number-Cooling Fan: 2035000293, 2035000093
Item Type: Radiator
Down Flow Or Cross Flow Type: Crossflow
Core Height (in.): 25-9/16 In.
Core Width (in.): 15-11/16 In.
Core Thickness (in.): 1 In.
Inlet Diameter (in.): 1-11/16 In.
Outlet Diameter (in.): 1-11/16 In.
Transmission Oil Cooler Included: Yes
Engine Oil Cooler Included: No
Item Type: AC Condenser
Condenser Core Type: Parallel Flow
Core Length(IN): 16-3/4 In.
Core Width (IN): 31-13/16 In.
Core Thickness (IN): 3/4 In.
Drier Included: Yes
Oil Cooler Included: No

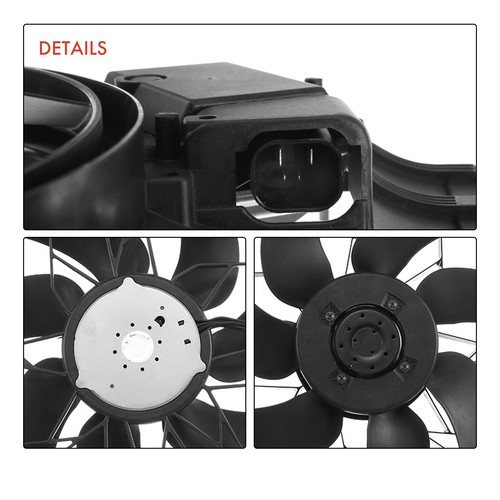

Item Type: Cooling Fan
Connector Quantity: 1
Connector Terminal Quantity: 4
Motor Type: Brushed
Fan Type: Single Fan
Shroud Included: Yes
Quantity Sold: A Set of Three Pieces
Note: Radiator with Transmission Oil Cooler, Automatic Transmission
Note-2: Condenser with Receiver Drier, with Bracket
Note-3: Cooling Fan Assembly with Shroud
