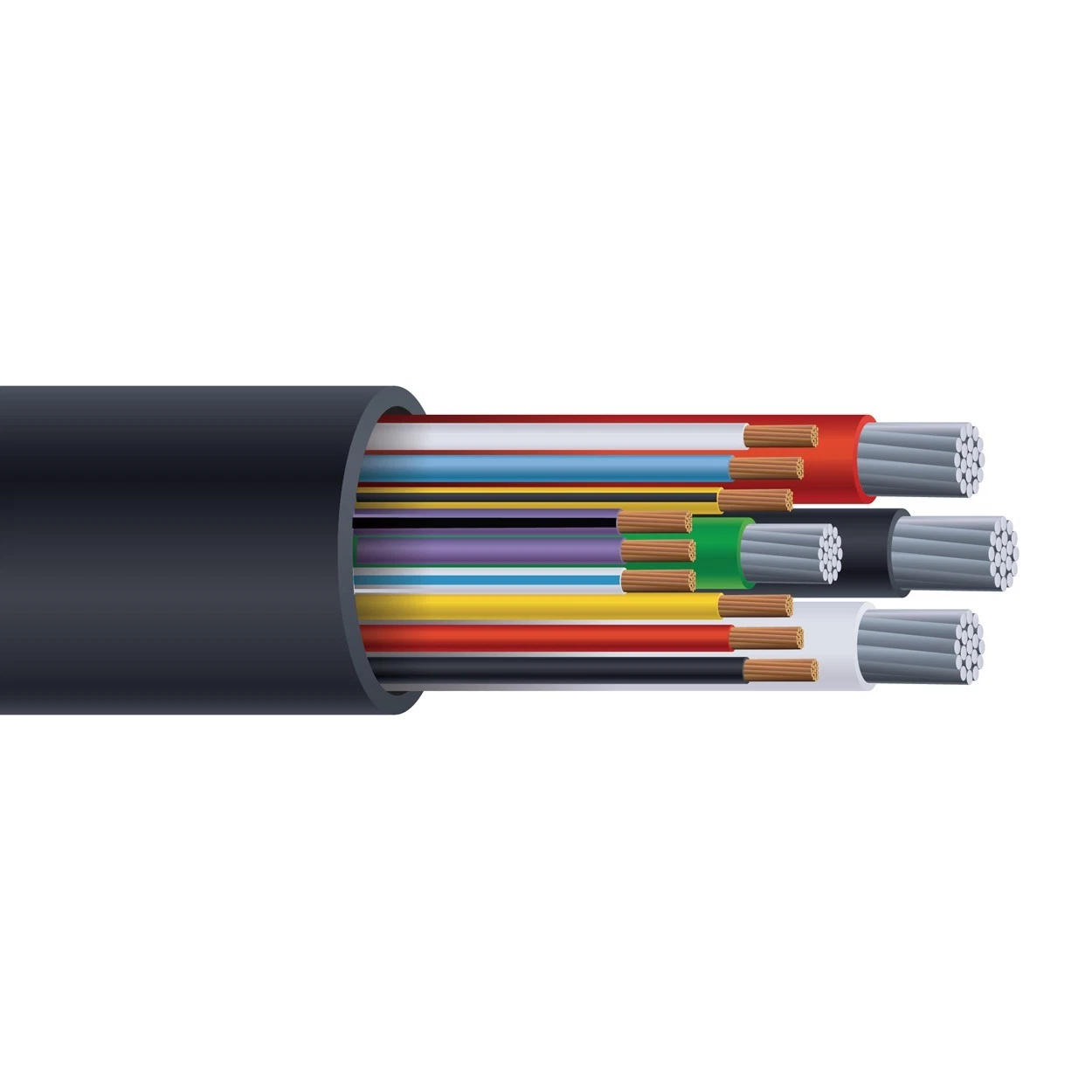

1/3 With #6 Ground + 18/9C Aluminum Generator Cable TC-ER-JP (Rated 17kW to 24kW) 600V

Click Thumbnails to Enlarge

APPLICATION

• 1/3 Aluminum Generator cable for connecting a 17kW to 24kW generator to a Transfer Switch. JP (Joist Pull) rated per NEC 336.10(9). UL listed as Type TC-ER-JP for applications not to exceed 600V

CONDUCTOR

• Element 1: Aluminum 8000 Series
• Element 2: Annealed Bare Copper Class K
• Element 3: Aluminum 8000 Series

INSULATION

• Element 1, 2 & 3: Polyvinylchloride (PVC) & Nylon

ASSEMBLY

• All 3 Elements or Conductors are cabled together with Non Hygroscopic Polypropylene fillers as required for a circular cross-section with a clear mylar binder tape and jacketed.

JACKET

• Gray Sunlight resistant and direct burial approved PVC with ripcord rated 75°C wet or dry per UL 1277.

COLOR CODE

• Element 1: Black, Red, White
• Element 2: Black, Red, Yellow, Yellow/Black, Blue, White, White/Blue, Purple, Purple/Black
• Element 3: Green Ground

STANDARDS

• UL Listed as TC-ER-JP per UL Standard 1277
• Rated 90°C wet or dry to meet UL 83 for THHN/THWN
• Meets cold bend test at -40°C
• ICEA S-73-532. ICEA S-95-658, where applicable
• Meets UL 1581 & 1202 (FT-4) 70,000 BTU/HR & ICEA T-29-520 210,000 BTU/HR requirements
• REACH compliant per Regulation (EC) No 1907/2006 (233)
• Cable is suitable for use in Class I Division 2 hazardous locations
• Element 1 & 2 conductors pass UL VW-1 flame test, rated THWN/VW-1
• ASTM B3, B8, B174, B787
• UL approved for Direct Burial & Sunlight Resistant Applications

PRODUCT SPECIFICATIONS
