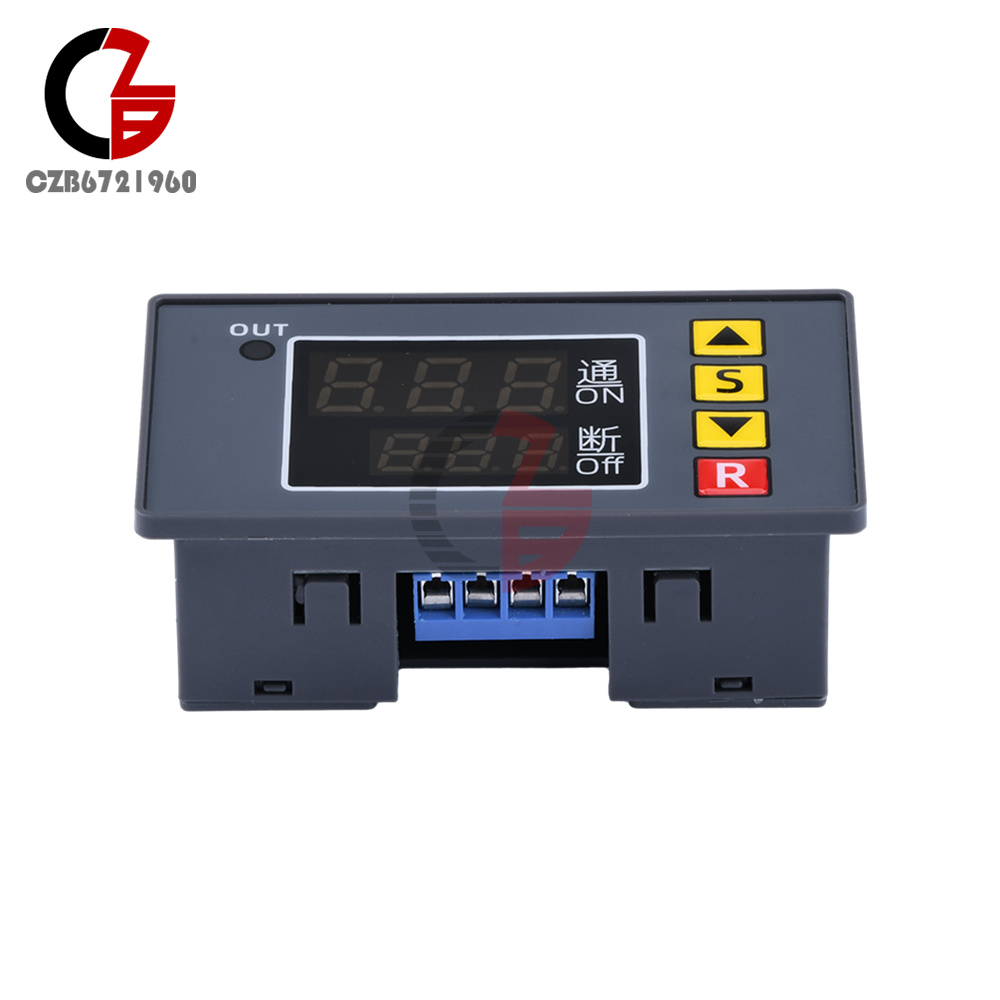

T3231 Programmable Digital Time Delay Relay Dual Display Timer Control Switch

Popular

    Product Introduction

    Product Features:
    1. Wide time range: digital cycle timer relay module, time range from 1 second to 999 hours

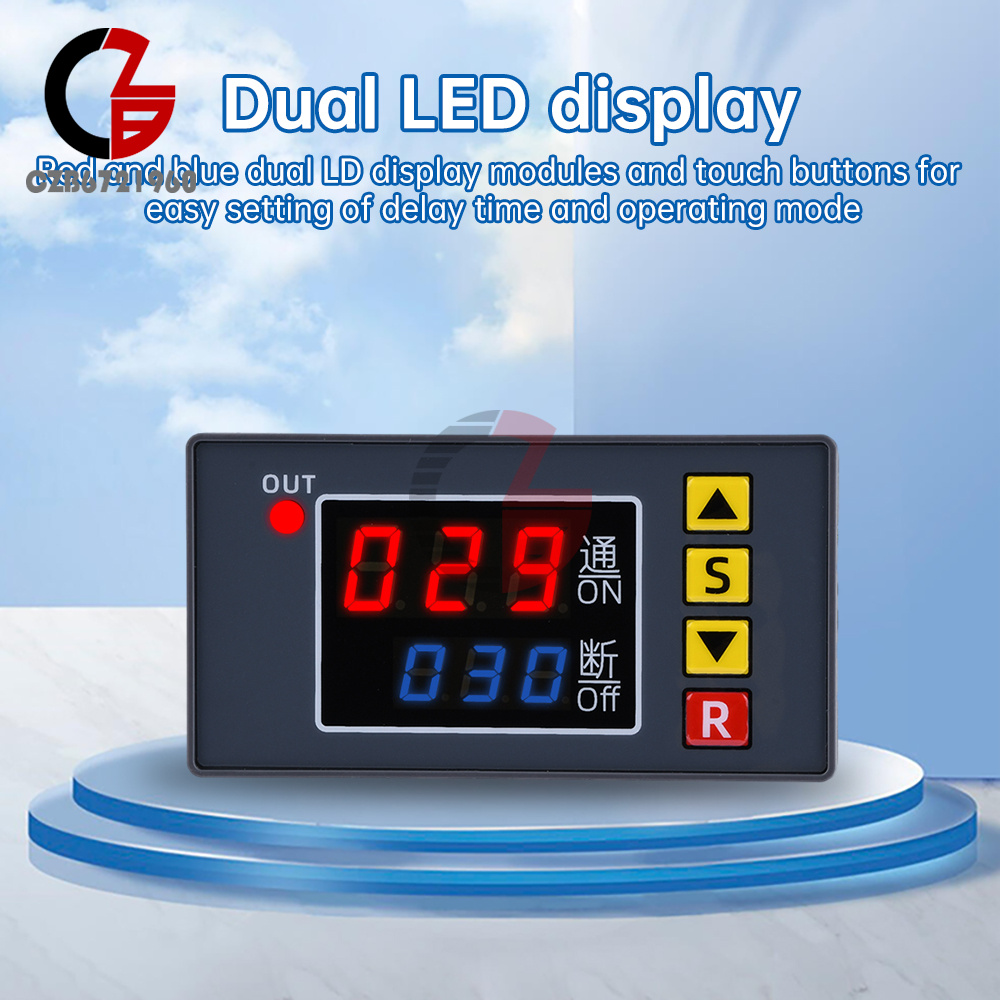

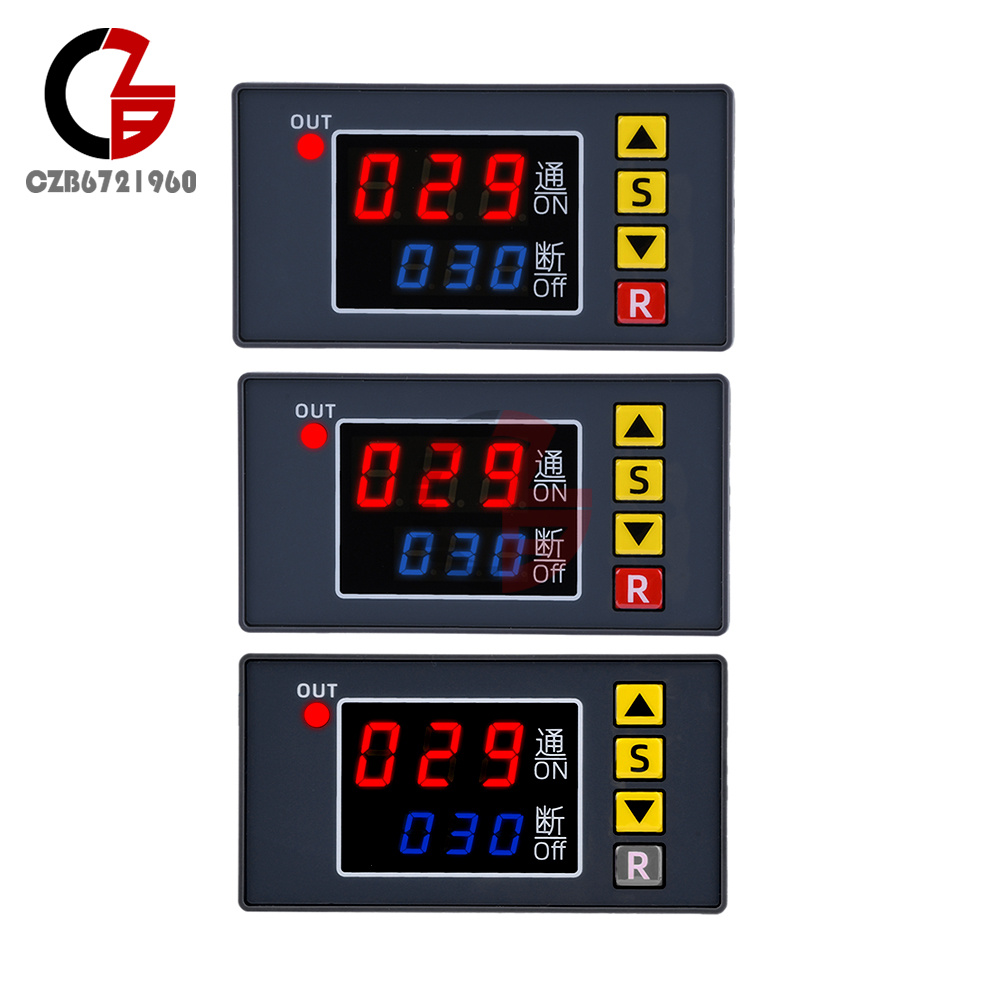

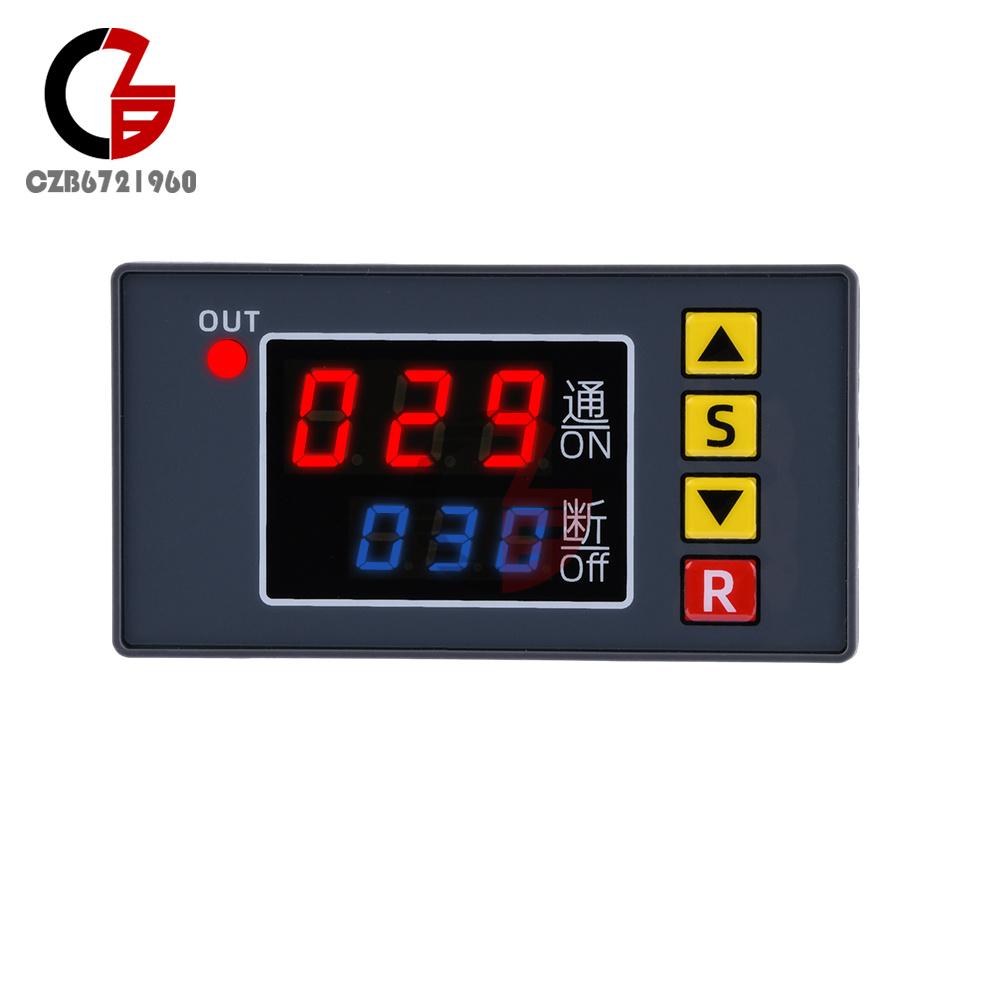

    2. Dual LED display: red and blue dual LED display module and touch buttons, easy to set the delay time and working mode.
    3. Support multiple working modes, including timer, cycle and period working modes, meet most of your needs.
    4. Direct output, input = output
    5. Installation size: 77×39.3mm, embedded installation, suitable for a variety of application scenarios

    Product Parameter:
    Product name: T3231 Time Delay Relay control Switch

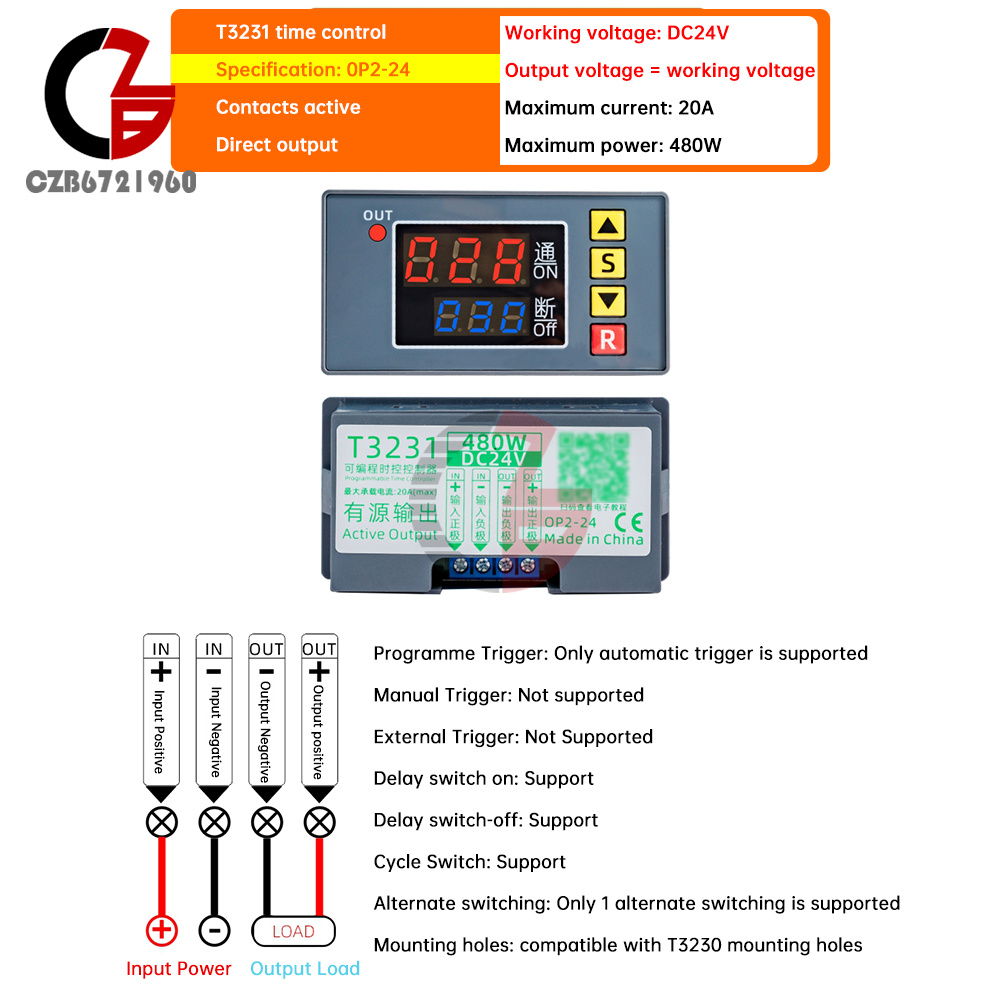

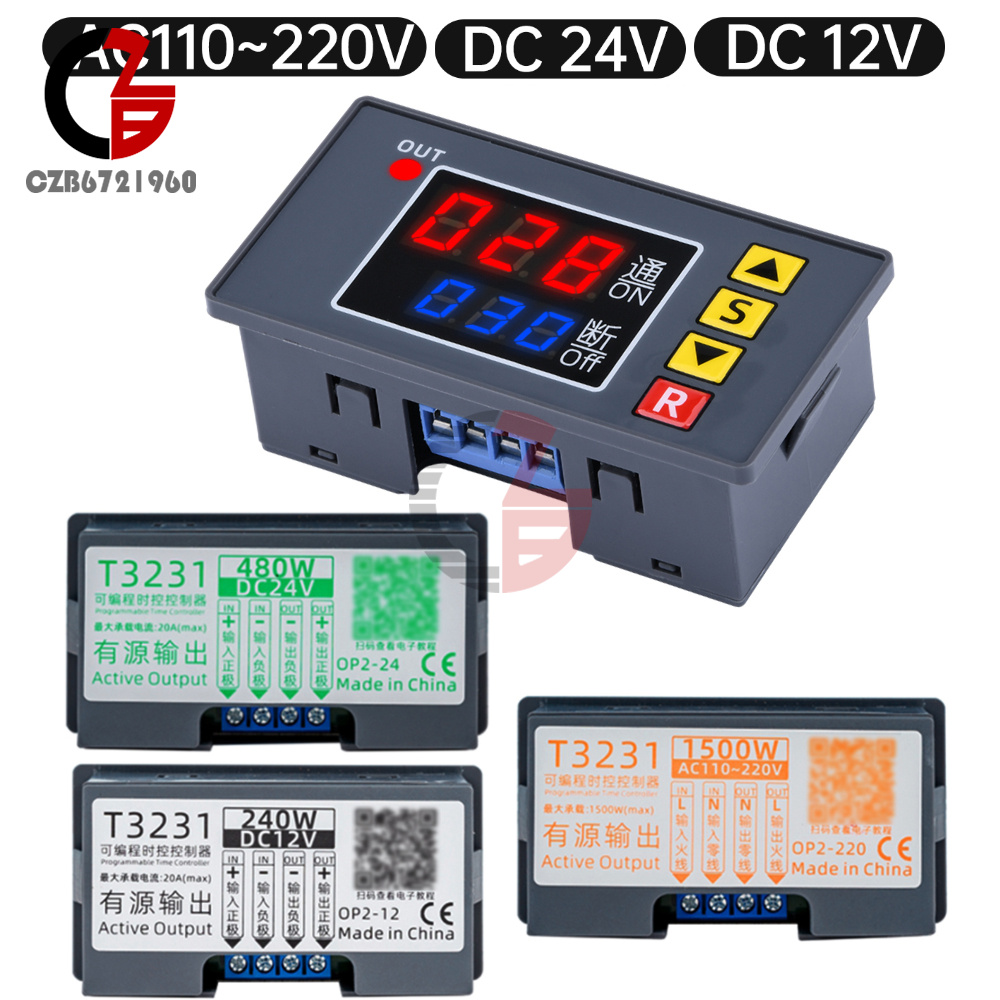

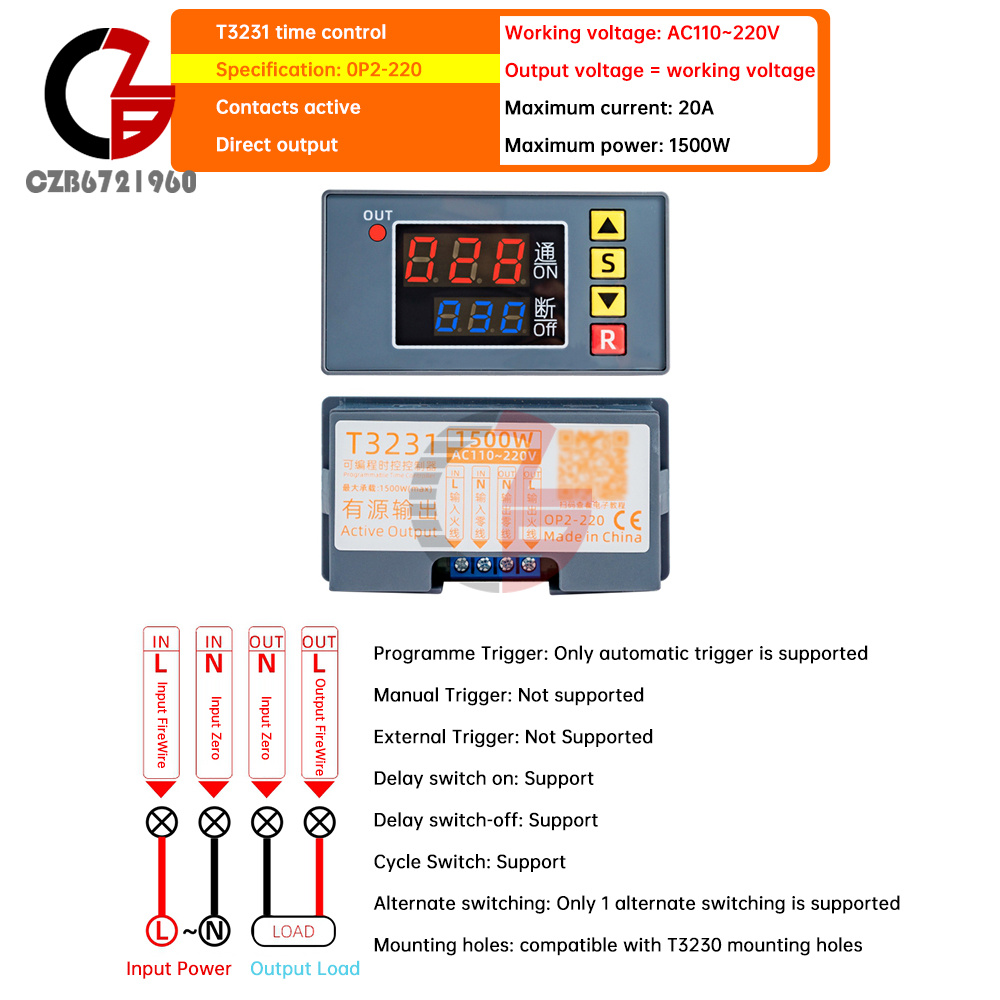

    Operating voltage: DC12V/240W   DC24V/480W   AC110-220V/1500W (optional)

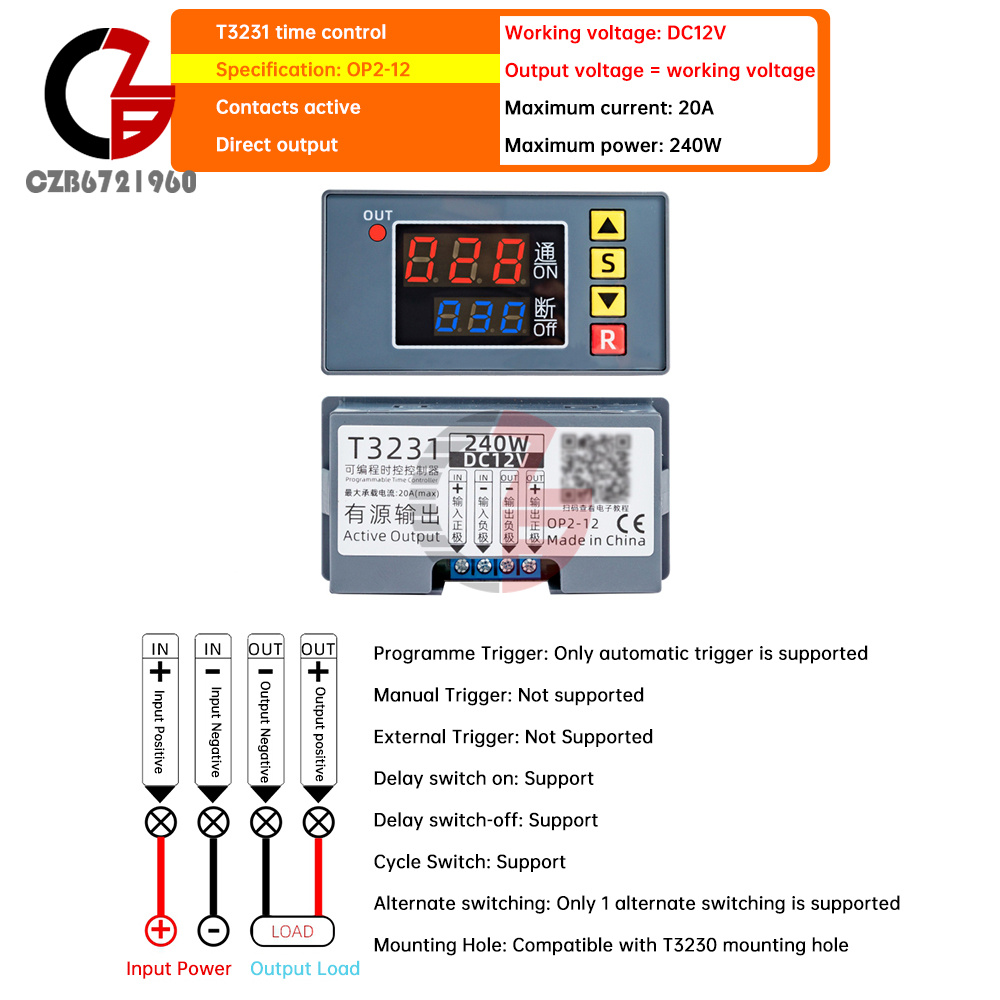

    Output type: active output, output charged, output voltage = operating voltage
    Relay type: 1 way normally open relay
    Timing unit: second/minute/hour
    Timing range: 1~999, minimum unit of measurement 1 second
    Single time delay on/off: support
    Infinite cycle on/off: support
    On-off priority adjustment: Support
    Automatic trigger: Support
    Power failure saving: Support power failure saving setting
    Reset and restart: Support
    Unit Synchronisation: Synchronised, only 3 combinations of timing units
    Manual Trigger: Not supported
    External Trigger: Not supported
    Setting lock: Not supported

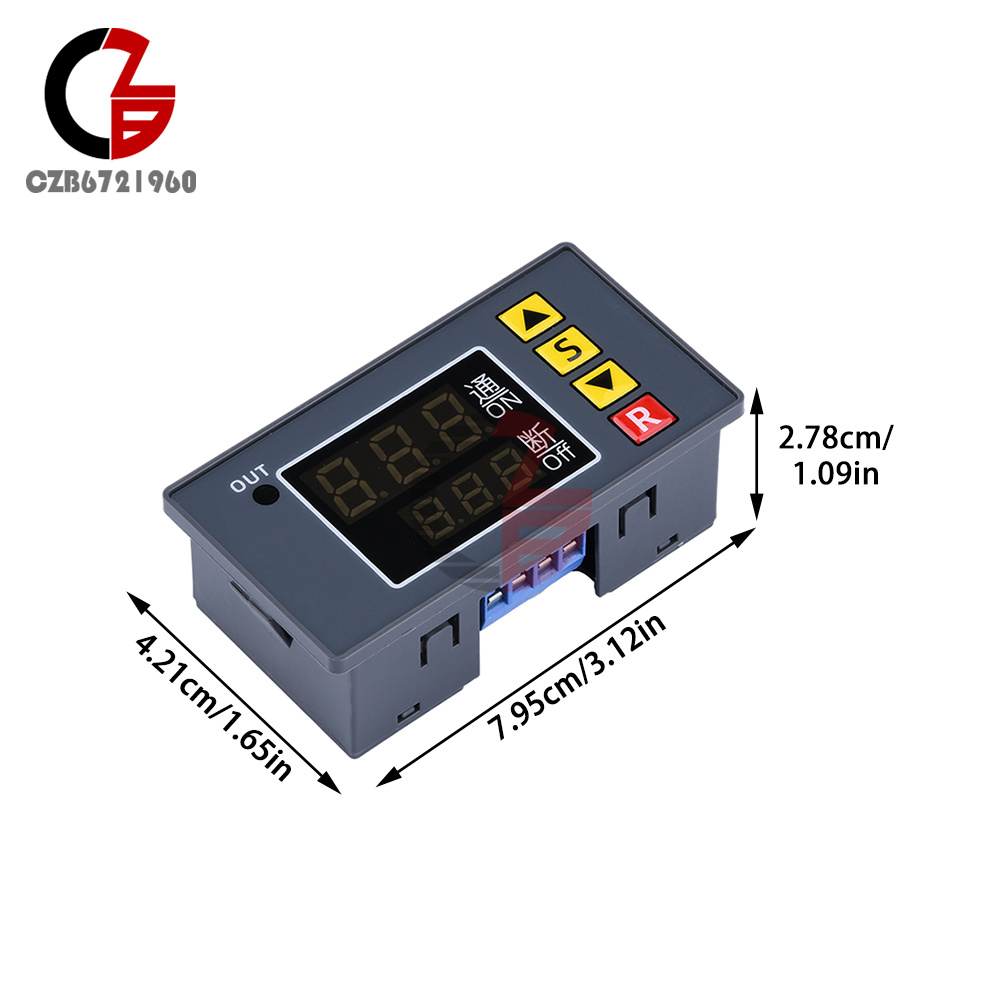

    Product size: 79.5×42.1×27.8mm
    Mounting opening: 77 x 39.3mm

    Shipping List:
    Time delay relay *1
