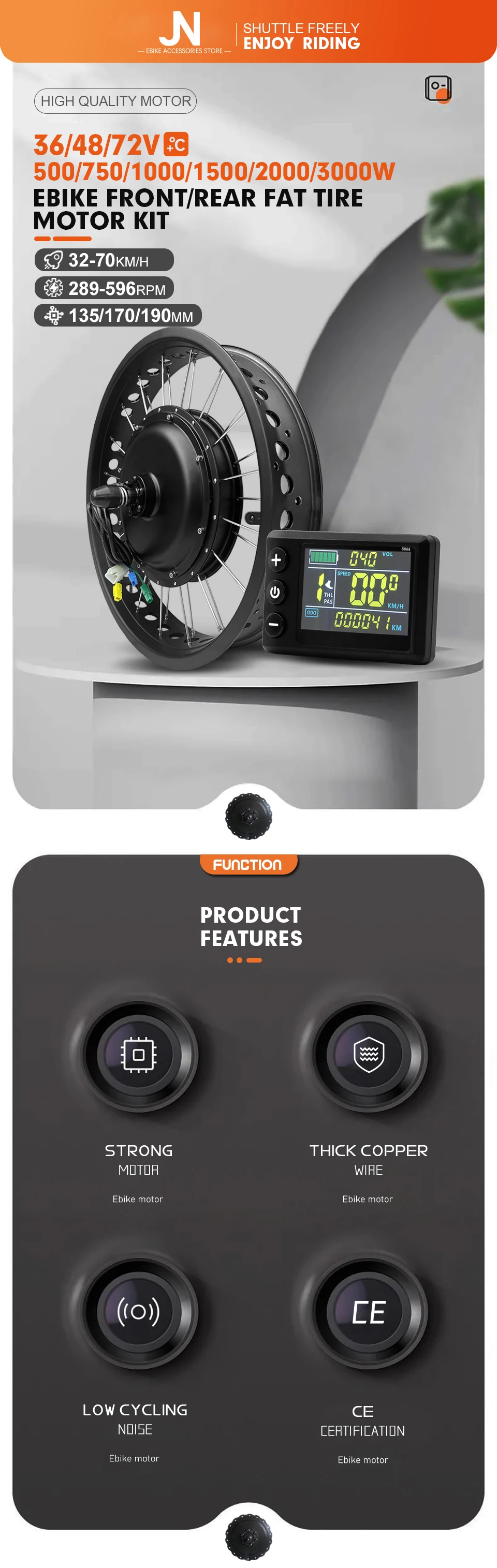

500W-3000W Motor Wheel:
1. Full Speed:
500W about 32-35km/h,
750W about 35-40km/h,
1000W about 40-45km/h,
1500W about 45-50km/h,
2000W about 65-70km/h,
3000W about 55-70km/h,
(different wheel size, road&weather condition and rider's weight will have different speed)

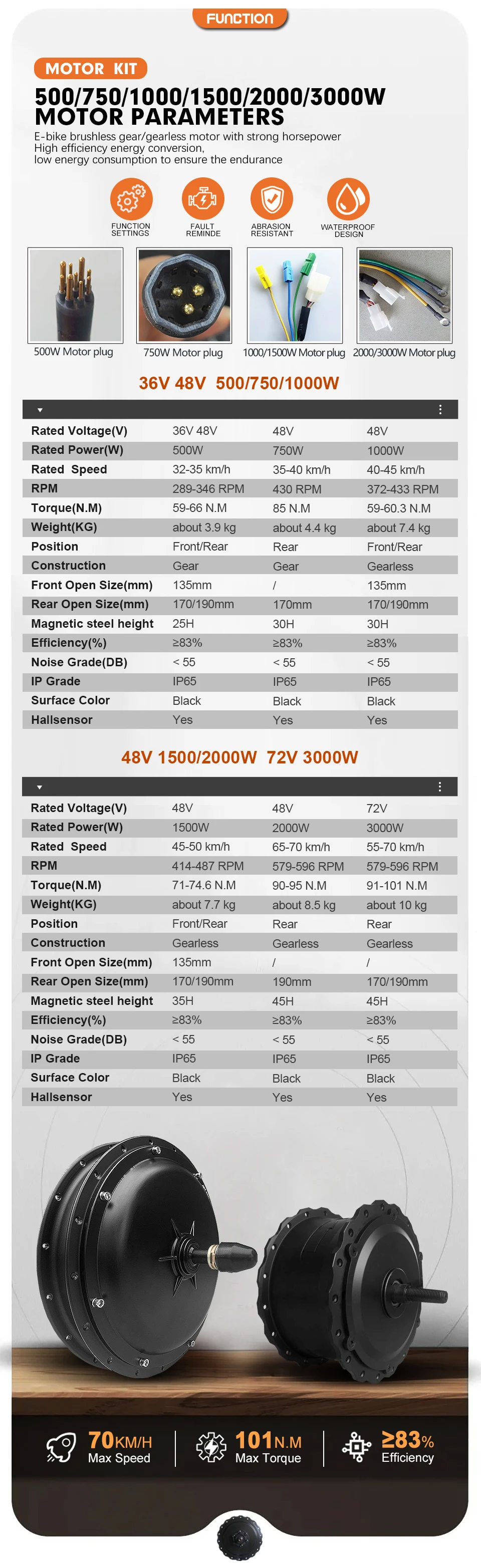

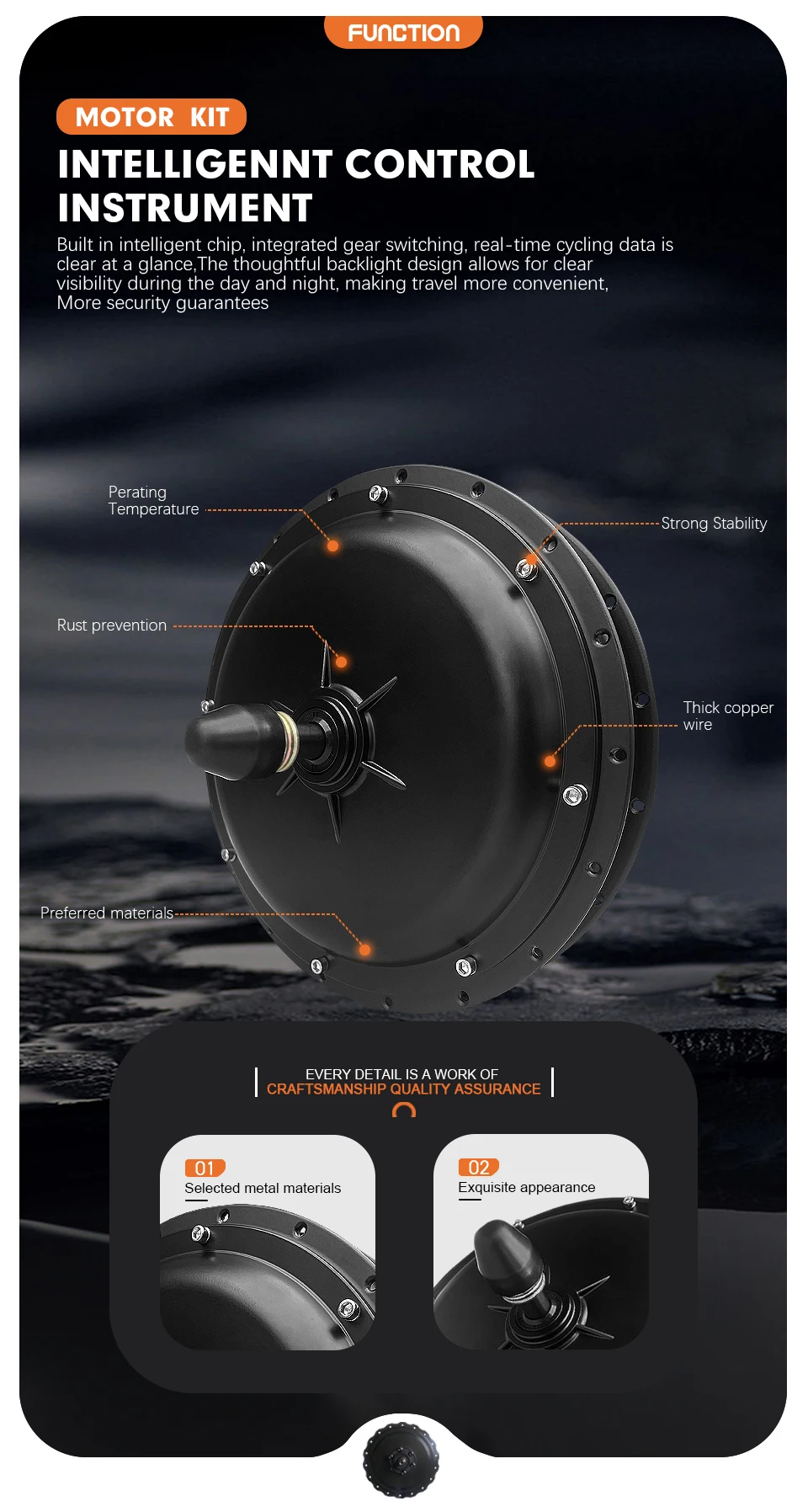

2. Hub Motor:
Brushless gear Hub Motor for 36V 48V 500W 750W
Brushless Non-gear Hub Motor for 48V 72V 1000W-3000W
3. Rim:Double-wall Aluminium Alloy Rim

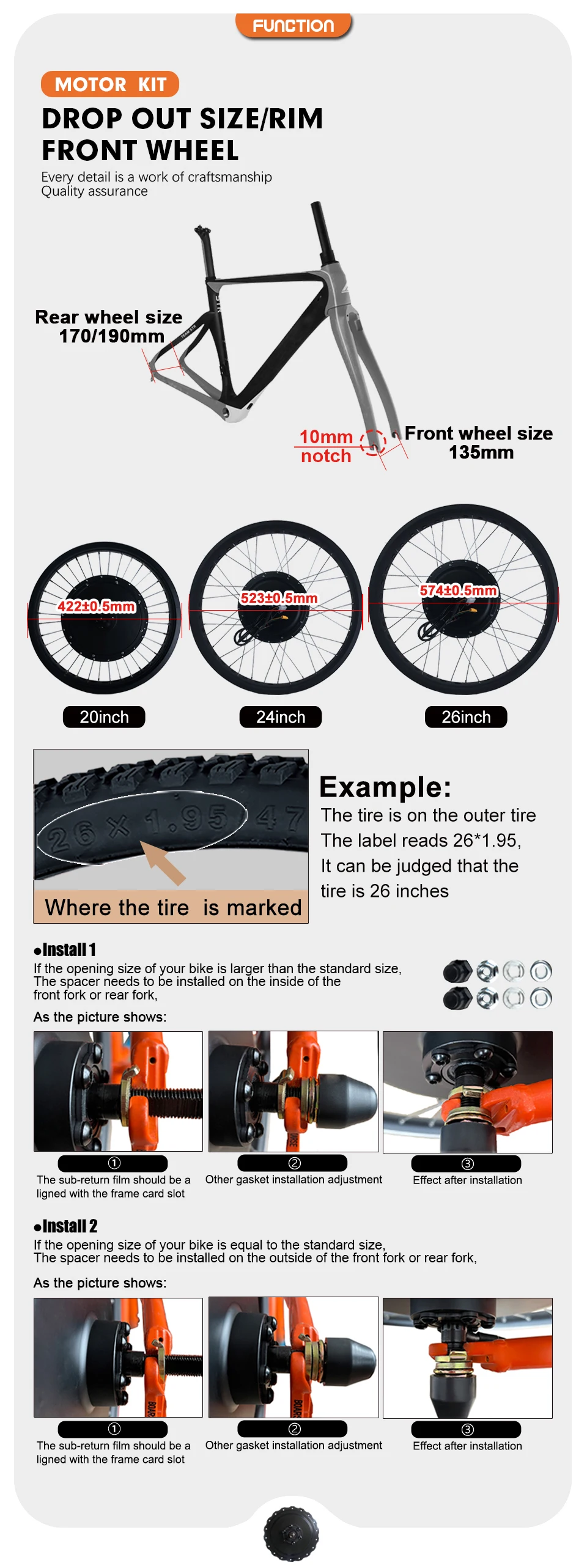

4. Wheel Bottom bracket: Front 135mm or Rear 170/190mm
5. Torque:
59-66N.M with 500W
85N.M with 750W
59-60.3N.M with 1000W
71-74.6N.M with 1500W
90-95N.M with 2000W
91-101N.M with 3000W
6. RPM:
289-346Rpm for 500W
430Rpm for 750W
372-433Rpm for 1000W
414-487Rpm for 1500W
579-596Rpm for 2000W
579-596Rpm for 3000W
7. Magnet height:25-45H
8.Operating Temperature: -20-45℃
9.Installation: Front/Rear
10.Certification: CE
11.Wheel Diameter (Inch): 20/24/26inch---Optional

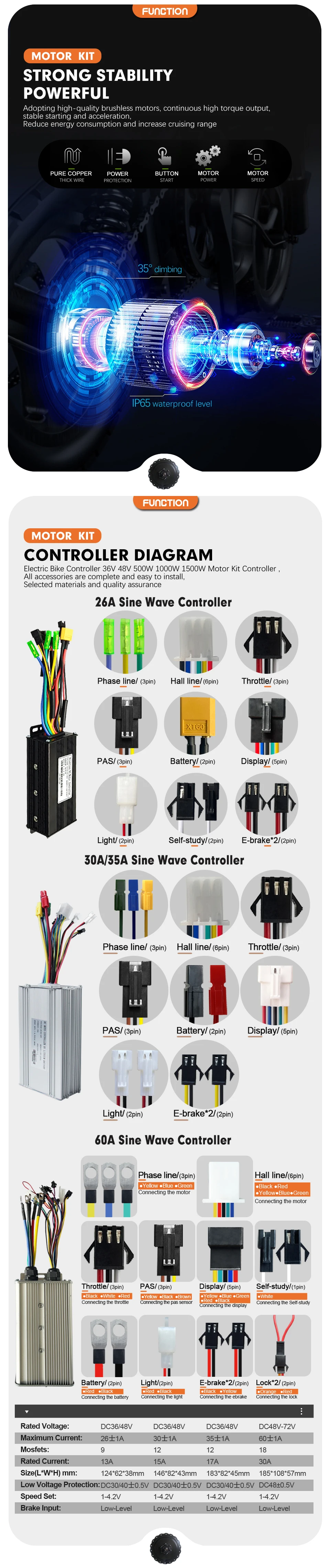

JN Controller
JN 26A
●Dimension :124*62*38mm
●Maximum current :26±1A
●Rated current :13A
JN 30A
●Dimension :146*62*38mm
●Maximum current :30±1A
●Rated current :15A
JN 35A
●Dimension :183*82*45mm
●Maximum current :35±1A
●Rated current :17A
JN 60A
●Dimension :185*108*57mm
●Maximum current :60±1A
●Rated current :30A

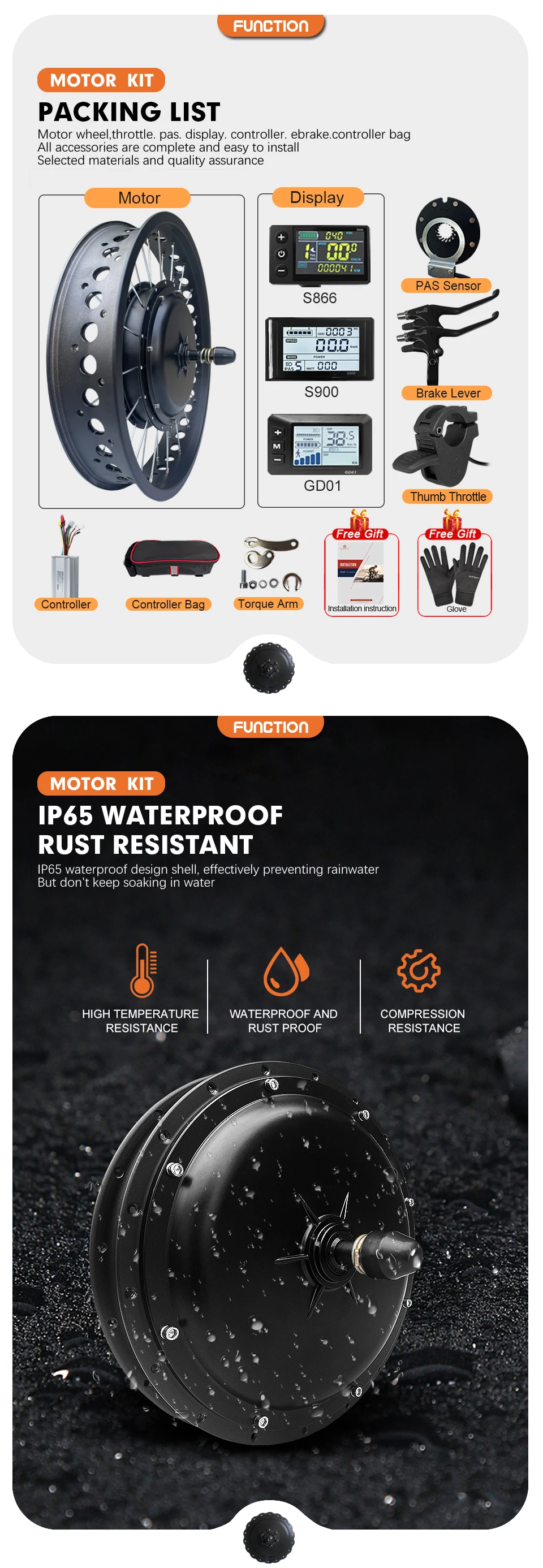

Packing List
Noted:Conversion Kit not include Battery, tire, freewheel, disc brake.( If you need a Battery, tire, freewheel, disc brake, Please contact us for an additional fee )
1 * Motor wheel
1 * Controller
1 * Controller Bag
1 pair * Power cut-off Brake lever
1 * Display (Option)
1 * 8 Magnet Pedal Assistant Sensor
1 * Thumb Throttle (default)
