500' 002T51-31131-24 Riser 2 Fiber Multimode (OM2) Zipcord Tight-Buffered Cable
Click Thumbnails to Enlarge
DESCRIPTION

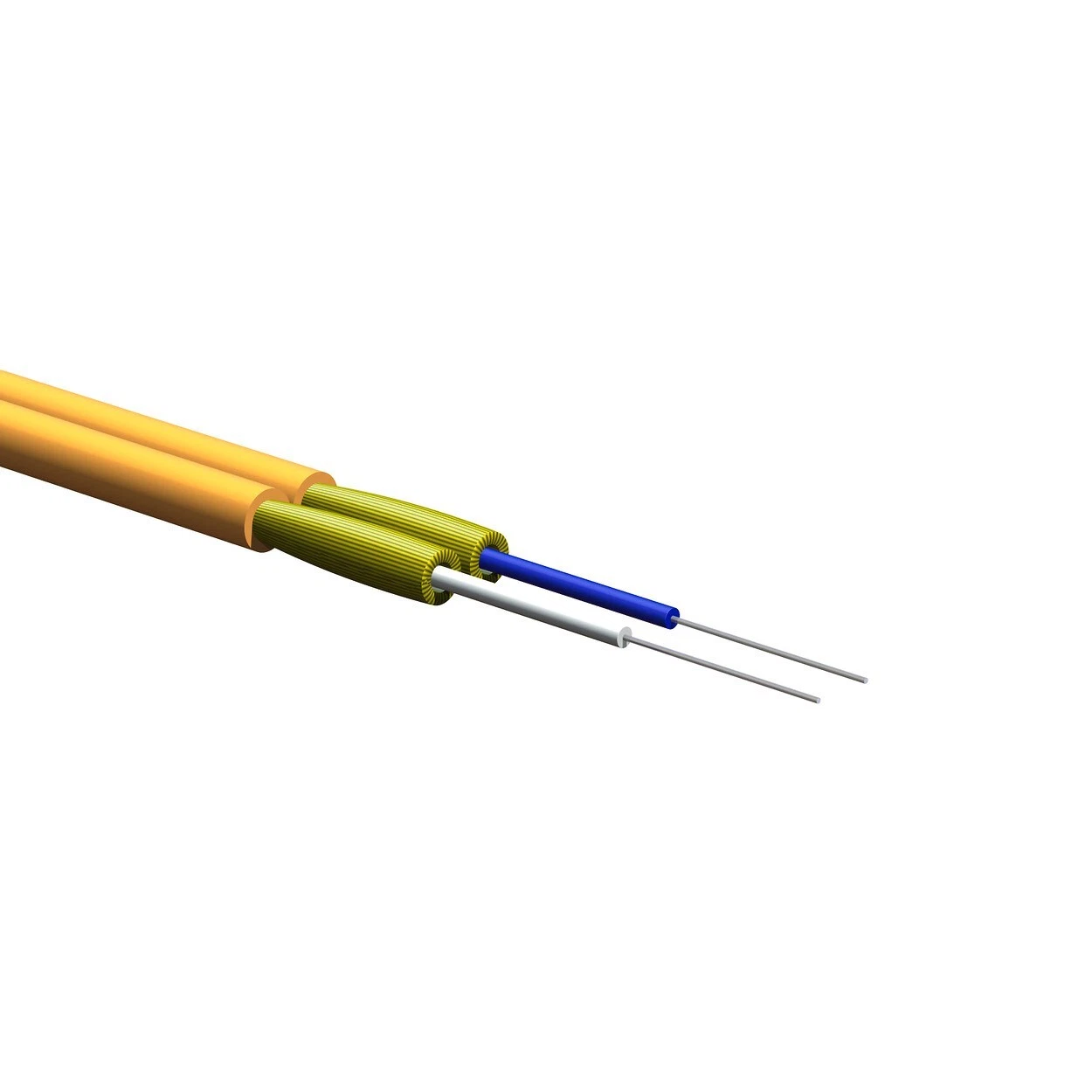

• Corning 002T51-31131-24 zipcord cables are designed for interconnect applications, with two 900-μm buffered fibers surrounded by aramid yarn strength members and a flame-retardant jacket. This cable offers mechanical durability and flame resistance that meet the National Electric Code® (NEC®) Article 770 requirements.
APPLICATION
• General purpose, Horizontal, Vertical Riser
FEATURES AND BENEFITS
• All-dielectric strength member ; Mechanical durability
STANDARDS
• RoHS: Free of hazardous substances according to RoHS 2011/65/EU
• Approvals and Listings: National Electrical Code® (NEC®) OFNR, UL-1666, CSA FT-4
• Design and Test Criteria: ICEA S-83-596
ENVIRONMENTAL CONDITIONS
• Temperature Range, Installation: 0°C to 60°C (32°F to 140°F )
• Temperature Range, Operation: 0°C to 70°C (32°F to 158°F )
• Temperature Range, Storage: -40°C to 70°C (-40°F to 158°F )
CABLE DESIGN
• Fiber Count: 2
• Outer Jacket Color: Orange
• Outer Jacket Material: Flame-Retardant
• Tensile Strength Elements and/or Armoring - Layer 1: Dielectric Strength Members
• Number of Subunits: 2
• Tight Buffer Color: Blue, White
• Flame Rating: Riser (OFNR)
MECHANICAL SPECIFICATIONS
• Maximum Tensile Strength, Short-Term: 220 N (49.46 lbf)
• Minimum Bend Radius Installation: 50 mm (1.97 in)
• Minimum Bend Radius Operation: 25 mm (0.98 in)
• Nominal Outer Diameter: 2.8 mm x 5.65 mm (0.11 in x 0.22 in)
OPTICAL CHARACTERISTICS
• Fiber Code: T
• Fiber Type: Multimode
• Performance Option Code: 31
• Fiber Core Diameter: 50 µm
• Minimum Effective Modal Bandwidth (EMB): 950 MHz*km/ -
• Maximum Attenuation: 2.8 dB/km / 1.0 dB/km
• Minimum Overfilled Launch (OFL) Bandwidth: 700 MHz*km / 500 MHz*km
• Serial 1 Gigabit Ethernet: 750 MHz*km / 600 MHz*km
• Serial 10 Gigabit Ethernet: 150 MHz*km / -
• Wavelengths: 850 nm / 1300 nm
• Fiber Category: OM2
PRODUCT SPECIFICATIONS
| Fiber Count | 2 |
|---|---|
| Cable Type | Tight-Buffered |
| Environment | Indoor |
| Product Type | Interconnect |
| Fiber Category | 50 µm MM (OM2) |
| Flame Rating | Riser (OFNR) |
| Cable Geometry | Round |
| Weight (Lbs/1000ft) | 98 |
