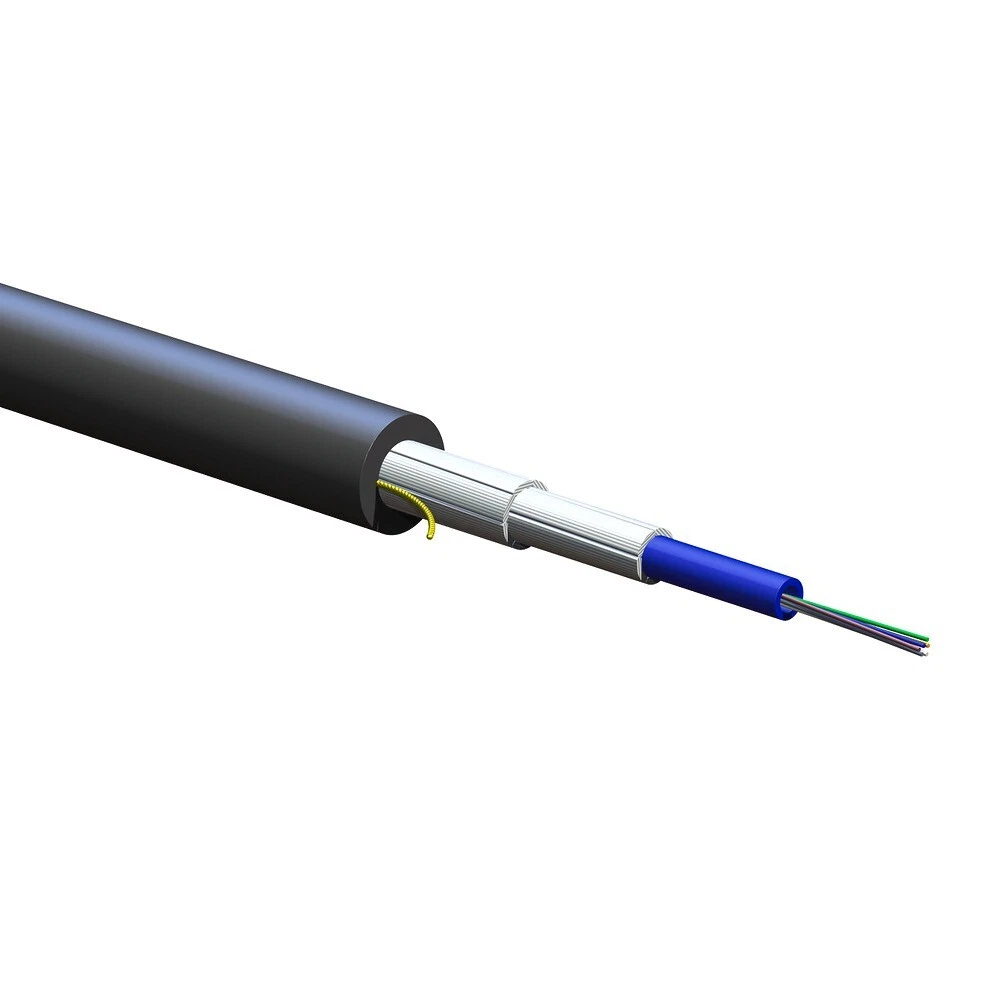

1000' 006KSF-T4130D20 Riser 6 Fiber Multimode (OM1) Loose Tube Gel-Free Cable

Click Thumbnails to Enlarge

DESCRIPTION

• Corning 006KSF-T4130D20 Gel-free cables are flame-retardant, indoor/outdoor, riser-rated cables designed for interbuilding and intrabuilding backbones in aerial, duct and riser applications. With a riser rating, there is no need for a transition splice when entering the building. Available in a compact design, these cables are protected against water penetration by innovative waterblocking tapes and yarns that swell to absorb water. Waterblocking without the use of messy gels provides more efficient and craft-friendly cable preparation, allows easier cable access and simplifies the use of buffer tube fan-out kits. The buffer tubes and fibers in each tube are color coded for quick, easy identification.

APPLICATION

• Aerial, Direct Buried, Duct, General purpose, Horizontal

FEATURES AND BENEFITS

• Riser rating ; No transition splices when entering buildings
• Gel-free waterblocking technology ; Craft-friendly cable preparation
• Color-coded fibers ; Quick and easy identification
• All-dielectric construction ; Requires no grounding or bonding
• UV-resistant, flame-retardant jacket ; Rugged, durable and easy to strip
• Common installations ; Outdoor aerial and duct

STANDARDS

• RoHS: Free of hazardous substances according to RoHS 2011/65/EU
• Approvals and Listings: National Electrical Code® (NEC®) OFNR, CSA OFN FT-4
• Common Installations: Outdoor aerial and duct, indoor vertical riser and general purpose horizontal according to National Electrical Code® (NEC®) Article 770
• Design and Test Criteria: ANSI/ICEA S-104-696

ENVIRONMENTAL CONDITIONS

• Temperature Range, Installation: -10°C to 60°C (14°F to 140°F )
• Temperature Range, Operation: -40°C to 70°C (-40°F to 158°F )
• Temperature Range, Storage: -40°C to 70°C (-40°F to 158°F )

CABLE DESIGN

• Fiber Count: 6
• Number of Ripcords: 1
• Outer Jacket Color: Black
• Outer Jacket Material: Flame-Retardant, UV-Resistant
• Tensile Strength Elements and/or Armoring - Layer 1: Dielectric strength members
• Tensile Strength Elements and/or Armoring - Layer 2: Water-swellable dielectric strength members
• Number of Active Tubes: 1
• Number of Tube Positions: 1
• Fiber Coloring: Blue, Orange, Green, Brown, Slate, White
• Fibers per Tube: 6

MECHANICAL SPECIFICATIONS

• Maximum Tensile Strength, Long-Term: 400 N (89.92 lbf)
• Maximum Tensile Strength, Short-Term: 1350 N (303.49 lbf)
• Minimum Bend Radius Installation: 111 mm (4.37 in)
• Minimum Bend Radius Operation: 37 mm (1.46 in)
• Nominal Outer Diameter: 7.4 mm (0.29 in)

OPTICAL CHARACTERISTICS

• Fiber Code: K
• Fiber Type: Multimode
• Performance Option Code: 30
• Fiber Core Diameter: 62.5 µm
• Minimum Effective Modal Bandwidth (EMB): 220 MHz*km / -
• Maximum Attenuation: 3.4 dB/km / 1.0 dB/km
• Minimum Overfilled Launch (OFL) Bandwidth: 200 MHz*km / 500 MHz*km
• Serial 1 Gigabit Ethernet: 300 MHz*km / 550 MHz*km
• Serial 10 Gigabit Ethernet: 33 MHz*km/ -
• Wavelengths: 850 nm / 1300 nm
• Fiber Category: OM1
