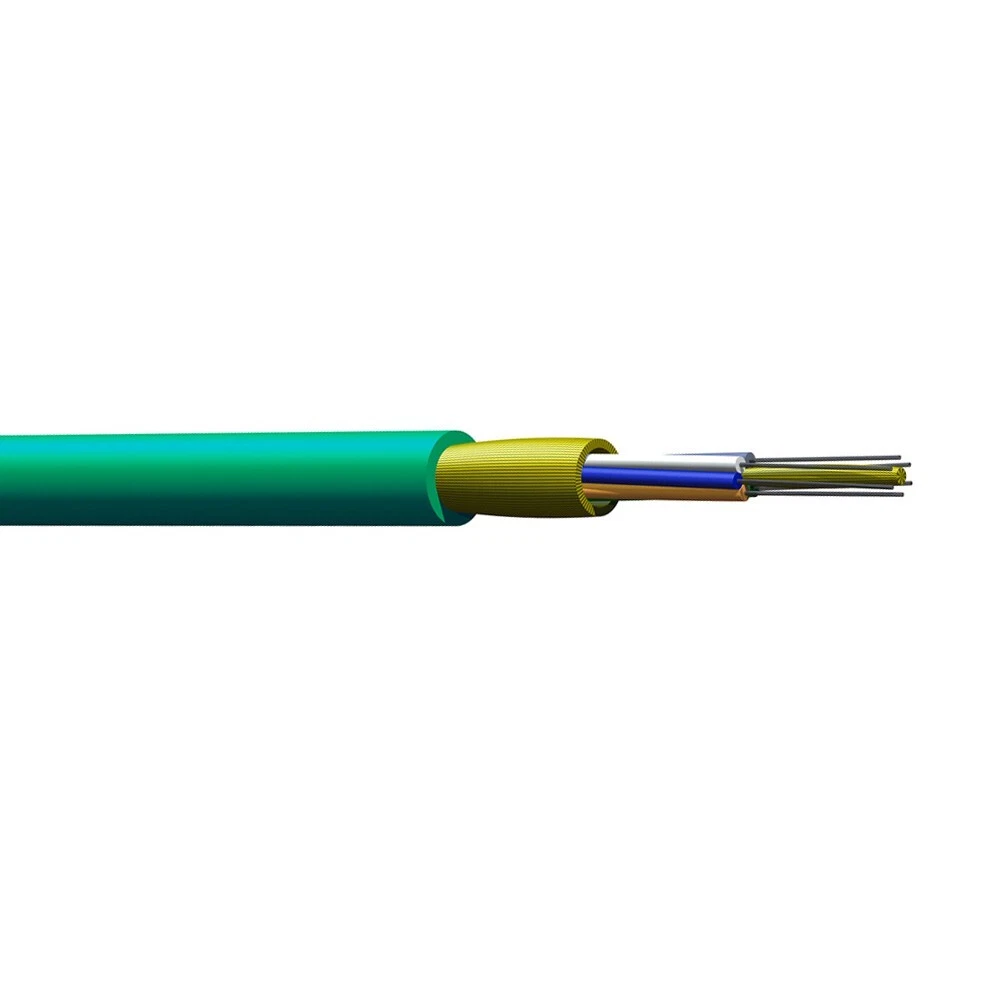

PER FOOT 006T88-31180-29 Plenum 6 Fiber 50 µm Multimode (OM3) Tight-Buffered Cable

Click Thumbnails to Enlarge

DESCRIPTION

• Corning 006T88-31180-29 plenum cables are designed for use in plenum, riser and general purpose environments for intrabuilding backbone and horizontal installations. These multifiber cables use 900 μm buffered fibers to allow easy, consistent stripping and to facilitate termination. The fibers are surrounded by dielectric strength members and protected by a flame-retardant outer jacket. The all-dielectric cable construction requires no grounding or bonding. MIC plenum cables are ideal for routing inside buildings, within plenum areas and riser shafts, to the telecommunications rooms and workstations. The MIC plenum cables meet the application requirements of the National Electrical Code® (NEC®) Article 770 and are OFNP and FT-6 listed.

APPLICATION

• General purpose, Horizontal, Plenum, Vertical Riser

FEATURES AND BENEFITS

• 900 µm buffered fibers (Easy, consistent stripping)
• All-dielectric construction (Requires no grounding or bonding)
• Flame-retardant jacket (Rugged and durable)

STANDARDS

• RoHS: Free of hazardous substances according to RoHS 2011/65/EU
• Approvals and Listings: National Electrical Code® (NEC®) OFCP, CSA FT-6
• Design and Test Criteria: ICEA S-83-596

ENVIRONMENTAL CONDITIONS

• Temperature Range, Installation: 0°C to 60°C (32°F to 140°F)
• Temperature Range, Operation: 0°C to 70°C (32°F to 158°F )
• Temperature Range, Storage: -40°C to 70°C (-40°F to 158°F )

CABLE DESIGN

• Central Element: Yarn
• Fiber Count: 6
• Outer Jacket Color: Aqua
• Outer Jacket Material: Flame-retardant
• Tensile Strength Elements and/or Armoring - Layer 1: Dielectric strength members
• Tight Buffer Color: Blue, Orange, Green, Brown, Slate, White
• Flame Rating: Plenum (OFNP)

MECHANICAL SPECIFICATIONS

• Maximum Tensile Strength, Long-Term, ≤12F: 132 N (29.67 lbf)
• Maximum Tensile Strength, Long-Term, >12F: 200 N (44.96 lbf)
• Maximum Tensile Strength, Short-Term, ≤12F: 440 N (98.92 lbf)
• Maximum Tensile Strength, Short-Term, >12F: 660 N (148.37 lbf)
• Minimum Bend Radius Installation: 78 mm (3.07 in)
• Minimum Bend Radius Operation: 52 mm (2.05 in)
• Nominal Outer Diameter: 5.2 mm (0.2 in)

OPTICAL CHARACTERISTICS

• Fiber Code: T
• Fiber Type: Multimode
• Performance Option Code: 80
• Fiber Core Diameter: 50 µm
• Minimum Effective Modal Bandwidth (EMB): 2000 MHz*km / -
• Maximum Attenuation: 2.8 dB/km / 1.0 dB/km
• Minimum Overfilled Launch (OFL) Bandwidth: 1500 MHz*km / 500 MHz*km
• Serial 1 Gigabit Ethernet: 1000 MHz*km / 600 MHz*km
• Serial 10 Gigabit Ethernet: 300 MHz*km / -
• Wavelengths: 850 nm / 1300 nm
• Fiber Category: OM3
