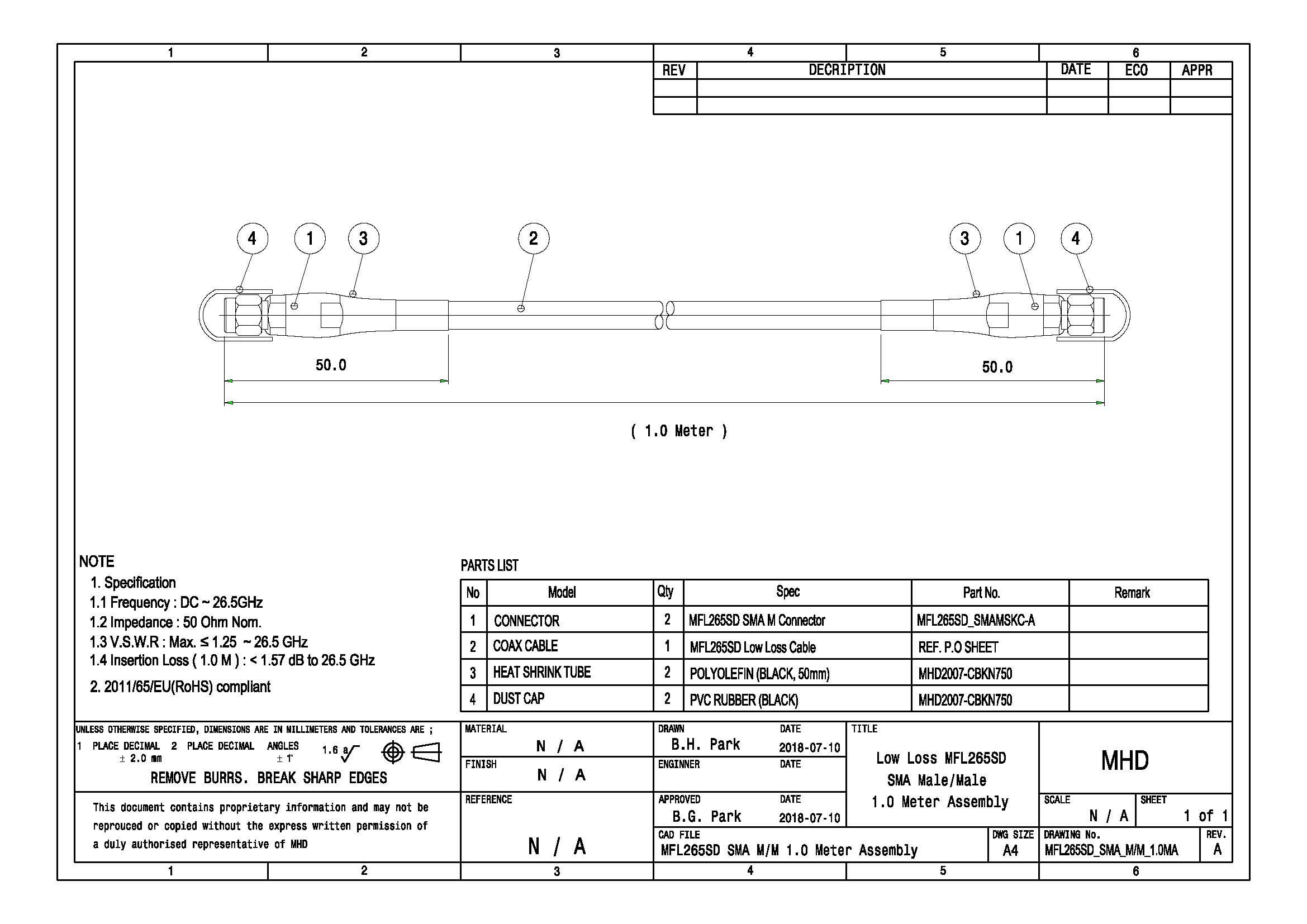

26.5 GHz Low Loss " MFL265SD " Microwave Cable, SMA Male/Male Straight 1.0 Meter Assembly

(  10 Pcs  )

( VSWR : Max.  ≤ 1.25  ~ 26.5 GHz )



For Replacement of Micro-Coax Utiflex UFA210A, Rosenberger RTK 161

 Huber+Suhner ( Sucoflex 104 ), IW Microwave 1801

Semflex HP190

Times Microwave Systems ( SilverLine Type VNA Test Cable for 26.5 GHz ) ...



Compatible with 3.5mm and 2.92mm

( Individual Test Report up to 26.5 GHz will be included with each assembly. )

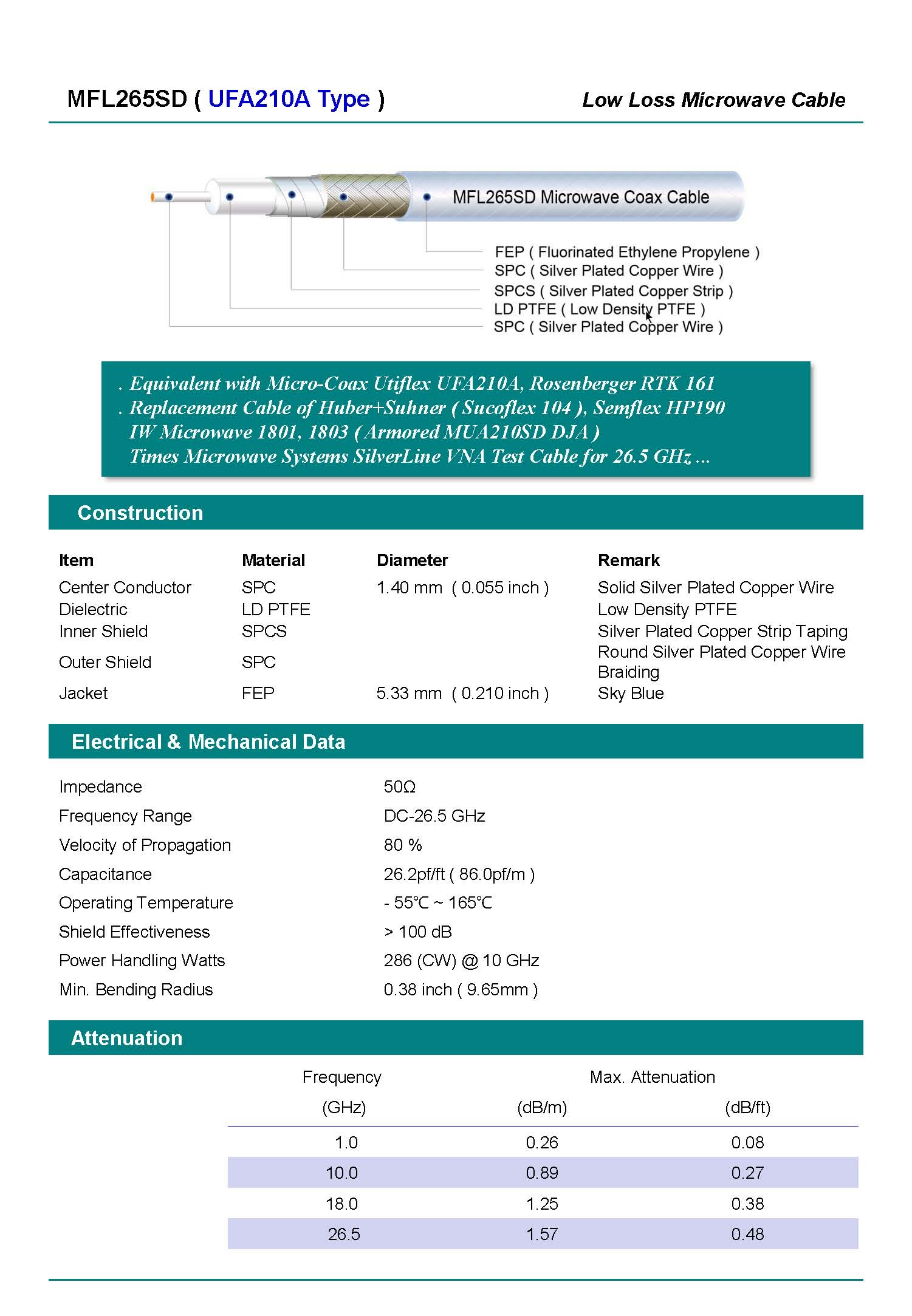

Composition of MFL265SD Microwave Cable



Class of Cable

LD PTFE Dielectric Coaxial Cable

Cable Part Name

MFL265SD

Flex Ability

Flexible

Impedance

50 Ohm

Center Conductor Type

Silver Plated Solid Copper Wire

Dielectric Type

MicroPorous PTFE

Velocity of Propagation

80 %

Shield Type and No. of Shield Layer

Silver Plated Copper Strip Taping

& Round Wire Braid Double Shield Layer

Jacket Diameter

5.33 mm ( 0.210 inch )

Jacket Material

FEP

Max. Frequency

26.5 GHz

Operating Temperature

- 55℃ ~  165℃

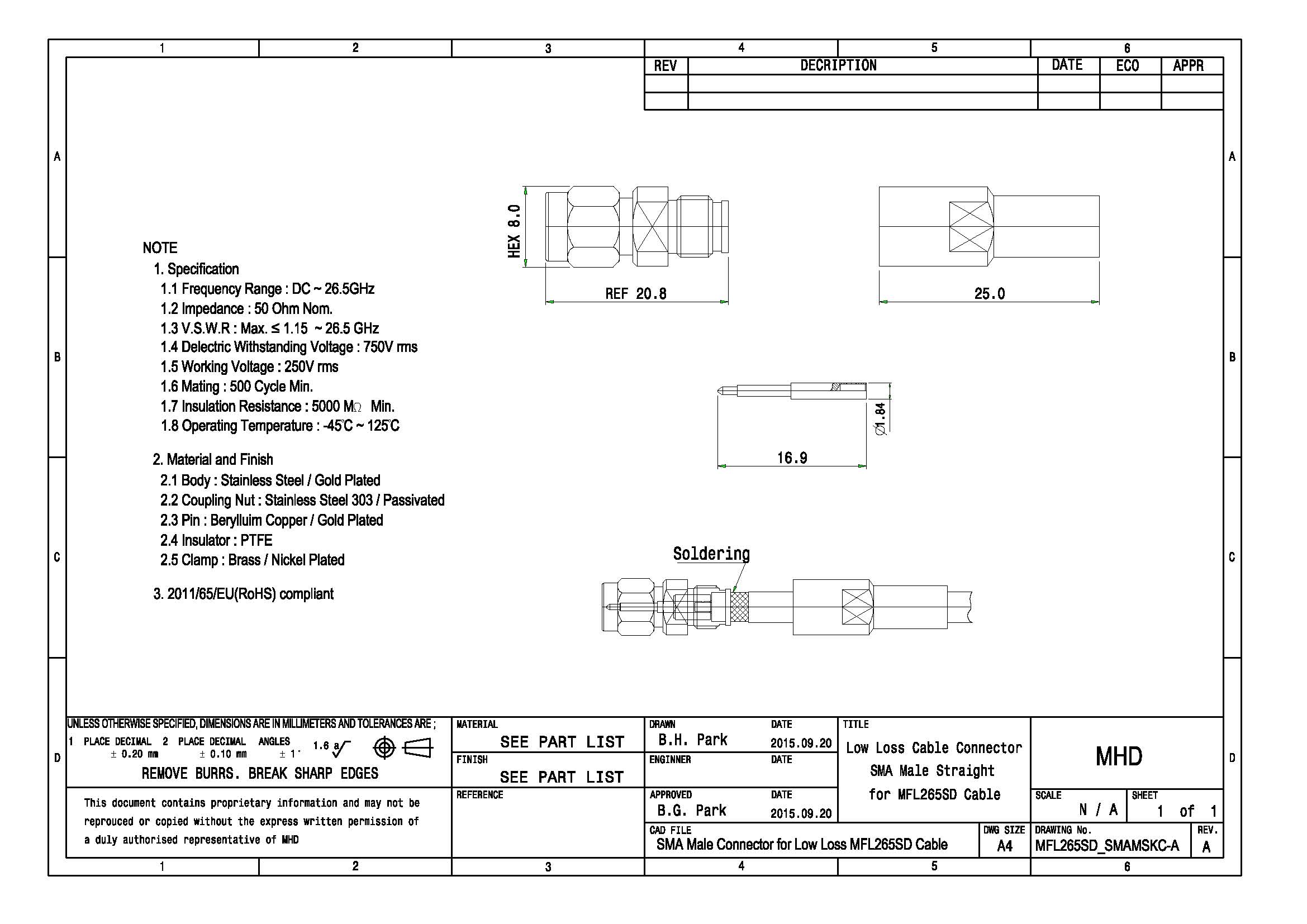

 Composition of SMA Connector



Frequency

DC ~ 26.5 GHz

Impedance

50 Ohm

V.S.W.R

Max. ~ 26.5 GHz  ≤ 1.15

Impedance

50 Ohm

Body

Stainless Steel / Gold Plating

Center Contact

Beryllium Copper / Gold Plating

Insulator

PTFE

Clamp

Brass / Nickel Plated
