1000' 002T58-31380-B2 Plenum 2 Fiber Multimode (OM3) Zipcord Tight-Buffered Cable
Click Thumbnails to Enlarge
DESCRIPTION

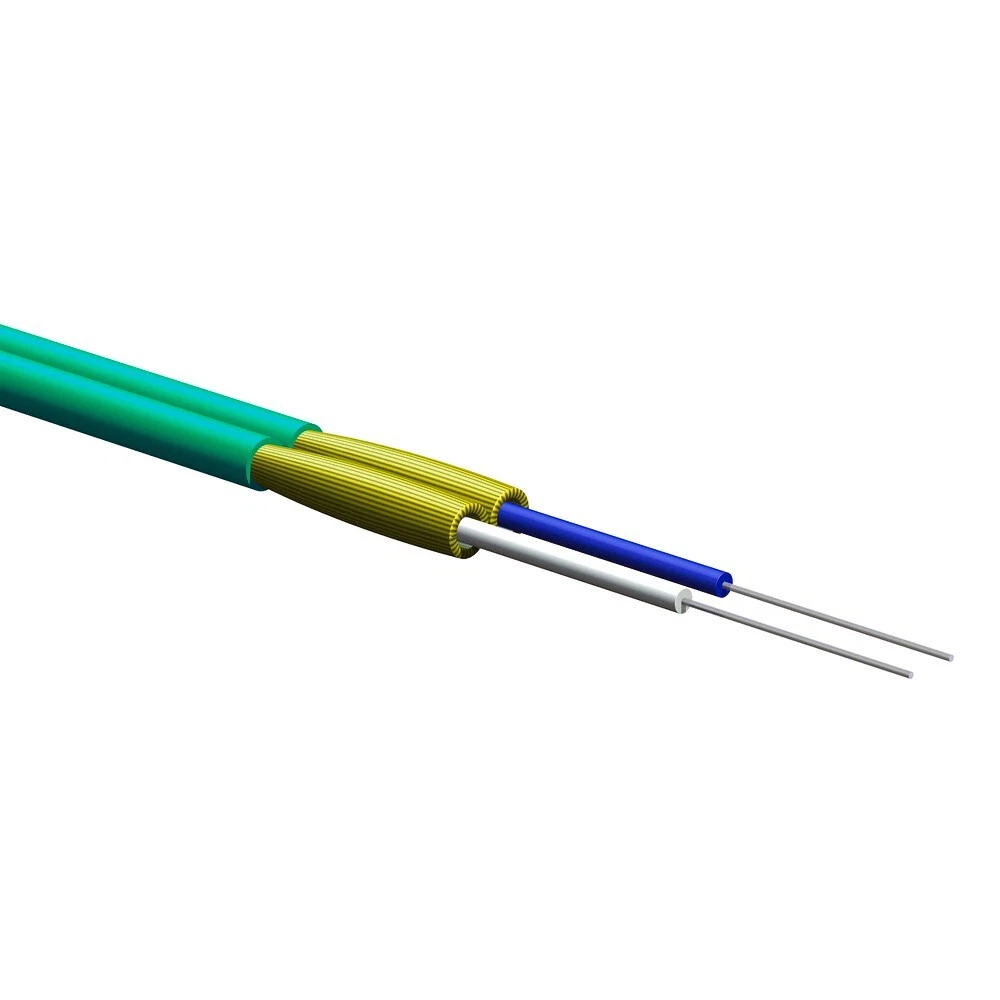

• Corning 002T58-31380-B2 fiber optic cable in all inside plant applications, such as collocation data centers and wireless projects. This packaging solution provides features that enable our customers greater efficiencies than before. Corning zipcord cables are designed for interconnect applications. Two 900 μm buffered fibers are surrounded by aramid yarn strength members and a flame-retardant jacket. This cable design offers mechanical durability and flame resistance that meet the requirements of the National Electrical Code® (NEC®) Article 770.
APPLICATION
• General purpose, Horizontal, Plenum, Vertical Riser
FEATURES AND BENEFITS
• “Countdown” print indicates available cable remaining on the reel providing easier inventory management
• Stackable boxes make storage more manageable
• Smaller reel offerings mean smaller cable lengths than would normally be available
• Cable cutting at Corning lowers operating expenses for our distributors and end users
STANDARDS
• RoHS: Free of hazardous substances according to RoHS 2011/65/EU
• Approvals and Listings: National Electrical Code® (NEC®) OFNP, CSA FT-6
• Design and Test Criteria: ICEA S-83-596
ENVIRONMENTAL CONDITIONS
• Temperature Range, Operation: 0°C to 70°C (32°F to 158°F )
• Temperature Range, Storage: -40°C to 70°C (-40°F to 158°F )
CABLE DESIGN
• Fiber Count: 2
• Outer Jacket Color: Aqua
• Outer Jacket Material: Flame-retardant
• Tensile Strength Elements and/or Armoring - Layer 1: Dielectric strength members
• Number of Subunits: 2
• Tight Buffer Color: Blue, White
• Flame Rating: Plenum (OFNP)
MECHANICAL SPECIFICATIONS
• Maximum Tensile Strength, Short-Term: 220 N (49.46 lbf)
• Minimum Bend Radius Installation: 50 mm (1.97 in)
• Minimum Bend Radius Operation: 10 mm (0.39 in)
OPTICAL CHARACTERISTICS
• Fiber Code: T
• Fiber Type: Multimode
• Performance Option Code: 80
• Fiber Core Diameter: 50 µm
• Minimum Effective Modal Bandwidth (EMB): 2000 MHz*km / -
• Maximum Attenuation: 2.8 dB/km / 1.0 dB/km
• Minimum Overfilled Launch (OFL) Bandwidth: 1500 MHz*km / 500 MHz*km
• Serial 1 Gigabit Ethernet: 1000 MHz*km / 600 MHz*km
• Serial 10 Gigabit Ethernet: 300 MHz*km / -
• Wavelengths: 850 nm / 1300 nm
• Fiber Category: OM3
PRODUCT SPECIFICATIONS
| Fiber Count | 2 |
|---|---|
| Cable Type | Tight-Buffered |
| Cable Geometry | Round |
| Environment | Indoor |
| Product Type | Interconnect |
| Fiber Category | 50 µm MM (OM3) |
| Flame Rating | Plenum (OFNP) |
| Weight (Lbs/1000ft) | 50 |
