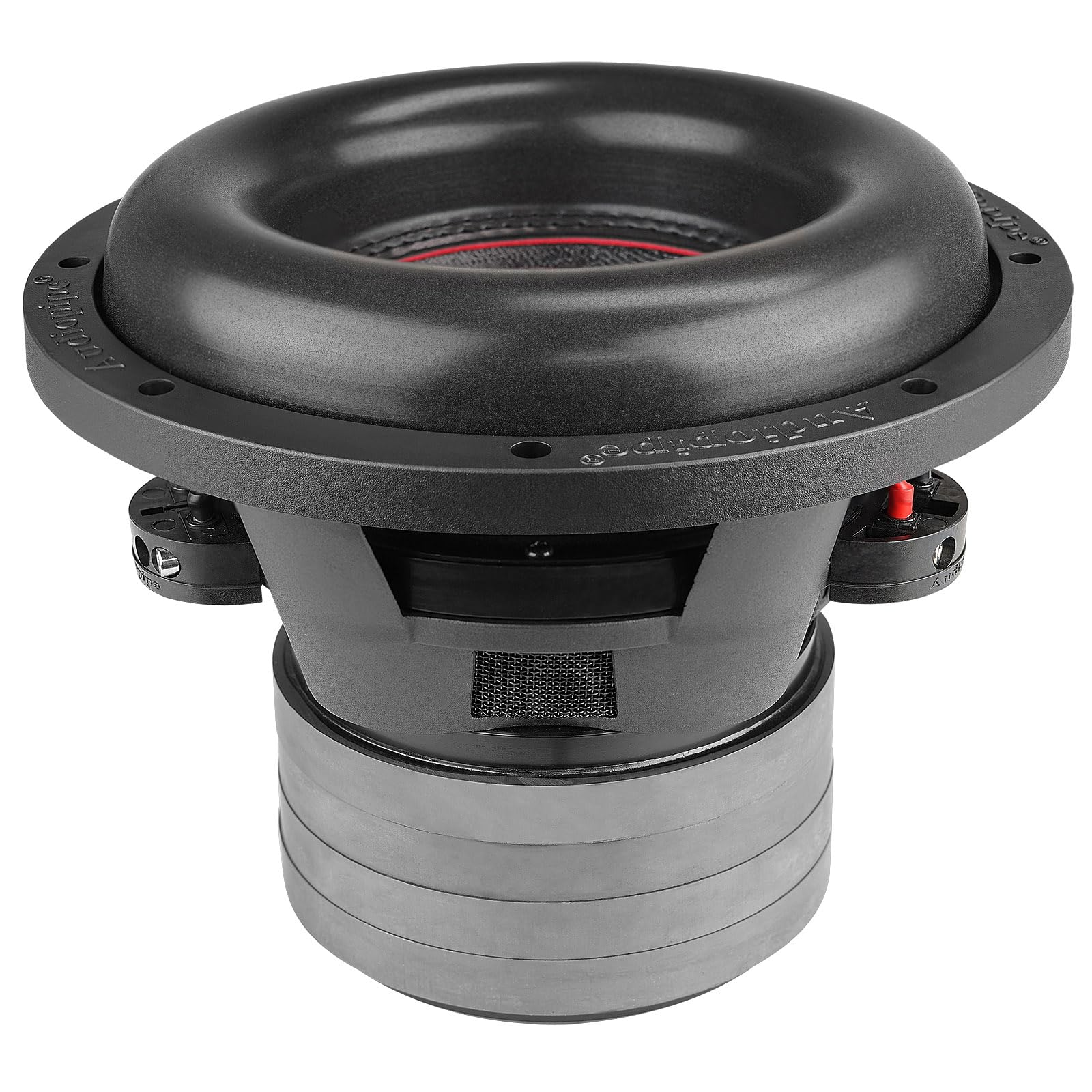

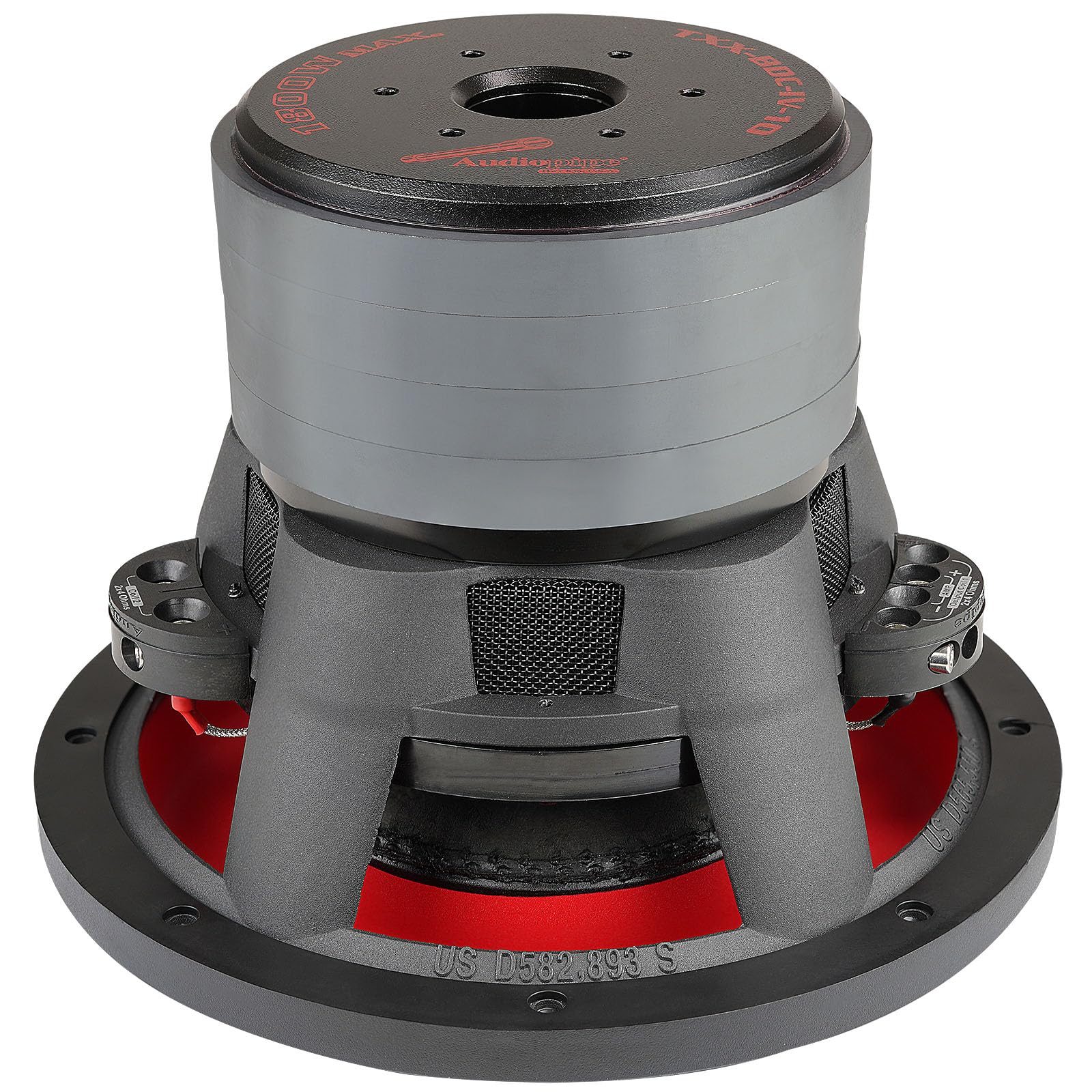

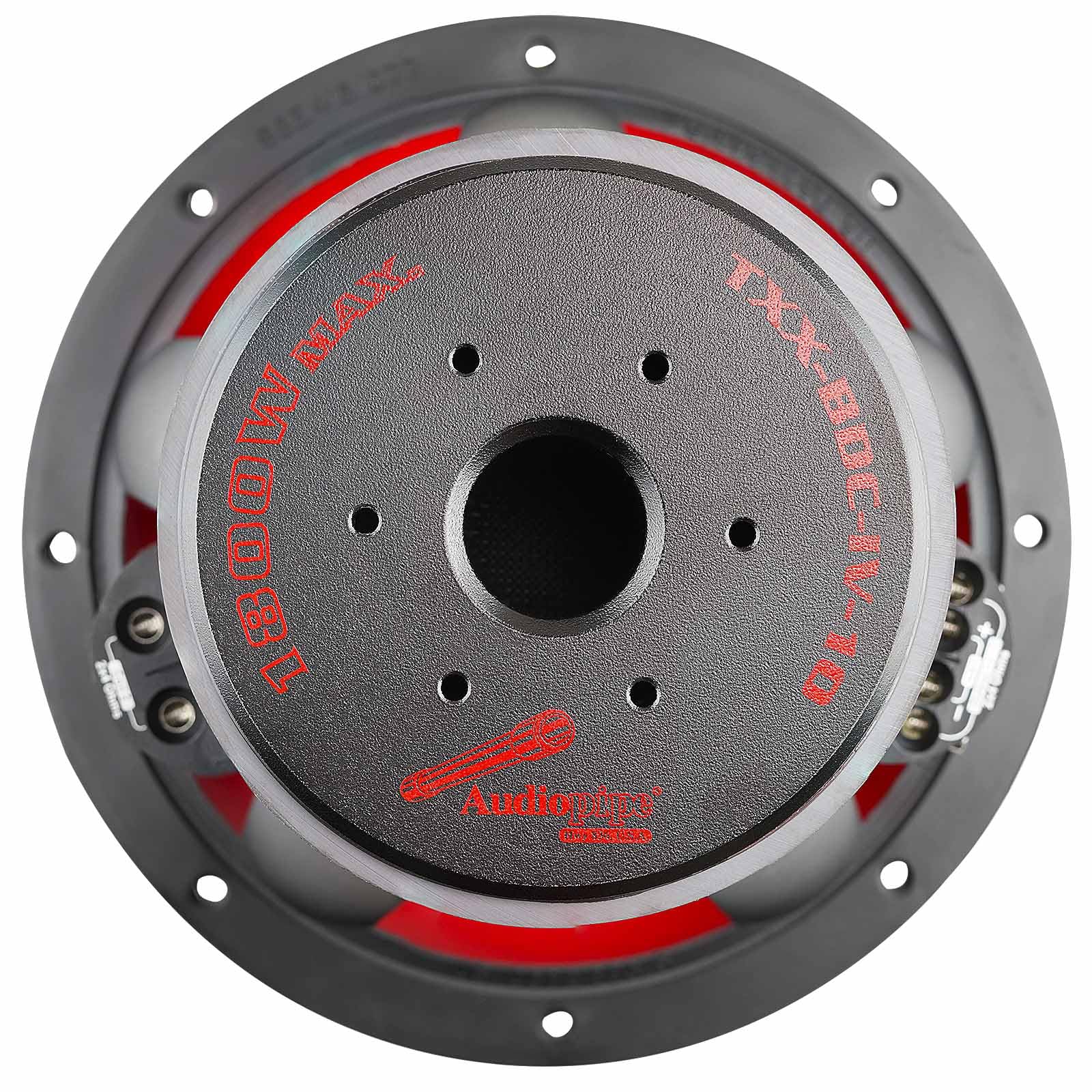

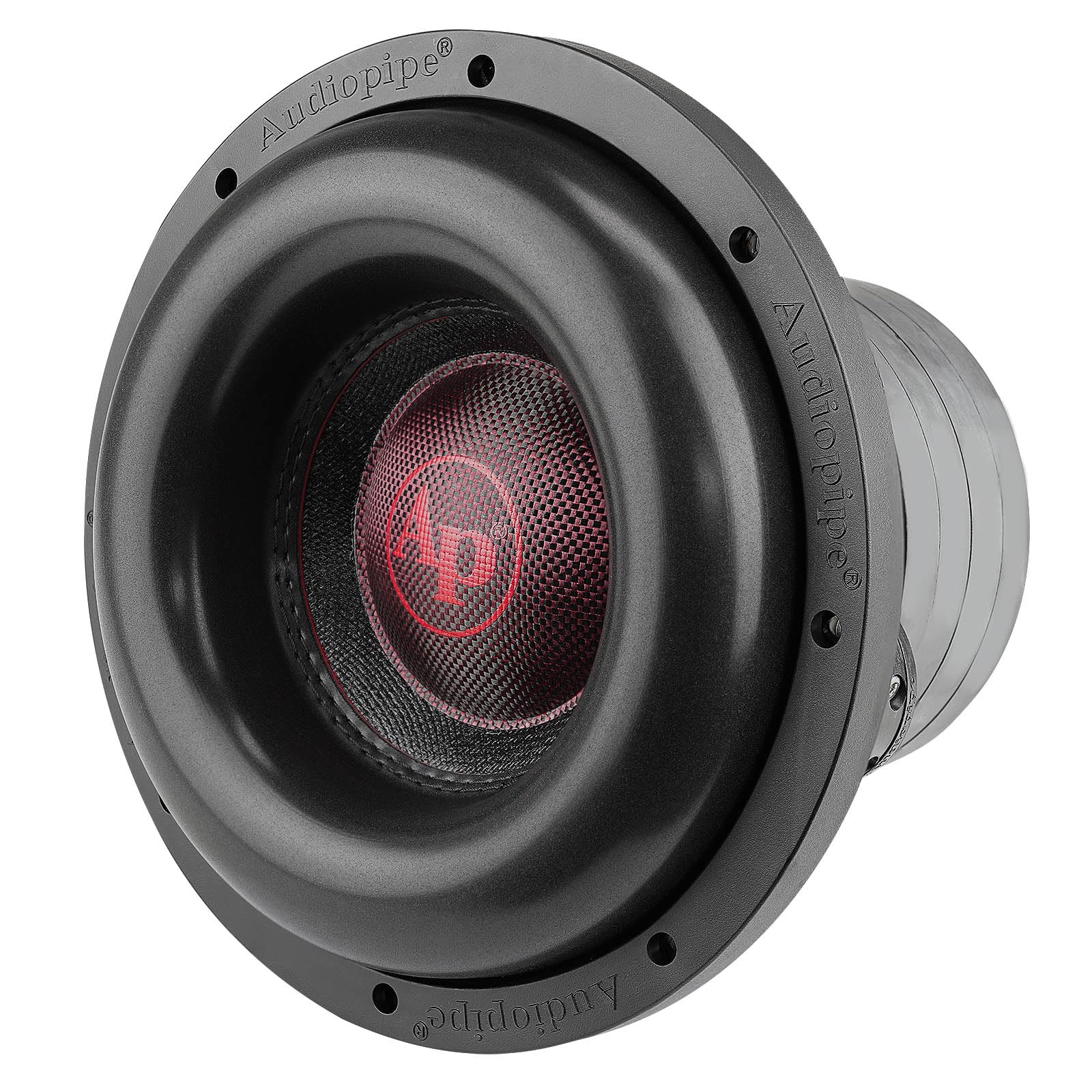

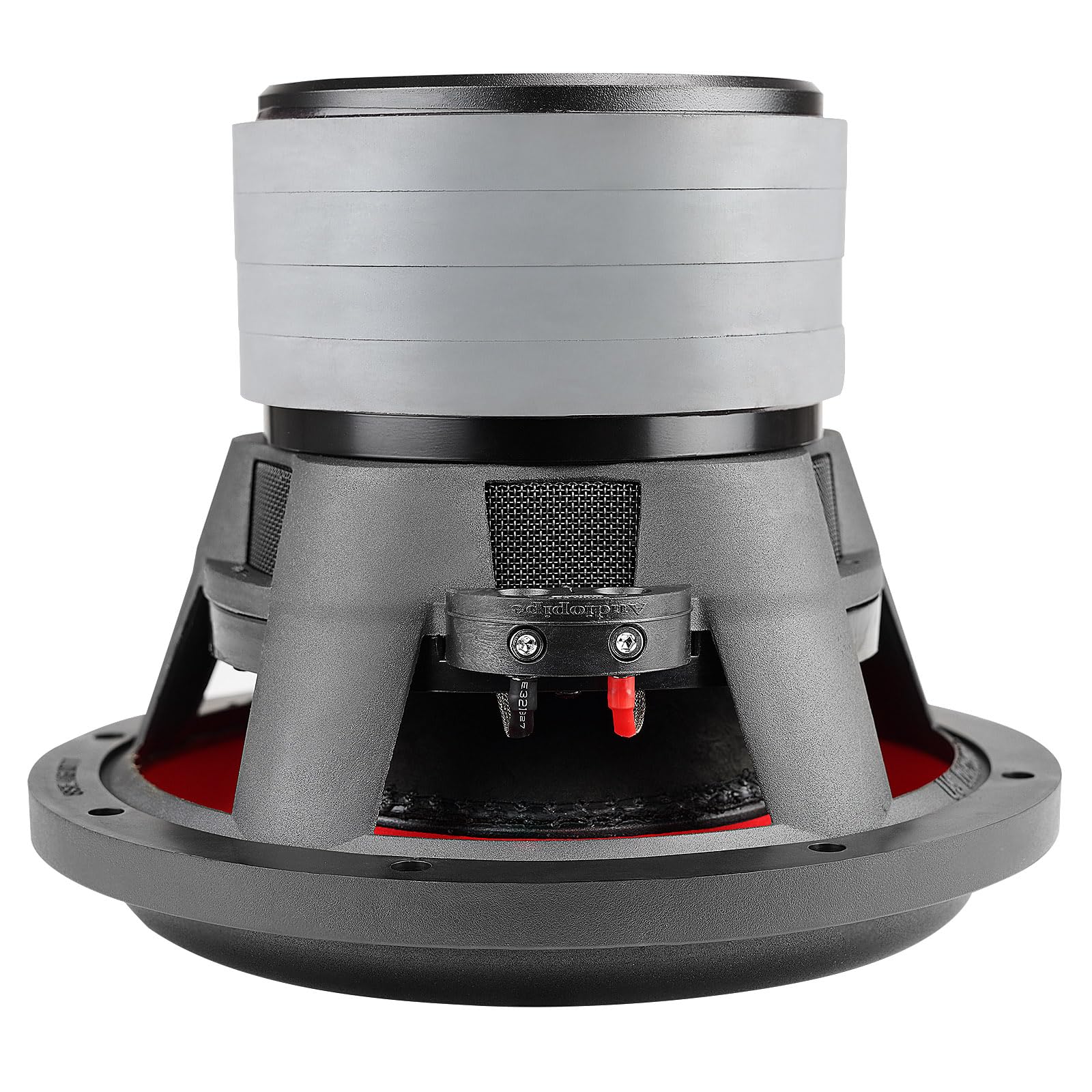

10" 900W RMS Dual 4-Ohm Quad Stack Composite Cone Subwoofer Audiopipe

Audiopipe TXX-BDC 10" 900W RMS 2x4-Ohm DVC Quad Stack Composite Cone Subwoofer

This Listing Includes:

• (1) TXX-BDC-IV-10 Subwoofer

Description:

Discover the Audiopipe TXX-BDC 10" 900W RMS 2x4-Ohm DVC Quad Stack Composite Cone Subwoofer, engineered to deliver thunderous bass and exceptional performance. Ideal for enthusiasts and competitors seeking powerful sound, this subwoofer boasts 900 watts RMS, ensuring deep, impactful bass that resonates through any space. Its quad stack composite cone design enhances rigidity and reduces distortion, providing unparalleled clarity across a wide range of frequencies. With dual 4-ohm voice coils, this subwoofer offers versatile wiring configurations for customized sound setups. Built with durability in mind and featuring a robust construction, including a sturdy basket and high-quality materials, the TXX-BDC 10" excels in both reliability and sound quality. Elevate your audio experience with the Audiopipe TXX-BDC 10", where cutting-edge technology meets superior performance to transform your car audio system into a powerhouse of sound.

Features:

• Massive Power Handling – 900W RMS / 1800W Max for extreme performance


• Deep Frequency Response – Plays low from 30Hz to 1,300Hz


• High-Excursion Motor – 0.65" Xmax and 2" mechanical excursion


• Durable Voice Coil – 2.5" 4-layer high-temp coil for reliability


• Huge Magnet – 170 oz. ferrite magnet for magnetic strength and control


• Optimized for Bass – Ideal for ported and custom enclosures


• Low Fs (38Hz) – Designed to dig deep with clean response


• SPL Rating of 85 dB – Delivers strong output with minimal distortion

Specifications:

• Frequency Response: 30-1200 Hz


• Sensitivity: 85 dB


• 2.5" 4-Layer Dual Voice Coil BASV


• Powdered Black Paint Aluminum Basket


• Mounting Depth: 175 mm (6-7/8")

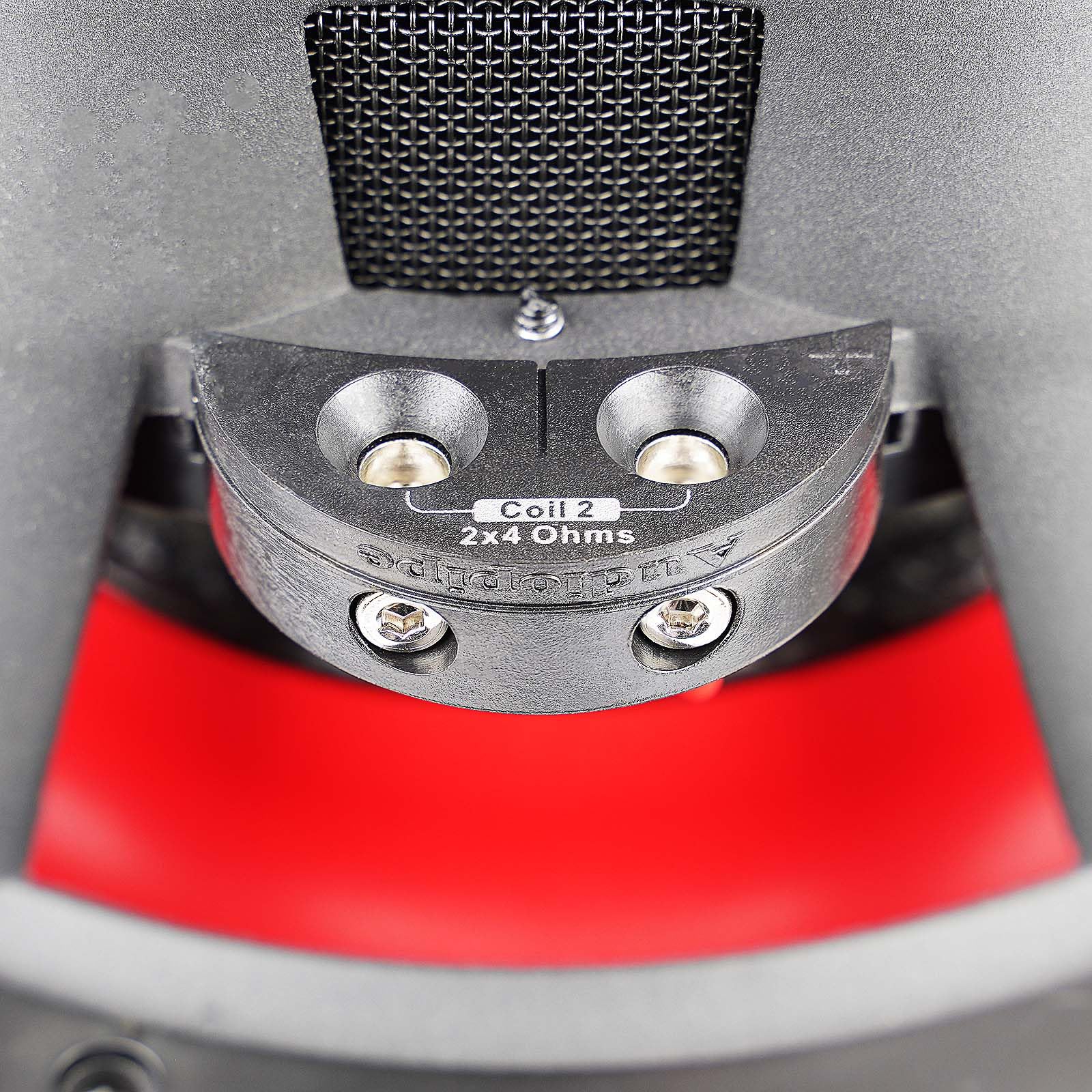

• Impedance: 2x4 Ohms


• 170 Oz Magnet


• Frequency Response: 30–1,300Hz


• Voice Coil Diameter: 2.5" / 65mm


• Voice Coil Height: 3.5" / 89mm


• Voice Coil Layers: 4


• Magnetic Gap Height: 0.47" / 12mm


• Linear Excursion (Xmax), pk-pk: 0.65" / 16.5mm


• Maximum Excursion (Xmech), pk-pk: 2" / 50mm


• Magnet Weight: 170 oz. / 4.8 kg


• Woofer Displacement: 1.7 L / 0.06 cubic ft.


• Net Weight: 26.5 lbs. / 12 kg


• Power Rating (RMS / MAX): 900 / 1800W

Thiele/Small Parameters:

• Fs (Hz): 38


• Re (Ohms): 2x3.6


• Le (mH): 5.1


• Qts: 0.41


• Qes: 0.49


• Qms: 2.0


• Cms (m/N): 0.12


• Vas (L): 14


• Mms (g): 216


• Mmd (g): 202


• No (%): 0.15


• SPL (dB-1W/1M): 85


• BL (T*M): 28


• Sd (cm): 346


• Krm (mOhms): 40.7


• Erm: 0.76


• Kxm (mH): 134


• Exm: 0.68

Dimensions:

• Overall Diameter: - 10.12" / 257 mm


• Cutout Diameter (Baffle): ~9.25" / 235 mm


• Mounting Depth:  - 6.4" / 163 mm


• Overall Depth:  - 7" / 178 mm


• Magnet Diameter: - 7.5" / 190 mm


• Displacement: 1.7 L / 0.06 cubic ft
