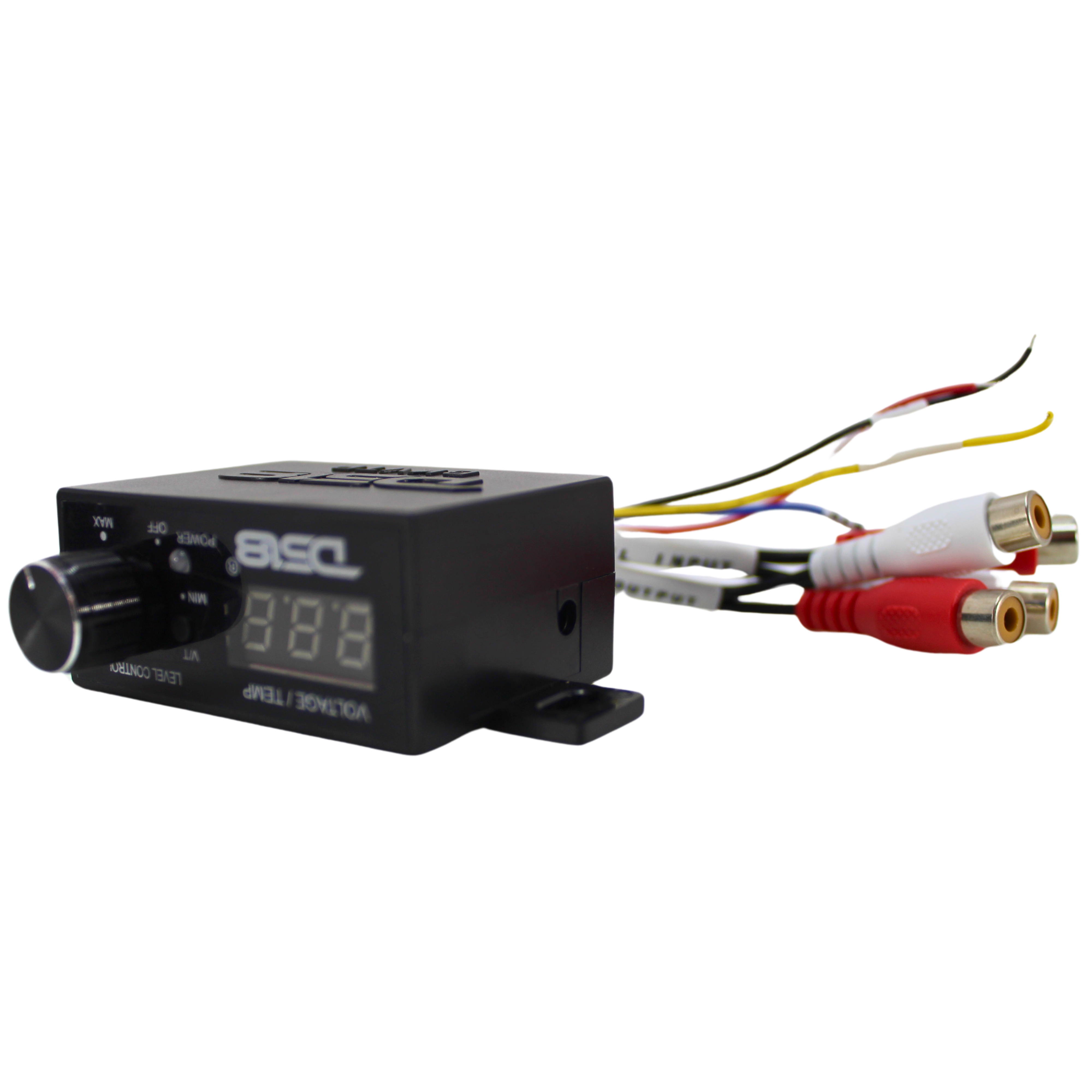

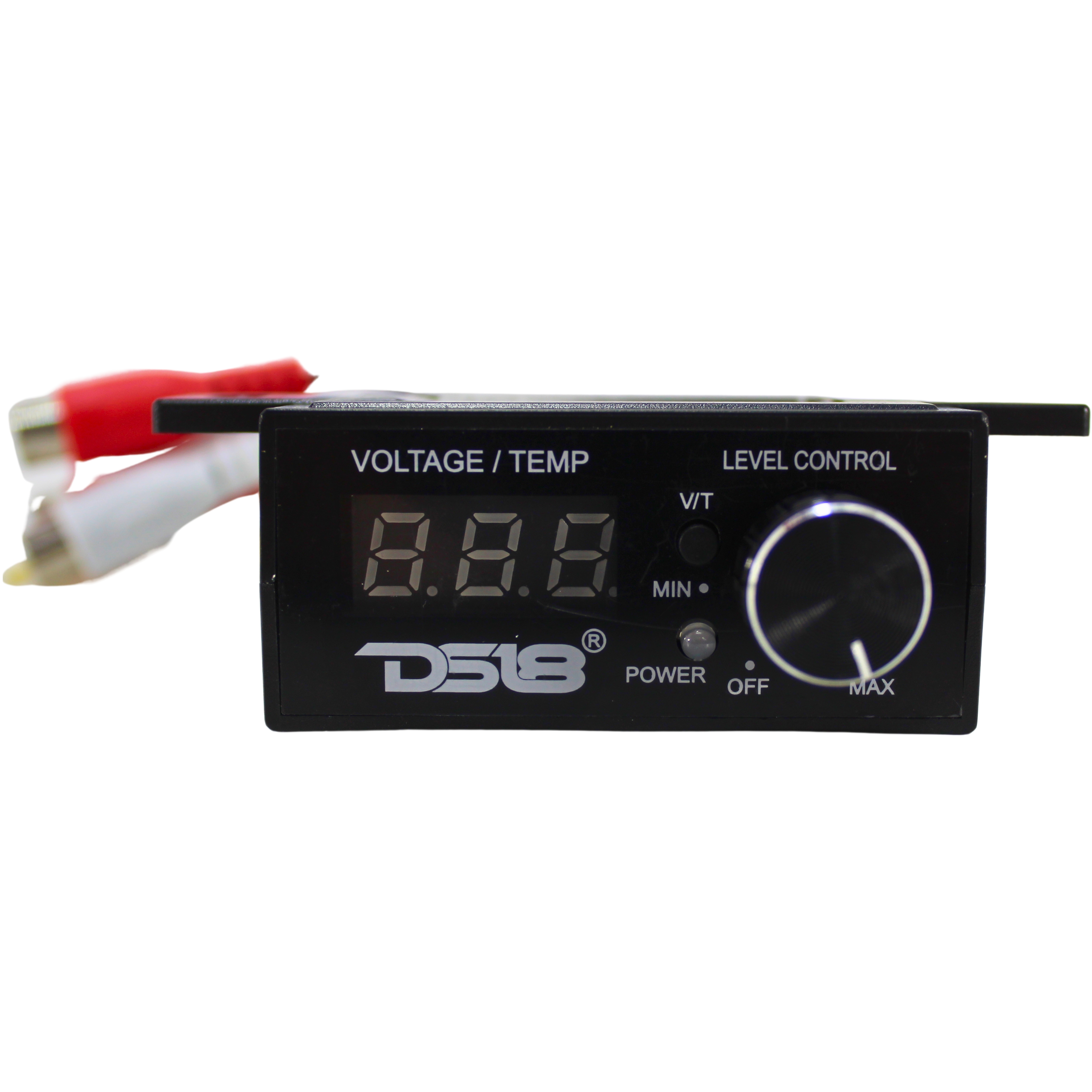

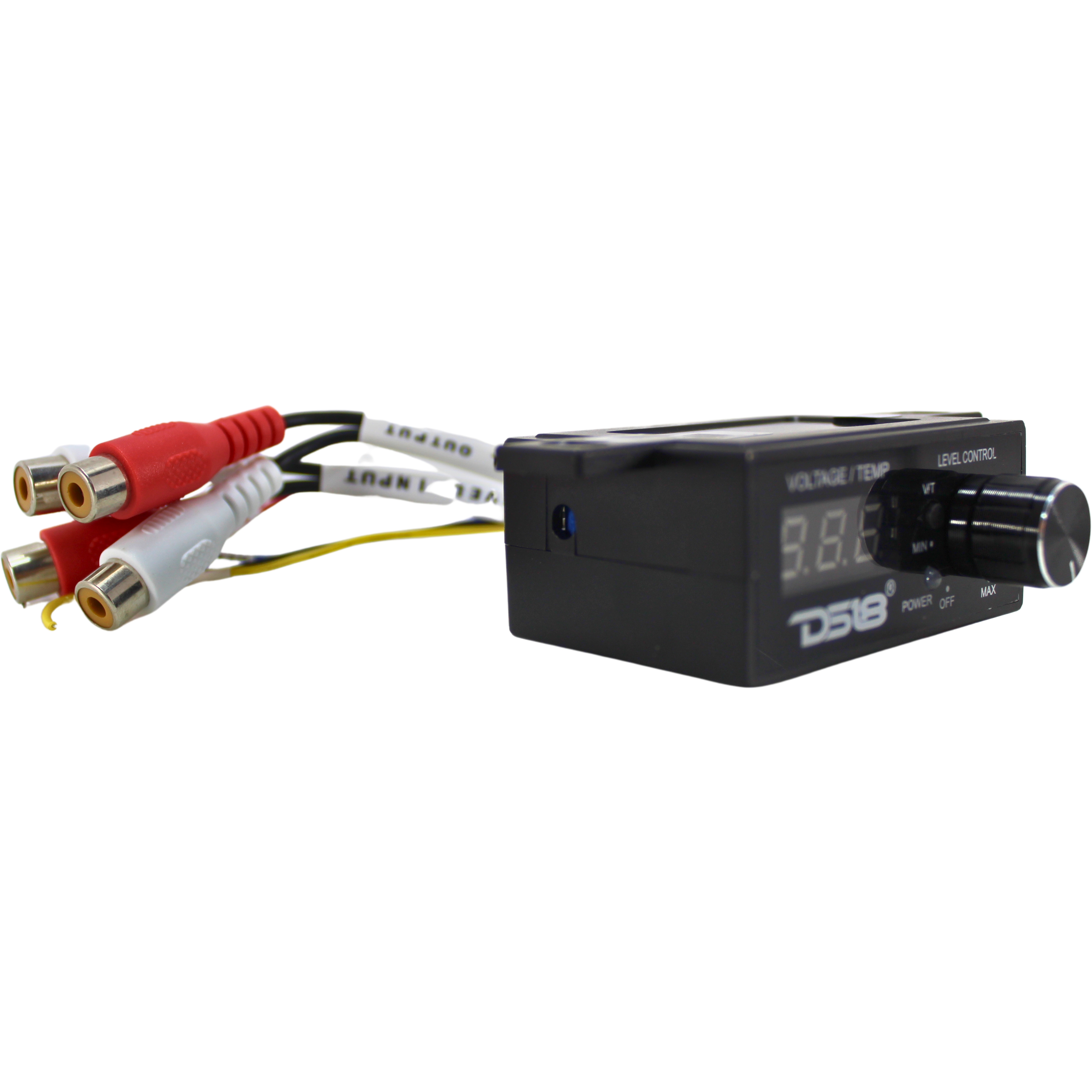

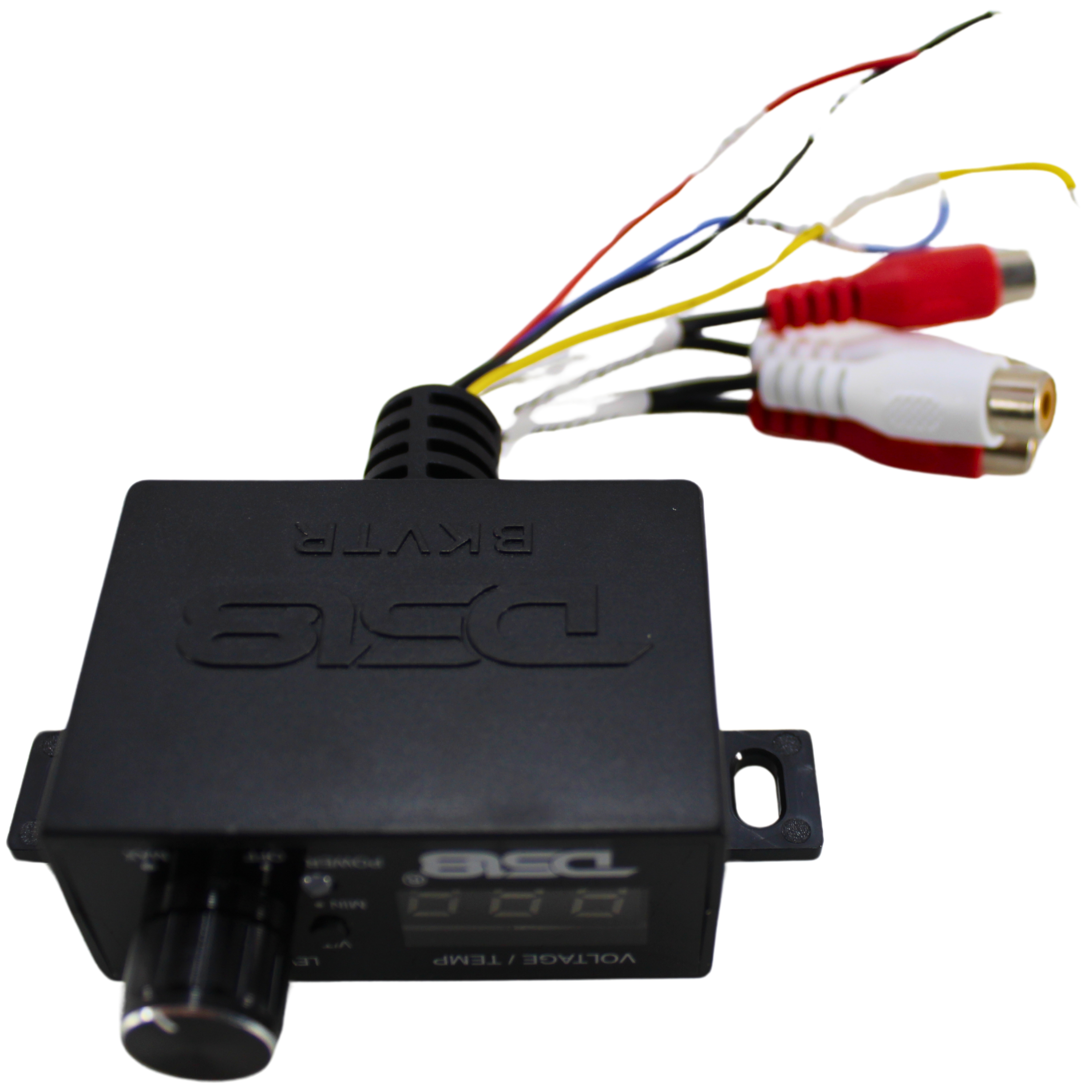

Universal Remote Level Control w/ Temperature & Voltmeter / BKVTR DS18

DS18 Universal Remote Level Control w/ Temperature & Voltmeter / BKVTR

This Listing Includes:

• (1) DS-BKVTR Controller

Description:

Upgrade your audio setup with the DS18 Universal Remote Level Control with Temperature and Voltmeter (BKVTR). This innovative device offers stereo RCA line level control, allowing you to fine-tune your amplifier gain and conveniently turn the amplifier on and off. The integrated voltmeter display (10 - 15.9V) and voltage adjustment control ensure precise voltage management, compensating for distance or cable loss. Additionally, the thermometer display (0 – 125C / 32 – 257F) with a temperature sensor and 16 ft/5 m cable can be attached to your amplifier's heatsink for accurate temperature monitoring. With temperature readings selectable in Fahrenheit or Celsius, this device offers unparalleled control and insight into your system's performance. Easy to install either in-dash or under-dash, the DS18 Universal Remote Level Control is compatible with most head units and amplifier combinations, making it an essential addition for any audio enthusiast seeking superior performance and convenience.

Features:

• Stereo RCA Line Level Control


• Can be used to adjust amplifier gain and turn ON/OFF the amplifier


• Voltmeter Display (10 - 15.9V)


• Voltage Adjudtment Control for Distance or Cable Compensation


• Thermometer Display (0 – 125 C / 32 – 257 F)


• Temperature Sensor with 16 ft/5 m Cable to Screw the Heatsink of the Amplifier


• Temperature Displayed in Fahrenheit or Celsius Selectable


• Easy In-Dash or Under-Dash Installation


• Compatible with Most Head Units and Amplifiers Combinations

General Features:

• Number of Channels: 2 (Left/Right)


• RCA Type: Regular RCA Wire


• Housing material / Color: ABS / Black


• Adjustments: Voltage / F / C


• Display Type: Numeric LED


• Auto Turn-on: Yes (Rem-In)


• Remote Turn-on Input/Output: Yes

Specifications:

• Operating Voltage: 10 – 15.9 V


• Frequency Response: 10 Hz – 30 KHz


• Input Sensitivity: 0.1 – 16 V


• Input Impedance: 20K Ohms


• Output Voltage: 0.1 – 16 V (Variable)


• Output Impedance: 20K Ohms


• Temperature Sensor Range: 0 – 125 C / 32 – 257 F


• Sensor Cable Length: 16 ft / 5 m

Measurements:

• Overall Width: 3.26" / 83 mm


• Overall Height: 1" / 27.5 mm


• Overall Depth: 2.48" / 63 mm


• Body Width: 2.32" / 59 mm


• Body Height: 1" / 27.5 mm


• Body Depth:1.7" / 43 mm


• Flush Cut-Off Width: 2.32" / 59 mm
