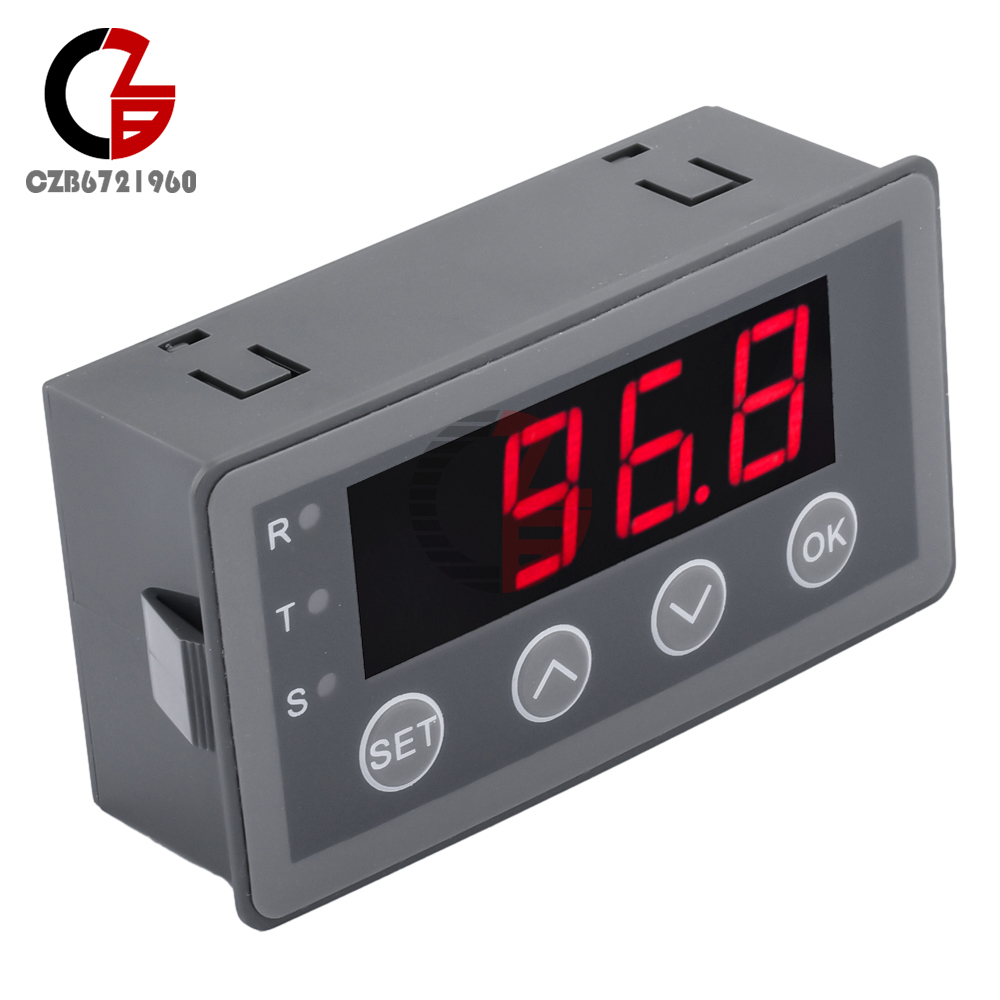

Product Introduction
Features:

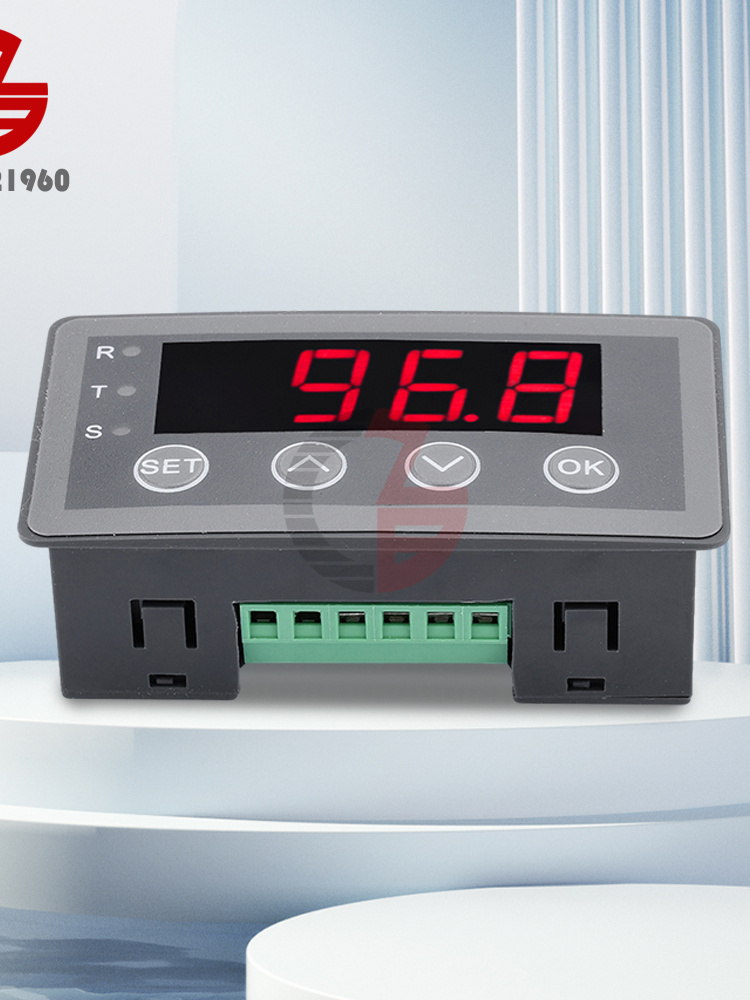

1. Panel buttons set parameters, convenient for on-site debugging.
2. NPN output is isolated from the collection and common ground with power supply.
3. Power supply anti-reverse and surge protection, with overcurrent protection.
4. 4-wire system + low acquisition resistance = easier to connect in series into the current loop (0/4-20mA) to realize multiple displays.

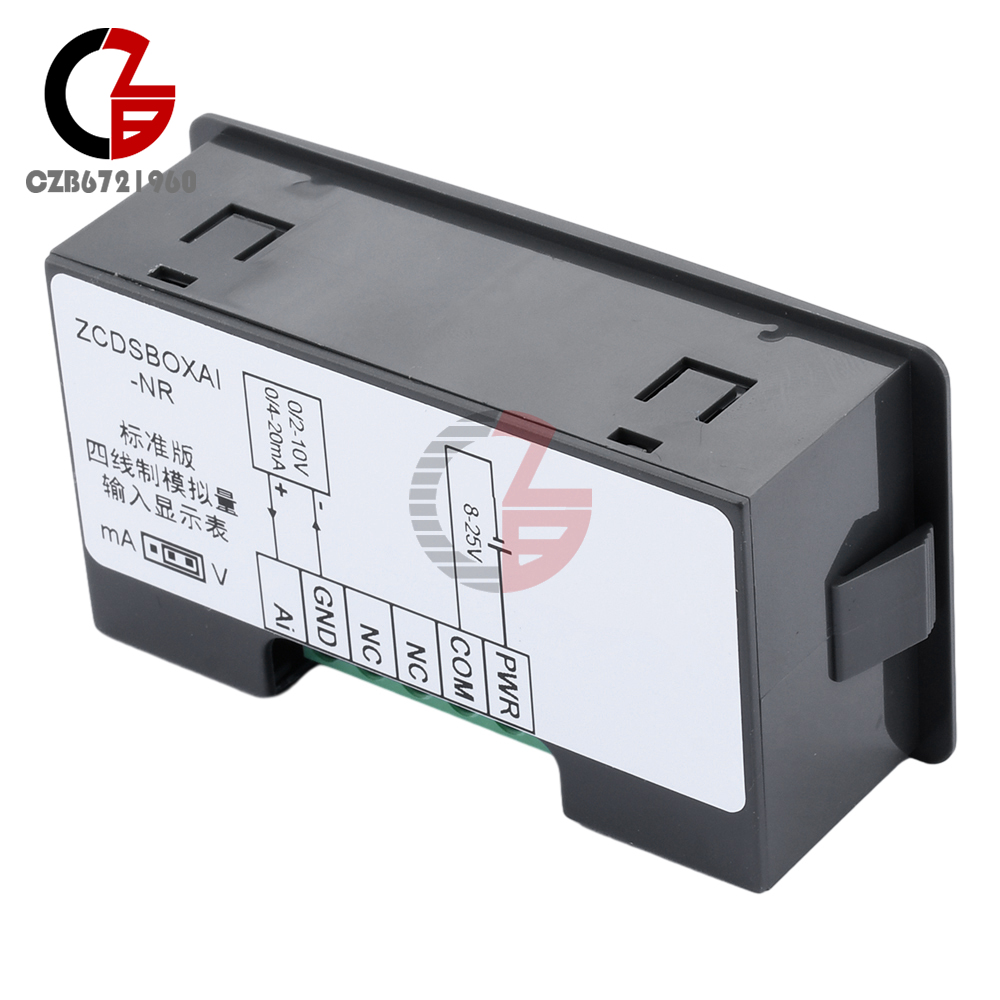

5. 4-wire mode (internal isolation between acquisition and power supply), voltage/current type signals are supported.
6. Used to collect analog (0-10V 2-10V 0-5V 1-5V 0-20mA 4-20mA) output sensor value display, such as pressure, temperature, dew point, displacement and so on.
7. Used to receive analog output (feedback) of various devices, such as frequency converter (display frequency, output voltage, motor current, etc.), electric actuator feedback (opening degree, etc.).
8. Four-wire mode (compared to three-wire tabulation), the current signal is easy to use in series; for devices with output power (but power and analog output isolation), the table using the power supply provided by the device is safer for the device.
9. Also easy to use, such as batteries in series, respectively, to measure the voltage of a single battery cell occasions.
Parameter:
Power supply voltage range: DC 8~25V
Power consumption: 24V/50mA
Voltage type input impedance: >40kΩ
Current type input impedance: <60Ω
Sampling resistance for current signals below 60Ω (voltage drop less than 1.2V at 20mA)
Display range (corresponding to the display of physical range) by the parameter F0-2 to F0-4 parameter settings
Product size: 79.2*42.3*26mm
Installation hole: 76.5*39.5mm

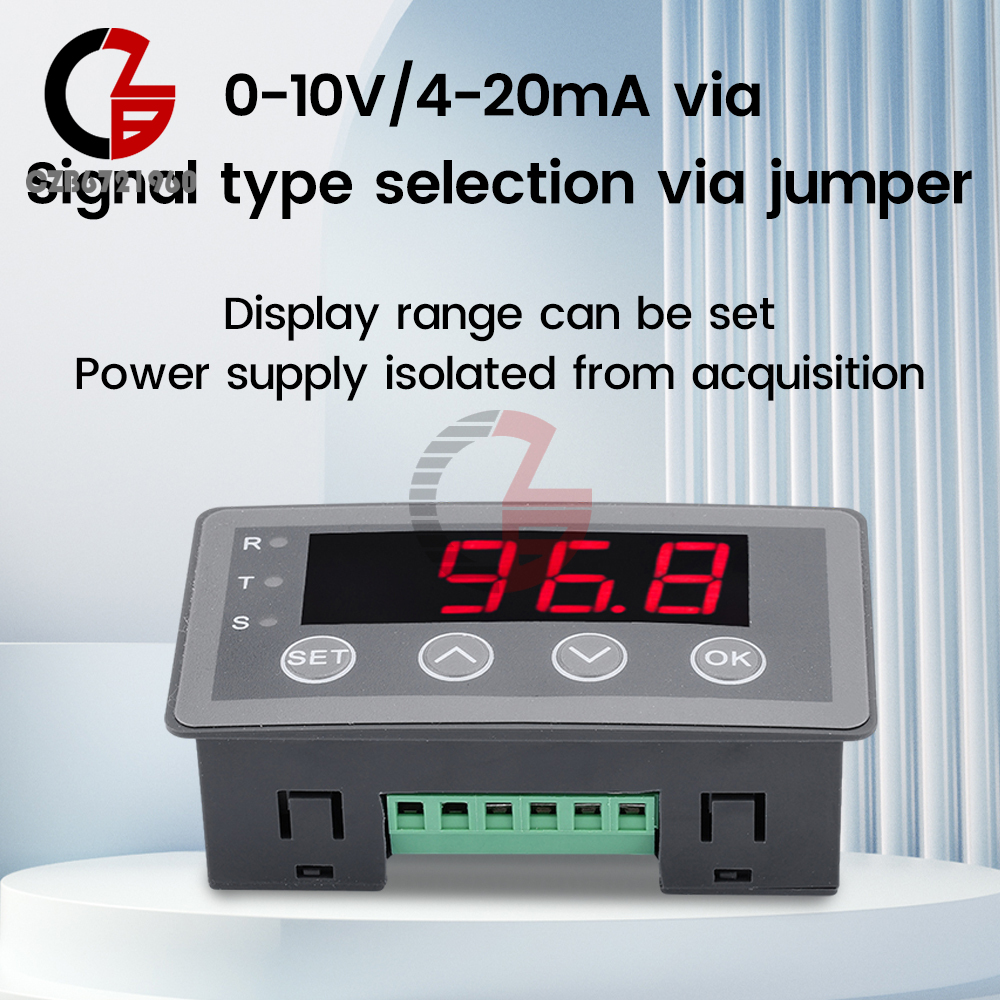

Commonly used 0-10V 2-10V 0-20mA 4-20mA can be directly set F1-0 parameters to select the 0-5V, 0.5-4.5V, 2-8V signal range can be set by setting the F1 parameter group in the bias and gain specification for the range of 0.0-100.0%. In addition, the acquisition of voltage signals can be extended to a maximum of 40V (F1-0 selection).
Package include:
Display table*1
