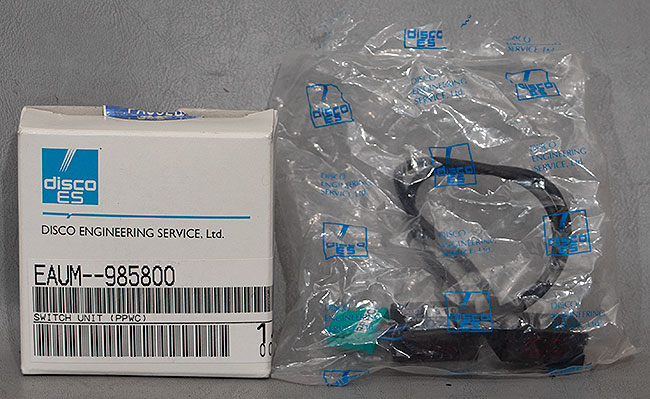

NEW Disco PN: EAUM--985800 PPWC Switch Unit
Comes with what you see in the pictures. If you don't see it, you probably won't get it.
Specifications are from Tanaka and may vary slightly due to upgrades, options, or revisions this unit may or may not have.
This switch unit is new, old stock from a spare parts room at semiconductor fab that closed down.

The Disco Information Tag Reads:
Part Number: EAUM--985800
Description: SWITCH UNIT (PPWC)

The Tanaka Seeka Sensor Information Reads:
Model Number: DL-S5T
Lot Numbers: 9100 and 0906

Sensor Specifications:
Type: Short Range, NPN-type
Detection Method: Distance convergent beam
Range¹: 10 - 40 mm
Adjustable Range: -20% from the Maximum range
Power Supply: 12-24 VDC ±10%
  Ripple: 10% Max.
Current Consumption: 27 mA or less
Output Mode:
  Control Output: Sink Current 100 mA (30 VDC) or less.
  Stability Output: Sink current 30 mA (30 VDC) or less.
Operation Mode: Light-on / Dark-on selectable (By exclusive switch)
Response Time: 0.35 ms Max.
Hysteresis: 5% Max.
Light Receiving Element: Red LED (700 nm)
Sensing Cell: Half-dividing photodiode
LED Indicator:
  Operating LED: Red
  Stability LED: Green LED
Volume (VR): Potentiometer VR
Switch: Light-on / Dark-on selectable switch
Short Circuit Protection: Provided (for control output only)
Material:
  Case & Lens: Polyarylate
Connection: Cable type (out diameter: 3.0 mm) 0.15 mm² 4 cores 2m (black)
Weight: 50 g Max.
Environment:
  Ambient Light: Withstands 5,000 lx
  Operating Temperature: -25°C to +55°C (non-freezing)
  Humidity: 35 - 85% RH (non-condensing)
  Case Protection: IP67
  Vibration: 10 - 55 Hz 1.5 mm Amplitude, 2 hours, X/Y/Z direction
  Shock: 500 m/s², 3 times, X/Y/Z direction
Notes:
  1: 50 x 50 mm White paper for short range type.
