An Auto Gain button sets the perfect gain level for your microphones and instruments, hassle-free. You also get two reamp outputs, so you can send audio from your DAW and experiment with amps and effects to sculpt your sounds. A built-in DSP monitor mixer plus loopback audio make creating monitor and streaming mixes quick and easy. Route an external A/D converter into the ADAT I/Os to record and playback up to 16 more channels of audio. You can even utilize the Universal control app to record straight to your mobile device or remotely control the Quantum HD 8. Professional recording software is included to get your productions started right away.
Key Features
- 26x30, 32-bit / 192 kHz USB-C desktop audio interface
- Record on desktop, laptop, phone, tablet
- Hi-Z instrument inputs co-developed with Fender engineers
- High-performance converters with 124 dB dynamic range
- Custom, low-latency driver provides exceptionally low audio latencies
- 8 next-generation PreSonus MAX-HD preamps, +75 dB of gain
- Switchable +48V phantom power
- 8 balanced combo XLR-1/4"mic/line/instrument inputs
- 2 reamp outputs
- 2 balanced 1/4" TRS main outputs, 8 balanced 1/4" TRS line outputs
- 2 high-power headphone outputs
- 16 channels of ADAT I/O (up to 48 kHz)
- Stereo S/PDIF I/O
- Auto gain
- DSP monitor mixer plus loopback audio
- Full-color, high-resolution display
- Control settings via Universal Control app
- Includes Studio One Pro, Studio One+ software
Box Contains
-

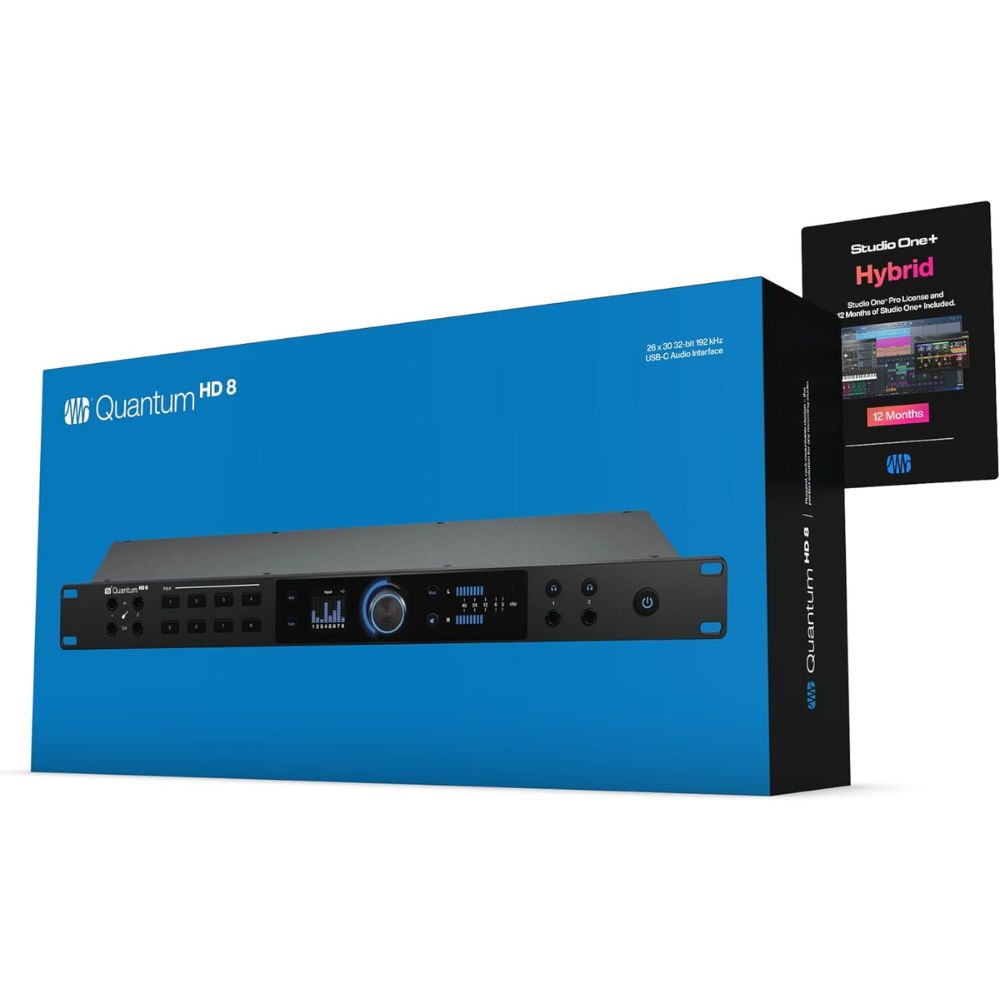

PreSonus Quantum HD 8 USB-C Audio Interface
- 1 x DB-9 breakout cable
- 1 x 1.5M USB-C to USB-C cable
-
PreSonus Quantum HD 8 USB-C Audio Interface
- 1 x DB-9 breakout cable
- 1 x 1.5M USB-C to USB-C cable
| Brand | PreSonus |
| Model | PreSonus QUANTUM HD8 |
| MPN | PRQUANTUMHD8 |
| Type | USB-C Audio Interface |
| Channels of I/O | Analog: 8 Input / 12 Output ADAT: 16 Input / 16 Output at 48 kHz S/PDIF: 2 Input / 2 Output at Up to |
| Maximum Sampling Rate | 192 kHz / 32-Bit |
| Number of Microphone Inputs | 8 |
| Analog Audio I/O | 8x Combo XLR-1/4 TRS Balanced Mic/Line/Hi-Z Input 10x 1/4 TRS Balanced Line/Monitor Output 2x 1/4 |
| Digital Audio I/O | 2x TOSLINK Optical ADAT Input 2x TOSLINK Optical ADAT Output 1x RCA Coaxial S/PDIF Input 1x RCA Coax |
| Host Connection | USB-C |
| OS Compatibility | macOS Windows |
| Built-In Microphone | No |
| Expansion Slots | No |
| Gain/Trim Range | Mic Inputs: 75 dB |
| Phantom Power | 48 V, Selectable On/Off |
| Sync I/O | No |
| Network I/O | No |
| Wireless | No |
| Dynamic Range | Digital AD/DA Converters: 124 dB |
| Sample Rates | Up to 192 kHz |
| Sample Rate Conversion | No |
| Bit Depths | 32-Bit |
| Media/Memory Card Slot | No |
| Mobile App Compatible | Yes: Android & iOS Functionality: Adjust Settings, Remote Control |
