Product Features:
1. 100% Brand Guarantee
2. Speed Unit: KM/H & MPH Switch freely.
3. 8 different display interfaces
4. Built-in high-precision GPS module, more accurated Speed,Attitude display.
5. Real-time monitoring car speed,Voltage, Attitude, Pitch angle, Driving Direction etc

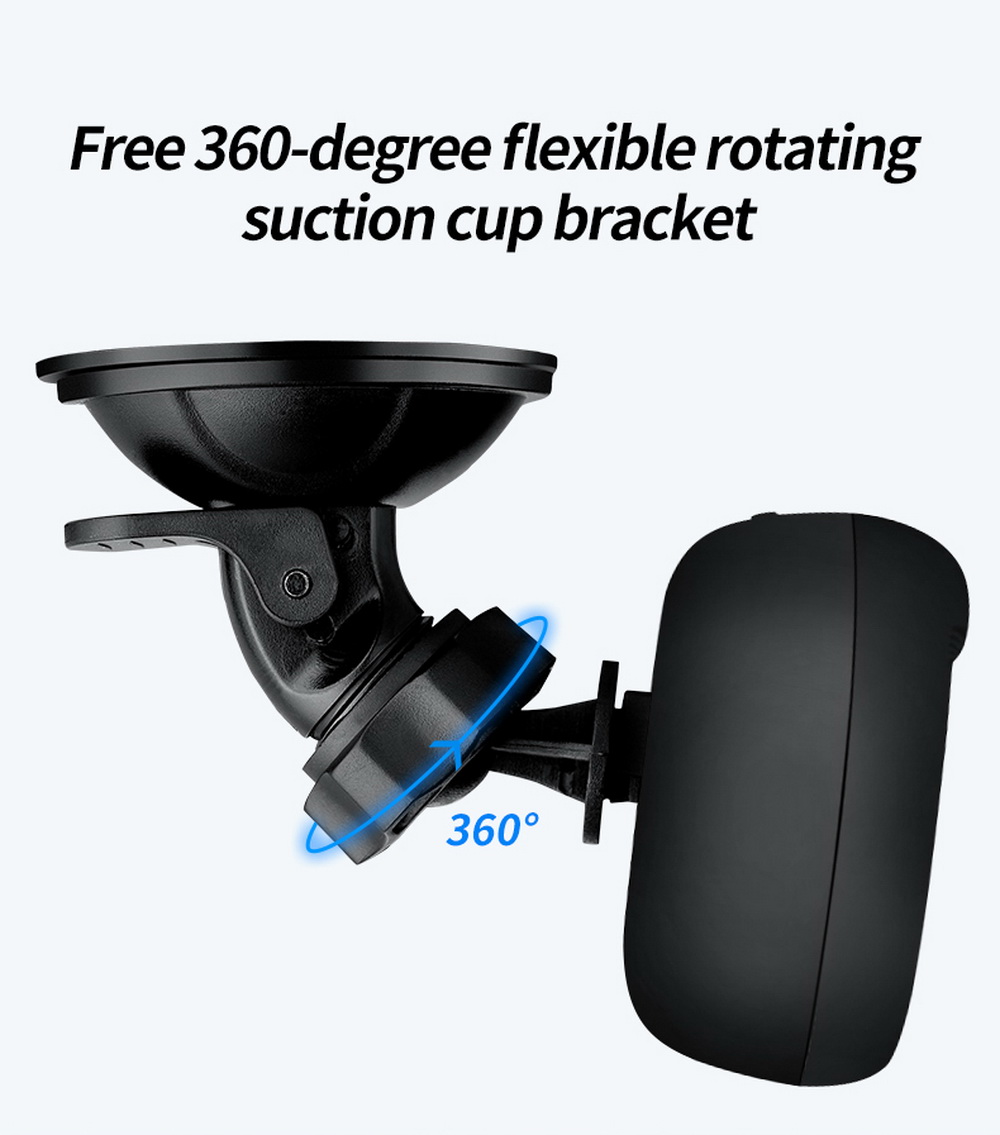

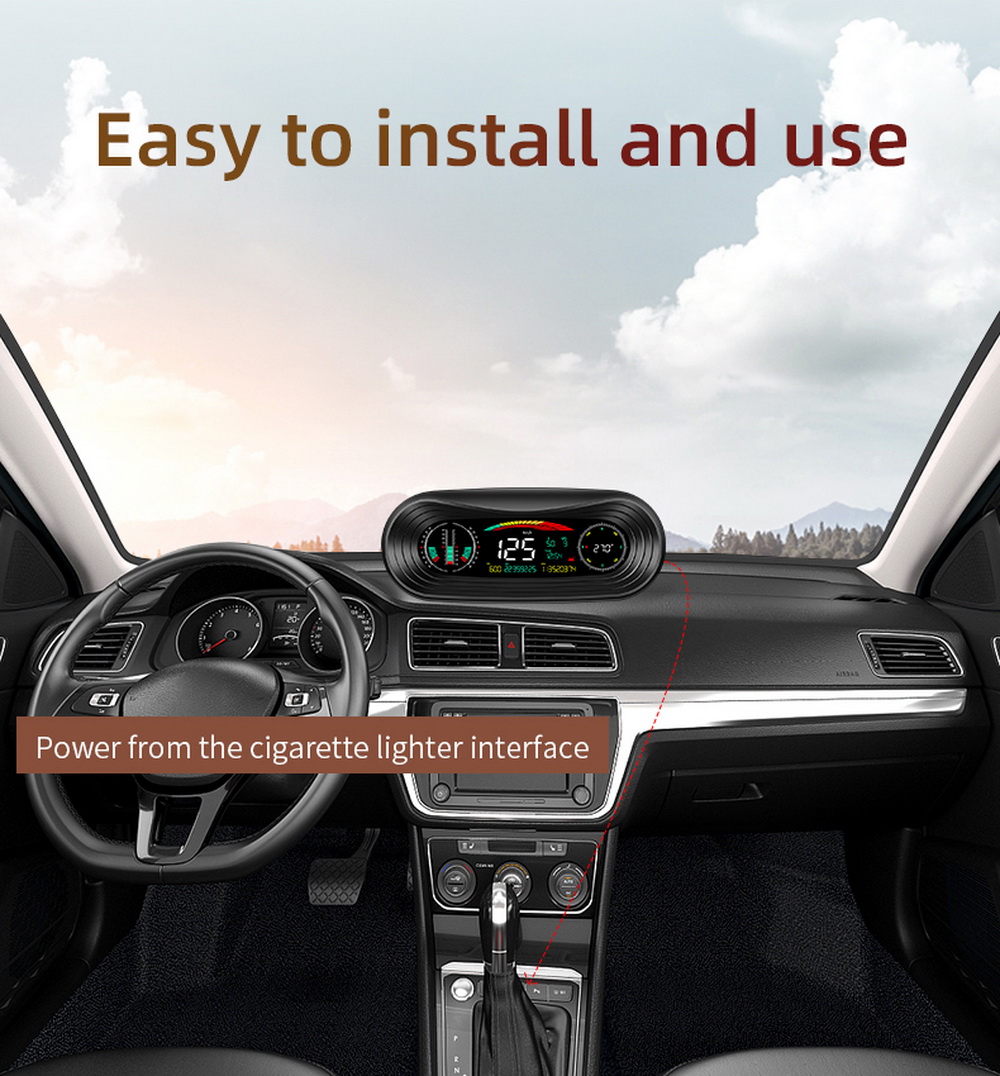

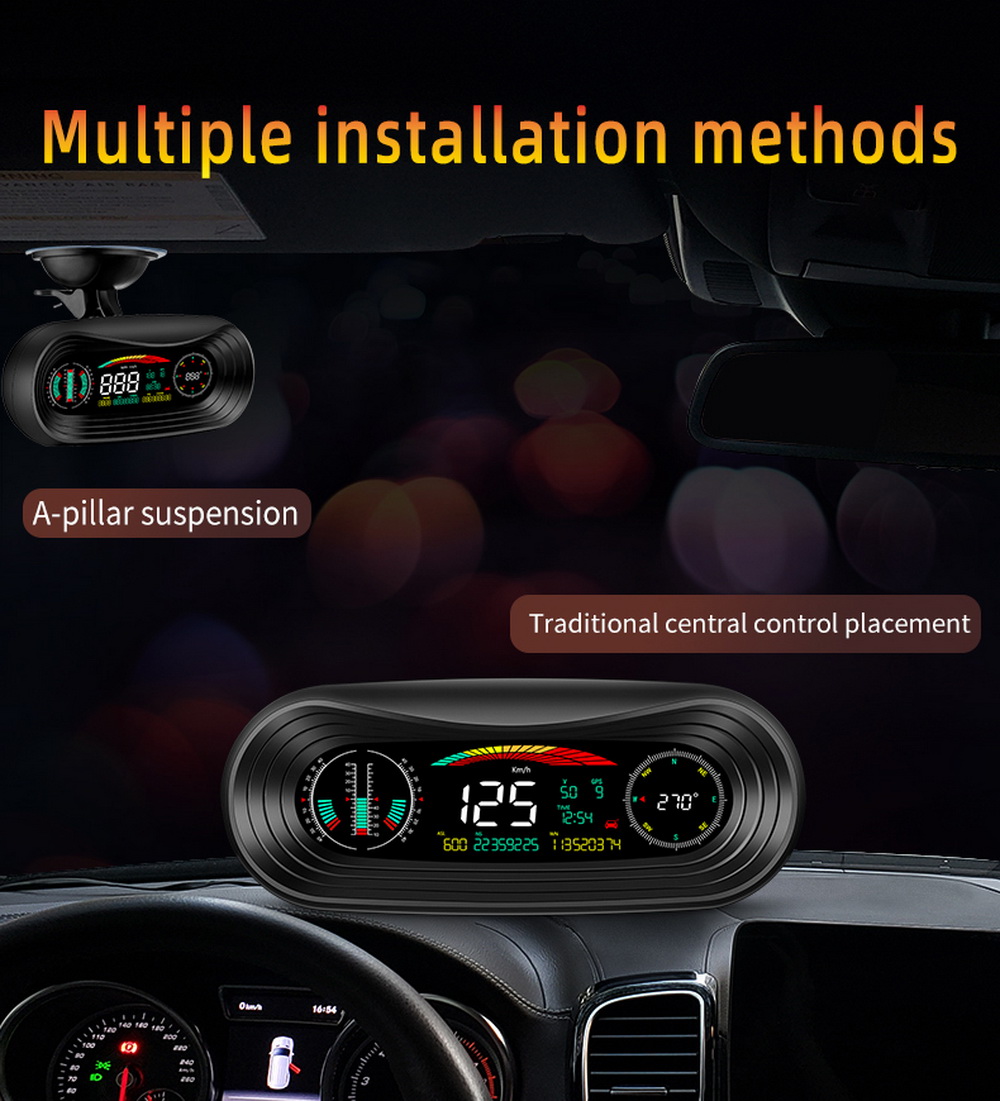

6. Easy intall. With 360 degrees flexible rotating, there are two different installation methods: Stand on Center Console or Stock to A-pillar with suction cup bracket

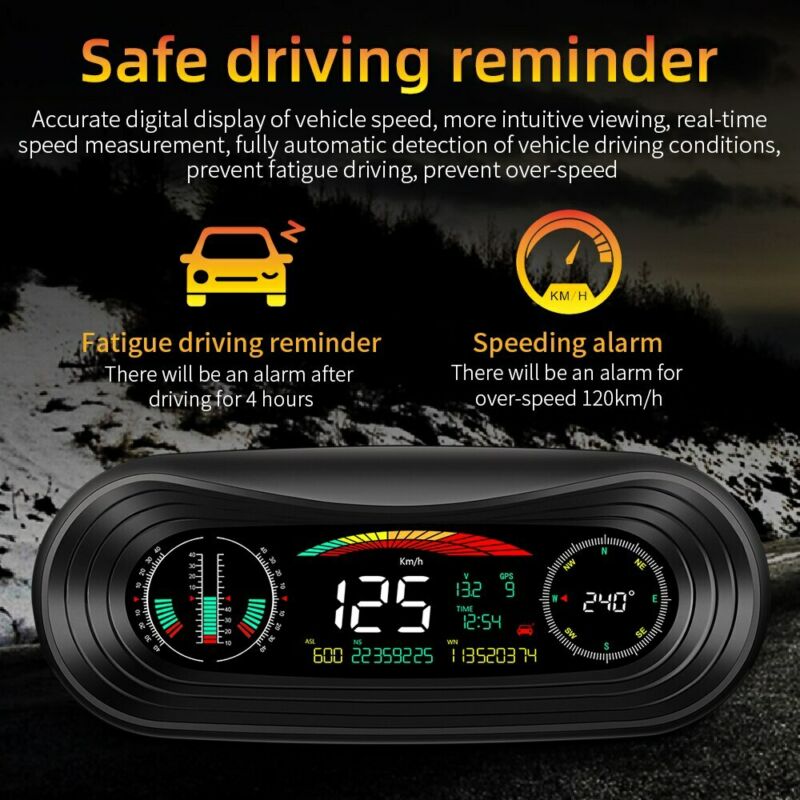

7. Alarm: Overspeed alarm, Low voltage alarm, Fatigue Driving alarm...
8. Connection: USB connector, can work on all vehicles.
9. Accept customized orders (start with 100pcs at least) : add buyer's own logo on the start-up screen, add more functions...

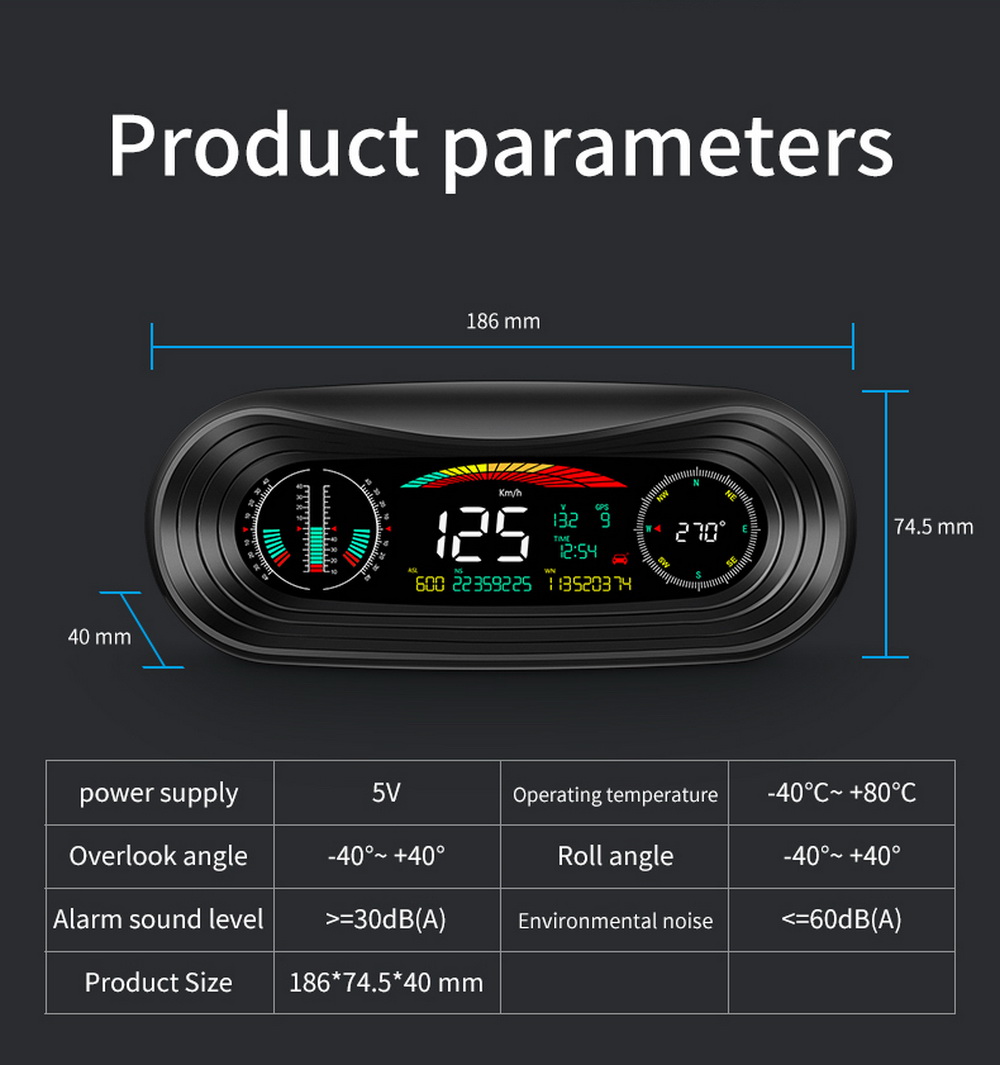

Product Specifications:

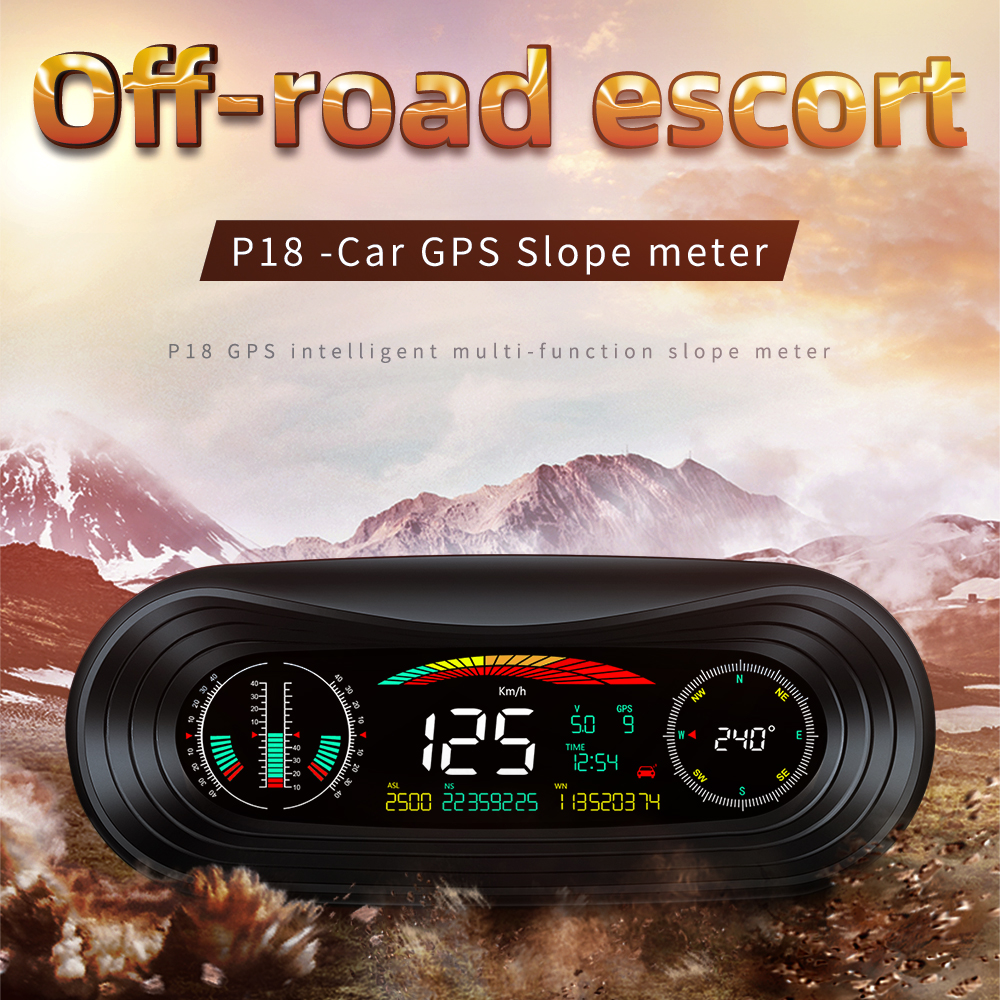

Product name: Car Inclinometer & GPS Digital Speedometer
Model No:P18
Product size: 186*74.5*40MM
Pitch Angle: -40 to 40 degree
Roll Angel: -40 to 40 degree
Voltage input : DC 5-30V
Operating temperature: -40 to 80 degree
Data Display: Speed, Compass, Roll, Pitch, Altitude, Voltage , Satellite numbers etc
2-Year Warranty: CE, FCC, RoHS certifictes
Package List:
1X Main Host
1X USB Cable+Cigarette Lighter
1X Double-Sided Tape
1X Section cup bracket
1X Manuel
Wide Range of Applications: suitable for All cars
More Product Details:
Data Display: Speed, Compass, Roll, Pitch, Altitude, Voltage , Satellite numbers etc

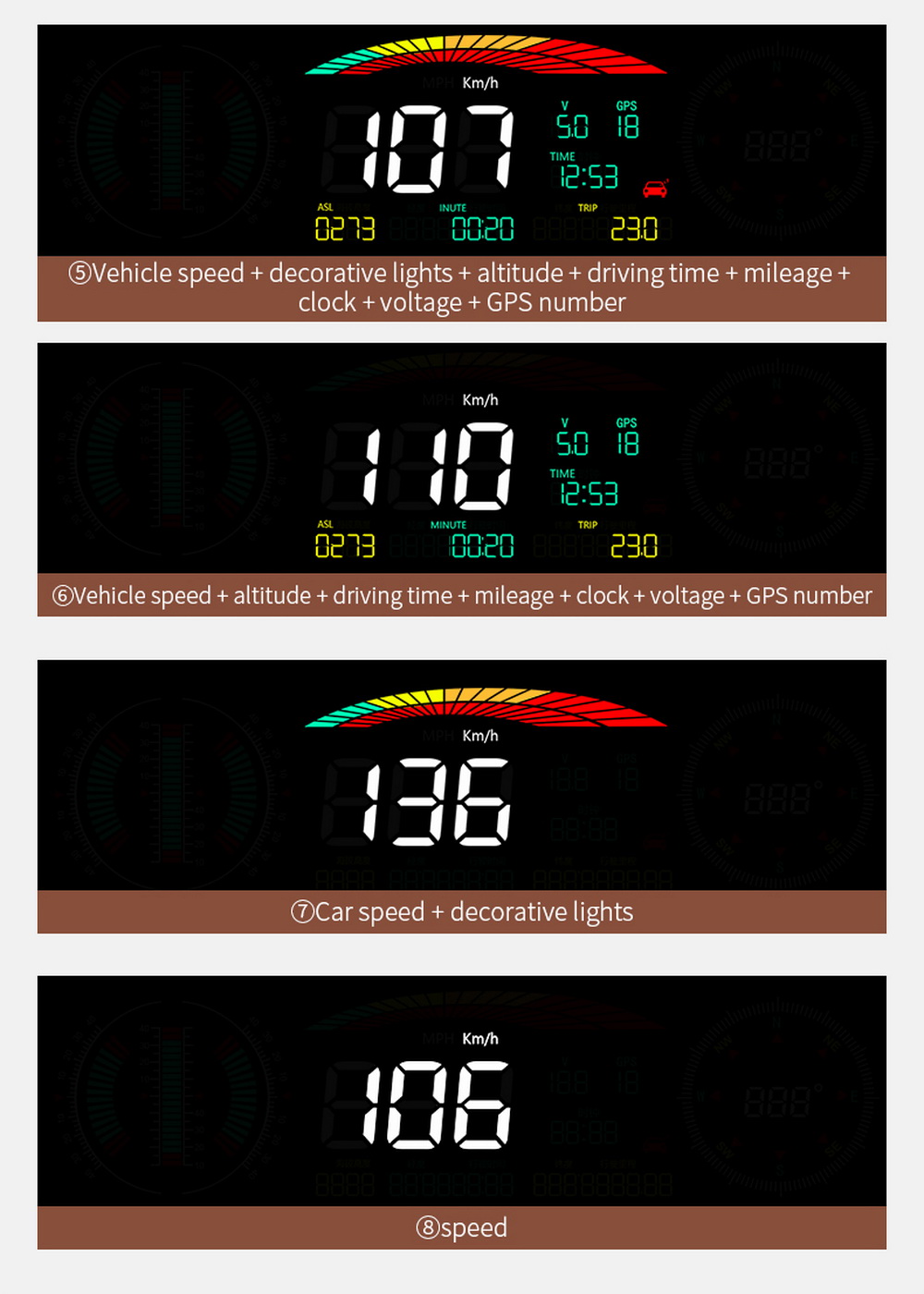

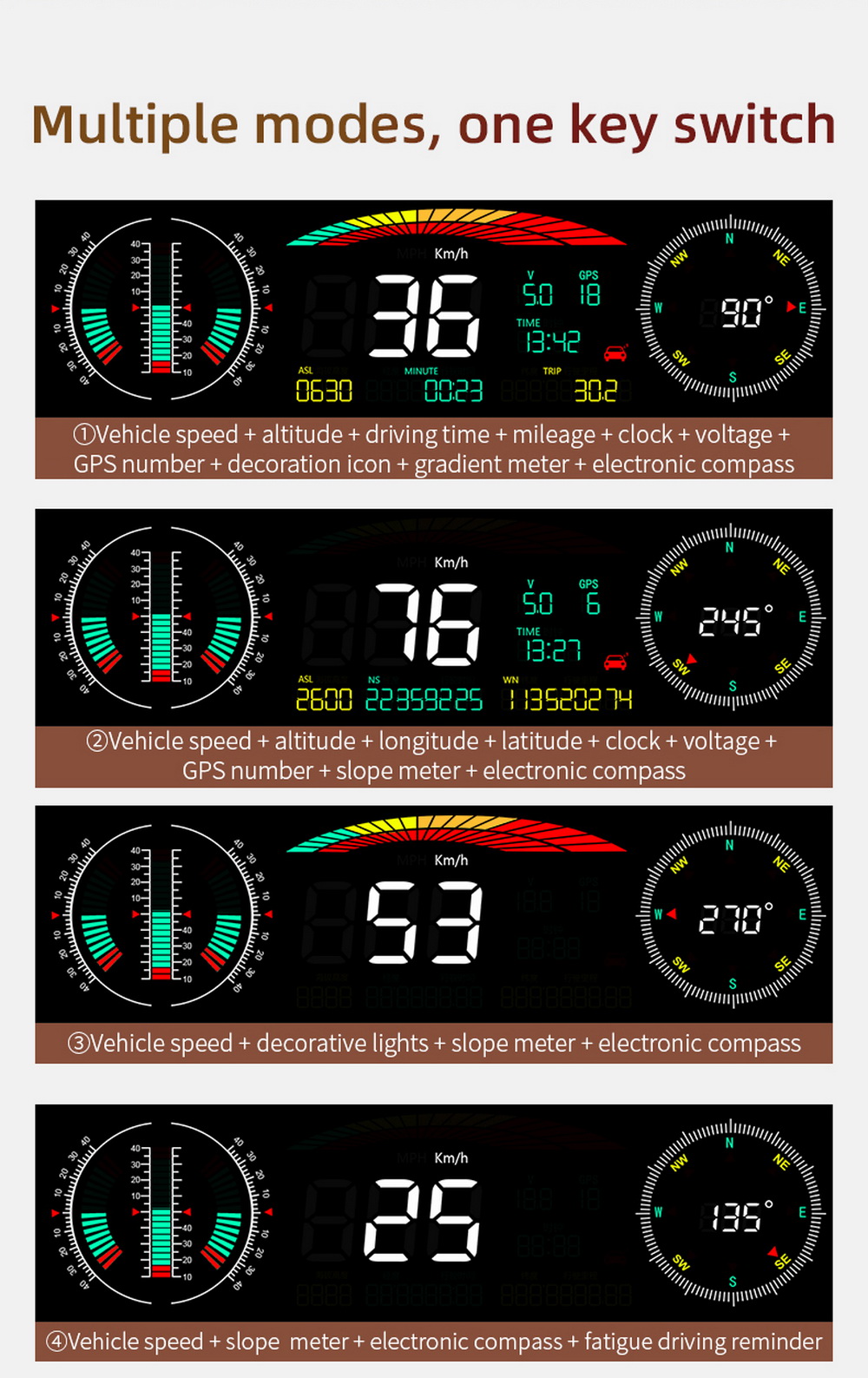

8 different Display interfaces:

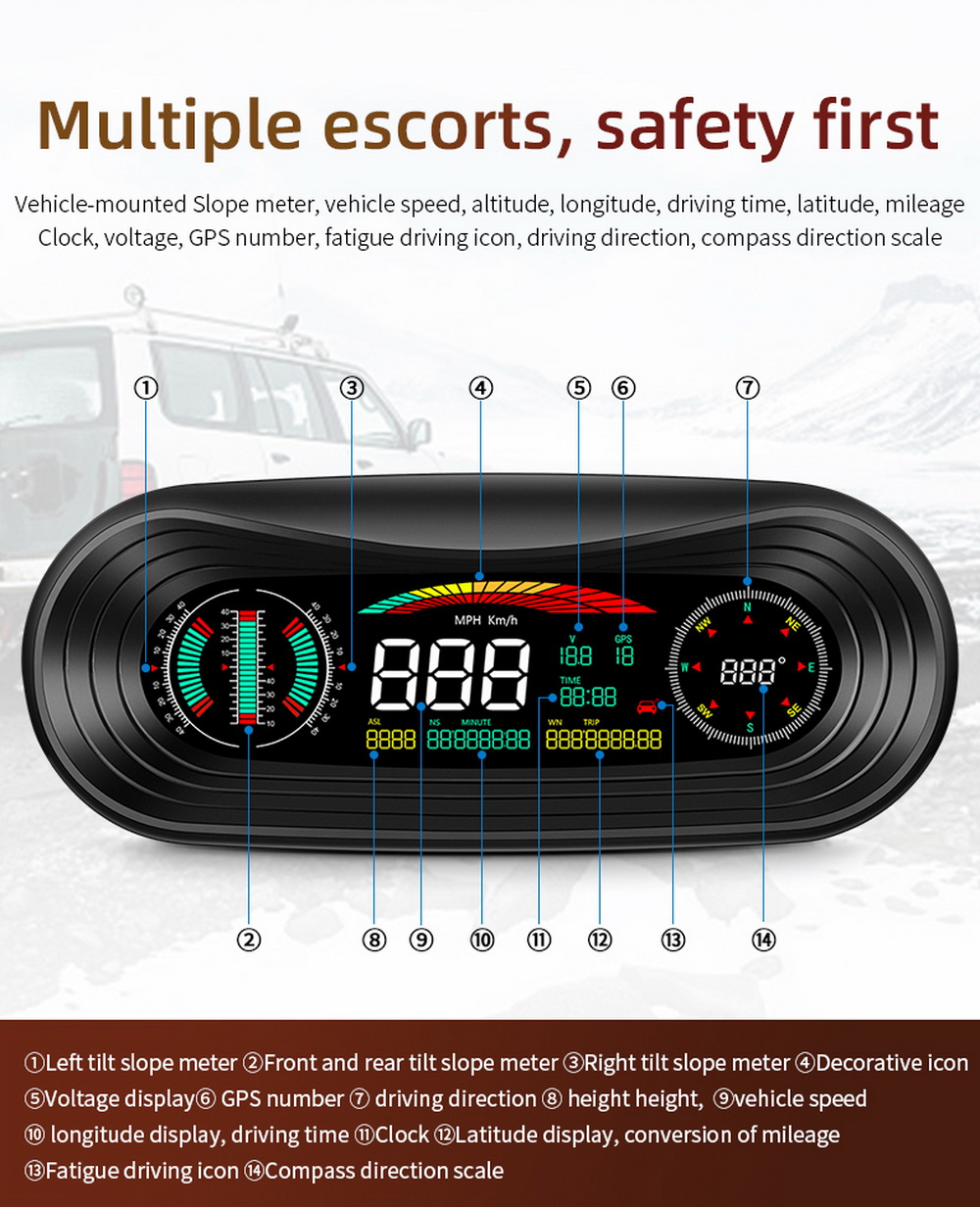

Meanings of Icon on the Display:
GPS Digital Speedometer & Car Inclinometer RFQ:
1.Nothing on the screen,no power
Check if the USB interface has power or the connection is loose, pull it out and plug it in again several times, or replace the USB cable
2. Language selection
Long press the M key for 5 seconds to enter the 1 item of the setting item (0 is English and 1 is Chinese), short press ">" to select, long press "M" to save
3.No speed
The GPS is flashing to search for stars. Please move the car to an open road. After the satellite is found, the GPS light will be on and off, and it can be used normally.
4. Inaccurate speed
(1) First check the speed unit is correct or not, the speed unit including KM/H and MPH(speed unit switch item 4)
(2) The car manufacturers usually make the dashboard speed 5-7% higher than the ECU. The international standard is based on satellite data.
(3) Fine-tuning the vehicle speed, e.g. meter display 100 Km/h, machine display 105Km/h,default value 107-5=102
(4) a.Under the condition of power-on, press and hold the 'M' button for 5s to enter the menu options, the menu displays 1
b. short press 'M' to enter the parameter value 107 and flash (the instrument displays 100 KM / H device displays 105KM / H, adjust the parameter value to 102 through the '<' button)
c. After adjusting, press and hold the 'M' button for 5 seconds to exit
5.There is an error of travel direction
It will be normal until >5KM/H
6.Speed is still on display after the car stops
Satellite drift will be caused in underground parking,tunnel,overpass or blockers,please drive your car on open road,then this situation can be solved after the satellite numbers >5
7.Entering the tunnel, the satellite signal flashes in the underground parking lot, no speed
Satellite drift will be caused in underground parking,tunnel,overpass or blockers,please drive your car on open road,then this situation can be solved after the satellite numbers >5
