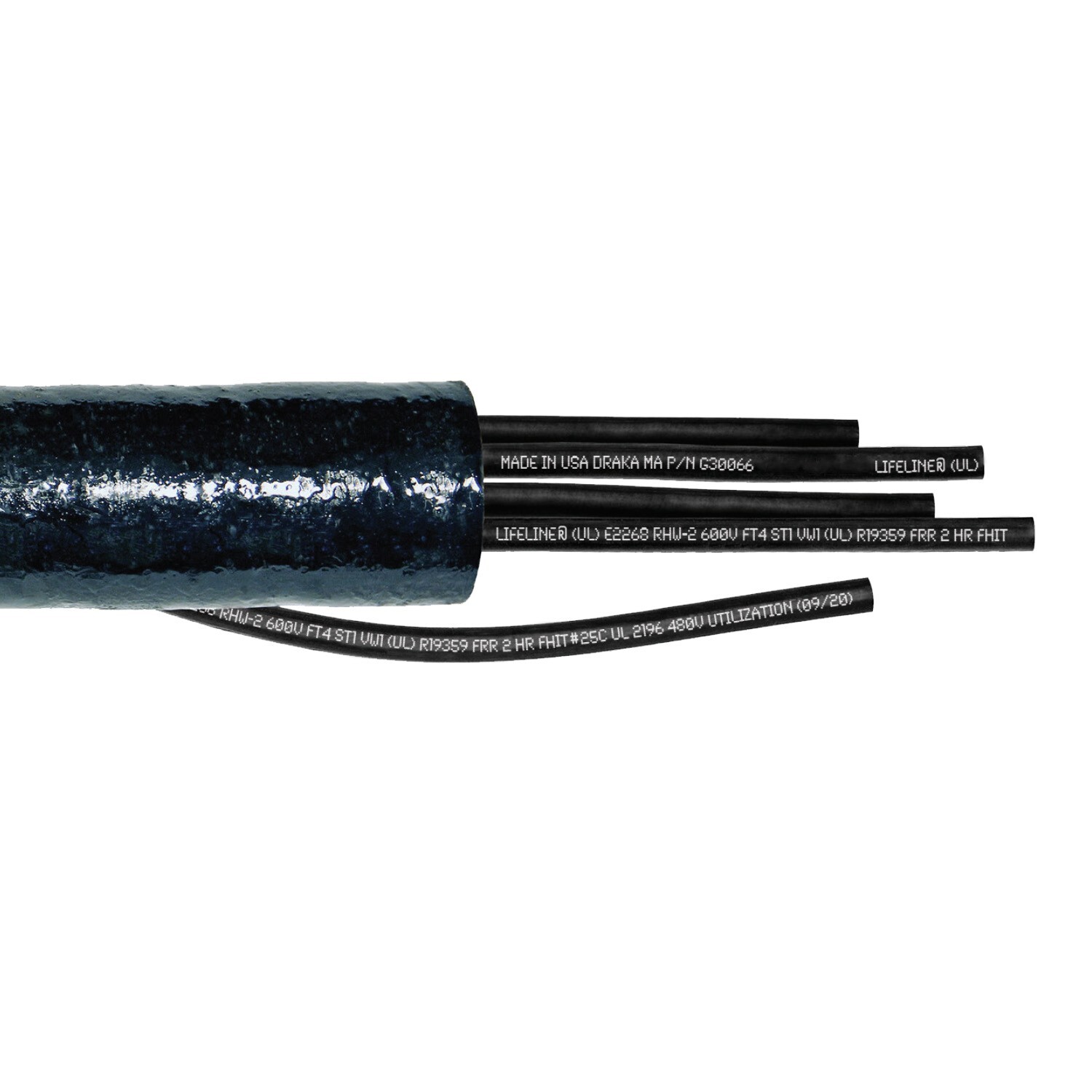

50' 2 AWG Lifeline 2-Hour Fire Rated Power Cable RHW-2 Wire Black 600V
Click Thumbnails to Enlarge
APPLICATION
• 2 AWG Lifeline fire resistive cables were designed to meet and have successfully passed the two hour fire rating certification test per UL 2196, Standard for Tests for Fire Resistive Cables as part of FHIT System No. 25C
• Lifeline Cables can be used in the following applications to provide survivability during a fire: Tall Buildings, Emergency Feeder Cables, Ventilating Fans, Exit Lighting, Fire Pumps, Hospitals, Transit & Elevators
CONDUCTOR
• Bare Stranded Copper
FIRE BARRIER
• High Temperature Mica Tapes
INNER INSULATION
• Ceramifiable Silicone, Low Smoke Zero Halogen (LSZH)
OUTER INSULATION
• Cross-linked polyolefin (XLPO), Low Smoke Zero Halogen
SPECIFICATIONS & RATINGS
• Listed to UL 44, Thermoset Insulated Wires and Cables, as the following
type: RHW-2, 600 Volt, Rated 90°C Dry/90°C Wet
• Classified to UL 2196, Standard for Tests for Fire Resistive Cables, for two-hours.
• Sunlight Resistant
• FT4 Rated
• ST1
• IEEE 1202
• NFPA 70, NFPA 72, NFPA 101, NFPA 130, NFPA 502
PRODUCT SPECIFICATIONS
| Size AWG | 2 |
|---|---|
| Number of Strands | 7 |
| Insulation Thickness (inches) | 0.075 |
| Overall Diameter (inches) | 0.480 |
| Ampacity @ 75°C | 115 Amps |
| Ampacity @ 90°C | 130 Amps |
| Weight (Lbs/1000ft) | 270 |
CUT TO LENGTH
If you are looking for any Custom Lengths? Please feel free to contact us. We Can do all Cut Lengths.
OTHER VALUE ADDED SERVICES
• Expedited Shipping
• Cut to Length Paralleling
• Color Striping & Dyeing
• Reel Lagging
• Special Labeling & Packages
