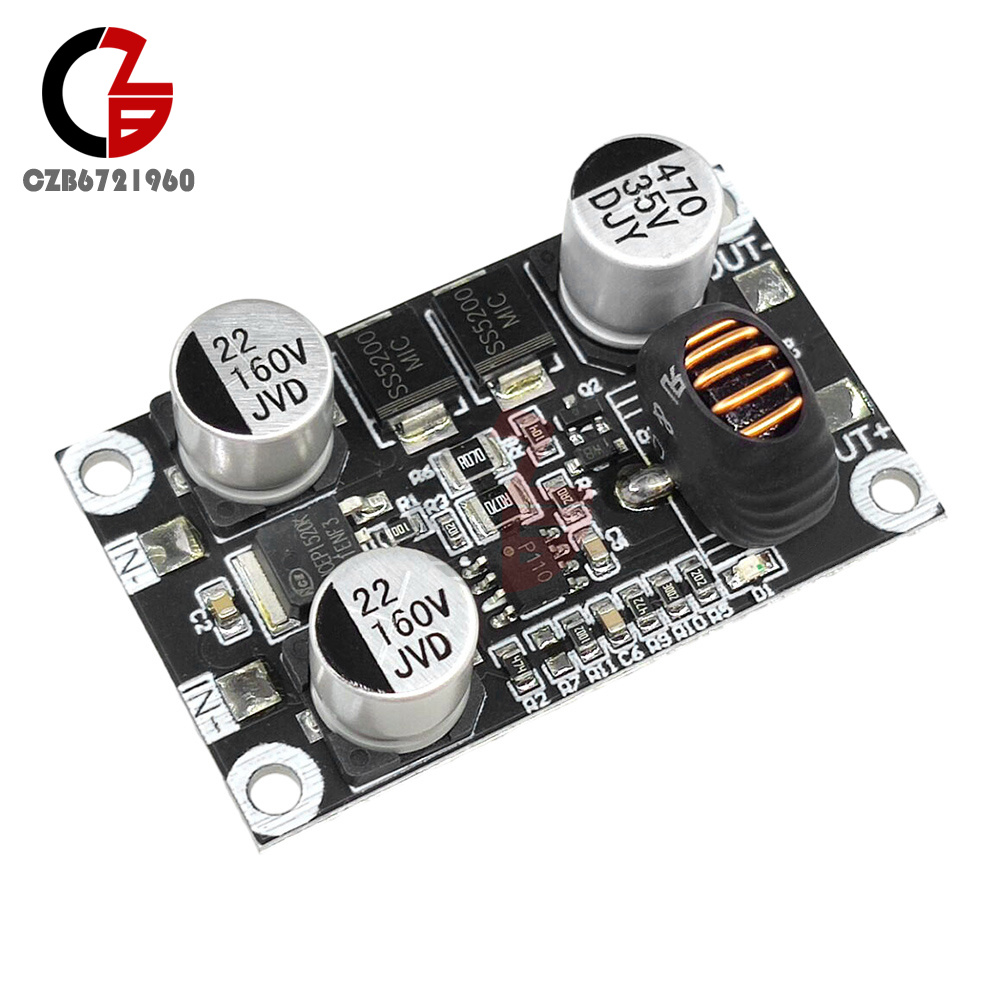

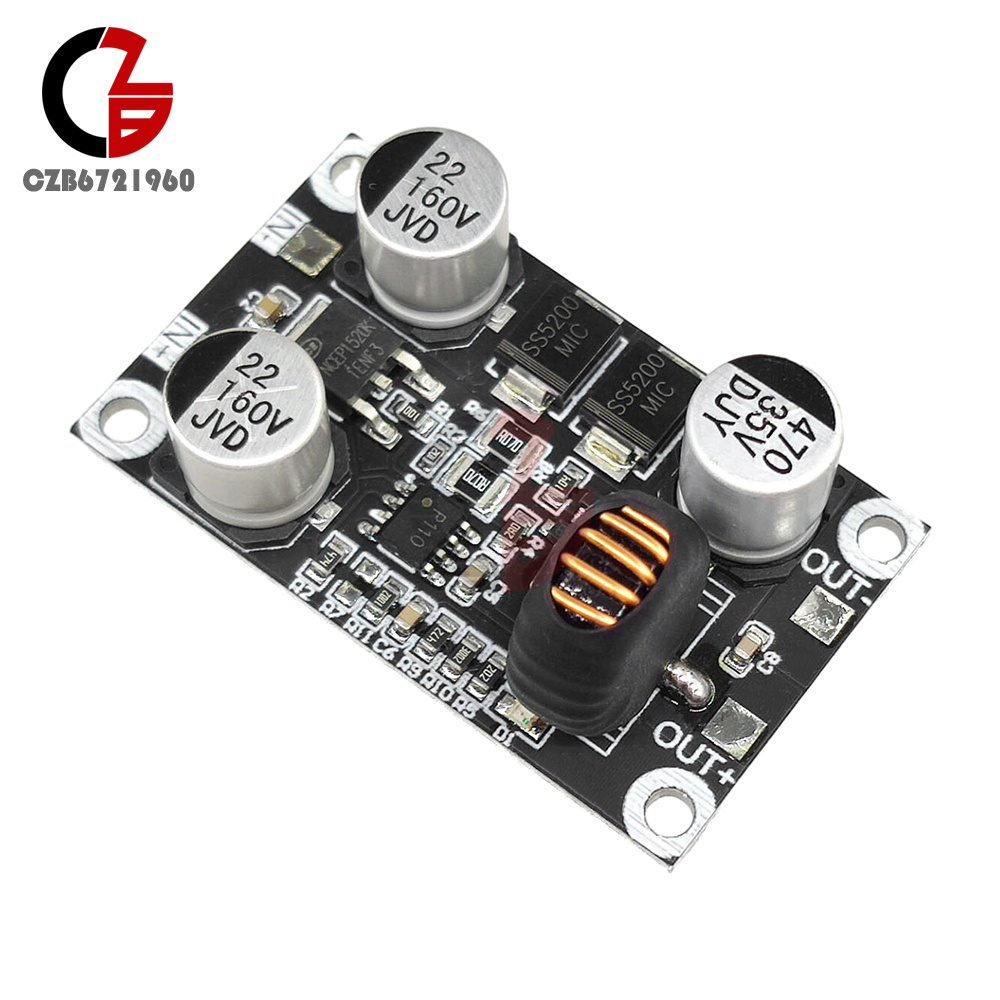

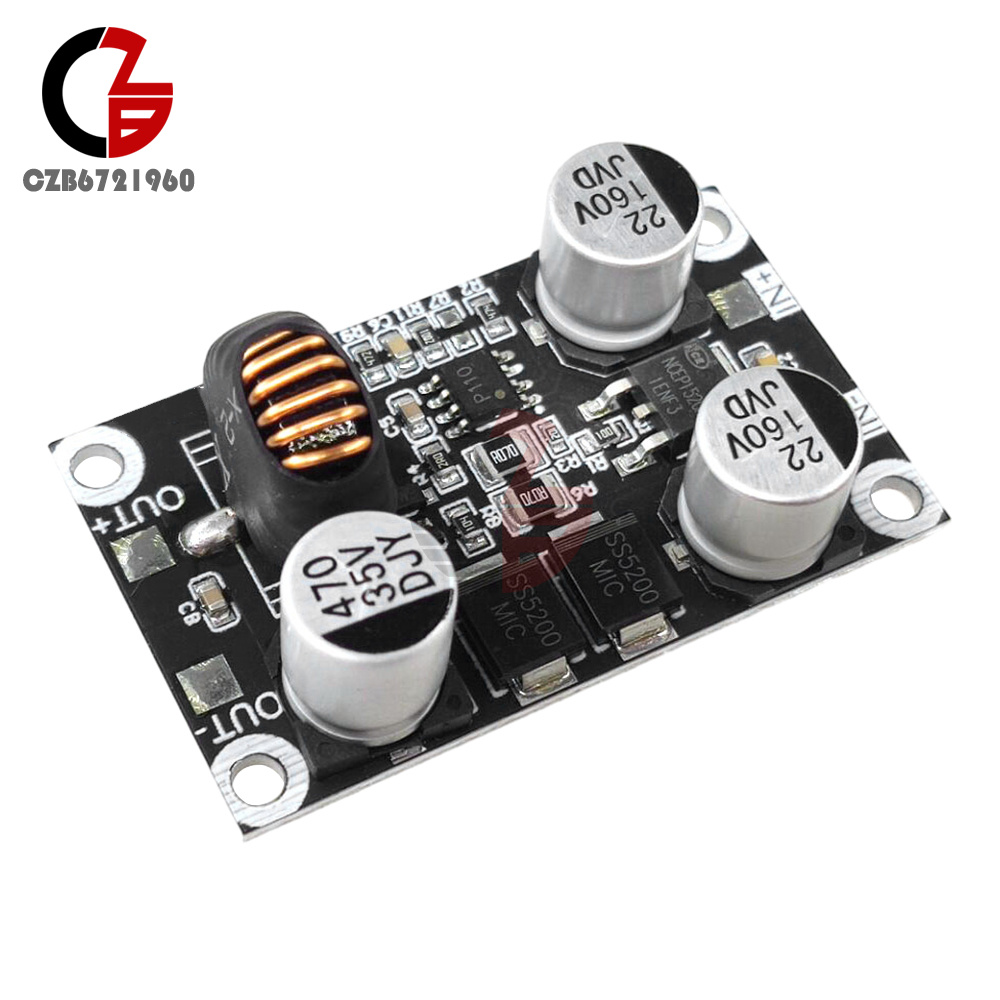

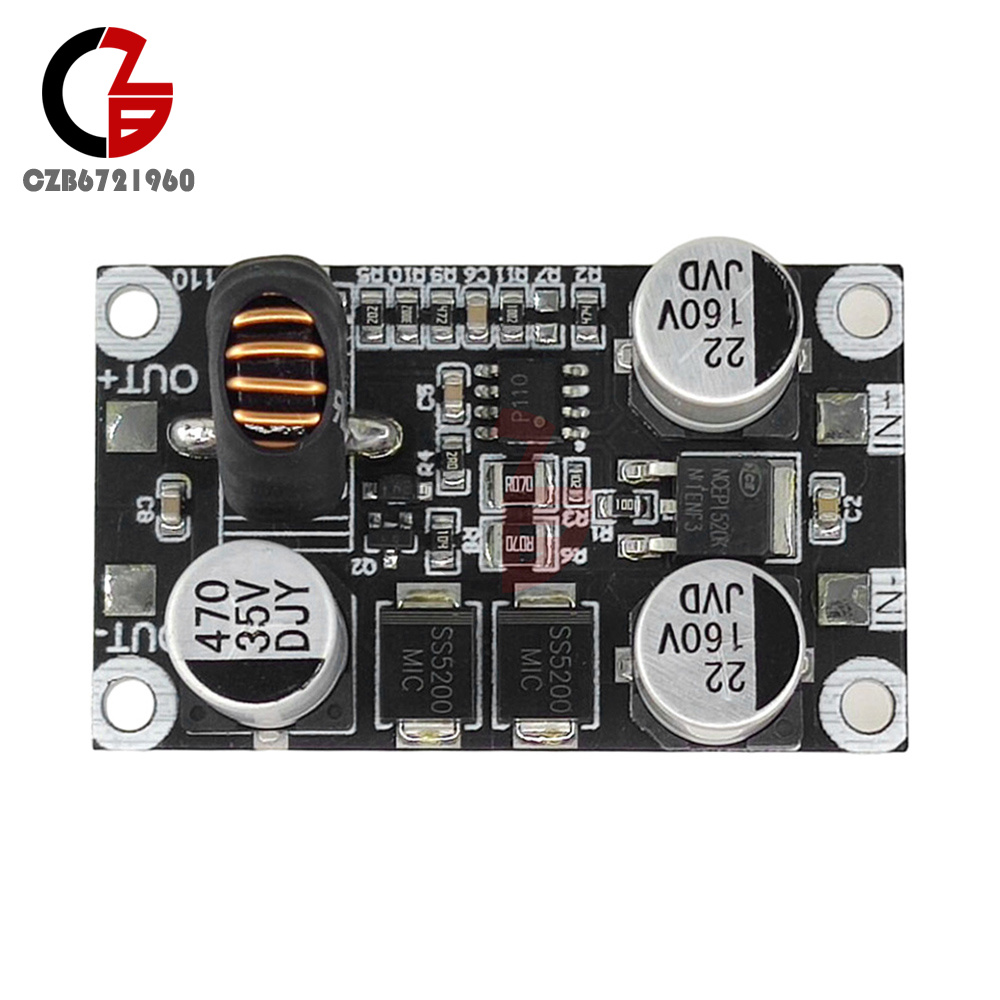

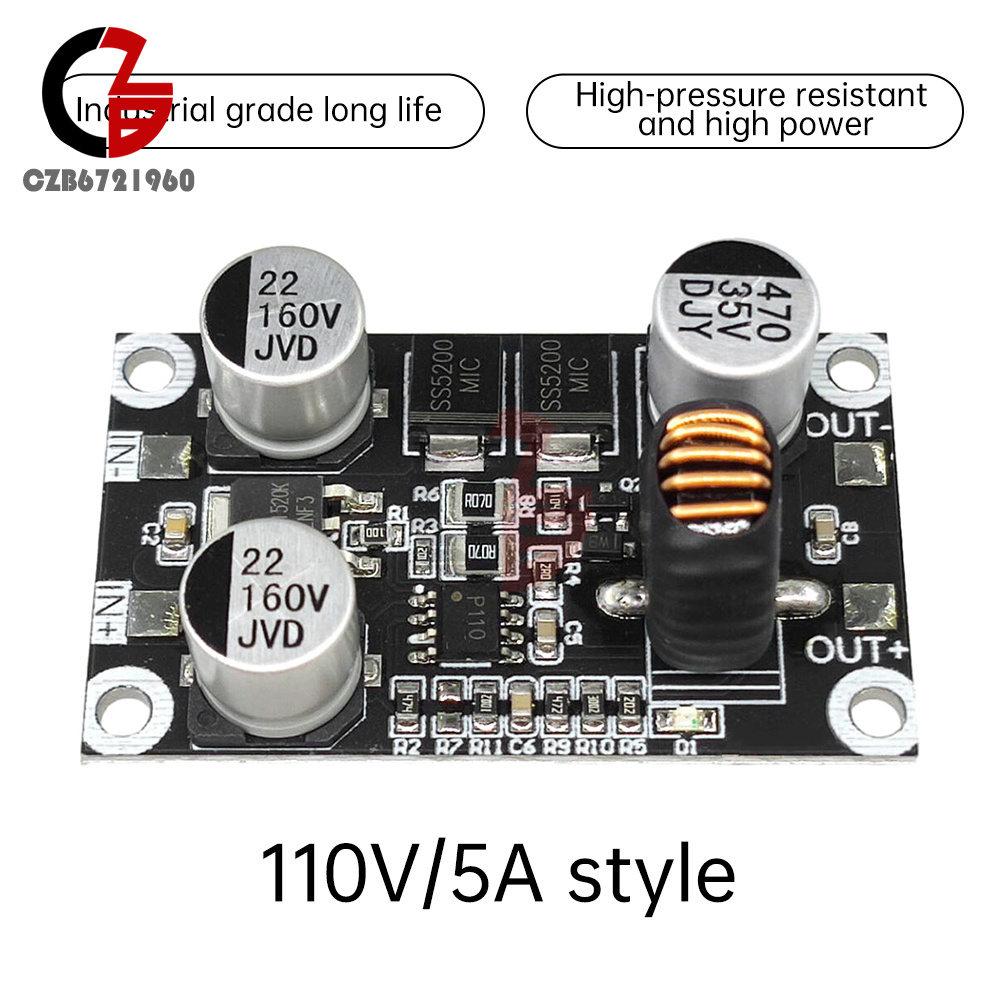

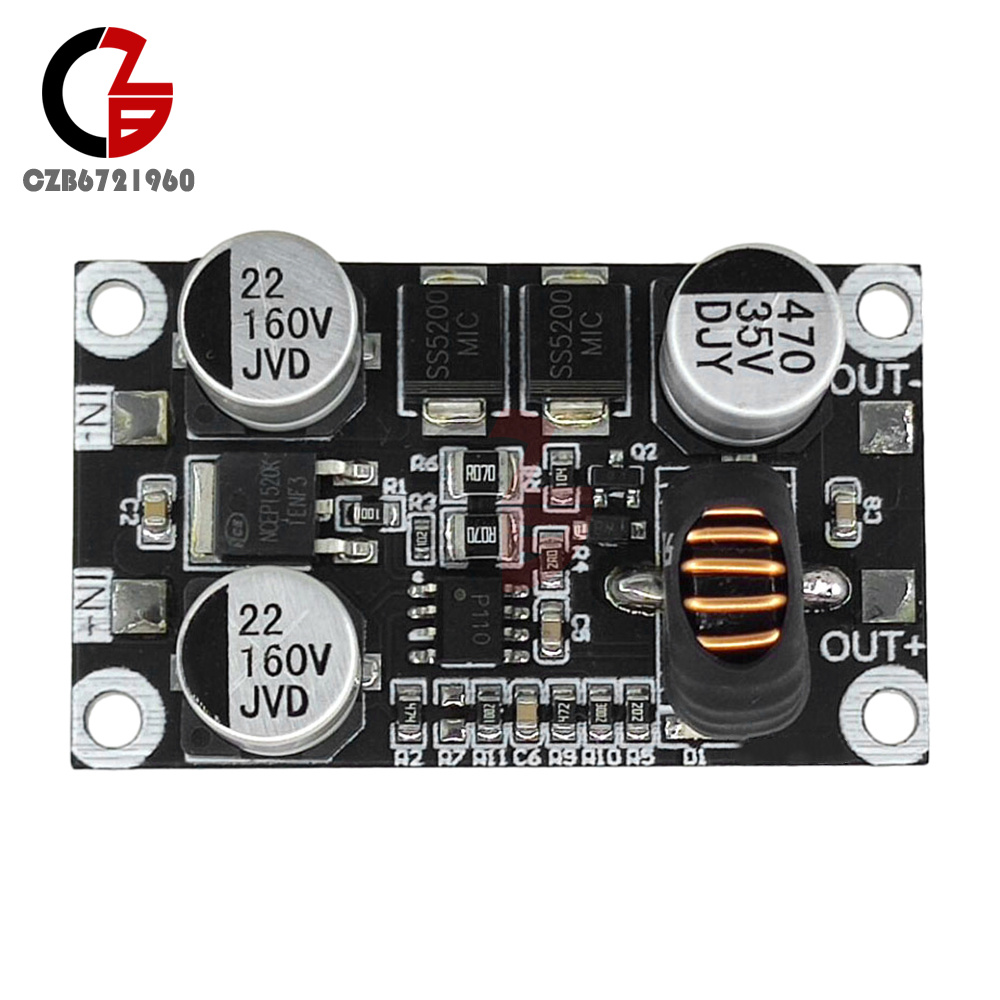

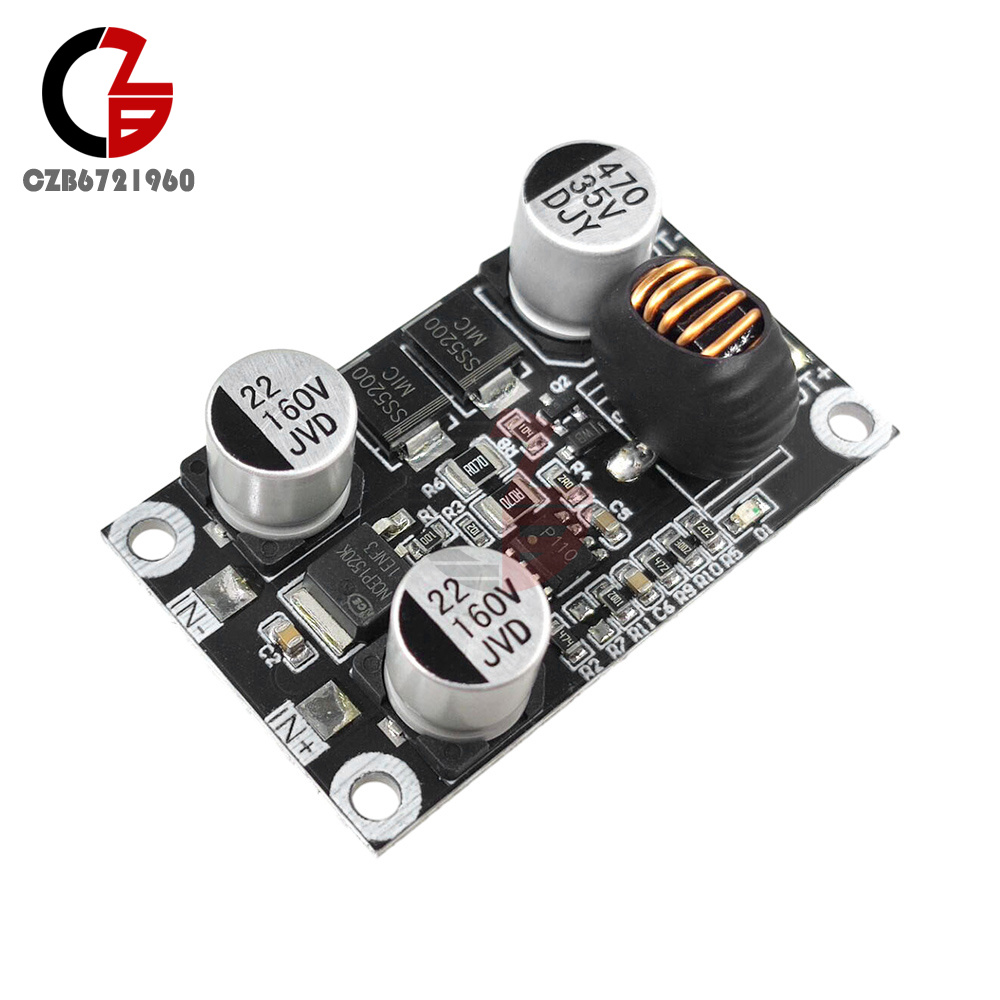

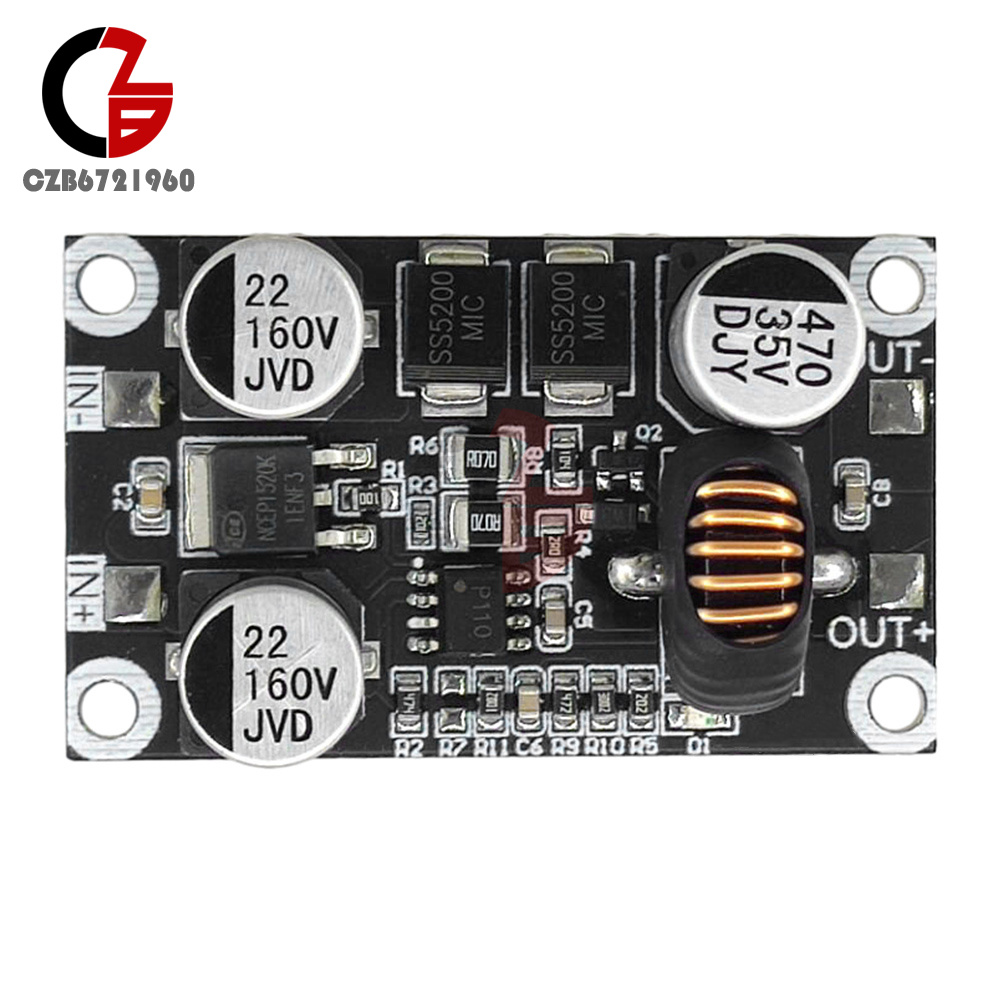

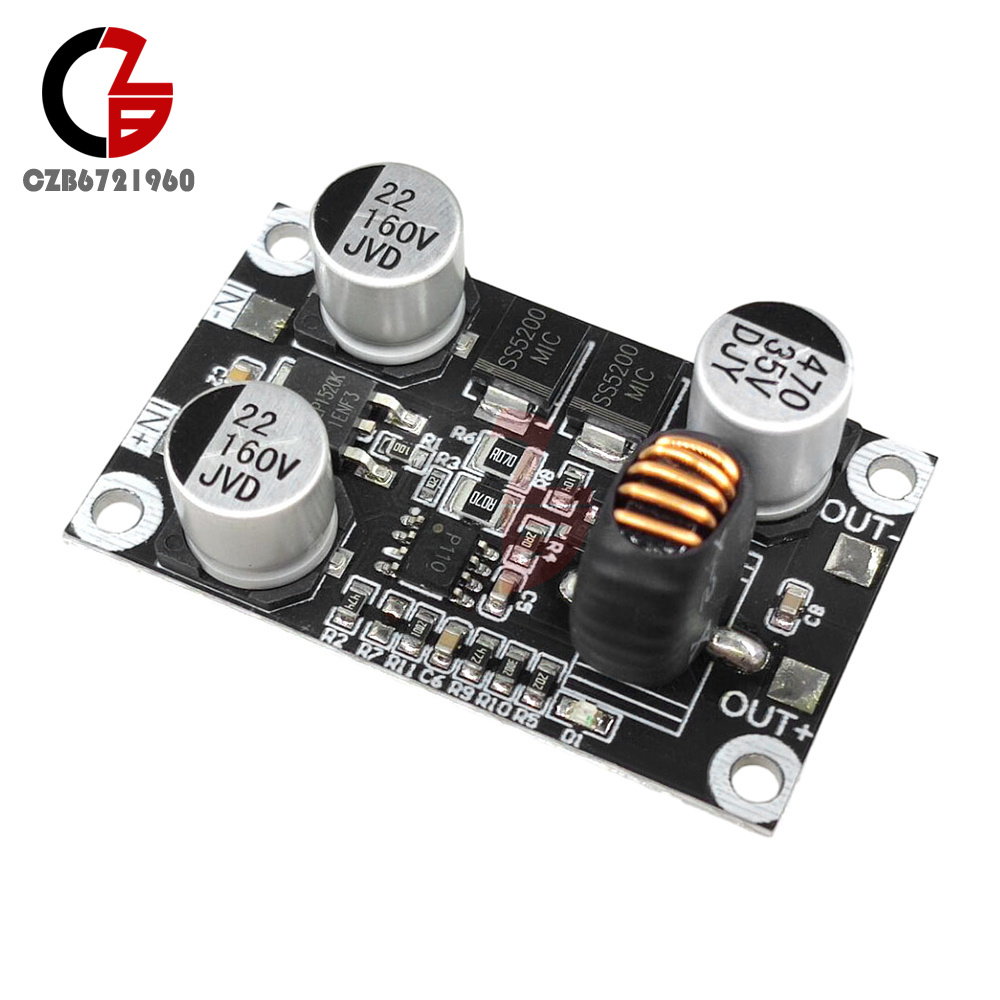

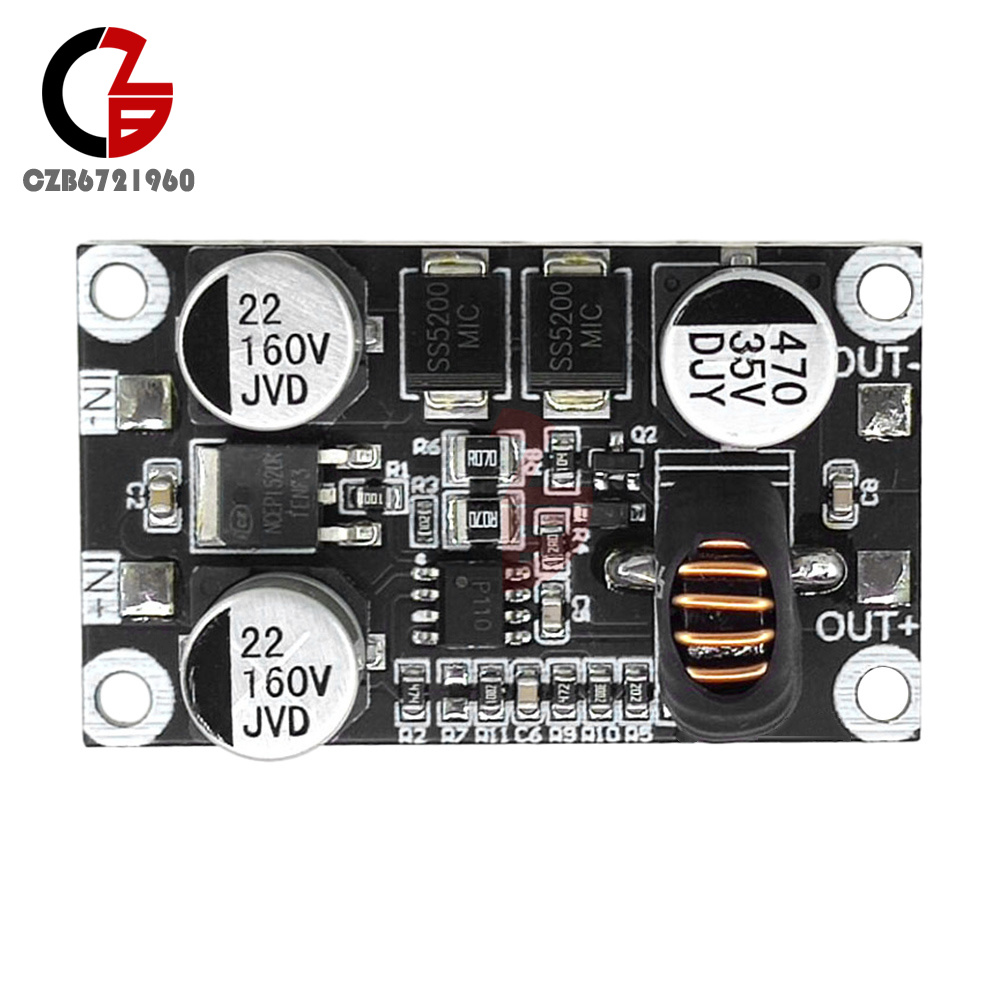

Product Introduction
Features:
1. The product uses industrial-grade chips, built-in multiple intelligent protection functions.
2. Power supply life and use temperature, the lower the temperature, the longer the life; module using aluminum base plate, heat dissipation performance is far better than ordinary composite board, the corresponding life is greatly improved!
3. Product performance and stability of the price is high, in the same power to use, higher efficiency, lower heating
4. Lightweight appearance, high sensitivity and long service life.
5. The product can be widely used in industrial power supply, control system, solar power supply equipment, electric vehicle converter, lighting circuits and other safety applications.
Parameter:
Input voltage: 10V-110V (buck type)
Output voltage: 5V/9V/12V/24V
Output current: ≤5A
Maximum output power: ≤60W (current ≤5A)
Conversion efficiency: ≤95% the smaller the pressure difference, the higher the efficiency
Input and output pressure difference: ≥25V (need to pay attention)
Operating Temperature: -40℃~+85℃
No-load current: 5-10mA
Over-current protection: YES
Over-voltage protection: YES
Short circuit protection: YES
Under voltage protection: YES
Heat dissipation mode: aluminum plate natural heat dissipation

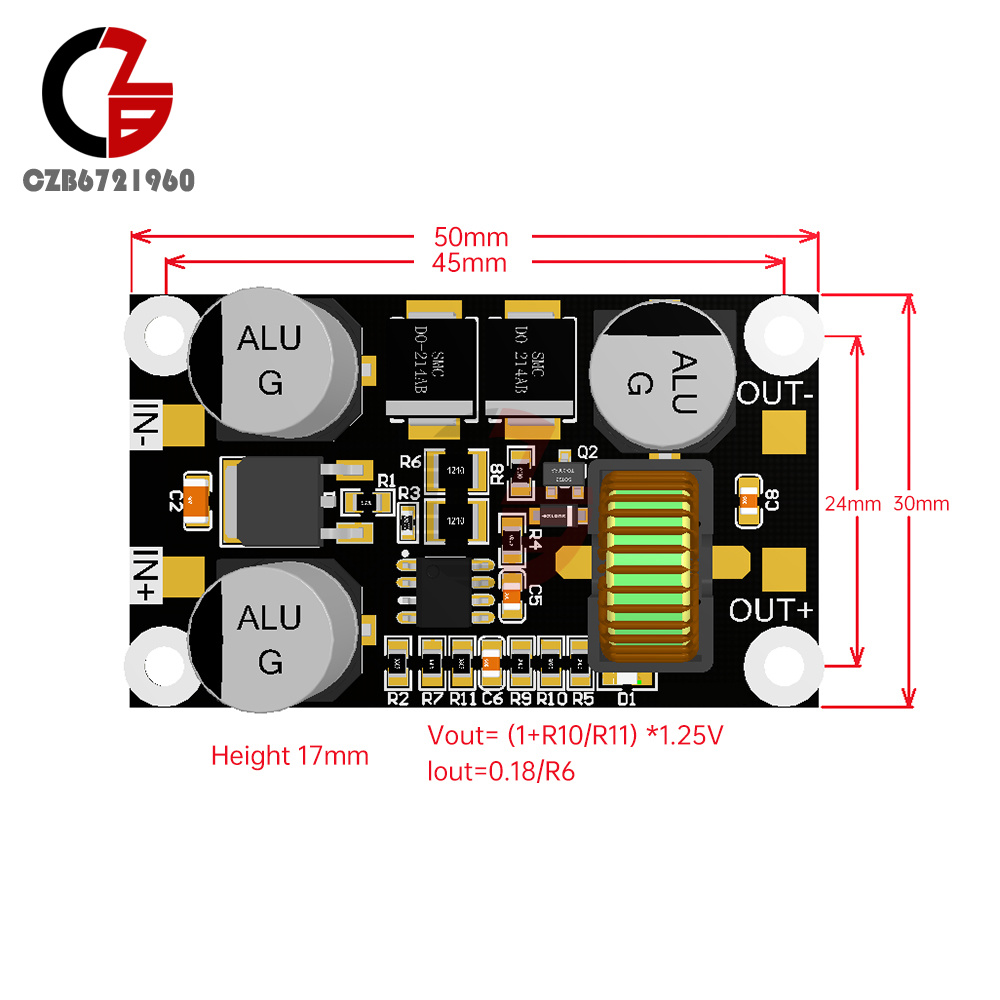

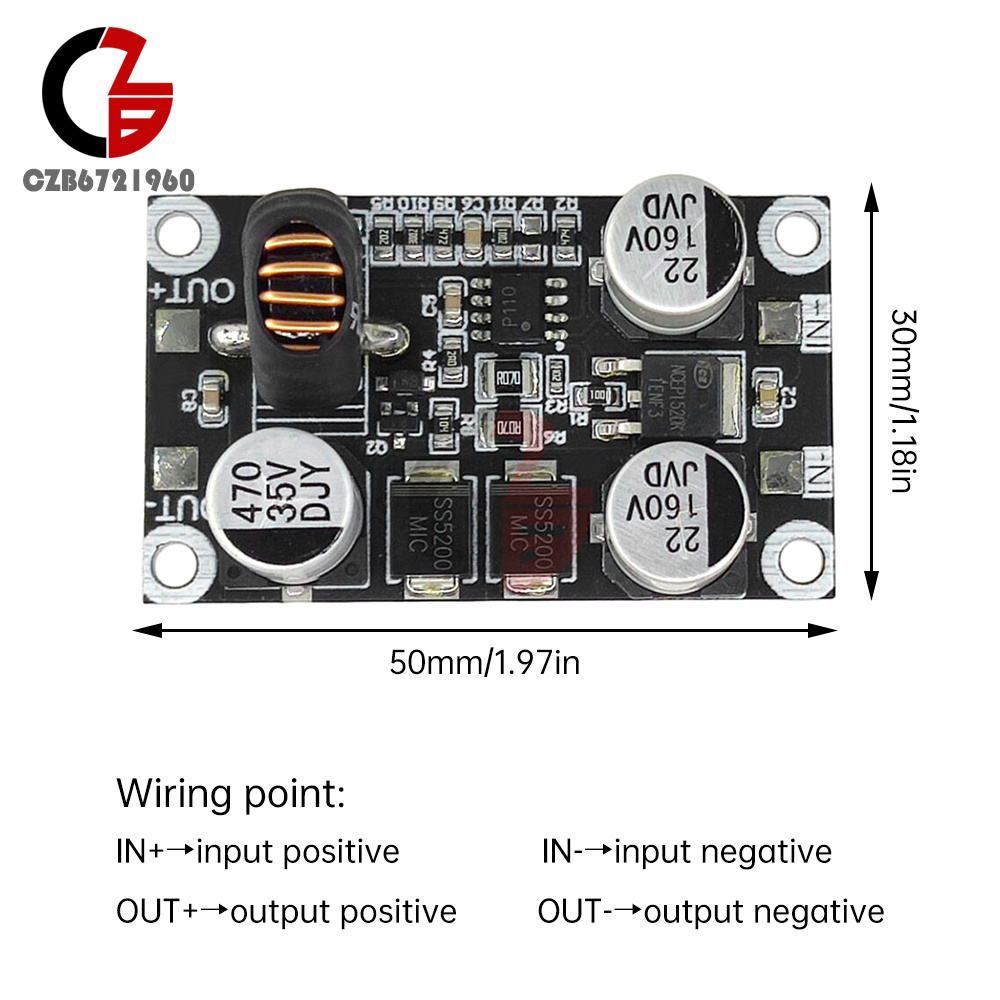

Overall Dimension: 50*30*17MM
Note: The power supply power rating and heat is closely related to the power to do the more power, the better the design of heat dissipation and component efficiency selection, that is, if you use 2A current, you choose 3A power supply and choose 5A power supply can be used, but 3A power supply temperature is higher than 5A power supply, the life expectancy will be greatly reduced. Considering the service life it is recommended to choose a higher current.
Package include:
Buck Module *1
