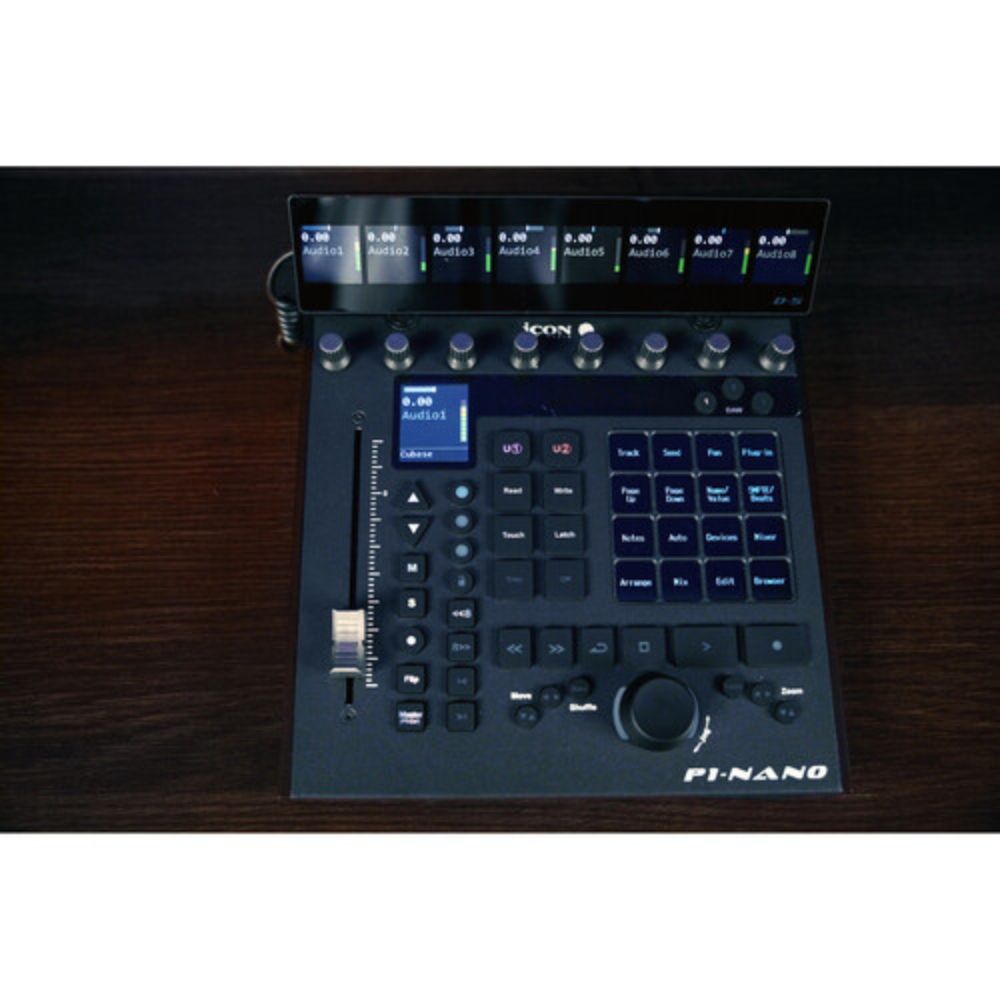

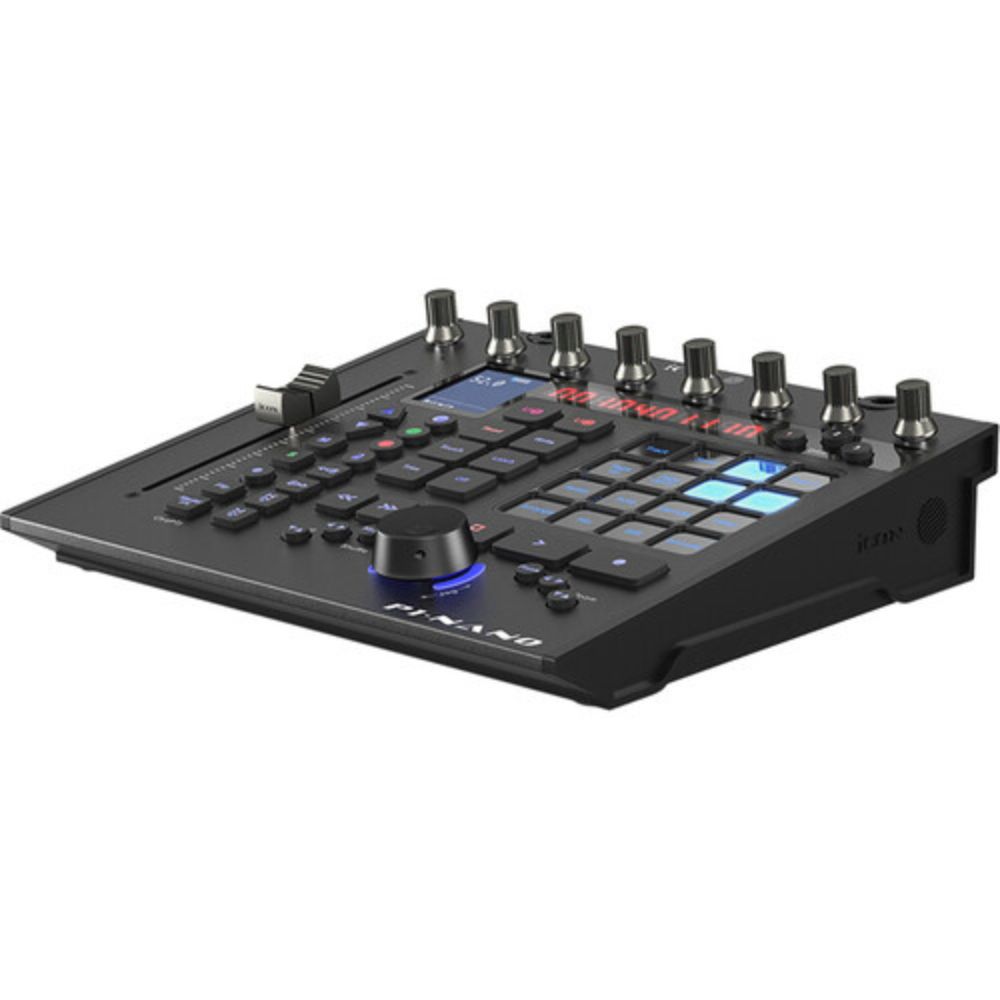

Icon Pro Audio P1-Nano Compact DAW Control Surface
Well suited for home and project studios, the Icon P1-Nano is a compact, powerful, and feature-rich DAW controller with a 4" 16-panel, programmable digital touchscreen, one motorized fader, eight dual-function encoder knobs, multiple simultaneous DAW control, highly advanced software, easy plug-in control, and an intuitive, intelligent design. Connect up to three DAWs at the same time and assign up to 80 functions per DAW to the touchscreen and speed up your workflow.

A Compact, Single-Fader DAW Controller
  • Hands-on control: the P1-Nano provides a single 100mm motorized fader with 12-bit resolution to give you tactile control over your DAW's virtual faders.
  • Customizable touchscreen: the 4" 16-panel customizable touchscreen display features 5 color-coded layers display up to 80 commands that can be used to control your DAW and match your specific workflow. Access essential controls with ease, all without diverting your focus from the mix.
  • Use the iMAP software to drag and drop DAW functions onto the touchscreen for quick and easy customization.
  • Illuminated transport and automation controls allow you to see the buttons even in a dark room.
  • Seamless DAW integration: compatible with leading DAWs like Bitwig, Cubase/Nuendo, Logic Pro X, Ableton Live, and Pro Tools, the P1-M ensures seamless compatibility with your preferred software. Plus, work with up to three DAWs simultaneously, ensuring a smooth and uninterrupted creative experience.

Recording and Mixing

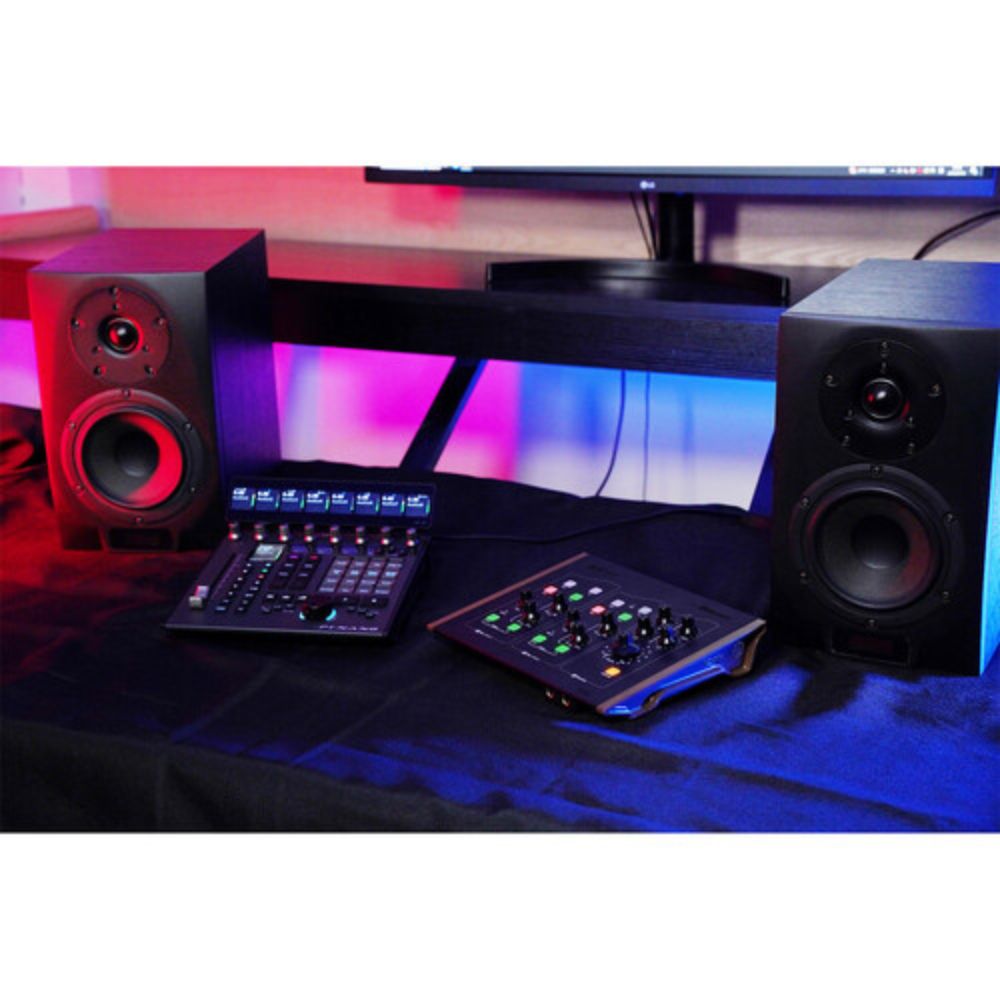

No matter the size of your studio, the P1 Nano is the perfect controller. Use it as the center of your project studio, or use it as the DAW controller that feels right at home on your large-format console.

Content Creation
Enhance control of your content and improve your editing workflow to keep your audience engaged more efficiently.

Music Production
Be creative. The P1 Nano fits snugly into your workspace giving you transport control and DAW functions right at your fingertips.

Postproduction and Sound Design
Use the eight encoder knobs to control your sound design and MIDI parameters along with your plugins and your DAW.

At a Glance
  • 1 x touch-sensitive motorized fader with 12-bit resolution
  • Programmable 4", 16 panel-digital touchscreen showing DAW functions per 5 color modes—a potential total of 80 displayable and actionable functions
  • Organize DAW functions in the 16-panel touchscreen easily via drag and drop in the iMAP—changes made in real time
  • Connect up to 3 DAWs at one time via the DAW select buttons
  • Extremely compact, durable, and versatile
  • Onboard display showing channel name, control values, metering, and more
  • 12-segment LED display shows timecode or location of your project in either SMPTE or beat clock (bars:beats:ticks) formats
  • Smooth-action jog wheel shuttle for fast search, scrub, and control
  • Illuminated function buttons for Read, Write, Touch, Latch, Trim, and Off—activated/deactivated as required per DAW
  • Illuminated buttons for channel control including Mute, Solo, and Record
  • 6 illuminated transport buttons including Play, Stop, Rec, Rewind, Fast Forward, and Loop
  • Dedicated Flip and Master buttons for fader flipping and access to the master channel
  • Illuminated Zoom button with 2 directional keys (Left/Right & Up/Down)—used in combination with the jog wheel
  • Illuminated Focus button which allows the user to focus in and adjust plug-in and EQ parameters etc. via the smooth-action jog wheel
  • 2 illuminated Track buttons for selecting individual channels
  • 2 illuminated Bank buttons for shifting 8 channels at a time
  • Supports Universal Mackie Control and HUI protocols for seamless integration with compatible music production software
  • Supports Ability, Audition, Ableton Live, Bitwig, Cakewalk, Cubase/Nuendo, Digital Performer, FL Studio, Mixbus 32C, Pro Tools, Logic Pro, Reaper, Reason, Samplitude, Studio One, and Tracktion Waveform
  • iMap software downloadable from website product page
  • USB-C high-speed connectivity
  • Firmware upgrade available via USB-C connection and iMap software
  • User A and User B 1/4" inputs for connecting footswitch pedals
  • Optional D5 display unit (available separately)
  • Class-compliant with MacOS 10.15 or above & Windows 10 or above
  • Superior build quality and robust metal casing with Kensington lock port

    • Box Contains

      Icon Pro Audio P1-Nano Compact DAW Control Surface
    • 1 x USB-C Cable
    • 1 x Power Adapter

    Box Contains

      Icon Pro Audio P1-Nano Compact DAW Control Surface
    • 1 x USB-C Cable
    • 1 x Power Adapter

    BrandiCON Pro Audio
    ModeliCON Pro Audio P1NANO
    MPNICP1NANO
    Panel TypeTFT LCD
    Display Size4
    TouchscreenYes
    USB I/O1 x USB-C Female Input/Output
    Mobile App CompatibleNo *As of December, 2023: Check with manufacturer for the most up-to-date compatibility
    Power SourceAC Adapter with Power Brick
    DC Input Power5 VDC
    Operating Current0.9 A
    Environmental ProtectionNo
    ColorBlack
    Cable LengthNot Specified by Manufacturer
    Dimensions8.4 x 7.7 x 2.4 / 213 x 196 x 60 mm
    Weight1.97 lb / 0.89 kg
