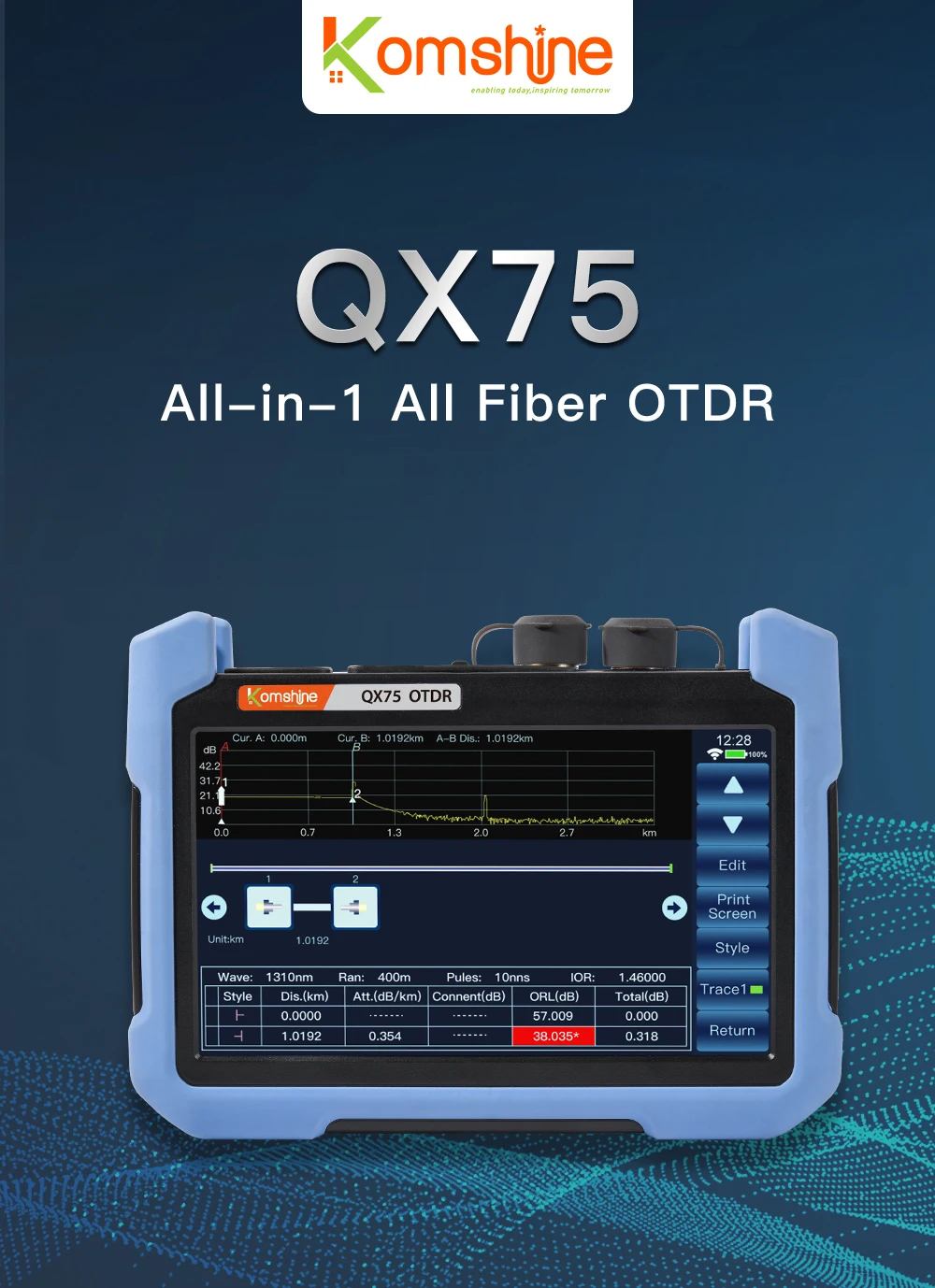

Komshine QX75-M Fiber OTDR 850/1300nm 23/21dB with VFL,Power Meter, Free Cleaner
Attention:
With a short 0.5m dead zone the QX75 is designed for FTTx application. It can test the length, fiber loss connector loss and other physical characteristics of fiber. it can locate events on fiber cables precisely. It is really the tool of choice for FTTx application installation and maintenance as well as for fiber R&D and producing testing. QX75 rugged design, lightweight and easy operation, as well as the low-reflection LCD and more than 10 hours battery life make it be perfect in filed testing. Meanwhile, Its two USB & SD interfaces help to store and transfer traces easily and conveniently.

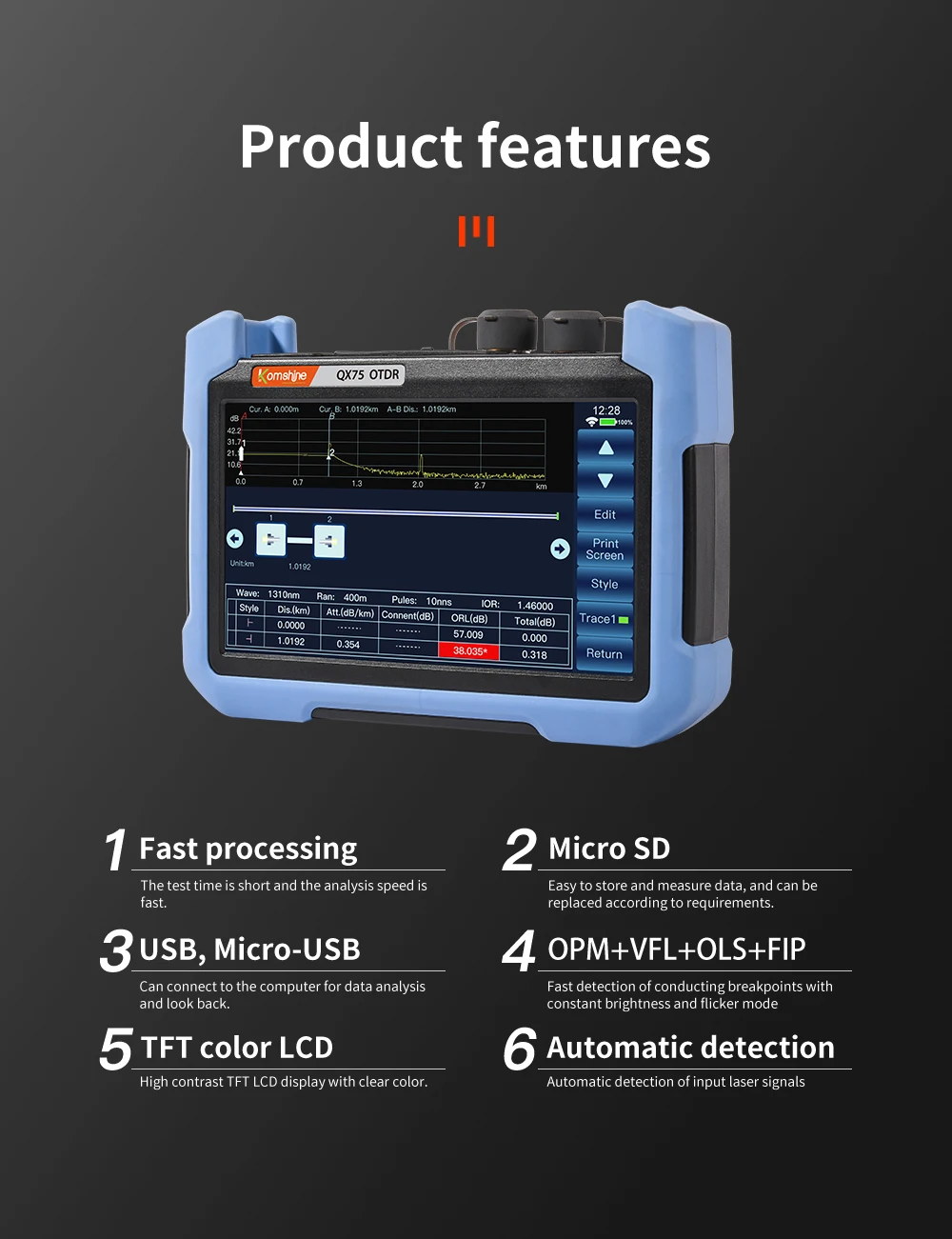

Features for QX75 OTDR:

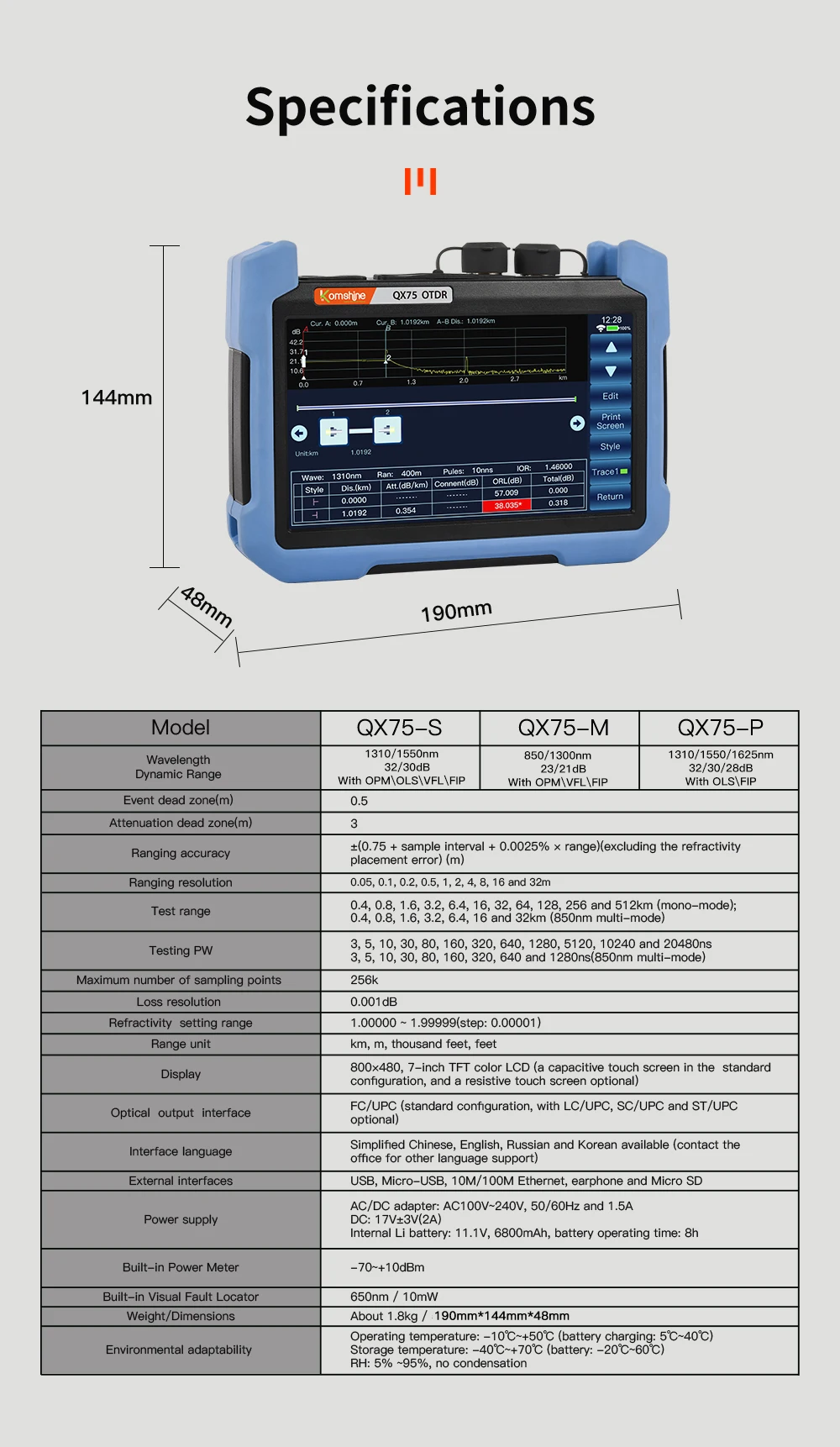

Specifications:
Pulse width (ns) | = | 5,20,40,80,160,320,640,1280,2560,5120,10240,20480 |

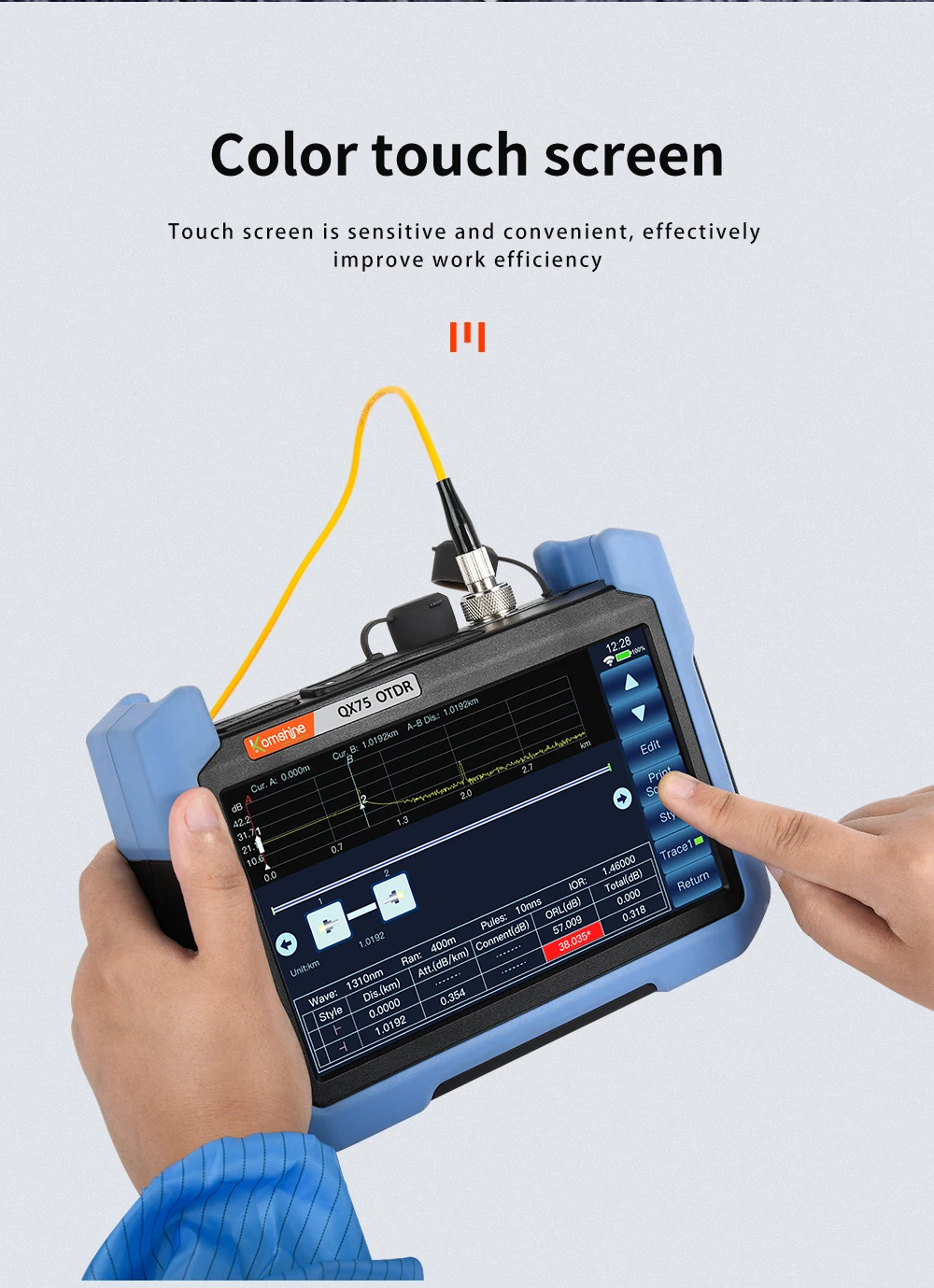

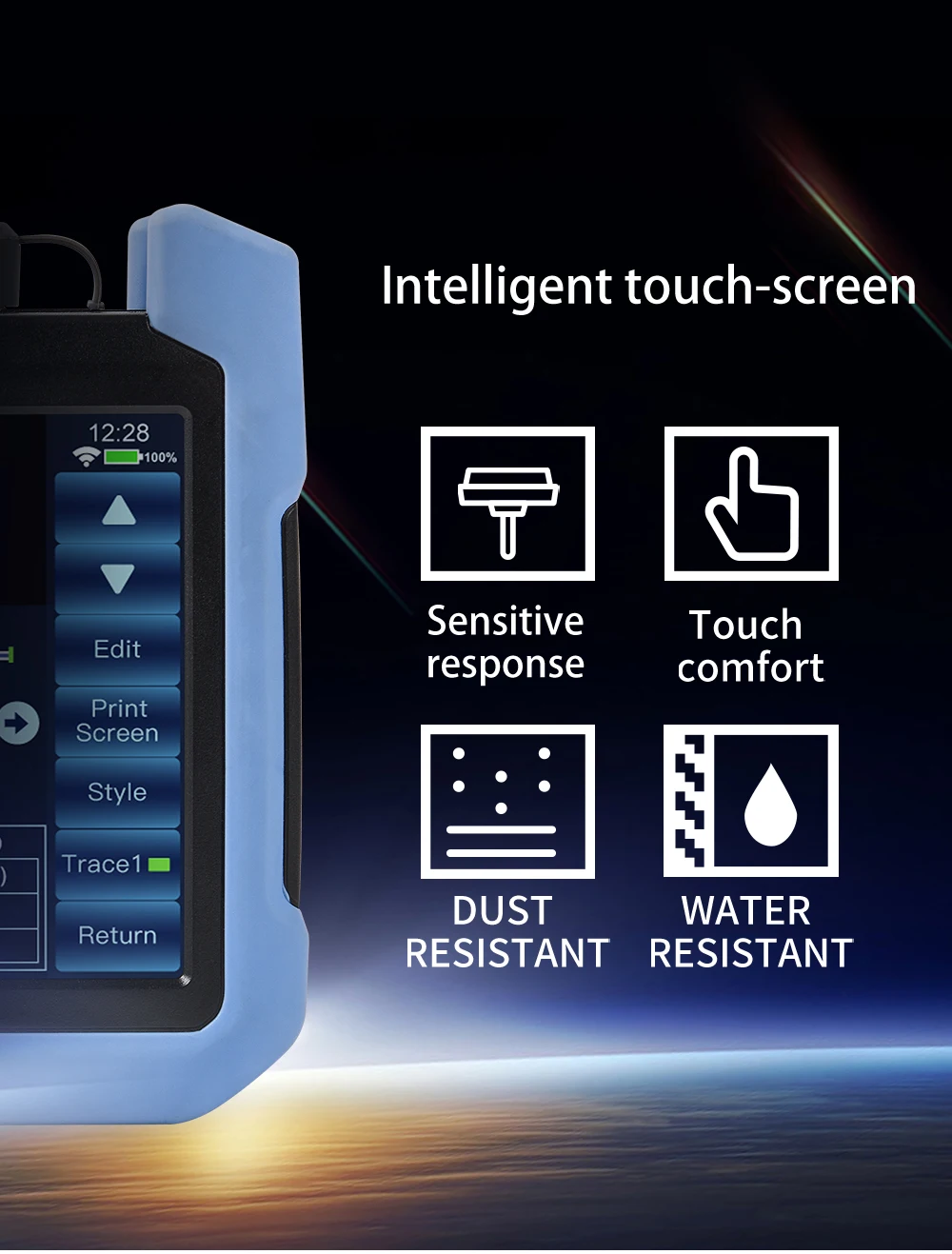

Display | 7 inch TFT Color LCD touch screen | |
Event blind zone (m) | = | 0.5 |
Attenuation blind zone (m) | = | 3 |
Linearity (dB/dB) | = | plusmn0.05 dB/ dB |
Loss threshold (dB) | = | 0.05 |
Loss resolution ratio (dB) | = | 0.001 |
Sampling resolution ratio (m) | = | 0.125 to 8 |
Sampling point | = | 32k |
Distance uncertainty (m) | = | plusmn(1 m + 5times10-5times distance + sampling interval) |
Distance scope (km) | = | 0.3 to180 |
Memory capacity of trace | = | SD Card (8G), > 10000 pieces |
Link Map function | = | Available |
Optical light source | = | unAvailable |
Visual Fault Locator | = | Available |
Optical Power Meter | = | Available |
Power supply | = | Lithium battery; continuing working duration ge 8 hours |
Standard Package:
Item | Name | Quantity |
1 | QX75 OTDR | 1 pieces |
3 | Testing & Calibration Report | 1 pieces |
4 | AC/DC adapter | 1 pieces |
5 | Quality certification | 1 pieces |
7 | Internal Battery | 1 pieces |
8 | User Manual | 1 pieces |
9 | Carrying Case | 1 pieces |
