Disc Brake Rotors and Ceramic Brake Pads for Toyota Corolla 09-19 Front & Rear
Items Description

Make Model Year Engine Location Note
Pontiac Vibe 2009-2010 L4 1.8L Front & Rear 4-Wheel DISC Brake Models Only
Toyota Corolla 2009-2019 L4 1.8L Front & Rear 4-Wheel DISC Brake Models Only
Toyota Corolla 2009-2013 L4 2.4L Front & Rear 4-Wheel DISC Brake Models Only
Toyota Matrix 2009-2014 L4 1.8L Front & Rear 4-Wheel DISC Brake Models Only

Product Features

1 Manufactured with Precision to Meet OE Standards IATF16949 Certified

2 High Quality & Brand New

3 One Year Warranty

4 After Market Replacement

5 Customers Service Center Will Deal with Pre-sale and After-sale Problems In Time

6 Factory Affordable Price with High Quality Service: Return/ Replace/ Offer Technical Support



Product Specifications

Part Number-1: R-31505, 31505, 980629R

Part Number-2: P-1210, MGD1210CH, 30112100, 10512100, BC1210

Part Number-3: R-55159

Part Number-4: P-1354, 19184919, 0446602210, 0446602260, 0446602310, 0446612130

Installation Position: Front & Rear Side

Rotor Material: Cast Iron

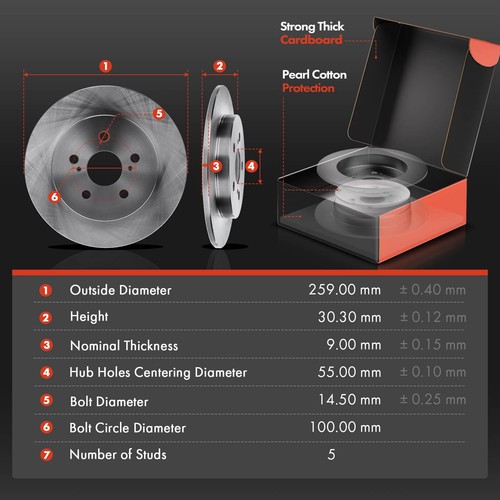

Rotor Outside Diameter (IN): 275(Front),259(Rear)

Rotor Height (mm): 46.5(Front), 30.3(Rear)

Normal Thickness (mm): 22(Front), 9(Rear)

Hub Holes Centering Diameter (mm): 55(Front), 55(Rear)

Number of Studs: 5

Bolt Circle Diameter (mm): 100

Bolt Diameter (mm): 14.5

Min. Thick (Discard)(mm): 19(Front), 7.5(Rear)

Solid Or Vented Type Rotor: Vented(Front),  Solid(Rear)

Pad Friction Material Composition: Ceramic

Pad Friction Material Bonding Type: Bonded

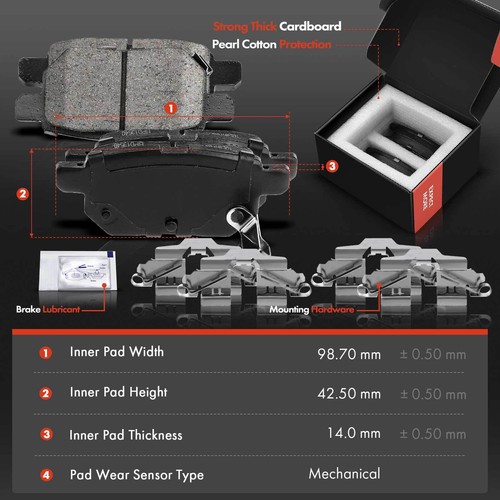

Inner Pad Width(mm): 139.3(Front), 98.7(Rear)

Inner Pad Height(mm): 55.7(Front), 42.5(Rear)

Inner Pad Thick w/o Shim (mm): 17.6(Front), 14(Rear)

Outer Pad Width (mm): 98.7(Rear)

Outer Pad Height (mm): 42.5(Rear)

Outer Pad Thick w/o Shim (mm): 14(Rear)

Slotted: Yes

Mounting Hardware Included: Yes

Pad Wear Sensor Included: No

Brake Lubricant Included: Yes

Quantity Sold: A Set of Twelve Pieces

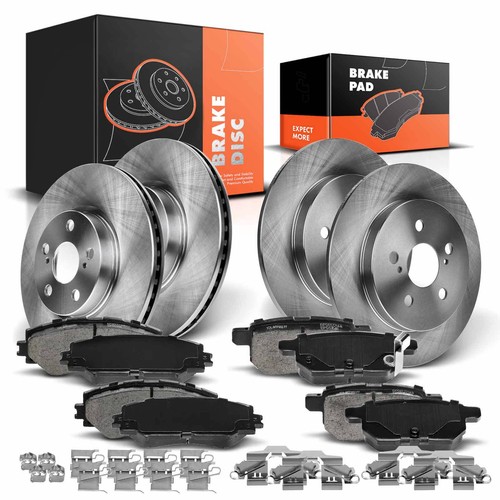

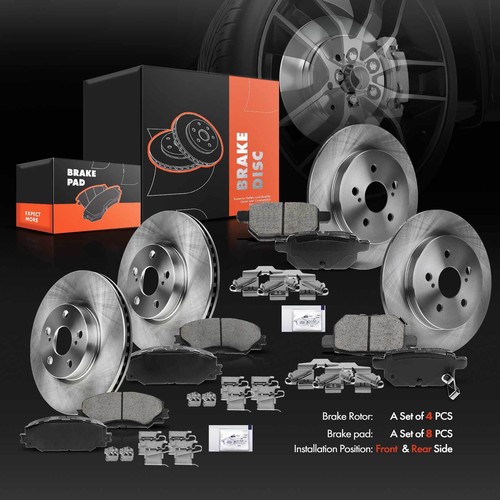

Note-1: Front & Rear Disc Rotor and Ceramic Brake Pad

Note-2: 2019 Toyota Corolla fit L4 1.8L Only.

Note-3: Fit 4-Wheel DISC Brake Models Only, not fit Rear Wheel Drum Brake Model
